AG-Series vs Standard Button Batteries: Key Differences

Button batteries are small, lightweight, and widely used in everyday electronic devices. From calculators and thermometers to toys, LED lights, watches, and measuring instruments, these compact power sources play an important role in modern electronics.

Among the many button battery types available on the market, AG-series batteries are particularly common. Models such as AG3, AG10, AG12, and AG13 can be found in a wide range of small electronic products.

However, AG-series batteries are sometimes confused with other standard button batteries, especially LR-series alkaline cells and SR-series silver oxide cells. Although some of these batteries may have similar dimensions, their chemistry, voltage characteristics, capacity, and applications can be different.

Understanding these differences can help consumers, distributors, OEM manufacturers, and purchasing managers select the correct battery for their products.

1. What Are AG-Series Batteries?

AG-series batteries are generally alkaline button cells. They are designed for compact electronic devices that require a small and reliable 1.5V power source.

Common AG models include:

Actual specifications can vary slightly between manufacturers. For example, manufacturer data commonly lists AG10 at around 11.6 × 3.1 mm, AG12 at 11.6 × 4.2 mm, and AG13 at 11.6 × 5.4 mm.

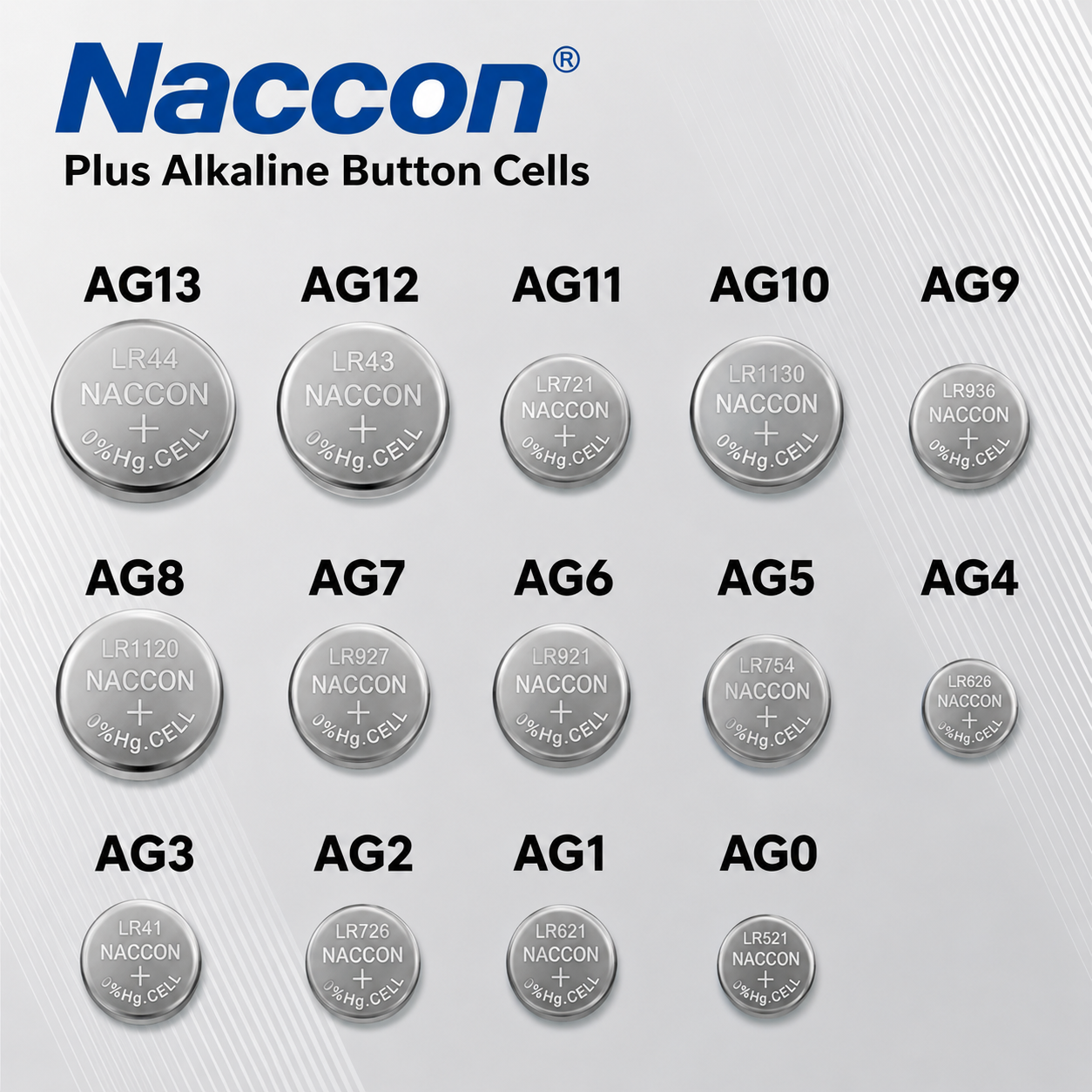

2. AG-Series Batteries and LR-Series Batteries

One of the most important points to understand is that AG and LR often refer to the same alkaline button-cell size.

For example:

• AG3 → LR41

• AG10 → LR1130

• AG12 → LR43

• AG13 → LR44

The different names are often used by different manufacturers, distributors, and markets.

For general replacement purposes, however, users should still check the voltage, chemistry, dimensions, and device requirements instead of relying only on a cross-reference number.

3. AG13 and LR44: One of the Most Popular Button Cells

AG13/LR44 is one of the most widely used alkaline button battery sizes.

A typical AG13/LR44 battery has a diameter of approximately 11.6 mm, a height of approximately 5.4 mm, and a nominal voltage of 1.5V. Manufacturer specifications commonly place its capacity in the approximate 130–150 mAh range, depending on testing conditions.

Typical applications include:

• Digital thermometers

• Calculators

• Small toys

• LED lights

• Electronic devices

• Small measuring instruments

AG13/LR44 Battery

4. AG10/LR1130: A Thinner Button Battery

AG10, commonly associated with LR1130 or LR54, is thinner than AG13.

Its typical dimensions are approximately 11.6 mm in diameter and 3.1 mm in height. Manufacturer specifications commonly list its capacity at around 65–80 mAh, depending on the product and testing method. (台灣麥克賽爾)

Because of its thinner design, AG10 is often selected for compact devices where available battery space is limited.

Typical Applications

AG10/LR1130 batteries can be found in:

• Calculators

• Small electronic toys

• Compact LED products

• Small electronic instruments

• Low-power consumer devices

AG10/LR1130 Battery

The most important difference between AG10 and AG13 is not their diameter but their height and available capacity.

5. AG12/LR43: A Middle-Thickness Option

AG12 is commonly cross-referenced with LR43.

Its approximate dimensions are 11.6 mm × 4.2 mm, placing it between AG10 and AG13 in thickness.

Typical manufacturer specifications place AG12 capacity around 95–110 mAh, although the exact rated capacity depends on the manufacturer and discharge conditions.

AG12/LR43 Battery

AG12 is therefore useful for electronic products that require a little more capacity than a thinner AG10 while still using a compact button-cell format.

6. AG-Series vs Other Standard Button Batteries

AG-series batteries should also be distinguished from other button-cell chemistries.

The most common comparison is between alkaline AG/LR batteries and silver-oxide SR batteries.

Although an AG/LR battery and an SR battery may have similar dimensions, they are not chemically identical. Therefore, users should always follow the battery specification recommended by the equipment manufacturer.

7. Physical Size Is Extremely Important

Button batteries may look almost identical at first glance, but their dimensions can be significantly different.

Consider AG10, AG12, and AG13:

The diameter is almost the same, but the height changes considerably.

This is why an AG10 battery should not simply be replaced with an AG13 because both have approximately the same diameter. The additional thickness may prevent the battery compartment from closing correctly or may create an improper electrical connection.

8. Capacity Comparison

Battery capacity is another important factor when comparing AG-series batteries.

The larger physical volume of a button cell generally allows it to contain more active material. As a result, thicker batteries such as AG13 typically have a higher rated capacity than thinner batteries such as AG10.

These values are representative rather than universal. Capacity depends on battery construction, manufacturer, discharge current, cutoff voltage, and testing conditions. (NovaCell)

9. Where Are AG-Series Batteries Used?

AG-series batteries are particularly suitable for low-power and compact electronic devices.

Calculators

AG10 and similar thin button cells can provide a compact power source for many calculators.

Thermometers

AG13/LR44 is commonly used in digital thermometers and other small electronic measuring products.

Toys

Small electronic toys frequently use AG-series batteries because they are compact and relatively economical.

LED Products

Small LED lights and decorative electronic products can also use AG batteries.

Electronic Instruments

Depending on the manufacturer's requirements, AG-series batteries can be used in various small electronic instruments.

10. AG vs. SR: Which One Is Better?

There is no universal answer to which battery is "better."

The correct battery depends on the application.

AG/LR alkaline batteries are attractive when:

• Cost is an important consideration

• The device has relatively simple power requirements

• A 1.5V alkaline battery is specified

• The application does not require an especially flat discharge curve

SR silver-oxide batteries can be preferable when:

• Stable voltage is important

• The device is a precision instrument

• Consistent performance is required over a larger part of the discharge cycle

For this reason, a more expensive silver-oxide battery should not automatically be considered a direct replacement for an AG/LR alkaline battery.

11. How to Choose the Correct AG Battery

Before purchasing an AG-series battery, check these five factors:

1. Model Number

Confirm whether the device requires AG10, AG12, AG13, or another model.

2. Dimensions

Check both diameter and height.

3. Voltage

Most AG-series alkaline batteries have a nominal voltage of 1.5V.

4. Chemistry

Make sure the replacement uses the chemistry specified by the device manufacturer.

5. Capacity

If long operating time is important, compare the rated capacity under comparable test conditions.

12. Why Quality Matters for Button Batteries

For wholesalers, importers, and OEM buyers, battery quality is just as important as the model number.

A reliable button battery supplier should provide consistent:

• Voltage

• Capacity

• Dimensions

• Sealing performance

• Leakage resistance

• Shelf life

• Packaging

• Production quality

For large-volume orders, buyers should also consider batch consistency and quality-control procedures.

13. Final Comparison

AG-series batteries are popular because they provide an economical and compact solution for many everyday electronic products.

The following table summarizes the main differences:

Conclusion

AG-series button batteries are an important part of the global small-battery market. Their compact size, 1.5V output, and relatively low cost make them suitable for a wide range of consumer electronics.

The most important thing to remember is that AG and LR designations often refer to equivalent alkaline battery sizes, while SR batteries use a different chemistry and can provide different discharge characteristics.

When choosing a button battery, do not look only at the appearance. Always check the model number, dimensions, voltage, chemistry, capacity, and intended application.

For distributors and OEM manufacturers, selecting a reliable battery supplier is equally important. Consistent dimensions, stable electrical performance, good sealing, and dependable quality control can make a significant difference in the final performance of the electronic product.

In short, the best button battery is not simply the one that fits—it is the one that matches the electrical and physical requirements of the device.
