As one of the most widely used small portable power sources, LR03 alkaline batteries (commonly known as AAA batteries) are favored for their compact size, stable performance, and wide applicability. The reliable quality and excellent performance of LR03 batteries are not accidental, but the result of strict production processes, standardized quality control systems, and scientific performance evaluation indicators. This article systematically elaborates on the full production process of alkaline LR03 batteries, the core quality standards that must be followed, and the key performance indicators that measure their performance, combining specific industrial data and international standards to help readers comprehensively understand the technical connotation and quality assurance system of LR03 alkaline batteries.
The production of alkaline LR03 batteries is a complex and precise systematic project, involving 10+ core processes, from raw material selection to finished product testing. The entire process requires strict control of temperature, humidity, and process parameters to ensure the consistency and stability of battery performance. A fully automated production line can complete all processes from positive electrode ring pressing to final sealing, with an efficiency of up to 800 pieces per minute.
High-quality raw materials are the premise of producing high-performance LR03 batteries. The core raw materials include positive electrode materials, negative electrode materials, electrolyte, separator, and shell, each of which has strict selection standards:
Positive Electrode Materials: High-purity manganese dioxide (MnO₂) and graphite are the main components. Manganese dioxide with a purity of more than 90% is selected as the oxidizing agent, and graphite is added as a conductive agent to enhance electron transfer efficiency. The two are mixed uniformly to form a black granular material for subsequent pressing.
Negative Electrode Materials: High-purity zinc powder (purity ≥99.9%) is used, which is processed into a porous structure to increase the contact area with the electrolyte. Sometimes titanium additives are added to improve the reactivity of the zinc powder, ensuring stable electron release during the reaction.
Electrolyte: A concentrated potassium hydroxide (KOH) solution with a mass fraction of 30% to 40% is prepared, which has high ionic conductivity. The preparation process uses precision metering pumps to ensure the accuracy of the concentration, with an error of no more than ±0.1g.
Separator: A porous insulating membrane (usually made of nylon or polypropylene) is selected, which has high porosity and good ion permeability, ensuring that hydroxide ions can pass freely while separating the positive and negative electrodes to prevent short circuits.
Shell and Sealing Materials: A thin steel shell is used as the positive current collector, which is corrosion-resistant and has good electrical conductivity. The sealing materials include special nylon plugs and imported sealants to ensure tight sealing and prevent electrolyte leakage.
The production process of LR03 alkaline batteries is divided into 12 key stages, each of which has strict process requirements and quality control points:
Positive Electrode Ring Pressing: The mixed positive electrode material (manganese dioxide + graphite) is pressed into cylindrical rings by a press. Each LR03 battery usually requires 3 positive electrode rings, which are pressed with uniform density to ensure consistent conductivity and reaction efficiency.
Steel Shell Pretreatment: The steel shell is cleaned and dried to remove surface oil and impurities, then the inner wall of the shell bottom is coated with sealant to lay the foundation for subsequent sealing.
Positive Electrode Ring Installation: The pressed positive electrode rings are sequentially loaded into the steel shell, and the gap between the rings is filled to ensure close contact and avoid poor contact affecting current output.
Separator Insertion: A paper strip is rolled into a small tube and sealed at the bottom to form a separator, which is then inserted into the middle of the positive electrode rings to separate the positive and negative electrodes.
Electrolyte Injection: The prepared KOH electrolyte is injected into the steel shell through a precision metering device. The electrolyte is absorbed by the separator and the positive electrode rings, and the absorption process takes about 40 minutes to ensure uniform distribution of the electrolyte.
Negative Electrode Gel Injection: Zinc powder, KOH electrolyte, and zinc oxide are mixed to form a zinc gel, which is injected into the inner part of the separator. The injection amount is precisely controlled to ensure the battery’s capacity and performance consistency.
Current Collector Insertion: A brass nail current collector (with a plastic seal ring and metal bottom) is inserted into the zinc gel anode, serving as the negative electrode terminal and ensuring stable current conduction.
Sealing: A combination of hood sealing and spin sealing is adopted to bend the upper edge of the steel shell over the stopper unit, reducing rebound stress and ensuring the tightness of the seal. This step is crucial to prevent electrolyte leakage during storage and use.
Static Aging: The naked batteries are placed in a constant temperature and humidity environment (25℃±3℃, relative humidity 55±5%) for static aging for at least 15 days (extended by 1 week in winter). This process helps to stabilize the internal electrochemical reaction and expose defective batteries (such as leakage and voltage inconsistency).
Initial Testing: The aged batteries are tested for open-circuit voltage, closed-circuit voltage, and short-circuit current. Defective products are automatically rejected by the machine to ensure that only qualified batteries enter the next process.

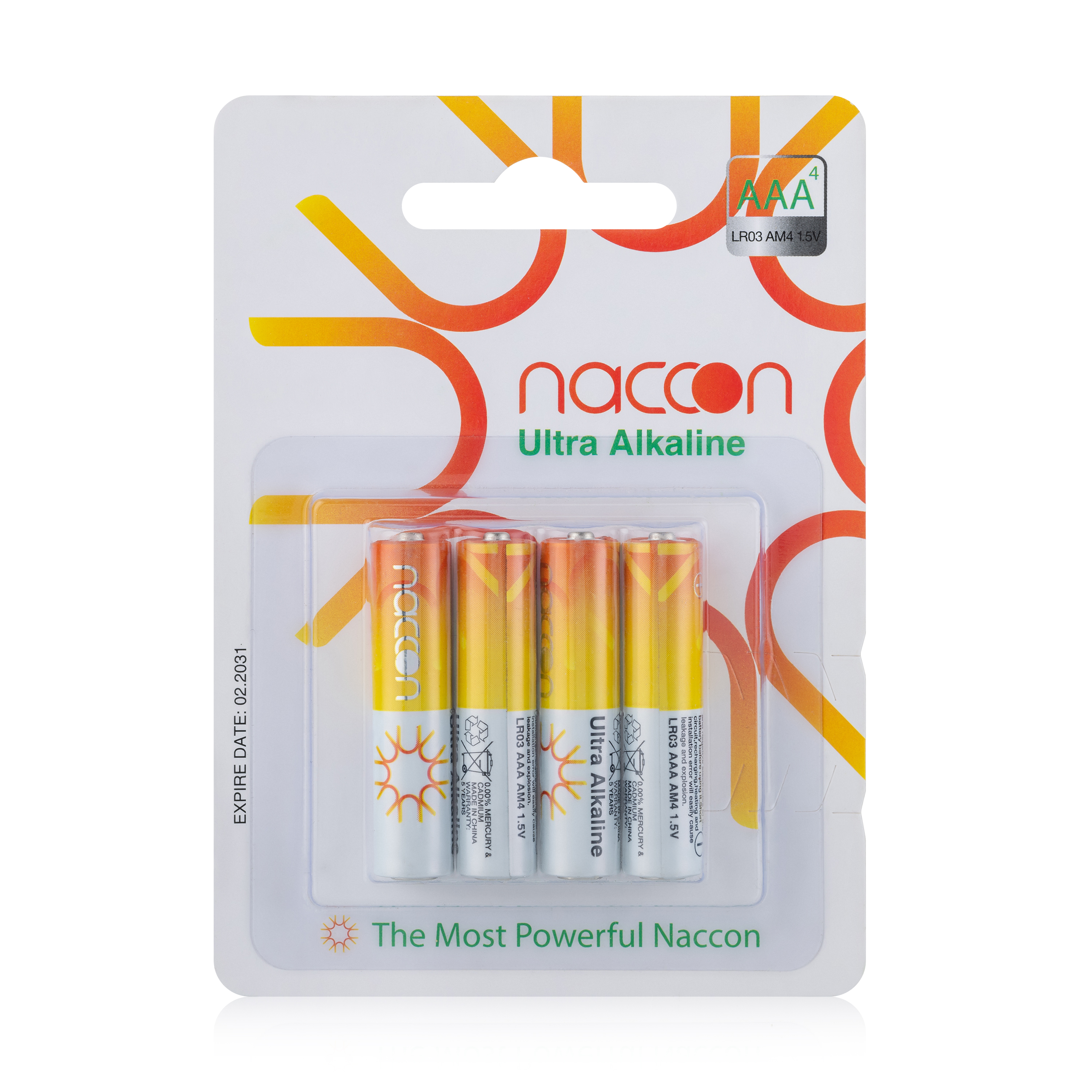

Labeling and Packaging: Qualified batteries are labeled with product information (model, production date, shelf life, brand) and then packaged in blister cards or boxes. The packaging is designed to prevent damage and short circuits during transportation and storage.
Final Inspection and Warehousing: A random inspection is conducted on the packaged finished products according to the sampling standard. The qualified products are put into the warehouse for storage, and the storage environment is required to be cool, dry, and well-ventilated.
The quality of LR03 alkaline batteries is subject to strict international standards and enterprise internal control standards, covering physical dimensions, electrical performance, safety performance, and environmental protection requirements. The core standards include IEC 60086-1, IEC 60086-2, and IEC 60086-5, as well as national standards such as GB 24427-2021.
IEC 60086-1:2021: Specifies the general requirements for primary batteries, including terminology, test methods, and safety requirements, laying the foundation for the quality control of LR03 batteries.
IEC 60086-2:2021: Focuses on the physical and electrical specifications of primary batteries, including the physical dimensions, discharge test conditions, and performance requirements of LR03 batteries. This standard has revised the test methods for LR03 batteries and added common designations, ensuring the standardization of product performance.
IEC 60086-5:2021: Regulates the safety requirements of aqueous electrolyte batteries, including leakage prevention, explosion prevention, and overheating prevention, ensuring the safe use of LR03 batteries.
GB 24427-2021: Limits the content of mercury, cadmium, and lead in zinc anode primary batteries, ensuring the environmental friendliness of LR03 batteries.
During the production process, LR03 batteries are subject to strict quality inspection at each link, with the following key quality control indicators:
Dimensions: The diameter is 10.10-10.30 mm, the height is 43.8-44.3 mm, and the error is within ±0.1 mm, ensuring compatibility with the battery compartments of various small electronic devices. The size inspection adopts an AQL of 0.65% to ensure the pass rate.
Weight: The average weight is 11.5±0.5 g (typical weight is 11-12 g), and the weight difference between individual batteries is not more than 0.3 g, ensuring the consistency of internal material loading.
Appearance: The shell is clean, free of dirt, deformation, and scratches; the label is clear and firmly attached; there is no electrolyte leakage. The appearance inspection adopts an AQL of 1.00%.
Sealing Performance: No leakage occurs after 20 days of storage at 60℃ and 90% relative humidity, and no leakage after 25 days of storage at 70℃. The leakage inspection adopts an AQL of 0.65%.
Heavy Metal Content: Mercury (Hg) content ≤1 ppm, cadmium (Cd) content ≤5-10 ppm, lead (Pb) content ≤15-40 ppm, complying with international environmental protection standards and no harmful heavy metals are added during production.
Safety Tests: Pass the three-charge-one-discharge test and external short-circuit test without explosion or leakage; no deformation or leakage occurs under high-temperature and high-humidity storage conditions.
The voltage, capacity, and discharge performance of batteries in the same batch must be consistent. The difference in open-circuit voltage between individual batteries is not more than 0.05V, and the difference in discharge time is not more than 10%, ensuring that multiple batteries used in the same device work synchronously.
The performance indicators of LR03 alkaline batteries are the core basis for measuring their quality and applicability, mainly including electrical performance, storage performance, and environmental adaptability. All indicators are tested under standard conditions (20℃±2℃, relative humidity 60%±15%).
Nominal Voltage: 1.5V, which is consistent with the power supply requirements of most small electronic devices. The open-circuit voltage (OCV) is initially ≥1.59V, and ≥1.57V after 12 months of storage; the closed-circuit voltage (CCV) is initially ≥1.45V, and ≥1.42V after 12 months of storage.
Nominal Capacity: Generally 860-1400 mAh. Under the test condition of 75Ω load, continuous discharge to 0.9V cut-off voltage, the nominal capacity is about 1100-1150 mAh; some high-quality products can reach 1400 mAh.
Short-Circuit Current: The initial short-circuit current is ≥8A, and ≥4-6A after 12 months of storage, reflecting the battery’s ability to output large current in a short time.
Discharge Performance: Different discharge conditions correspond to different discharge times, which directly reflects the battery’s adaptability to different devices:
75Ω load, 4h/d discharge, 0.9V cut-off voltage: initial discharge time ≥70h, ≥65h after 12 months of storage.
10Ω load, 1h/d discharge, 0.9V cut-off voltage: initial discharge time ≥7.5h, ≥7.2h after 12 months of storage.
5.1Ω load, 4min/h, 8h/d discharge, 0.9V cut-off voltage: initial discharge time ≥225-230min, ≥210min after 12 months of storage.
600mA pulse discharge, 10s/min, 1h/d, 0.9V cut-off voltage: initial discharge times ≥280-300 times, ≥250 times after 12 months of storage.
Shelf Life: Under proper storage conditions (20℃±2℃, dry and ventilated), the shelf life is 5-7 years. After 12 months of storage, the discharge performance remains 90% of the initial value; after 24 months of storage, it remains 85% of the initial value.
Self-Discharge Rate: The annual self-discharge rate is less than 3%, which is much lower than that of traditional R03 carbon-zinc batteries (10%-15% per year), ensuring that the battery can still maintain good performance after long-term storage.
Operating Temperature Range: -18℃ to 55℃ (or -20℃ to 60℃ for high-quality products), which can work normally in both cold and high-temperature environments. At low temperatures (-20℃), the discharge capacity can reach more than 70% of the normal temperature capacity.
Humidity Adaptability: It can work stably in an environment with relative humidity of 30%-90% without leakage or performance degradation.
The production process, quality standards, and performance indicators of LR03 alkaline batteries are closely linked and mutually restrictive: the precision of the production process determines whether the battery can meet the quality standards, and the strict implementation of quality standards ensures that the battery has stable performance indicators. For example, the precise control of electrolyte concentration and injection amount in the production process directly affects the battery’s capacity and discharge performance; the strict sealing process ensures the battery’s leakage resistance and shelf life; the static aging process stabilizes the internal electrochemical reaction, ensuring the consistency of performance indicators.
Only by strictly controlling each link of the production process, complying with international and national quality standards, and continuously optimizing the process parameters, can LR03 alkaline batteries maintain stable and excellent performance, meeting the needs of various small electronic devices.
The production of alkaline LR03 batteries is a precise and standardized process, from raw material selection to finished product inspection, every link requires strict quality control. Guided by international standards such as IEC 60086 series and national standards, LR03 batteries have stable and reliable quality, and their electrical performance, storage performance, and environmental adaptability are comprehensively guaranteed by scientific performance indicators.
Understanding the production process, quality standards, and performance indicators of LR03 alkaline batteries not only helps users scientifically select and use batteries but also enables them to better understand the technical advantages of LR03 batteries compared with other small batteries. With the continuous advancement of production technology and the improvement of quality standards, the performance of LR03 alkaline batteries will be further optimized, providing more reliable power support for daily life and industrial applications.
