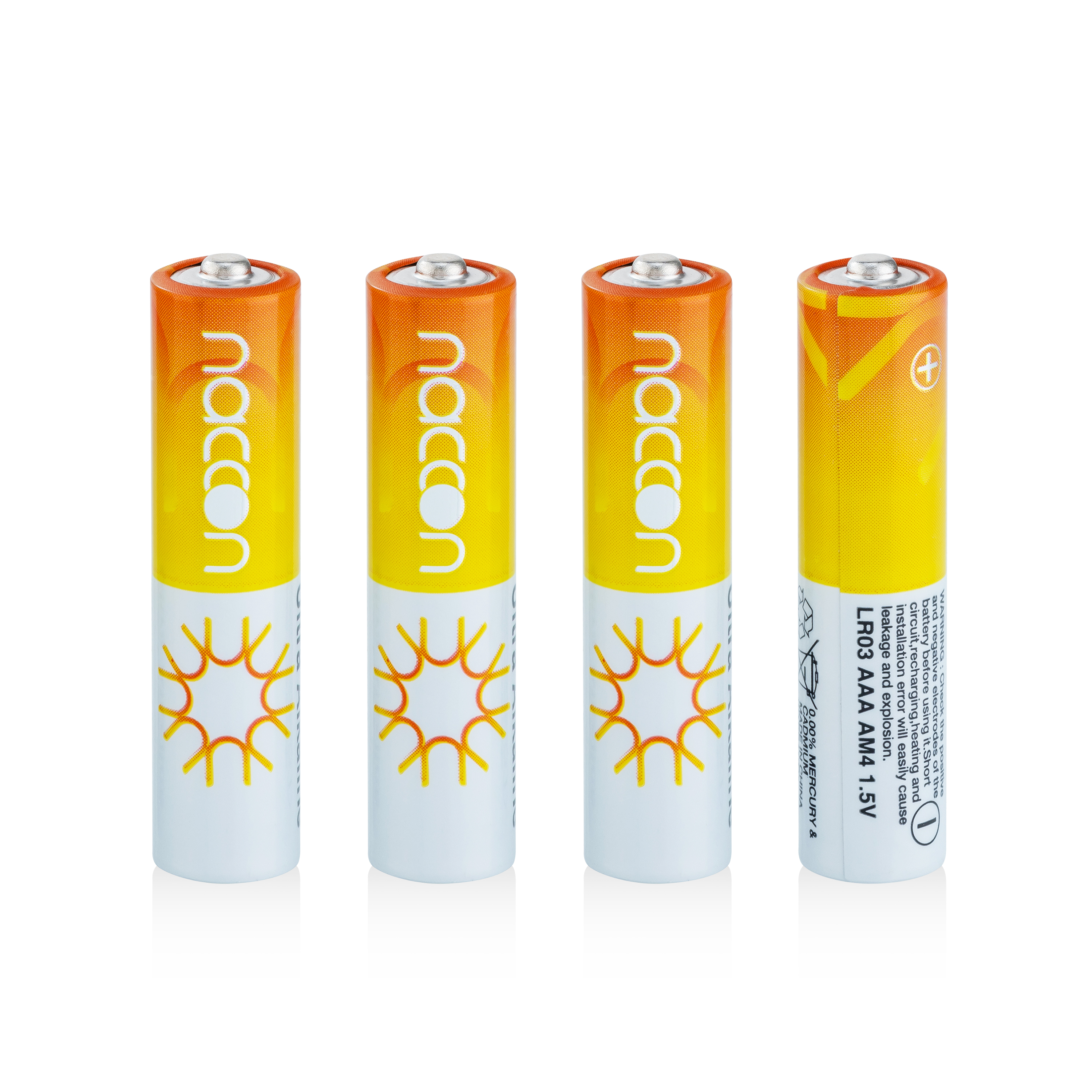

In our daily lives, we often encounter a variety of small electronic devices—remote controls, digital cameras, portable speakers, toys, and even some medical devices. Many of these devices rely on a compact yet reliable power source: the LR03 alkaline battery, also commonly known as the AAA battery. Despite its small size, it plays an indispensable role in powering our daily routines. This article will comprehensively explain the working principle, core performance characteristics, and practical daily use tips of LR03 alkaline batteries, helping you better understand and use this common power source.
First, it is necessary to clarify the basic definition of the LR03 alkaline battery. The "LR03" is a standard designation defined by the International Electrotechnical Commission (IEC). The letter "L" stands for alkaline electrolyte, "R" represents a cylindrical battery, and "03" indicates its size—specifically, a diameter of approximately 10.5 mm and a height of about 44.5 mm, which is the standard size of AAA batteries we are familiar with.
Different from carbon-zinc batteries (marked as R03), alkaline LR03 batteries use alkaline electrolyte (usually potassium hydroxide, KOH) as the ion conductor, which fundamentally improves the battery’s energy density, discharge performance, and service life. It is currently one of the most widely used small primary batteries in the market, favored for its stability and cost-effectiveness.
The working principle of alkaline LR03 batteries is based on the electrochemical reaction between the positive and negative electrodes, which converts chemical energy into electrical energy. Let’s break down the key components and reaction process:
Negative Electrode (Anode): Usually made of zinc powder. The zinc powder has a large specific surface area, which can accelerate the reaction rate and improve the battery’s discharge capacity.
Positive Electrode (Cathode): Composed of manganese dioxide (MnO₂) and a conductive agent (such as graphite). Manganese dioxide acts as the oxidizing agent, accepting electrons during the reaction.
Electrolyte: Alkaline potassium hydroxide (KOH) solution, which serves as a medium for ion transfer, allowing ions to move between the positive and negative electrodes to complete the circuit.
Separator: A porous membrane that separates the positive and negative electrodes to prevent short circuits, while allowing ions to pass through.
Shell: Made of steel or aluminum, which protects the internal components and prevents electrolyte leakage.
When the LR03 battery is connected to an external circuit, the following redox reactions occur at the positive and negative electrodes:
At the negative electrode (anode): Zinc (Zn) reacts with hydroxide ions (OH⁻) in the electrolyte to produce zincate ions (Zn(OH)₄²⁻) and release electrons. The reaction formula is: Zn + 4OH⁻ → Zn(OH)₄²⁻ + 2e⁻
At the positive electrode (cathode): Manganese dioxide (MnO₂) combines with water (H₂O) and electrons to produce manganese hydroxide (MnO(OH)) and hydroxide ions (OH⁻). The reaction formula is: MnO₂ + H₂O + e⁻ → MnO(OH) + OH⁻
The electrons released by the negative electrode flow through the external circuit to the positive electrode, forming an electric current to power the device. At the same time, hydroxide ions move from the positive electrode to the negative electrode through the electrolyte, maintaining the charge balance of the battery. This reaction continues until the zinc or manganese dioxide is consumed, and the battery is exhausted.
Compared with other small primary batteries (such as carbon-zinc R03 batteries), alkaline LR03 batteries have obvious advantages in performance, which is the main reason for their wide application. The key performance indicators are as follows:
Energy density refers to the amount of electrical energy stored per unit volume or mass. The alkaline electrolyte of LR03 batteries has better ion conductivity, and the zinc powder negative electrode has a higher reaction efficiency, so its energy density is about 1.5 to 2 times that of carbon-zinc batteries. This means that under the same volume, LR03 batteries can provide more electrical energy and power electronic devices for a longer time.
Alkaline LR03 batteries have a stable discharge voltage during use, and the voltage drop is relatively slow even when the power is low. This is crucial for devices that require stable voltage, such as digital cameras, precision instruments, and medical devices—unstable voltage may cause equipment malfunctions or damage.
In addition, LR03 batteries perform well in both continuous discharge and intermittent discharge. For example, in remote controls (intermittent use) and toys (continuous use), they can maintain good performance.
Under proper storage conditions (cool, dry, and away from direct sunlight), the shelf life of alkaline LR03 batteries can reach 5 to 10 years. This is because the alkaline electrolyte is less reactive with the electrode materials, and the sealed shell effectively prevents electrolyte volatilization and leakage. Even if stored for a long time, the battery can still maintain a high power retention rate (usually more than 80% after 5 years of storage).
Alkaline LR03 batteries can work normally in a temperature range of -20°C to 60°C. Although the discharge capacity will decrease slightly at low temperatures, it can still meet the basic power needs of most devices in cold environments (such as outdoor remote controls in winter). At high temperatures, it also has good stability and is not easy to leak or bulge.
Unlike nickel-cadmium batteries (which contain cadmium, a toxic heavy metal), alkaline LR03 batteries do not contain heavy metals such as cadmium, mercury, or lead (in line with international environmental standards). After proper recycling, they have less impact on the environment. However, it should be noted that they are primary batteries and cannot be recharged, so they need to be disposed of in accordance with local environmental protection regulations.
Correct use and storage can not only extend the service life of LR03 batteries but also ensure the safety of use and avoid damage to electronic devices. Here are some practical tips:
Do not mix alkaline LR03 batteries with carbon-zinc R03 batteries, or mix batteries of different brands or different charge levels. Because the voltage, internal resistance, and discharge characteristics of different batteries are different, mixing them may cause reverse charging, leakage, or even explosion, and may also damage the device.
Alkaline LR03 batteries are primary batteries, which are designed for one-time use and do not have a rechargeable structure. Recharging them may cause the battery to overheat, bulge, leak electrolyte, or even explode, posing a safety hazard. If you need rechargeable batteries, choose nickel-metal hydride (Ni-MH) AAA batteries (marked as HR03).
Store LR03 batteries in a cool, dry, and well-ventilated place, avoiding high temperatures, humidity, and direct sunlight. Do not store them in places with strong magnetic fields or high pressure, as this may affect the battery’s performance. In addition, do not store used batteries together with new batteries to prevent leakage.
If electronic devices (such as remote controls, toys, or cameras) are not used for a long time (more than 1 month), it is recommended to remove the LR03 batteries. This can prevent electrolyte leakage caused by battery self-discharge, which may corrode the device’s battery compartment and cause permanent damage to the device.
If you find that the LR03 battery is leaking (there is white or greenish-yellow paste on the battery surface), do not touch the leaked electrolyte with your hands (it is alkaline and may corrode the skin). Wear gloves to remove the battery, wipe the battery compartment with a dry cloth (if the electrolyte is left, it can be wiped with a small amount of vinegar to neutralize the alkali), and then dispose of the leaked battery in accordance with local environmental protection regulations.
Different electronic devices have different power requirements. For devices with high power consumption (such as portable speakers, digital cameras, and toys), it is recommended to use high-quality alkaline LR03 batteries to ensure sufficient power supply. For devices with low power consumption (such as remote controls and wall clocks), ordinary alkaline LR03 batteries can meet the needs.
There are many misunderstandings about LR03 alkaline batteries in daily use. Let’s clarify them one by one:
Misconception 1: The higher the voltage, the better the battery. In fact, the standard voltage of LR03 alkaline batteries is 1.5V, which is the same as that of carbon-zinc R03 batteries. The difference lies in energy density and discharge performance, not voltage.
Misconception 2: Leaked batteries can still be used. Leaked batteries have been damaged, and continuing to use them may cause the device to be corroded. They should be disposed of immediately.
Misconception 3: Storing batteries in the refrigerator can extend their service life. Although low temperature can slow down the self-discharge rate of batteries, the humidity in the refrigerator may cause the battery shell to rust or the electrolyte to leak. It is not necessary to store them in the refrigerator; a cool and dry place is sufficient.
Misconception 4: Alkaline batteries are rechargeable. As mentioned earlier, LR03 alkaline batteries are primary batteries and cannot be recharged. Recharging will cause safety hazards.
The alkaline LR03 battery is a small but powerful primary battery, which has become an indispensable power source in our daily lives due to its high energy density, stable performance, long shelf life, and wide application range. By understanding its working principle, performance characteristics, and correct use methods, we can not only make better use of LR03 batteries to extend the service life of electronic devices but also ensure the safety of use and reduce environmental impact.
When choosing LR03 batteries, it is recommended to select regular brands and check the production date and shelf life to ensure product quality. At the same time, we should also pay attention to environmental protection and properly recycle used batteries to contribute to a green environment.
