An In-depth Analysis of CR927: Specifications, Compatible Equivalents & Key Usage Guidelines

Introduction

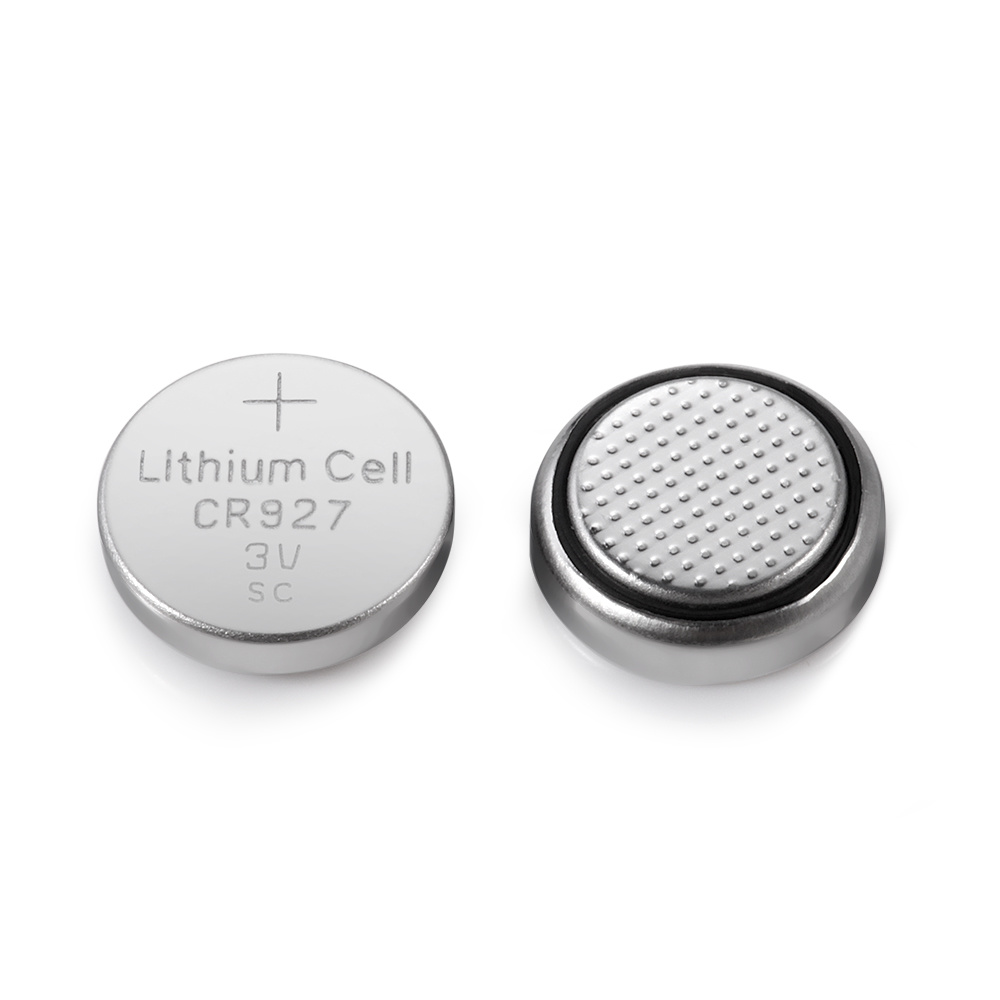

The CR927 is a slim 3V primary lithium manganese dioxide coin cell widely adopted for ultra-thin miniature electronics. Its unique compact dimensions separate it from mainstream coin batteries like CR2032, CR2025 and CR1220. Many users encounter confusion when replacing batteries, including mismatched size, incorrect voltage and improper operation. This article systematically breaks down CR927’s full specifications, interchangeable models, matching devices and critical safety rules to help users avoid common mistakes.

1. Complete Standard Specifications of CR927

The model naming rule of CR series coin cells indicates physical dimensions: “927” stands for 9.5 mm diameter and 2.7 mm thickness. Standard technical parameters comply with global IEC battery standards:

• Nominal Voltage: 3.0 V

• Typical Capacity: ~30 mAh

• Chemistry System: Lithium Manganese Dioxide (Li/MnO₂)

• Cell Category: Primary non-rechargeable battery

• Dimension: Φ9.5 mm × 2.7 mm

• Operating Temperature: -20°C ~ +60°C

• Annual Self-discharge Rate: Less than 2%

• Max Shelf Life: Up to 10 years under cool, dry storage

Owing to its ultra-low self-discharge, CR927 retains most power after long-term idle storage, making it perfect for devices with intermittent use or permanent standby requirements. Unlike rechargeable lithium cells, it cannot be recharged once drained and requires full replacement.

2. Matching Devices & Equivalent Replacement Models

2.1 Applicable Equipment for CR927

Restricted by its small capacity, CR927 only fits low-current, long-standby slim devices:

1. Wearable smart products: Ultra-thin smart glasses, mini motion sensors, slim pedometers

2. Timing & measuring tools: Thin electronic watch cores, portable digital thermometers, mini hygrometers

3. Small wireless gadgets: Laser pointers, miniature dedicated remote controllers, tiny signal transmitters

4. Industrial & automotive accessories: Micro sensors, vehicle electronic tags, circuit memory backup power, miniature indicator lights

5. Outdoor portable supplies: Bike speedometers, compact warning lights, mini camping accessories

2.2 Equivalent & Interchangeable Model Explanation

• No cross-size alternatives exist for CR927. Batteries such as CR2032, CR2016, CR1220, CR1632 have larger diameters and cannot fit CR927 battery slots at all.

• Standard industry equivalents of CR927 share identical size, voltage and capacity, labeled with different brand codes but fully interchangeable with original CR927. Always confirm the label code before purchase.

• Strictly distinguish CR series (3V lithium coin cells) and LR series (1.5V alkaline coin cells). Their voltage and internal chemicals are incompatible. Installing an LR battery will lead to device malfunction or permanent circuit damage.

3. Key Usage & Storage Guidelines

3.1 Daily Operation Tips

1. Install the battery following the positive (+) and negative (-) polarity marks inside the battery compartment; reversed polarity stops the device from working and may harm circuits.

2. Clean metal contact points before inserting a new battery. Dust and oxidation cause poor conduction and shortened runtime.

3. Replace batteries promptly once devices show low-power alerts. Depleted cells left inside equipment for months risk electrolyte leakage.

4. Do not use CR927 for high-current equipment such as high-brightness flashlights or high-power transmitters, as its limited capacity cannot sustain heavy loads.

3.2 Storage Rules

• Store loose batteries in a sealed dry box at room temperature, away from direct sunlight, high heat and humid environments.

• Separate loose batteries from metal items like keys, coins and wires to prevent short-circuit between two poles, which generates excessive heat.

• Avoid storing batteries together with conductive materials to eliminate fire hazards.

3.3 Critical Safety Notes

1. Recharging is strictly forbidden. Forced charging triggers abnormal internal chemical reactions, resulting in swelling, liquid leakage or even combustion.

2. Keep CR927 out of reach of infants and toddlers. Its tiny size poses a choking hazard if swallowed. Seek immediate medical help once accidental ingestion occurs.

3. Do not dismantle, puncture or burn used batteries. Damaged cells release corrosive lithium electrolyte.

4. Discard expired or waste batteries via designated battery recycling stations instead of household garbage to reduce environmental pollution.

Conclusion

CR927 is a specialized slim 3V coin cell tailored for miniature low-power electronics. Mastering its official specifications, matching equipment and interchange rules helps you select the correct replacement battery quickly. Standardized installation, storage and safety practices extend battery service life and eliminate potential risks. Always stick to original-size CR927 equivalents and never mix lithium CR cells with alkaline LR cells to guarantee stable, long-term performance of your compact electronic devices.
