LR14 vs R14: Differences of C Cell Alkaline Battery

When shopping for C cell (also known as No.2) batteries, two designations often confuse consumers: LR14 and R14. At first glance, they share the same physical size, making them interchangeable in most C cell battery compartments. However, these two batteries differ significantly in internal chemistry, performance, and practical application—differences that directly affect device performance, runtime, and safety. This article will systematically break down the key differences between LR14 and R14 batteries, focusing on their core characteristics as C cell batteries, to help you make informed choices and avoid mismatches or performance issues.

1. Basic Overview: LR14 and R14 as C Cell Batteries

First, it is critical to clarify: both LR14 and R14 are C cell batteries, adhering to the international IEC standard for C size—with a diameter of 26.2mm and a height of 50.0mm. This means they can be installed in the same battery-powered devices designed for C cell batteries, such as flashlights, large toys, and portable speakers. However, their similarity ends with physical size; their internal composition and performance are fundamentally different.

The key distinction lies in the "L" in LR14: in battery naming conventions, "L" stands for alkaline electrolyte, while the absence of "L" (as in R14) indicates a carbon-zinc composition. This difference in chemistry is the root cause of all other performance gaps between the two.

2. Core Difference 1: Battery Chemistry & Type

The most fundamental difference between LR14 and R14 is their internal chemical composition, which determines their overall performance and classification:

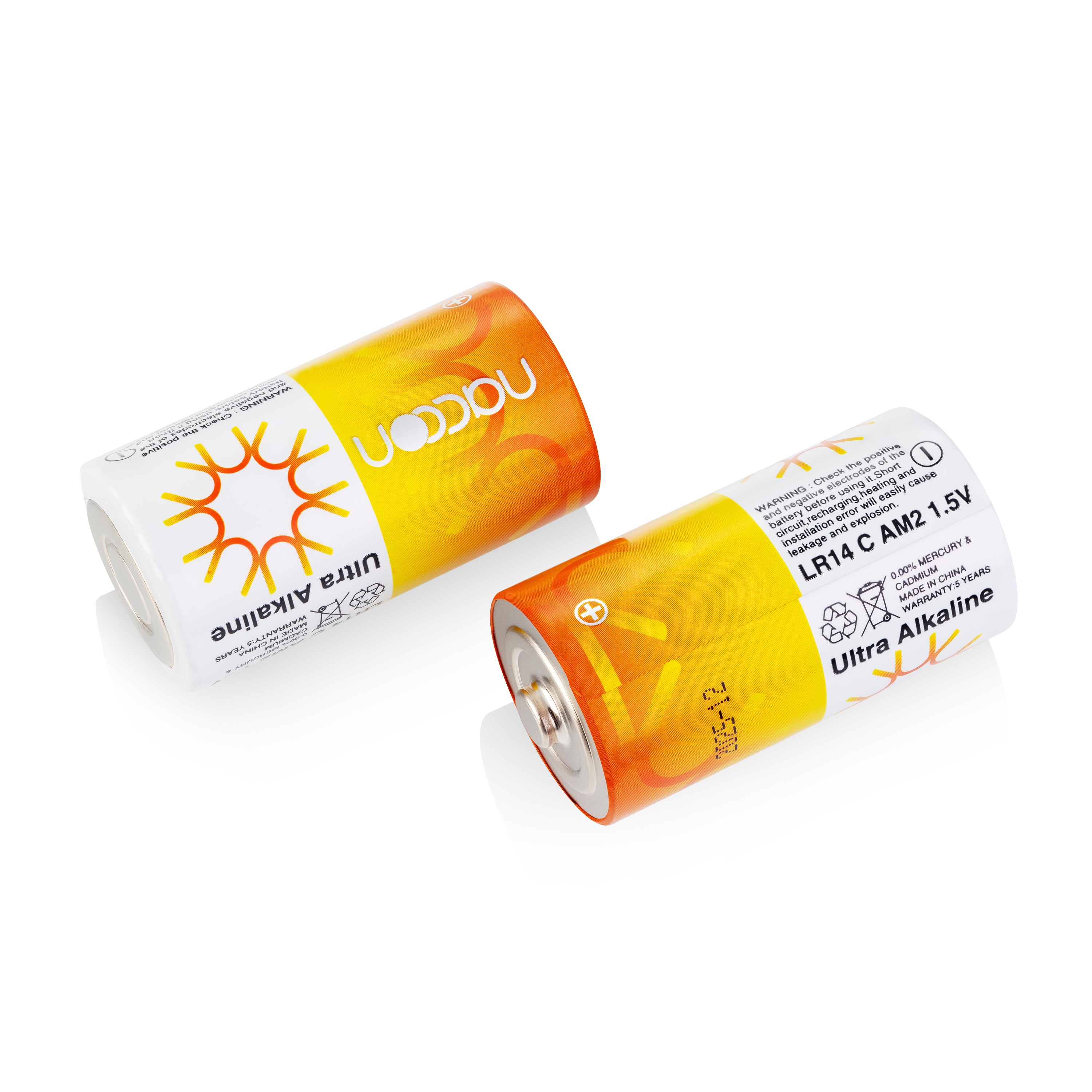

• LR14 Batteries: Classified as alkaline C cell batteries. The "L" denotes alkaline electrolyte (potassium hydroxide), and "R" indicates a cylindrical shape. They are non-rechargeable (primary) batteries, relying on the chemical reaction between zinc and manganese dioxide in an alkaline environment to generate electricity. This alkaline chemistry delivers higher energy density and more stable performance compared to traditional carbon-zinc batteries.

• R14 Batteries: Classified as carbon-zinc C cell batteries (also called zinc-carbon batteries). They lack the "L" designation because they use a carbon-zinc electrolyte (ammonium chloride or zinc chloride) instead of alkaline material. Like LR14, they are non-rechargeable primary batteries but use a more traditional, lower-performance chemical formula.

In short, LR14 is an alkaline C cell battery, while R14 is a carbon-zinc C cell battery—two distinct technologies with significant performance differences.

3. Core Difference 2: Performance & Capacity

Performance is where LR14 and R14 differ most noticeably, with LR14 outperforming R14 in nearly every key metric—making it the preferred choice for most devices:

3.1 Energy Density & Capacity

Capacity (measured in mAh, milliampere-hours) determines how long a battery can power a device. LR14’s alkaline chemistry gives it a much higher energy density:

• LR14: Under standard discharge conditions (25°C, 200mA constant current), typical capacity ranges from 4000–5500 mAh. For low-drain devices (e.g., sensors, doorbells), capacity can reach up to 6000 mAh.

• R14: Capacity is significantly lower, typically only 1500–2000 mAh—less than half of LR14. This means R14 batteries run out much faster, requiring more frequent replacement.

3.2 Discharge Stability

Discharge stability directly affects device performance, especially for precision instruments or devices that require consistent power:

• LR14: Features a flat discharge curve, meaning its nominal 1.5V voltage remains stable throughout most of its runtime. This ensures devices (e.g., speakers, flashlights, multimeters) operate consistently without dimming, stalling, or data inaccuracies.

• R14: Has a steep discharge curve—voltage drops rapidly as the battery depletes. This often causes devices to malfunction or shut down prematurely, even when the battery still has some remaining power.

4. Core Difference 3: Shelf Life & Leakage Resistance

Shelf life (power retention during storage) and leakage resistance are critical for backup power or devices used infrequently:

4.1 Shelf Life

• LR14: Has an ultra-low self-discharge rate (less than 2% per year) when stored in cool, dry conditions. This translates to a shelf life of 5–10 years, meaning it can retain over 85% of its power even after long-term storage—ideal for emergency equipment or backup power.

• R14: Has a high self-discharge rate (5–8% per year), resulting in a shelf life of only 1–2 years. Even if unused, R14 batteries lose power quickly and may become useless after just a few months of storage.

4.2 Leakage Resistance

• LR14: Uses advanced sealing technology and high-quality alkaline electrolyte, significantly reducing the risk of leakage. This protects device circuit boards from corrosion and extends device lifespan.

• R14: Has poor sealing performance and uses a more volatile electrolyte. Leakage is common, especially when stored for long periods or used in high-temperature environments, which can damage expensive devices.

5. Core Difference 4: Cost & Applicability

The performance differences between LR14 and R14 also translate to differences in cost and ideal use cases:

5.1 Cost

• LR14: Slightly more expensive upfront, usually 1.5–2 times the price of R14 batteries. However, its longer runtime and shelf life make it more cost-effective in the long run—fewer replacements mean lower overall costs.

• R14: Cheaper upfront but more costly over time due to frequent replacement. Its low performance makes it a poor value for most devices.

5.2 Applicability

• LR14 (Alkaline C Cell): Ideal for devices that require stable power, long runtime, or long-term storage. Common uses include: large toys, portable speakers, emergency flashlights, multimeters, security sensors, and medical devices.

• R14 (Carbon-Zinc C Cell): Only suitable for low-power, short-term use devices with minimal performance requirements. Common uses include: cheap disposable toys, basic remote controls, and simple flashlights that are rarely used.

6. Quick Comparison Table: LR14 vs R14

7. Conclusion

While LR14 and R14 are both C cell batteries with the same physical size, their chemical composition and performance are worlds apart. LR14, as an alkaline C cell battery, offers higher capacity, more stable discharge, longer shelf life, and stronger leakage resistance—making it the superior choice for most devices. R14, a carbon-zinc C cell battery, is only suitable for low-demand, short-term use due to its poor performance and short lifespan.

When choosing between LR14 and R14, prioritize LR14 for devices that require reliable, long-lasting power. For cheap, disposable devices with minimal needs, R14 may be a budget option—but remember that frequent replacements will likely cost more in the long run. Understanding these differences ensures you select the right C cell battery for your needs, protecting your devices and maximizing their performance.
