Power Source for Miniature Devices: Full Breakdown of CR927 Battery

Introduction

As consumer electronics keep shrinking in size and thickness, there is a growing demand for slim, compact power sources that fit ultra-narrow internal spaces. The CR927 lithium manganese dioxide coin cell stands out as a dedicated power solution for all kinds of miniature low-power devices. With a unique ultra-thin profile, steady 3V output and outstanding long-term storage performance, it has become irreplaceable for slim wearables, precision measuring gadgets and micro wireless accessories. This article covers its core specs, performance strengths, applicable devices and standard operation tips for your comprehensive reference.

1. Core Technical Specifications of CR927

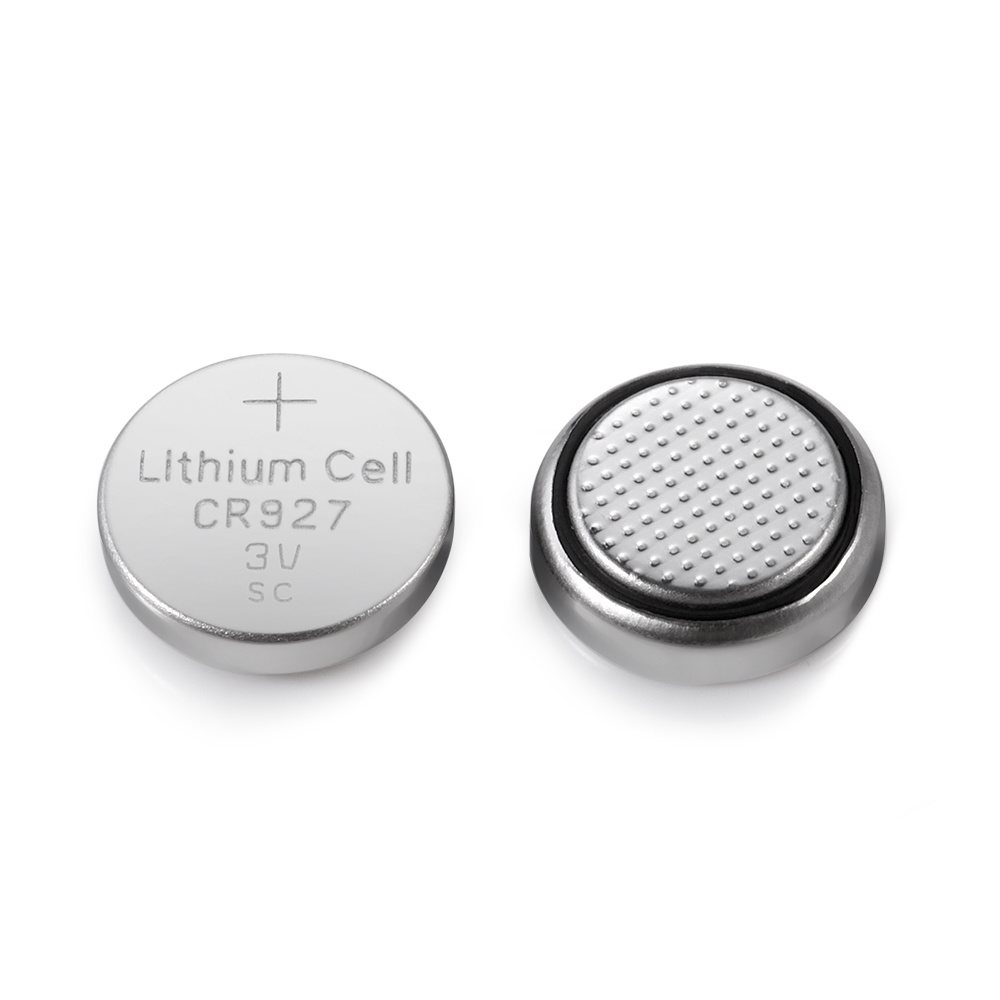

CR927 follows uniform IEC international standards for coin cell naming: the code “927” represents a diameter of 9.5 mm and a thickness of only 2.7 mm. All mainstream manufacturers produce CR927 with consistent standard parameters:

• Nominal Voltage: 3.0 V

• Typical Rated Capacity: 30 mAh

• Chemistry: Lithium Manganese Dioxide (Li/MnO₂)

• Cell Type: Primary non-rechargeable battery

• Physical Size: Φ9.5 mm × 2.7 mm

• Operating Temperature Range: -20°C to +60°C

• Annual Self-Discharge Rate: Below 2%

• Standard Shelf Life: Up to 10 years under cool and dry storage

Different from rechargeable lithium batteries, CR927 is a disposable primary cell. Once its power is exhausted, it cannot be recharged and must be replaced. Its ultra-low self-discharge rate allows it to retain most capacity after years of idle storage, which makes it ideal for devices that stay on standby most of the time and are used occasionally.

2. Core Advantages as a Miniature Power Supply

Stable Flat Discharge Voltage

Lithium manganese dioxide chemistry enables CR927 to maintain a nearly constant 3.0V throughout most of its discharge cycle. Unlike alkaline batteries that suffer gradual voltage drop during use, it delivers consistent power to precision circuits, avoiding signal loss, data errors or equipment shutdown caused by voltage instability.

Ultra-Slim Miniature Form Factor

The 2.7 mm ultra-thin body is the biggest highlight of CR927. Compared with thicker coin cells such as CR2032 and CR1220, it can be embedded into ultra-slim product shells that have limited internal depth, supporting the lightweight and thin design trend of modern small electronics.

Wide Temperature Adaptability

CR927 maintains stable discharge performance across a broad temperature spectrum. It works normally in cold indoor environments and mild outdoor scenarios, without obvious capacity attenuation, so it can be applied to both indoor daily gadgets and outdoor portable micro equipment.

Long Storage Life with Minimal Power Loss

Thanks to stable internal chemical composition, CR927 barely loses power during long-term storage. Users can stock spare batteries without worrying about premature power depletion, which greatly reduces replacement frequency and maintenance costs for low-consumption devices.

3. Main Miniature Devices Powered by CR927

Due to its limited 30 mAh capacity, CR927 is exclusively designed for low-current, long-standby equipment and not suitable for high-power discharge products. Its mainstream application fields are listed below:

1. Slim wearable electronics: Ultra-thin smart glasses, mini motion trackers, lightweight pedometers and micro Bluetooth sensing modules

2. Precision measuring & timing tools: Thin analog-digital watch movements, portable electronic thermometers, mini digital hygrometers and tiny pressure testers

3. Small wireless control gadgets: Laser pointers, miniature dedicated remote controllers, compact wireless signal transmitters

4. Automotive & industrial micro accessories: On-board electronic identification tags, equipment memory backup power, miniature indicator lights and micro environmental sensors

5. Outdoor daily mini supplies: Bicycle speed sensors, pocket warning lights and small camping safety markers

4. Matching & Usage Key Points

Model Matching Reminders

CR927 has exclusive dimensions that cannot be substituted by other common coin cells including CR2032, CR2025, CR1632 and CR1220. Mismatched sizes cannot fit the battery compartment at all.

In addition, users must distinguish 3V CR series lithium batteries and 1.5V LR series alkaline batteries. They have completely different voltage and chemical systems; mixing them will damage device circuits permanently. Only standard CR927 equivalent batteries with identical size and voltage can be used as replacements.

Standard Operation Tips

1. Install the battery strictly according to the positive (+) and negative (-) marks inside the compartment; reversed polarity will disable the device and damage internal components.

2. Wipe off dust and oxidation on metal contact terminals before installing new batteries to guarantee smooth electrical conduction and full service life.

3. Remove depleted batteries promptly. Abandoned cells left inside equipment for a long time may leak corrosive electrolyte and erode circuit boards.

Safety & Storage Guidelines

• Recharging CR927 is strictly prohibited. Forced charging will cause abnormal chemical reactions, leading to bulging, leakage or even fire hazards.

• Keep loose batteries away from metal items like coins and keys to prevent short circuits between two poles, which generate dangerous high temperatures.

• Store batteries in cool, dry and ventilated areas, away from direct sunlight, high heat and humid conditions.

• Keep CR927 out of reach of young children to prevent accidental swallowing choking risks.

• Dispose of waste batteries through professional recycling stations instead of regular household garbage to protect the environment.

Conclusion

As a special power source tailored for miniature electronic equipment, CR927 balances ultra-small size, stable output and long standby performance perfectly. Its slim structure solves the power supply problem of ultra-thin small devices that larger batteries cannot support. By understanding its standard specifications, applicable scenarios and operation rules, users can select and use CR927 correctly, ensuring stable long-term operation of various miniature low-power gadgets while avoiding unnecessary equipment damage and safety risks.
