Button cell batteries are among the smallest batteries used in everyday electronic products. Their compact, round shape allows them to fit into devices where space is limited, while their relatively stable voltage makes them suitable for a wide range of low-power applications.
From watches and calculators to car key fobs, medical devices, electronic scales, toys, and small sensors, button batteries can be found in many products around us. Although these batteries look similar at first glance, different button cell models can have significant differences in chemistry, voltage, capacity, size, discharge characteristics, and service life.
For this reason, choosing a button battery is not simply a matter of finding one that has the same diameter. The battery must also match the electrical requirements and installation space of the device.
This article explains what button cell batteries are, how they are classified, what common specifications mean, how different models compare, and where they are commonly used.
A button cell battery is a small, round battery with a relatively flat shape. It is named after its appearance, which resembles a button.
Compared with cylindrical batteries such as AA and AAA batteries, button cells are much smaller and thinner. Their compact dimensions make them particularly useful for small electronic devices.
A typical button cell consists of several basic components:
Positive electrode
Negative electrode
Electrolyte
Separator
Metal casing
Sealing structure
The exact materials used inside the battery depend on its chemistry.
For example, a CR2032 battery uses lithium chemistry, while an LR series battery normally uses alkaline chemistry. An SR battery generally uses silver oxide chemistry. Although these batteries may have similar physical dimensions, their electrical characteristics are different.
This is why two batteries that look almost identical may not necessarily be interchangeable.
The biggest advantage of button batteries is their small size.
Many modern electronic products are designed to be as compact and lightweight as possible. There may simply not be enough room for a conventional cylindrical battery. A button cell can provide the required electrical energy while taking up very little space.
Several other characteristics also contribute to their popularity.
Button cells are much smaller than common AA or AAA batteries. This makes them suitable for compact electronic products and portable devices.
Depending on the battery chemistry, button cells can provide a relatively stable voltage during normal operation. This is important for electronic circuits that require a predictable power supply.
Some primary button batteries have very low self-discharge rates. When stored under appropriate conditions, they can retain their charge for a relatively long period.
Button cells are usually installed in dedicated battery holders or compartments. Their standardized dimensions make replacement relatively convenient.
Many button batteries are designed for devices that consume relatively little power. They can provide power for months or even years when used in low-drain applications.
Button batteries can be classified in several ways. One of the most practical methods is according to their electrochemical chemistry.
Common types include:
Lithium button batteries
Alkaline button batteries
Silver oxide button batteries
Zinc-air button batteries
Rechargeable lithium button batteries
Rechargeable manganese-based button batteries
Other specialized button cells
Different chemistries have different voltage characteristics, energy density, discharge performance, and applications.
Lithium button batteries are among the most widely used button cells.
The CR series is a common example. CR2032, CR2025, and CR2016 are familiar lithium button battery models.
A typical lithium manganese dioxide button cell has a nominal voltage of approximately 3V.
Lithium button batteries are popular because they offer a combination of relatively high energy density, low self-discharge, compact size, and long shelf life.
Common applications include:
Car key fobs
Remote controls
Computer motherboards
Electronic scales
Calculators
Small sensors
Medical and monitoring devices
Memory backup systems
Small consumer electronics
One important point is that most CR-series batteries are primary batteries, meaning they are not designed to be recharged.
Alkaline button cells are generally identified by the LR designation.
Their nominal voltage is commonly around 1.5V.
Compared with lithium button batteries, alkaline button cells are often used in lower-cost electronic products where the power requirements are relatively modest.
Common applications include:
Calculators
Small toys
Electronic devices
Watches
Small measuring instruments
LED products
Because the voltage and discharge characteristics are different from lithium cells, an LR battery should not automatically be considered a direct replacement for a CR battery, even if the physical dimensions are similar.
Silver oxide button batteries are commonly identified by the SR designation.
They generally have a nominal voltage of around 1.55V and are particularly well known for their relatively stable discharge voltage.
This characteristic makes them useful in precision-oriented applications, especially watches and small instruments.
Common applications include:
Watches
Measuring instruments
Calculators
Small electronic devices
Precision instruments
Silver oxide batteries can be more expensive than alkaline button batteries because of the materials used in their construction.

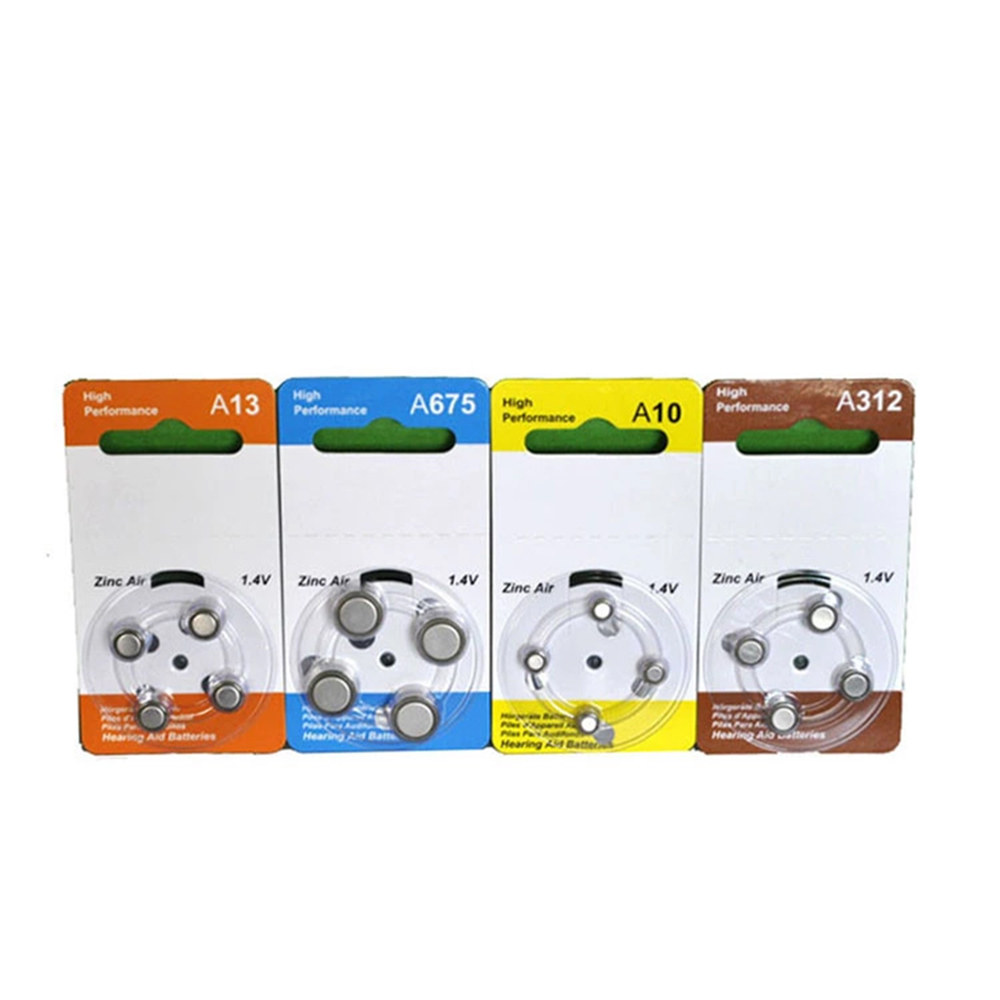

Zinc-air batteries are different from many other button cells because they use oxygen from the surrounding air as part of the electrochemical reaction.
They are widely associated with hearing aids.
The battery normally has an air hole that allows oxygen to enter. Before use, the protective seal is removed, allowing air to reach the battery.
Typical applications include:
Hearing aids
Certain medical devices
Specialized low-power equipment
Because air is required for operation, zinc-air batteries have different storage and usage characteristics from sealed button cells.
Not every button battery is disposable.
There are rechargeable button and coin cells based on different chemistries, including rechargeable lithium-based systems and other rechargeable chemistries.
For example, models with designations such as LIR may be rechargeable lithium-ion button cells. Their nominal voltage is typically higher than that of a standard CR2032 primary lithium battery.
This difference is extremely important.
For example, a CR2032 and an LIR2032 may have similar physical dimensions, but they are not simply interchangeable because their voltage and charging requirements are different.
A device designed for a primary CR2032 should not be connected to an LIR2032 unless the manufacturer specifically confirms that the device supports it.

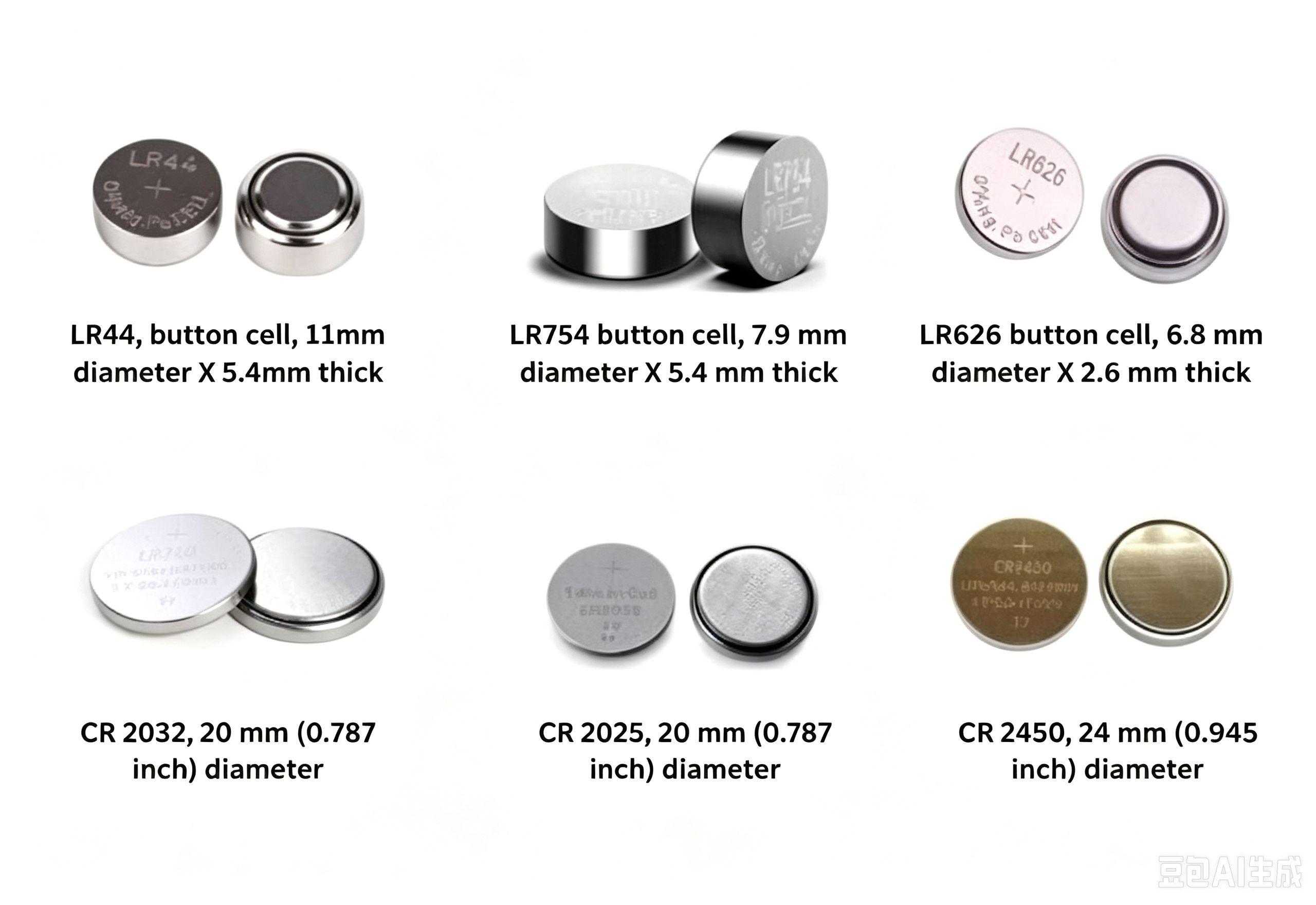

One of the most common questions is what numbers such as CR2032, CR2025, and CR2016 actually mean.
For many coin-type batteries, the numbers provide information about their approximate physical dimensions.
Take CR2032 as an example.
CR generally indicates the battery chemistry/designation.
20 indicates an approximate diameter of 20 mm.
32 indicates an approximate thickness of 3.2 mm.
Therefore, a CR2032 is approximately:
20 mm in diameter × 3.2 mm in thickness
Similarly:
Model |
Approx. Diameter |
Approx. Thickness |
Typical Nominal Voltage |
|---|---|---|---|
CR2016 |
20 mm |
1.6 mm |
3V |
CR2025 |
20 mm |
2.5 mm |
3V |
CR2032 |
20 mm |
3.2 mm |
3V |
CR2450 |
24.5 mm |
5.0 mm |
3V |
CR2430 |
24.5 mm |
3.0 mm |
3V |
The dimensions shown above are nominal model dimensions. Actual battery dimensions and specifications can vary slightly depending on the manufacturer and product design.
CR2016, CR2025, and CR2032 are often confused because they all have a diameter of approximately 20 mm and a nominal voltage of 3V.
The main difference is their thickness.

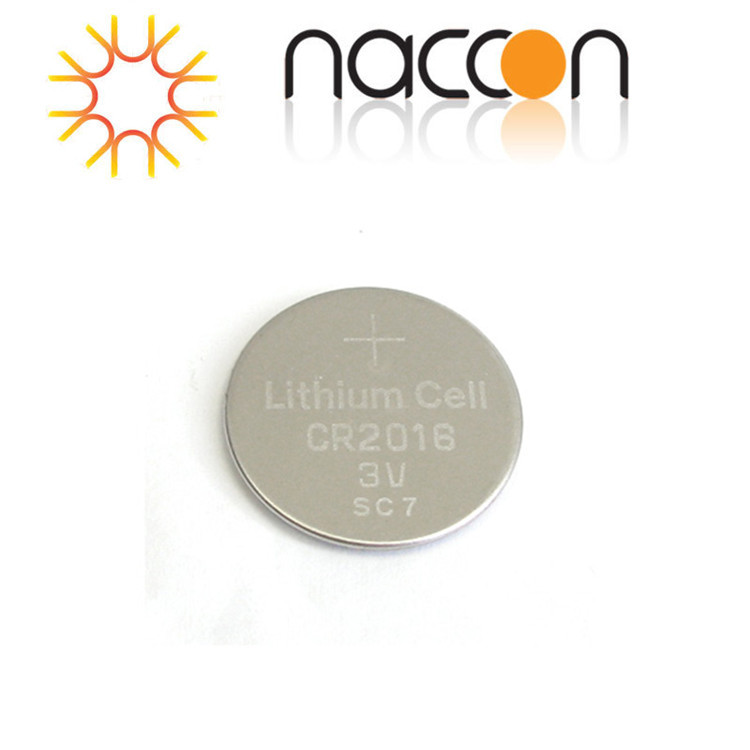

CR2016 is approximately 1.6 mm thick.
Because it is thinner, its capacity is generally lower than that of CR2025 and CR2032.
It can be found in:
Small remote controls
Watches
Calculators
Small electronic devices
Sensors

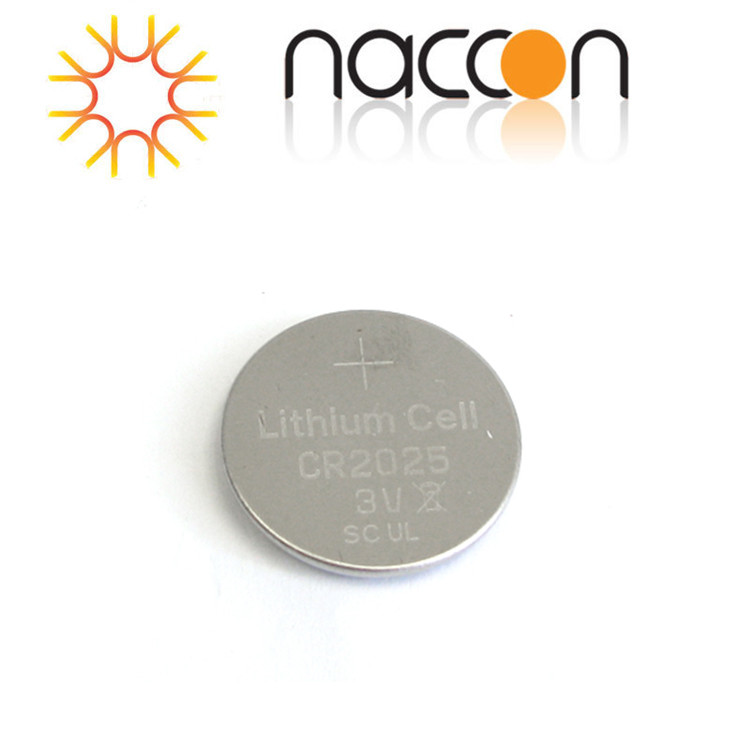

CR2025 is approximately 2.5 mm thick.
It generally provides more capacity than CR2016 because its larger internal volume allows more active material to be used.
Typical applications include:
Car key fobs
Remote controls
Small electronic devices
Computer accessories
Sensors

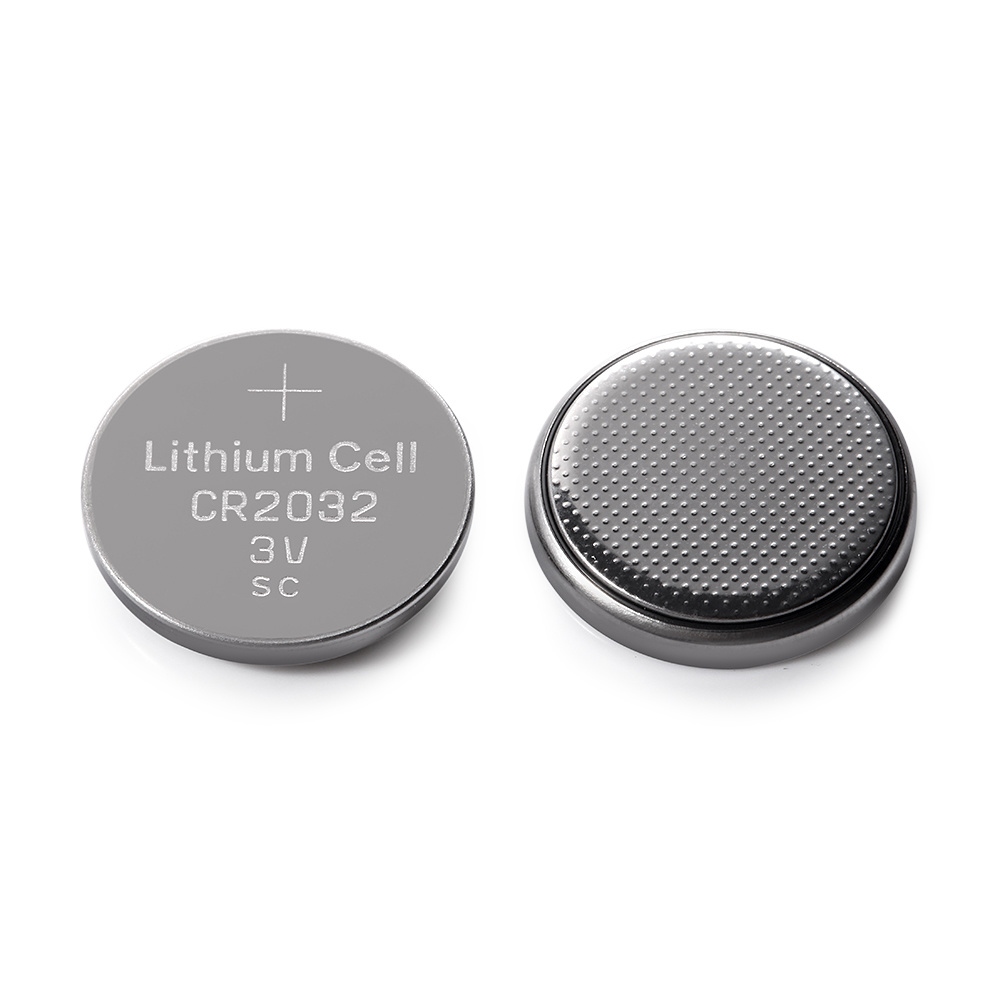

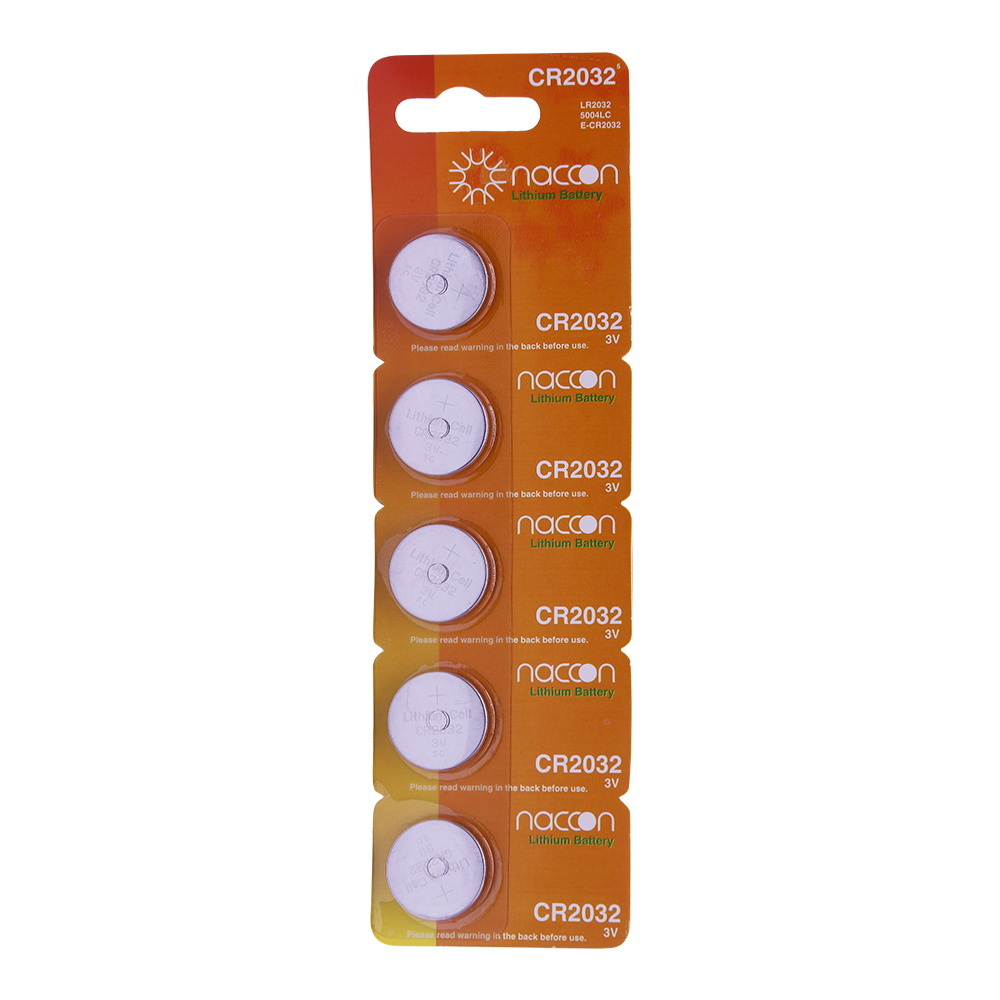

CR2032 is approximately 3.2 mm thick and is one of the most commonly used coin cell batteries.
Its relatively larger capacity makes it suitable for many low-power devices.
Common applications include:
Car key fobs
Motherboards
Electronic scales
Medical devices
Sensors
Remote controls
Consumer electronics
Although CR2016, CR2025, and CR2032 have the same nominal voltage, they should not automatically be treated as interchangeable.
The battery compartment must have enough space for the battery thickness, and the device's electrical requirements also need to be considered.
Battery capacity is usually expressed in mAh, or milliampere-hours.
For example, a battery rated at 200mAh theoretically contains more stored charge than one rated at 100mAh under the same testing conditions.
However, capacity should not be interpreted as a fixed amount of operating time.
The actual runtime depends on several factors:
Device operating current
Operating voltage
Temperature
Battery age
Discharge conditions
Cut-off voltage
Pulse current requirements
Battery chemistry
For example, a device that consumes only a few microamps may operate for a very long time from a button cell, while a device with a much higher current demand may drain the same battery much faster.
Therefore, when selecting a button cell, it is not enough to compare mAh alone.
Not necessarily.
A higher-capacity battery can provide longer operating time under suitable conditions, but capacity is only one part of battery performance.
A battery with higher capacity may also be physically larger. If the device has limited installation space, the larger model may not fit.
In addition, some devices require a specific voltage or discharge characteristic.
For example, a small sensor may prioritize:
Low self-discharge
Long shelf life
Stable voltage
A different device may prioritize:
Higher pulse current
Wider operating temperature range
Rechargeability
Smaller dimensions
Therefore, the right battery is not necessarily the battery with the highest capacity. It is the battery that best matches the requirements of the application.
Capacity is normally measured in mAh, while energy is commonly expressed in Wh.
A simplified relationship is:
Energy (Wh) = Voltage (V) × Capacity (Ah)
For example, a 3V battery with a capacity of 200mAh has a theoretical energy value of approximately:
3V × 0.2Ah = 0.6Wh
This provides a useful way to compare batteries with different nominal voltages.
However, actual usable energy can be lower than the theoretical value because battery performance depends on discharge current, temperature, cut-off voltage, and other conditions.
Selecting a button battery should start with the device requirements rather than simply looking for a battery with a similar appearance.
First check the required operating voltage.
A 1.5V alkaline button cell and a 3V lithium button cell have very different electrical characteristics.
Using the wrong voltage can result in poor device performance or, in some situations, damage to the device.
Check the available battery compartment carefully.
Important dimensions include:
Diameter
Thickness
Overall height
Terminal configuration
Battery holder structure
Even a small difference in thickness may prevent proper installation.
If the device is expected to operate for a long period without battery replacement, capacity becomes particularly important.
However, the rated capacity should be evaluated under the appropriate discharge conditions.
Some electronic devices have relatively low continuous current consumption but may require short-duration pulse currents.
For example, a wireless device may draw a higher current when transmitting a signal.
In these cases, the battery's pulse discharge performance can be just as important as its nominal capacity.
If the battery will be used outdoors, in vehicles, medical equipment, industrial equipment, or other demanding environments, operating temperature should be considered.
Battery performance can change significantly at very low or very high temperatures.
Always confirm whether the device is designed for a primary or rechargeable battery.
A rechargeable battery generally requires a suitable charging circuit. Simply replacing a primary battery with a rechargeable battery of the same size is not necessarily safe or technically correct.

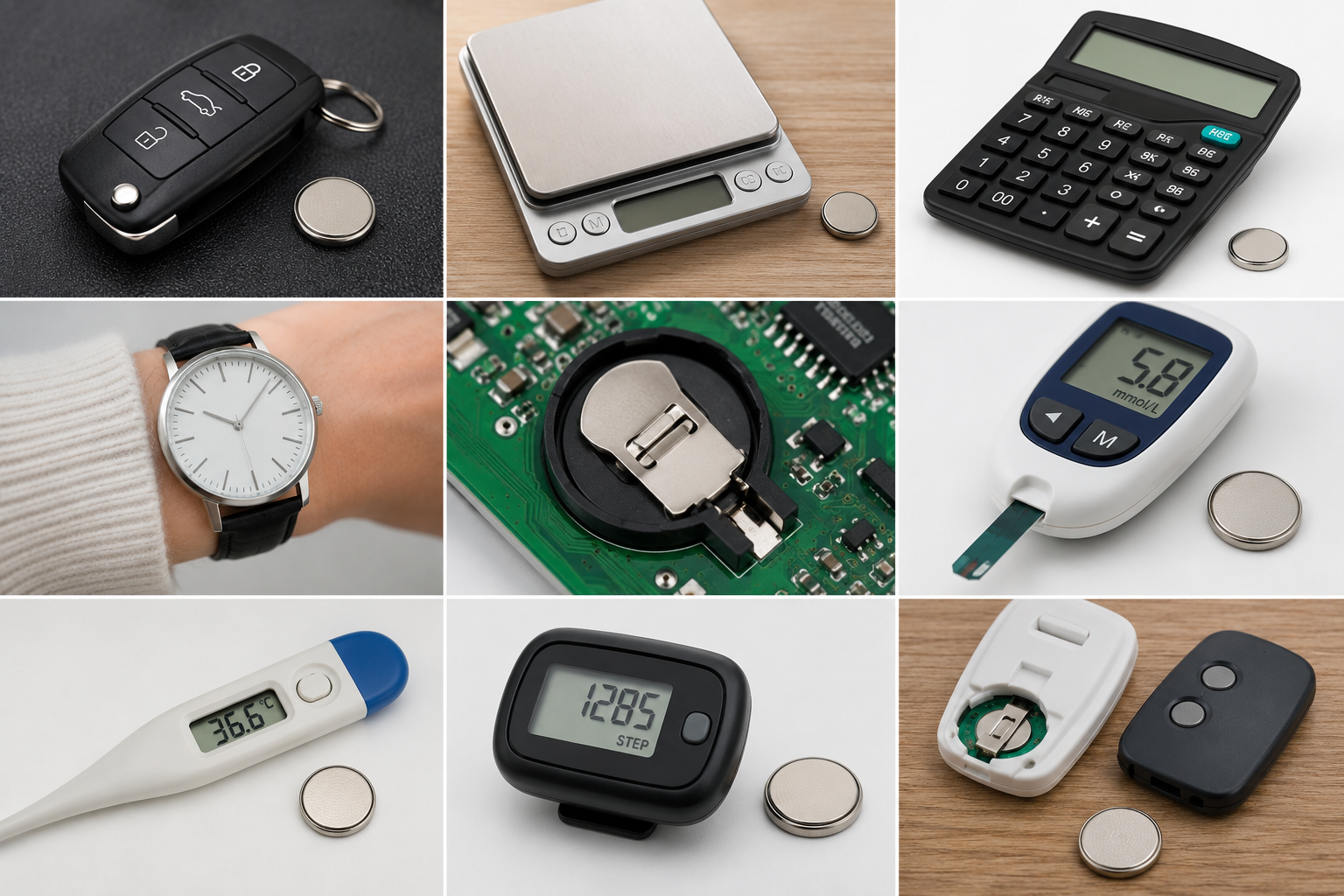

Button batteries are used in a surprisingly wide variety of products.
Watches are one of the classic applications of button batteries.
Because watches typically consume very little power, a small battery can provide energy for a relatively long period.
Silver oxide batteries are commonly used in many traditional watches because of their stable voltage characteristics.
Many car key remotes use lithium coin cells such as CR2032 or similar models.
The battery needs to provide sufficient energy while remaining compact enough to fit inside the key fob.
Some desktop computer motherboards use CR2032 batteries to maintain settings and the real-time clock when the computer is powered off.
Kitchen scales, bathroom scales, and small measuring instruments often use button or coin batteries because the devices are relatively compact and typically have modest power requirements.
Many calculators are designed for extremely low power consumption, making button batteries suitable for certain models.
Button cells can also be found in some medical and healthcare equipment.
The requirements for these applications can be more demanding, particularly where reliability, voltage stability, and quality control are important.
As sensors become smaller and more widespread, compact batteries are increasingly important.
Wireless sensors, monitoring equipment, trackers, and other low-power devices may use coin cells because they can operate for long periods without frequent battery replacement.
Although a single button cell is sufficient for many applications, some products require a higher voltage or a specific battery configuration.
In such cases, multiple cells can be connected to form a battery pack.
Depending on the application, cells may be connected in series or parallel.
Connecting cells in series increases the overall voltage.
For example, two cells with the same nominal voltage connected in series can provide approximately twice the nominal voltage.
Connecting cells in parallel generally increases the available capacity while maintaining approximately the same nominal voltage.
However, designing a battery pack is more complicated than simply connecting several batteries together.
A customized battery pack may need to consider:
Cell matching
Electrical connections
Insulation
Protection components
Wires
Connectors
Physical dimensions
Charging requirements
Discharge requirements
Packaging
Safety testing
For applications requiring a customized battery pack, the device specifications should be reviewed before selecting the cells and connection method.
Yes. Depending on the application, battery manufacturers can provide customized battery solutions.
Customization may involve:
Battery dimensions
Capacity
Cell configuration
Wires
Connectors
Terminals
Protective components
Insulation
Labels
Packaging
For example, an electronic device may have a limited internal space and require a battery with a non-standard connection terminal.
In such a situation, selecting a standard battery from a catalog may not be enough. A customized battery pack can be developed according to the device's available space and electrical requirements.
When requesting a customized button battery or battery pack, it is helpful to provide as much information as possible, including the required voltage, capacity, maximum dimensions, operating current, connector type, and application.
Despite their small size, button batteries should be handled carefully.
One of the most important safety concerns is accidental ingestion. Small button batteries can be extremely dangerous if swallowed, especially by children.
Unused batteries should therefore be kept away from children and pets.
Other basic precautions include:
Do not short-circuit the battery.
Do not intentionally crush or puncture the battery.
Do not expose the battery to excessive heat.
Do not attempt to recharge a non-rechargeable battery.
Do not mix old and new batteries unnecessarily.
Do not mix different battery chemistries.
Install the battery according to the correct polarity.
Dispose of used batteries according to local regulations.
If a battery shows signs of leakage, deformation, corrosion, or physical damage, it should not continue to be used.
Proper storage can help maintain battery performance.
In general, button batteries should be stored in a cool, dry environment away from direct sunlight and excessive heat.
It is also important to prevent accidental contact between batteries and conductive metal objects. Loose batteries should not be stored together with keys, coins, or other metal objects because accidental contact may create a short circuit.
For manufacturers and distributors, packaging is particularly important. Batteries should be properly insulated and protected during storage and transportation.
Storage conditions should follow the battery manufacturer's specifications because different chemistries have different requirements.
There is no single answer because battery life depends heavily on the application.
A device that consumes only a few microamps may run for a very long time, while a device with frequent wireless transmission or higher current consumption may use the battery much faster.
A simplified estimate can be made using:
Operating time ≈ Battery capacity ÷ Average current consumption
For example, if a battery has a nominal capacity of 200mAh and a device theoretically consumes an average of 0.1mA:
200mAh ÷ 0.1mA = 2,000 hours
However, this is only a simplified calculation. Real-world operating time can be shorter because battery capacity depends on discharge conditions and because devices do not always consume a constant current.
Temperature, battery aging, pulse loads, internal resistance, and the device's cut-off voltage can also affect the actual service life.
No.
This is one of the most important points to remember.
Two button batteries may have the same diameter but different thicknesses. They may also have different nominal voltages, chemistries, capacities, discharge characteristics, or charging requirements.
For example, CR2032 and LIR2032 may have similar dimensions, but their electrochemical systems and voltage characteristics are different.
Similarly, a physically similar LR battery and SR battery may have different performance characteristics.
Before replacing a button battery, check:
Original battery model
Nominal voltage
Diameter
Thickness
Capacity
Battery chemistry
Primary or rechargeable type
Device operating requirements
If there is any uncertainty, checking the device manufacturer's specifications is the safest approach.
A complete battery specification normally contains more information than just the model number.
For example, a battery specification may include:
Model: CR2032
Nominal Voltage: 3V
Nominal Capacity: Specified by manufacturer and test conditions
Diameter: Approximately 20 mm
Thickness: Approximately 3.2 mm
Chemistry: Lithium manganese dioxide
Rechargeable: No
Application: Low-power electronic devices
For commercial battery sourcing, additional information may be necessary, such as:
Continuous discharge current
Pulse discharge current
Operating temperature
Storage temperature
Internal resistance
Shelf life
Weight
Terminal configuration
Certifications and test reports
Packaging requirements
The exact specifications should always be confirmed with the battery manufacturer or the relevant datasheet.
Button cell batteries may be small, but they play an important role in many electronic products.
From CR2032 lithium batteries used in car keys and computer motherboards to SR-series silver oxide batteries used in watches and zinc-air batteries used in hearing aids, different button battery chemistries are designed for different applications.
When choosing a button battery, it is important to look beyond the model number. Voltage, capacity, dimensions, chemistry, discharge performance, operating temperature, and whether the battery is rechargeable all need to be considered.
For standard products, selecting the correct model can often be straightforward once the original battery specifications are confirmed. For products with limited installation space, special terminals, customized wiring, or specific electrical requirements, a customized battery solution may be a better option.
In other words, the best button battery is not necessarily the one with the largest capacity or the lowest price. It is the one that matches the device's electrical, mechanical, and application requirements while providing reliable and safe performance.
