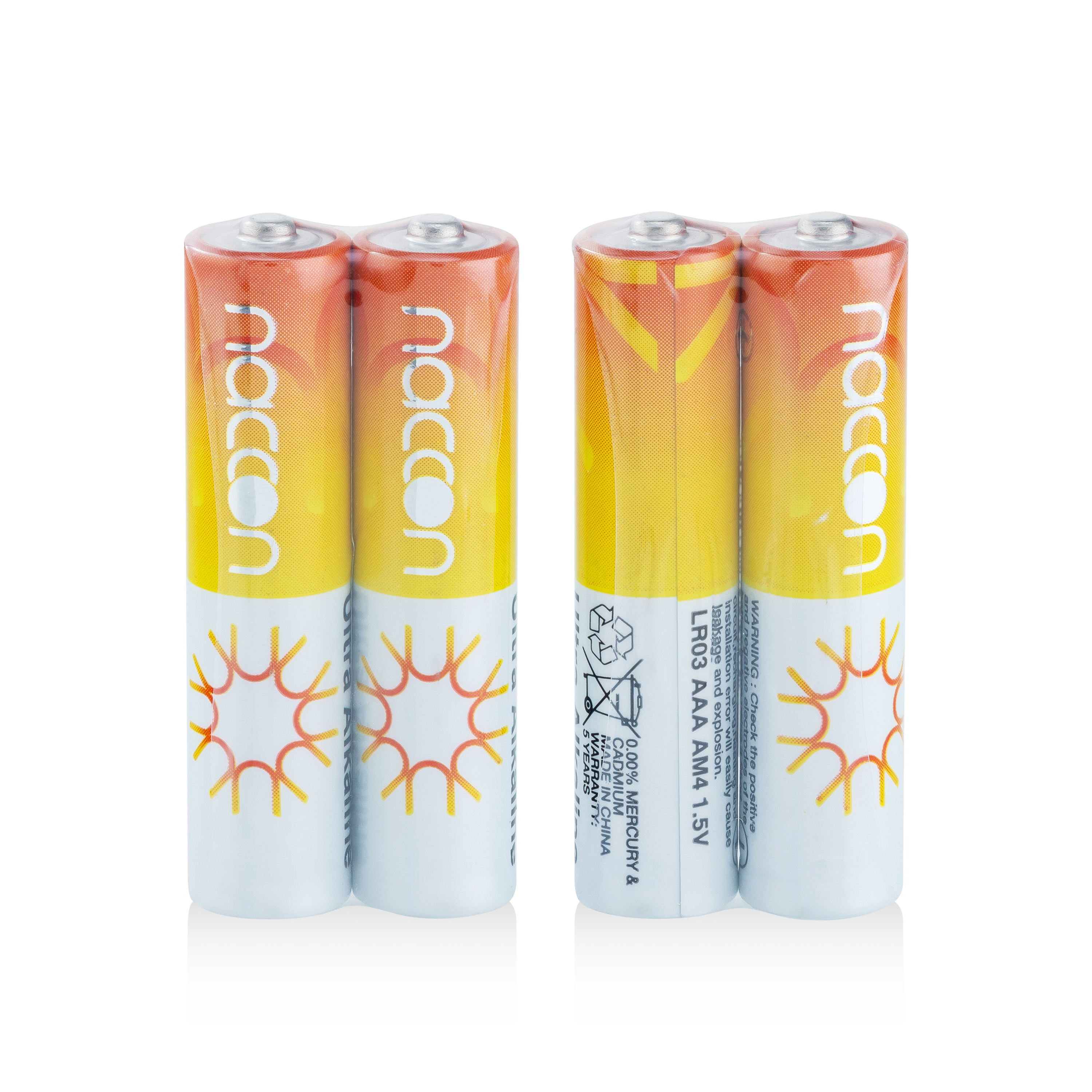

LR03 type alkaline zinc-manganese batteries, commonly known as AAA alkaline batteries, are widely used in small electronic devices due to their high energy density, stable discharge performance, and reliable safety. As a typical primary battery, its operation relies on precise electrochemical reactions between internal components, and its unique electrochemical characteristics determine its superior performance compared to traditional carbon-zinc batteries. This article focuses on the working principle of LR03 alkaline zinc-manganese batteries, elaborates on their core electrochemical reactions and key characteristics, and helps readers deeply understand the internal mechanism of this common power source.
LR03 is a standard model designated by the International Electrotechnical Commission (IEC), where "L" represents alkaline electrolyte, "R" denotes cylindrical battery structure, and "03" specifies its size (10.5 mm in diameter and 44.5 mm in height). As a type of alkaline zinc-manganese battery, it uses zinc as the negative electrode, manganese dioxide as the positive electrode, and potassium hydroxide (KOH) solution as the electrolyte, which is fundamentally different from carbon-zinc batteries (R03) using ammonium chloride or zinc chloride as the electrolyte. This structural difference gives LR03 batteries excellent electrochemical performance and longer service life.
The core feature of LR03 alkaline zinc-manganese batteries is that the electrochemical reaction occurs in an alkaline environment, which effectively reduces the polarization effect during discharge, improves reaction efficiency, and avoids the generation of gas that may cause battery bulging or leakage. It is a primary battery designed for one-time use, and the internal electrochemical reaction is irreversible, so it cannot be recharged.
The working principle of LR03 alkaline zinc-manganese batteries is based on the redox reaction between the positive and negative electrodes in the alkaline electrolyte, converting chemical energy into electrical energy. The entire reaction process involves the participation of electrons and ions, forming a complete circuit inside and outside the battery. Below is a detailed explanation of the core components and reaction mechanism:
The electrochemical reaction of LR03 batteries relies on five key components, each of which plays an irreplaceable role:
Negative Electrode (Anode): Made of high-purity zinc powder. The zinc powder has a large specific surface area, which can increase the contact area between the electrode and the electrolyte, accelerate the reaction rate, and improve the battery's discharge capacity and efficiency.
Positive Electrode (Cathode): Composed of manganese dioxide (MnO₂) mixed with graphite. Manganese dioxide acts as an oxidizing agent, accepting electrons during the reaction; graphite serves as a conductive agent to enhance the electrical conductivity of the positive electrode and ensure the smooth transfer of electrons.
Electrolyte: Concentrated potassium hydroxide (KOH) solution with a mass fraction of 30% to 40%. It is an ion conductor that provides hydroxide ions (OH⁻) for the reaction and enables the transfer of ions between the positive and negative electrodes to maintain charge balance.
Separator: A porous insulating membrane (usually made of non-woven fabric or polypropylene). It separates the positive and negative electrodes to prevent short circuits caused by direct contact, while allowing hydroxide ions to pass through freely, ensuring the smooth progress of the internal reaction.
Steel Shell and Sealing Structure: The outer steel shell acts as a current collector for the positive electrode and provides physical protection; the multi-layer sealing structure prevents the leakage of electrolyte and the entry of air, ensuring the stability of the electrochemical reaction and extending the battery's shelf life.
When the LR03 battery is connected to an external circuit, the positive and negative electrodes undergo redox reactions simultaneously, and the electrons flow through the external circuit to form an electric current, while the ions complete the charge transfer through the electrolyte. The specific reaction process is as follows:
Zinc (Zn) at the negative electrode reacts with hydroxide ions (OH⁻) in the alkaline electrolyte, undergoing oxidation to generate zincate ions (Zn(OH)₄²⁻) and release electrons. The electrons flow out of the negative electrode through the external circuit to the positive electrode, providing power for the external device. The reaction formula is:
Zn + 4OH⁻ → Zn(OH)₄²⁻ + 2e⁻
In this reaction, zinc is oxidized from a zero-valent state to a +2 valence state, and each zinc atom releases 2 electrons. The high specific surface area of zinc powder ensures that this reaction can proceed rapidly and continuously, providing a stable current output.
Manganese dioxide (MnO₂) at the positive electrode accepts the electrons transmitted through the external circuit, and reacts with water (H₂O) in the electrolyte to generate manganese hydroxide (MnO(OH)) and hydroxide ions (OH⁻). The hydroxide ions generated at the positive electrode return to the negative electrode through the electrolyte to participate in the reaction again, forming a cyclic ion transfer process. The reaction formula is:
MnO₂ + H₂O + e⁻ → MnO(OH) + OH⁻
In this reaction, manganese in manganese dioxide is reduced from a +4 valence state to a +3 valence state, and each manganese dioxide molecule accepts 1 electron. The addition of graphite ensures that the electrons can be quickly transferred to each manganese dioxide particle, avoiding local polarization and ensuring the stability of the positive electrode reaction.
Combining the oxidation reaction at the negative electrode and the reduction reaction at the positive electrode, the overall electrochemical reaction of the LR03 alkaline zinc-manganese battery is:
Zn + 2MnO₂ + 2H₂O → Zn(OH)₄²⁻ + 2MnO(OH)
This reaction is irreversible. As the reaction proceeds, zinc at the negative electrode and manganese dioxide at the positive electrode are continuously consumed. When either of the two active materials is exhausted, the battery can no longer generate electricity and reaches the end of its service life.
The electrochemical characteristics of LR03 batteries are determined by their internal reaction mechanism and component materials, which directly affect their performance, service life, and application scope. The key electrochemical characteristics are as follows:
The nominal voltage of LR03 alkaline zinc-manganese batteries is 1.5V, which is consistent with the power requirements of most small electronic devices. Due to the use of alkaline electrolyte, the polarization effect during the electrochemical reaction is significantly reduced—polarization refers to the phenomenon that the actual electrode potential deviates from the equilibrium potential due to the slow reaction rate, which will lead to voltage drop and reduced discharge efficiency. The low polarization of LR03 batteries ensures that the output voltage remains stable during most of the discharge cycle, and the voltage drop is gradual even in the later stage of discharge, avoiding sudden power failure of the device.
Energy density is an important indicator reflecting the battery's capacity, which refers to the electrical energy stored per unit volume or mass. The alkaline electrolyte of LR03 batteries has high ionic conductivity, which can accelerate the transfer rate of hydroxide ions and improve the reaction efficiency between the positive and negative electrodes. At the same time, the zinc powder negative electrode has a large reaction surface area, which further enhances the reaction rate. Compared with traditional carbon-zinc R03 batteries, the energy density of LR03 batteries is 1.5 to 2 times higher, and the discharge efficiency can reach more than 80%, which means that under the same volume, LR03 batteries can provide longer working time.
Self-discharge is the phenomenon that the battery loses power naturally when not in use, which is caused by the side reaction between the electrode and the electrolyte. The alkaline electrolyte of LR03 batteries has stable chemical properties, and the reaction between zinc and potassium hydroxide is relatively mild when there is no external circuit. In addition, the tight sealing structure of the steel shell prevents the entry of air and moisture, further reducing the self-discharge rate. Under normal storage conditions (cool, dry, away from direct sunlight), the self-discharge rate of LR03 batteries is less than 3% per year, and the shelf life can reach 5 to 10 years, which is far superior to carbon-zinc batteries.
High-rate discharge performance refers to the ability of the battery to maintain stable performance when discharging at a large current. LR03 alkaline zinc-manganese batteries have excellent high-rate discharge performance because the high ionic conductivity of the alkaline electrolyte and the large specific surface area of the zinc powder negative electrode can quickly respond to the demand for large current, avoiding excessive voltage drop or overheating. This makes LR03 batteries not only suitable for low-drain devices such as remote controls and clocks but also for high-drain devices such as toys, flashlights, and digital cameras.
The electrochemical reaction of LR03 batteries can proceed stably in a wide temperature range. The normal operating temperature is -20°C to 60°C. At low temperatures, although the viscosity of the electrolyte increases and the ion transfer rate decreases, the reaction can still proceed, and the discharge capacity can reach more than 70% of the normal temperature capacity; at high temperatures, the stability of the electrolyte and electrodes is good, and there will be no obvious side reactions such as electrolyte decomposition or electrode corrosion, ensuring the safety and reliability of the battery.
As a primary battery, the electrochemical reaction of LR03 alkaline zinc-manganese batteries is irreversible. Once the active materials (zinc and manganese dioxide) are consumed, the battery cannot be restored to its original state by charging. This is because the reaction products (Zn(OH)₄²⁻ and MnO(OH)) cannot be decomposed into the original reactants under normal conditions. Attempting to recharge will break the balance of the internal electrochemical reaction, leading to overheating, bulging, or leakage of the battery.
The electrochemical characteristics of LR03 batteries are not only determined by their own structure but also affected by external factors, among which temperature, storage conditions, and discharge rate are the most important:
Temperature: Low temperature will reduce the ion conductivity of the electrolyte and the reaction activity of the electrode, leading to a decrease in discharge capacity and rate; high temperature will accelerate the self-discharge rate of the battery and may shorten its shelf life. Therefore, storing and using the battery within the recommended temperature range is crucial to maintaining its electrochemical performance.
Storage Conditions: Humid environment will cause the steel shell to rust and damage the sealing structure, leading to electrolyte leakage and reduced battery performance; direct sunlight or high temperature will accelerate the self-discharge and aging of the battery. Proper storage conditions (cool, dry, well-ventilated) can effectively maintain the stability of the battery's electrochemical characteristics.
Discharge Rate: High-rate discharge will increase the polarization effect of the battery, leading to a faster voltage drop and a slight decrease in total discharge capacity; low-rate discharge can make the electrochemical reaction proceed more fully, maximizing the battery's capacity and service life.
The LR03 type alkaline zinc-manganese battery relies on the redox reaction between zinc and manganese dioxide in the alkaline electrolyte to convert chemical energy into electrical energy, with stable reaction mechanism and excellent electrochemical characteristics. Its stable nominal voltage, high energy density, low self-discharge rate, and good high-rate discharge performance make it the preferred power source for small electronic devices. Understanding the working principle and electrochemical characteristics of LR03 batteries not only helps us better understand the performance and service life of the battery but also provides a scientific basis for its rational selection, use, and storage. With the continuous improvement of material technology and production processes, the electrochemical performance of LR03 alkaline zinc-manganese batteries will be further optimized, bringing more reliable power support to daily life and industrial applications.
