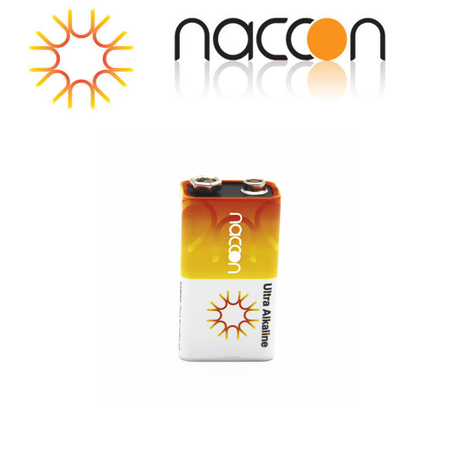

6LR61 Alkaline Battery Guide: Full Insight into Structure to Battery Life

Introduction

As a mainstream 9V block-type disposable battery, the 6LR61 alkaline battery is ubiquitous in household appliances, testing instruments, safety alarms and portable electronic products. Many people only know its appearance, but lack in-depth understanding of its internal structure, material composition, discharge performance and actual endurance performance. This popular science article fully sorts out all core knowledge of 6LR61 batteries from internal structure, internal composition, discharge principle, endurance performance to practical use, helping you master all key points thoroughly.

1. Basic Overview of 6LR61 Battery

6LR61 is the international standard model of 9V alkaline primary battery formulated by IEC. Its model code has fixed practical meanings:

• Number 6: Equipped with six built-in 1.5V single alkaline cells connected in series

• Letter L: Represents alkaline battery chemical system

• Letter R: Stands for cylindrical single cell structure

• Number 61: Unified standard size specification code for 9V square batteries

Different from low-cost carbon zinc 6F22 batteries, 6LR61 adopts high-density alkaline raw materials, featuring stronger power output, longer standby time and more stable discharge performance, which is the preferred power supply for medium and high-end electronic equipment.

2. Internal Structure & Material Composition

The overall structure of 6LR61 is compact and sealed, mainly divided into outer shell, internal cell group, conductive connector and insulating protection part.

2.1 Outer Protective Shell

Adopts high-strength flame-retardant plastic shell, with good compression resistance, drop resistance and insulation performance. It can effectively isolate external moisture and dust, and prevent internal electrolyte leakage under normal use.

2.2 Built-in Series Cell Group

The core power generation part is composed of six independent 1.5V cylindrical alkaline cells arranged and connected in series. Series connection stably raises the total voltage to standard 9V, which realizes small volume and high voltage output.

2.3 Core Raw Materials

• Negative electrode: High-purity zinc material, stable oxidation reaction, sufficient power supply

• Positive electrode: High-density manganese dioxide, strong reduction activity

• Electrolyte: Potassium hydroxide alkaline solution, fast electron conduction, low internal resistance

• Sealing component: Special anti-leakage sealing ring, greatly reducing battery liquid leakage risk

3. Working Discharge Principle

The power generation of 6LR61 relies on stable irreversible chemical reactions inside the battery.

When the battery is connected to electronic equipment to form a closed loop, the zinc negative electrode undergoes oxidation reaction to release electrons. The electrons flow through the circuit to the equipment to supply power, and finally return to the manganese dioxide positive electrode to complete reduction reaction.

During the whole discharge process, the voltage output is smooth and will not fluctuate sharply. Until the internal chemical raw materials are completely consumed, the battery will run out of power. Since the reaction is irreversible, 6LR61 belongs to disposable non-rechargeable battery.

4. Standard Parameters & Endurance Performance

4.1 Main Standard Specifications

• Rated voltage: 9V DC

• Common rated capacity: 500mAh ~ 600mAh

• Overall dimension: 48.526.517.5mm

• Working temperature: -20℃ ~ 60℃

• Normal shelf life: 3-5 years

• Annual self-discharge rate: Below 3%

4.2 Actual Endurance Performance

The actual service life of 6LR61 is closely related to the working current of the equipment:

1. Low-current standby equipment such as smoke alarms and gas detectors can last for more than 1 year stably

2. Medium-current equipment such as digital multimeters and thermometers can maintain long-term daily use

3. High-current equipment such as wireless microphones will consume power faster and have relatively shorter service life

Under the same volume, 6LR61 alkaline battery has far better endurance than traditional carbon zinc batteries.

5. Main Application Fields

1. Home safety series: Smoke fire alarm, carbon monoxide detector, gas leakage alarm

2. Measuring instrument series: Digital multimeter, portable detection meter, industrial sensor

3. Audio communication series: Wireless microphone, portable intercom, mini radio

4. Daily electronic series: Electronic musical instruments, intelligent remote controls, portable toys

6. Practical Use & Maintenance Knowledge

1. Strictly prohibit charging. Charging will destroy internal chemical balance, causing liquid leakage, heating and even safety hazards.

2. Avoid positive and negative pole short circuit, do not use metal to contact two poles directly.

3. Do not mix new and old batteries or different types of batteries for combined use.

4. Keep the battery pole pieces clean to avoid poor contact affecting power supply efficiency.

5. Store unused batteries in dry and cool environment, away from high temperature and humid places.

6. Discard exhausted batteries in classified recycling bins to meet environmental protection requirements.

Conclusion

From precise internal splicing structure to mature alkaline chemical reaction, from stable voltage output to long-term standby endurance, every design of 6LR61 alkaline battery is tailored for portable low-voltage power supply scenarios.

After fully understanding its structural composition, power generation principle and endurance characteristics, users can accurately match applicable equipment, correctly use and store batteries, maximize battery service life, and ensure stable and safe operation of all kinds of electronic equipment.
