What is LR20 Battery? A Detailed Guide to Size D Battery Specifications and Discharge Performance

If you have ever replaced batteries for gas stoves, high-power flashlights, emergency lights, or industrial testing equipment, you must be familiar with the LR20 battery. Widely known as the Size D battery or No.1 battery in daily life, the LR20 alkaline battery is one of the most common primary batteries in household and industrial scenarios. Many users only know its large size but remain confused about its professional specifications, discharge characteristics, and applicable scenarios. This article will give a comprehensive and detailed explanation of the LR20 battery to help you fully understand its performance advantages and usage logic.

1. Basic Definition & Core Specifications of LR20 Battery

LR20 is the international standard model number for alkaline Size D primary batteries, corresponding to the civilian common name “No.1 battery”. To distinguish it from ordinary carbon batteries, the industry adopts unified coding rules: the prefix “L” represents alkaline electrolyte, while “R” stands for round cylindrical battery structure, and the number “20” refers to the exclusive size standard of D-type batteries.

Its fixed core specifications are universally unified in the industry, with no difference among mainstream regular manufacturers:

- Rated Voltage: 1.5V (stable open-circuit voltage, consistent with all single-section alkaline dry batteries)

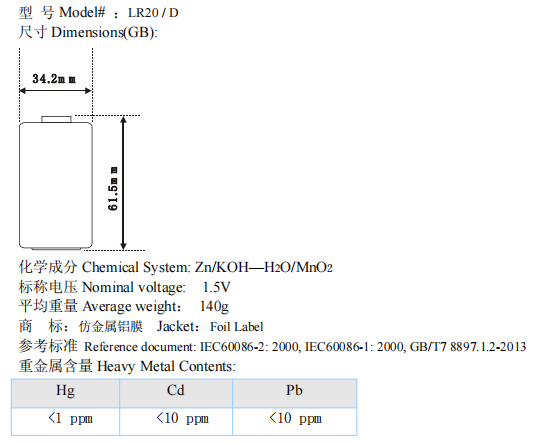

- Dimension Standard: Diameter 34.2mm, height 61.5mm, featuring a large cylindrical body and higher internal capacity space

- Battery Type: Non-rechargeable primary alkaline battery (disposable use, no support for cyclic charging)

- Standard Capacity: The typical capacity of high-quality LR20 batteries ranges from 12000mAh to 18000mAh, which is far higher than carbon-based R20 batteries of the same size

It is worth noting that many users confuse LR20 with R20. In short, R20 refers to traditional carbon-zinc D-type batteries, while LR20 is an upgraded alkaline version with essential differences in internal materials and performance.

2. Core Discharge Performance of LR20 Alkaline Battery

The biggest advantage of the LR20 battery lies in its excellent high-load discharge performance and stable voltage output, which is also the fundamental reason why it is irreplaceable in high-power equipment. Its discharge characteristics are mainly reflected in three aspects:

2.1 High Continuous Discharge Capacity

Compared with R20 carbon batteries, LR20 alkaline batteries adopt manganese dioxide cathode and zinc anode materials with higher energy density. Under the same discharge current, its sustainable discharge time is 3 to 5 times that of carbon batteries. For high-power devices that require long-term continuous power supply, such as outdoor high-brightness flashlights and industrial portable detectors, LR20 can effectively avoid frequent battery replacement.

2.2 Stable Voltage Discharge Curve

Ordinary carbon batteries have obvious voltage attenuation during discharge: the voltage drops rapidly in the later stage of use, resulting in dim light, insufficient power and even equipment failure. In contrast, LR20 batteries maintain a flat and stable voltage curve throughout the discharge cycle. The working voltage can be stably maintained above 1.2V for most of the service life, ensuring the stable operation of precision and high-power equipment.

2.3 Excellent Pulse Discharge & Low-Temperature Performance

Many electrical devices such as gas stoves and fuel heaters require instantaneous high-current pulse discharge to complete ignition. LR20 batteries can withstand instantaneous high-current discharge without voltage collapse, with a high ignition success rate. In addition, it has better low-temperature adaptability than carbon batteries, maintaining normal discharge performance in a low-temperature environment of -10℃ to 0℃, suitable for outdoor emergency equipment and cold-region industrial devices.

3. LR20 VS R20: Key Performance Differences

Most users mistakenly believe that LR20 and R20 batteries are universal because of their identical size and appearance. In fact, their performance gap is huge, leading to completely applicable scenarios:

- Material & Energy Density: LR20 is alkaline with high energy density; R20 is carbon-zinc with low energy density

- Discharge Power: LR20 supports high-load and instantaneous high-current discharge; R20 is only suitable for low-current standby equipment

- Service Life: LR20 has 3-5 times longer service life under the same working conditions

- Price & Cost Performance: R20 is low-priced but short-lived; LR20 has a moderate price and ultra-high cost performance for high-power scenarios

In low-power and long-standby devices such as remote controls and electronic clocks, R20 carbon batteries can meet the demand; while high-power, high-frequency and instantaneous start-up equipment must choose LR20 alkaline batteries.

4. Main Application Scenarios of LR20 Battery

Benefiting from its large capacity, high power and stable discharge performance, LR20 Size D batteries are widely used in household, commercial and industrial fields:

- Household Equipment: Gas stoves, gas water heaters, high-power handheld flashlights, emergency exit lights, portable speakers

- Commercial & Public Facilities: Fire emergency equipment, traffic warning lights, public sanitary induction equipment

- Industrial Scenarios: Portable industrial detectors, mining lighting equipment, field survey instruments, low-power industrial standby power supplies

5. Daily Use & Storage Notes

To extend the service life of LR20 batteries and avoid safety risks, it is necessary to master correct use and storage methods. Regular high-quality LR20 batteries have excellent leak-proof performance, but long-term idle use and improper matching will still cause failure. It is recommended to store them in a dry and cool environment with a storage life of up to 10 years. Do not mix new and old batteries or mix alkaline and carbon batteries, so as to avoid inconsistent discharge current leading to power exhaustion and equipment damage.

Final Summary

LR20 (Size D/No.1) alkaline battery is a high-energy, high-stability disposable battery tailored for high-power equipment. Its standardized size, stable 1.5V voltage output, excellent high-load discharge capacity and wide temperature adaptability make it an indispensable power source in household and industrial scenarios. Distinguishing LR20 alkaline batteries from ordinary R20 carbon batteries and selecting batteries according to equipment power demand can not only ensure the stable operation of equipment but also effectively reduce replacement frequency and use cost.
