LR03 alkaline batteries, commonly known as AAA batteries, are one of the most widely used primary batteries in daily electronic devices. With their stable performance, high energy density and compact size, they have become an ideal power supply for small appliances. This article gives a complete introduction to LR03 alkaline batteries from three aspects: internal structure, core advantages and typical application scenarios.

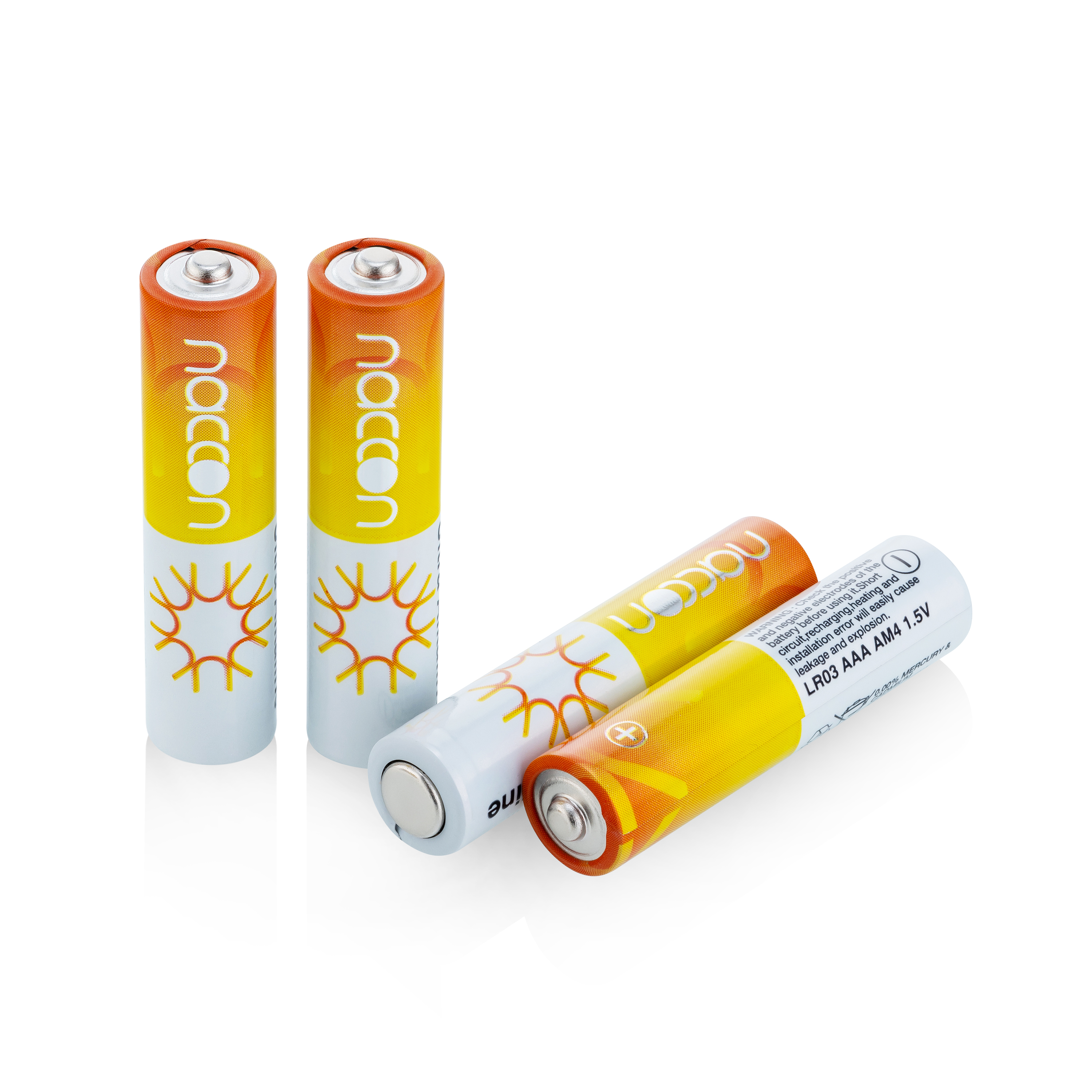

LR03 is a standard cylindrical alkaline zinc-manganese battery with a diameter of about 10.5 mm and a height of 44.5 mm. Its internal structure is precise and compact, mainly composed of the following parts:
The positive electrode is mainly made of manganese dioxide (MnO₂) mixed with graphite as a conductive agent. It provides the oxidation reaction site during discharge and stably receives electrons to maintain continuous current output.
The negative electrode uses high-purity zinc powder, which has a large reaction surface area and higher electrochemical activity, greatly improving discharge efficiency and capacity compared with traditional zinc sheets.
Potassium hydroxide (KOH) solution is used as the electrolyte. It has high ionic conductivity, supports stable reaction even under high current discharge, and helps extend service life.
A special porous insulating membrane is used to separate the positive and negative electrodes to prevent short circuits, while allowing ions to pass freely to complete the internal circuit.
The outer steel shell provides physical protection and structural support. The multi-layer sealing design effectively prevents electrolyte leakage and improves safety and shelf life.
Compared with carbon-zinc R03 batteries and other small batteries, LR03 alkaline batteries have obvious performance advantages:
Under the same volume, the capacity of LR03 alkaline batteries is 3–5 times that of ordinary carbon-zinc batteries, providing longer working time for electronic devices.
The output voltage maintains at a stable 1.5V during most of the discharge cycle, with slow voltage drop, ensuring stable operation of precision devices without sudden power failure.
Under normal temperature and dry storage conditions, LR03 alkaline batteries can be stored for 5–10 years with low self-discharge rate and more than 80% capacity retention.
It can work normally in a wide temperature range from -20°C to 60°C. Even in low-temperature environments, it still maintains good discharge capacity, far better than carbon-zinc batteries.
Regular LR03 alkaline batteries are mercury-free, cadmium-free and lead-free, causing less pollution to the environment. The strict sealing structure reduces the risk of leakage, swelling and rupture.
LR03 batteries are widely used in various low-power and medium-power electronic devices because of their moderate size and reliable performance.
TV sets, air conditioners, set-top boxes, projectors and other remote controls are the most common application scenarios. LR03 batteries feature low self-discharge and long-term standby.
Electric toy cars, robots, musical toys, story machines and other devices require continuous and stable power supply. LR03 alkaline batteries have high capacity and strong discharge performance.
Cordless mice, keyboards, electronic thermometers, blood glucose meters, digital voice recorders, flashlights, alarm clocks and calculators all rely on LR03 batteries for power.
Many portable medical devices such as otoscopes, thermometers, and hearing aid accessories use LR03 batteries for their stability and safety.
Small measuring instruments, laser pointers, wireless microphones, walkie-talkies and other equipment also commonly use LR03 alkaline batteries.
LR03 alkaline batteries feature reasonable structure, superior performance and strong adaptability, making them an indispensable portable power source in daily life, industrial and medical fields. Understanding its structure and advantages helps users select batteries more rationally, improve device endurance and ensure safe use.
