Continuous Improvement of the Production Process and Quality Control for Cylindrical Lithium-Ion Batteries

As demand for rechargeable power continues to grow, cylindrical lithium-ion batteries are becoming increasingly important in portable electronics, energy storage equipment, lighting products, power tools, and other applications. However, producing a reliable lithium-ion cell is not simply a matter of assembling several components. It requires careful control of materials, manufacturing parameters, cleanliness, electrical performance, and safety throughout the entire production process.

For battery manufacturers such as NACCON, continuous improvement is an important part of maintaining stable product quality and meeting the increasingly demanding requirements of global customers. NACCON currently offers cylindrical lithium-ion cells in formats including 18650 and 21700, with different capacities and configurations for various applications.

1. Why Continuous Improvement Matters in Lithium-Ion Battery Production

A cylindrical lithium-ion battery contains several carefully engineered components, including a cathode, anode, separator, electrolyte, current collectors, casing, insulation materials, and safety components. The electrodes and separator are generally wound together to form a compact jelly roll, which is then inserted into the cylindrical housing.

Because so many components interact inside a small space, even a small manufacturing deviation can affect battery performance. For example, uneven electrode coating, inaccurate winding, contamination, poor sealing, or inconsistent electrolyte filling may influence capacity, internal resistance, cycle performance, or safety.

This is why modern battery manufacturing should not rely only on final inspection. Quality needs to be built into every stage of production.

A continuous-improvement approach normally focuses on four objectives:

• Improving consistency

• Reducing manufacturing defects

• Increasing production efficiency

• Strengthening battery safety and reliability

Instead of waiting until the finished cell fails inspection, manufacturers can monitor critical process parameters and identify potential problems earlier.

2. Raw Material Inspection: The First Quality Gate

High-quality batteries begin with consistent raw materials.

Before production, key materials should be inspected according to defined specifications. Depending on the material, quality checks may include chemical composition, particle characteristics, moisture content, dimensional accuracy, cleanliness, and supplier consistency.

For electrode materials, maintaining stable material properties is especially important because the formulation and physical characteristics of the electrode influence coating quality and ultimately cell performance.

A well-designed incoming-material inspection system can therefore prevent unsuitable materials from entering the production line.

Typical Incoming Quality Checks

This approach creates the first quality-control barrier before electrode manufacturing begins.

3. Electrode Manufacturing Requires Precise Process Control

Electrode manufacturing is one of the most important stages in cylindrical lithium-ion battery production.

The general process includes material mixing, coating, drying, calendaring, and slitting. Industry research identifies electrode uniformity, porosity, coating quality, and freedom from defects as important factors affecting final cell performance.

Mixing

Cathode and anode materials are mixed with conductive additives, binders, and other components to produce a homogeneous slurry.

The goal is to achieve stable dispersion and consistent composition throughout the batch. Variations in mixing can eventually translate into differences in electrode performance.

Coating

The slurry is coated onto the appropriate metal foil. Uniform coating thickness is critical because significant variation can result in inconsistent electrode loading and cell-to-cell performance.

Modern production lines can use in-line measurement technologies to monitor electrode thickness and surface defects during manufacturing. Such inspection methods are increasingly important for improving consistency and reducing defective material.

Drying and Calendaring

After coating, the electrode is dried under controlled conditions. The electrode may then undergo calendaring to achieve the required thickness and density.

Maintaining stable process parameters helps manufacturers achieve more consistent electrode characteristics from one production batch to another.

Slitting

The coated electrode is cut into accurately controlled widths suitable for cylindrical cell assembly. Precision during slitting is important because damaged edges or incorrect dimensions can create problems during winding and cell assembly.

4. Clean Manufacturing Is Essential

Cleanliness is another critical element of lithium-ion battery production.

Manufacturing areas for lithium-ion cells require appropriate environmental controls because moisture and foreign particles can negatively affect battery quality. Electrode production is commonly carried out under controlled humidity conditions, particularly in dry-room environments.

A continuous-improvement program can include:

• Regular environmental monitoring

• Particle and contamination control

• Equipment cleaning procedures

• Operator cleanliness requirements

• Material handling controls

• Preventive maintenance

• Process-area audits

These measures help reduce the possibility of foreign particles or moisture entering the cell during manufacturing.

5. Precision Winding Creates the Cylindrical Cell Structure

For cylindrical lithium-ion batteries, winding is a particularly important assembly step.

The cathode, separator, and anode are wound together to form the jelly roll. Research on cylindrical cells describes winding as a central part of jelly-roll manufacturing and highlights the importance of design and manufacturing tolerances.

During this stage, manufacturers need to control factors such as:

• Electrode alignment

• Separator positioning

• Winding tension

• Winding diameter

• Tab positioning

• Mechanical stability

• Insulation

Improving winding precision can help reduce internal alignment problems and contribute to better consistency between individual cells.

For high-volume production, automation can also improve repeatability by reducing variations associated with manual handling.

6. Electrolyte Filling and Sealing

After the jelly roll is assembled and inserted into the cylindrical housing, electrolyte is introduced into the cell.

Electrolyte filling requires accurate dosing and controlled handling. Current industrial production technologies emphasize accurate positioning of the filling system and controlled wetting to help ensure that the porous components are properly impregnated.

The cell is then sealed.

Sealing quality is extremely important because the finished cell needs to maintain its internal environment throughout its service life. Manufacturers should therefore establish appropriate inspection procedures for sealing integrity and potential leakage.

Continuous improvement in this stage may involve:

1. Improving filling accuracy.

2. Monitoring filling equipment.

3. Optimizing wetting conditions.

4. Checking sealing parameters.

5. Introducing regular leak testing.

6. Recording process data for traceability.

7. Formation and Aging: Turning a Cell into a Finished Battery

Formation is a critical electrical process in lithium-ion battery manufacturing.

During formation, the cell undergoes controlled charging and discharging to establish its electrochemical characteristics. The process contributes to the formation of the solid electrolyte interphase (SEI) on the anode.

After formation, cells can undergo aging and electrical screening. This allows manufacturers to identify cells with abnormal voltage behavior, self-discharge, capacity, or internal resistance.

The importance of this stage means that production data should be carefully recorded and associated with the appropriate cell or production batch.

8. Multi-Level Quality Control for NACCON Cylindrical Batteries

A strong quality-control system should not depend on a single final inspection. Instead, quality should be monitored through multiple checkpoints.

For cylindrical lithium-ion batteries, a typical quality-control structure can be organized as follows:

This layered approach makes it easier to locate the source of a quality deviation instead of simply rejecting the finished product.

9. Electrical Testing and Final Inspection

Final testing is an essential part of cylindrical battery quality control.

Typical tests may include:

• Open-circuit voltage testing

• Capacity testing

• Internal-resistance measurement

• Charge/discharge performance

• Appearance inspection

• Dimensional inspection

• Leakage or sealing inspection

• Safety-related screening

• Cell grading and matching

Research on cylindrical battery manufacturing specifically identifies visual inspection, capacity measurement, internal resistance, and open-circuit voltage as important end-of-line checks.

For battery packs, consistent cell matching is also important. Voltage and internal-resistance screening can help group cells with similar characteristics before pack assembly.

10. Data-Driven Quality Control and Traceability

One of the biggest opportunities for continuous improvement is the use of production data.

Instead of treating inspection results as isolated records, manufacturers can analyze data across different production stages. This makes it possible to identify trends before they develop into major quality problems.

For example, if internal resistance gradually increases in one production batch, engineers can investigate whether the change is related to:

• Raw material variation

• Electrode coating

• Calendaring

• Winding

• Electrolyte filling

• Formation parameters

• Equipment condition

A traceability system can connect the finished cell with its production batch, raw materials, equipment, and inspection records.

This creates a feedback loop:

Production → Inspection → Data Analysis → Root Cause Identification → Process Improvement → Verification

This cycle is the foundation of continuous improvement.

11. Preventive Action Is Better Than Reactive Correction

A mature quality-management system does not simply correct defective batteries after they have been produced.

Instead, manufacturers should identify potential failure modes in advance.

Process Failure Mode and Effects Analysis (PFMEA), for example, can be used to analyze potential manufacturing risks and determine appropriate preventive controls. Research on cylindrical lithium-ion battery manufacturing highlights PFMEA as a useful method for identifying process-related failure modes.

When a problem occurs, methods such as 5 Why analysis and 8D problem solving can help identify the underlying cause rather than only treating the visible symptom. Industrial battery manufacturing literature describes the use of these quality-management approaches when deviations are detected.

12. Continuous Improvement at NACCON

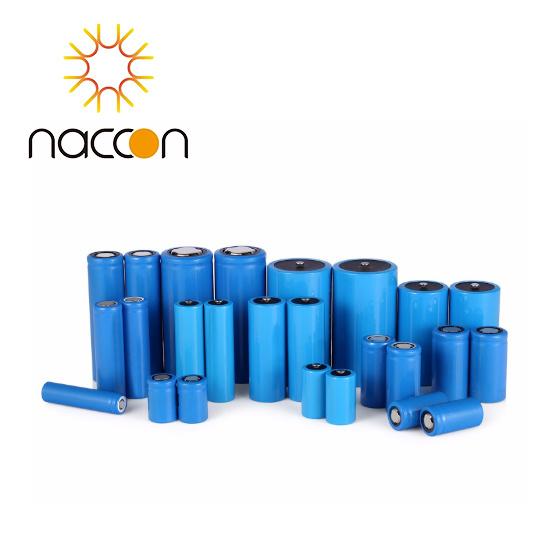

NACCON's cylindrical lithium-ion product portfolio includes 18650 and 21700 cells, among other lithium-ion battery products. Its published product information includes specifications for different capacities and applications, while its website also provides lithium-ion battery specification documents for customers.

For a battery manufacturer serving international markets, continuous improvement can extend beyond the production line itself. It can include:

Process improvement
Optimizing production parameters and reducing process variation.

Equipment improvement
Introducing more precise automated equipment and improving preventive maintenance.

Inspection improvement
Increasing the use of in-line inspection and data-based quality monitoring.

Employee training
Ensuring operators understand process specifications and quality requirements.

Supplier management
Working with qualified suppliers and monitoring material consistency.

Customer feedback
Using customer application data and field feedback to improve future products.

The objective is not simply to produce more batteries. It is to produce more consistent, reliable, and application-appropriate batteries with fewer quality deviations.

13. A Quality Culture Builds Long-Term Competitiveness

Technology is important, but continuous improvement ultimately depends on people and processes.

A strong quality culture encourages employees to identify problems, report abnormalities, follow standardized procedures, and participate in improvement activities. At the same time, production and quality teams need to work together rather than treating quality control as a separate department.

For cylindrical lithium-ion batteries, this philosophy is particularly valuable because manufacturing involves many interconnected processes. A small variation in electrode production can influence winding, formation, electrical performance, and ultimately the customer's experience.

By combining process standardization, advanced inspection, production data, preventive maintenance, employee training, and continuous feedback, manufacturers can create a more stable production system.

Conclusion

Continuous improvement is one of the most effective ways to strengthen the production quality of cylindrical lithium-ion batteries.

From raw-material inspection to electrode manufacturing, precision winding, electrolyte filling, sealing, formation, aging, and final testing, every production stage contributes to the performance and reliability of the finished cell.

For NACCON, cylindrical lithium-ion products such as 18650 and 21700 cells represent an important part of its rechargeable battery portfolio. By combining consistent manufacturing processes with rigorous quality-control practices and data-driven improvement, a battery manufacturer can better meet the needs of customers looking for dependable rechargeable power solutions.

In the long run, quality is not created by one final inspection—it is built step by step throughout the entire production process.
