Choosing the right lithium polymer battery—commonly called a LiPo battery—is an important step when developing a portable electronic product. A battery that fits physically may still fail to meet the device’s voltage, capacity, current, runtime, or safety requirements.

LiPo batteries are a type of lithium-ion battery that commonly use a flexible pouch construction. This format allows manufacturers to produce batteries in a wide range of dimensions, making LiPo batteries particularly useful for compact and space-constrained electronic devices.

In this guide, we will explain the key parameters you should consider when selecting a LiPo battery for your device.

1. Start With the Required Voltage

Voltage is usually the first parameter to check.

A typical single-cell lithium polymer battery has a nominal voltage around 3.6–3.7V, while the fully charged voltage of many conventional Li-ion/LiPo cells is around 4.2V per cell. The exact voltage limits depend on the battery chemistry and manufacturer's specifications.

For example:

• 1S LiPo: approximately 3.7V nominal

• 2S LiPo: approximately 7.4V nominal

• 3S LiPo: approximately 11.1V nominal

• 4S LiPo: approximately 14.8V nominal

The notation 1S, 2S, 3S, and 4S refers to the number of cells connected in series.

When selecting a battery, always check the voltage requirements of the device and charging system. The battery's nominal voltage should not be selected simply based on physical size or capacity.

2. Determine the Required Battery Capacity

Battery capacity is normally expressed in mAh (milliamp-hours) or Ah (amp-hours).

For example:

• 500mAh

• 1000mAh

• 2000mAh

• 3000mAh

• 5000mAh

In simple terms, a higher-capacity battery can generally provide longer runtime under comparable operating conditions.

A rough runtime estimation can be made using:

Runtime (hours) ≈ Battery Capacity (Ah) ÷ Average Load Current (A)

For example, if a device consumes an average of 500mA and uses a 2000mAh battery:

2Ah ÷ 0.5A ≈ 4 hours

However, this is only a basic estimate. Actual runtime is affected by discharge rate, temperature, battery age, voltage limits, device efficiency, and other factors.

Does a higher capacity always mean a better battery?

A larger-capacity battery may also be larger or heavier. For a compact device, a 3000mAh battery that cannot fit into the available space may be less suitable than a smaller 2000mAh battery.

Therefore, capacity should always be considered together with dimensions, weight, current requirements, and available installation space.

3. Check the Maximum Battery Dimensions

For many portable electronic products, battery dimensions are one of the most important design constraints.

Before selecting a LiPo battery, measure the maximum available:

• Length

• Width

• Thickness

Also consider the space required for:

• Wires

• Connectors

• PCM/BMS

• Protective insulation

• Battery movement or mechanical tolerance

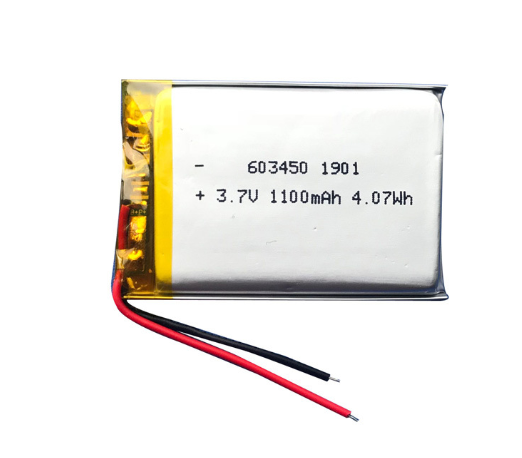

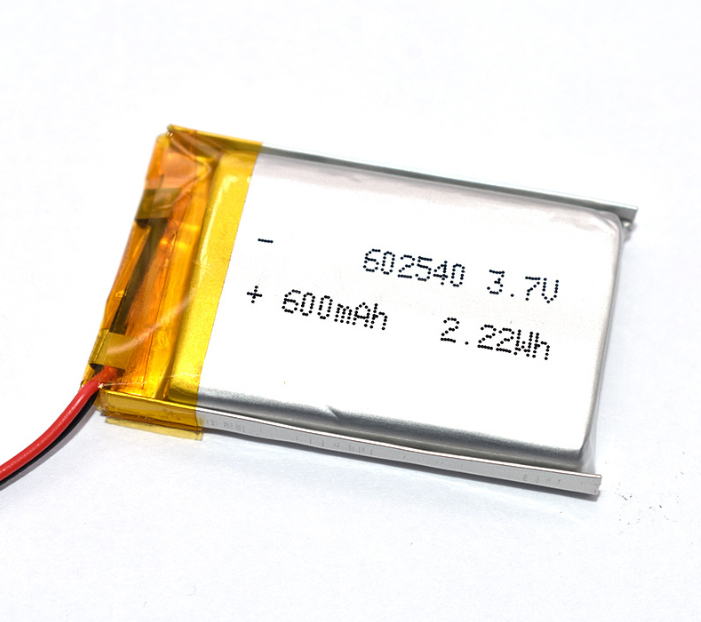

For example, a battery specified as 804050 generally refers to an approximate size of:

8.0 × 40 × 50 mm

However, battery dimensions can vary slightly depending on construction, protection components, tabs, wires, and connectors.

For a custom battery project, it is better to provide the supplier with the maximum allowable dimensions, rather than simply asking for a battery with a certain capacity.

4. Consider the Required Discharge Current

Capacity tells you approximately how much energy the battery can store, but it does not tell you how much current the battery can safely deliver.

This is where C-rate becomes important.

For example, a 2000mAh battery:

• At 1C → approximately 2A

• At 2C → approximately 4A

• At 5C → approximately 10A

The basic relationship is:

Maximum current = Capacity (Ah) × C-rate

C-rate describes how quickly a battery is charged or discharged relative to its rated capacity. Actual allowable current must always follow the battery manufacturer's specifications.

Why is this important?

Some devices have relatively low and stable power consumption, while others require short bursts of high current.

Examples include:

• Motors

• Drones

• Robotics

• Portable tools

• Wireless communication devices

• Industrial equipment

For these applications, selecting a battery based only on mAh can lead to poor performance.

5. Match the Battery to the Device's Power Requirements

A useful way to understand battery requirements is to consider power, which is approximately:

Power (W) = Voltage (V) × Current (A)

For example, a device operating at 3.7V and consuming 2A requires approximately:

3.7V × 2A = 7.4W

This information can help determine whether a particular battery can supply sufficient power.

When evaluating a LiPo battery, ask:

1. What is the device's operating voltage?

2. What is the average current?

3. What is the maximum current?

4. How long should the device operate?

5. Are there short-duration current peaks?

These questions are often more useful than simply asking for "the biggest capacity available."

6. Consider the Battery Chemistry

"LiPo" mainly describes the battery construction/form factor, rather than a single unique cathode chemistry. Lithium-ion polymer batteries can use different lithium-ion chemistries.

Different chemistries can provide different combinations of:

• Energy density

• Power capability

• Cycle life

• Operating characteristics

• Safety characteristics

• Cost

Therefore, when developing a new product, the battery supplier should understand the application's actual requirements instead of selecting a cell solely based on its capacity.

For example, a medical device, wearable product, industrial instrument, and high-power drone may require very different battery characteristics even if they have similar physical dimensions.

7. Decide Whether You Need a Single Cell or Battery Pack

A single LiPo cell may be sufficient for a small electronic device.

However, some applications require a custom LiPo battery pack.

A battery pack can combine cells in:

Series connection

Series-connected cells increase voltage.

For example:

2 × 3.7V cells → approximately 7.4V nominal

Parallel connection

Parallel-connected cells increase capacity and current capability.

For example:

2 × 2000mAh cells in parallel → approximately 4000mAh

Series + parallel

A combination of series and parallel connections can increase both voltage and capacity.

For example, a 2S2P configuration uses four cells arranged as two cells in series and two such groups in parallel.

For multi-cell packs, appropriate protection and battery-management design are important.

8. Don't Forget the PCM/BMS

A customized LiPo battery pack may include more than just the cells.

Depending on the application, the pack may also include:

• PCM or BMS

• Wires

• Connectors

• NTC temperature sensor

• Fuse

• Insulation

• Custom housing or protective materials

The protection circuit may provide functions such as protection against overcharge, over-discharge, overcurrent, and short circuit, depending on the design.

For multi-cell battery packs, battery monitoring and cell balancing may also be required.

Therefore, when requesting a quotation for a custom LiPo battery pack, it is useful to provide the supplier with the required protection functions, connector model, wire length, and device interface.

9. Consider Charging Requirements

The battery and charger must be compatible.

For conventional Li-ion cells, charging is controlled according to specified voltage and current limits. Many common Li-ion cells use a 4.2V maximum charge voltage per cell, but this should never be assumed for every battery.

Before choosing a battery, confirm:

• Charging voltage

• Charging current

• Charging method

• Charger compatibility

• Temperature conditions during charging

Never select a charger solely because its connector fits the battery.

The electrical specifications must also be compatible.

10. Consider Operating Temperature and Battery Life

Temperature can have a significant effect on lithium-ion battery performance and lifetime.

Battery life is influenced by factors including:

• Charge voltage

• Discharge depth

• Current

• Temperature

• Storage conditions

• Charging conditions

For example, higher temperatures and prolonged exposure to high charge voltage can accelerate battery degradation.

If your product is designed for outdoor, industrial, medical, or automotive applications, provide the battery supplier with the expected operating and storage temperature range.

This allows the supplier to recommend a cell and battery design that better matches the application.

11. Safety Should Be Part of the Selection Process

LiPo batteries offer high energy density and excellent flexibility in product design, but they should be designed, charged, transported, and used according to appropriate specifications.

When developing a LiPo battery pack, consider:

• Overcharge protection

• Over-discharge protection

• Short-circuit protection

• Overcurrent protection

• Temperature monitoring

• Mechanical protection

• Appropriate charging control

Lithium-ion batteries should also be charged within the manufacturer's specified temperature range. Charging at excessively low temperatures can cause permanent damage and create safety concerns.

For commercial products, the required certifications and transportation documentation should also be considered early in the project rather than after mass production begins.

12. A Simple LiPo Battery Selection Checklist

Before contacting a battery manufacturer, prepare the following information:

The more complete the information, the easier it is for a battery manufacturer to recommend a suitable solution.

Final Thoughts: The Right LiPo Battery Is a Balance

Choosing a LiPo battery is not simply about finding the highest capacity at the lowest price.

A suitable battery needs to balance:

Voltage + Capacity + Dimensions + Discharge Current + Runtime + Charging Requirements + Safety + Battery Life

For a custom battery project, it is especially important to evaluate the battery as part of the whole device, rather than as an independent component.

If a standard battery cannot meet your requirements, a custom lithium polymer battery pack can be designed around your device's available space, electrical requirements, connector, protection circuit, and performance targets.

For battery manufacturers and product developers, early communication about the device's dimensions, voltage, current, runtime, and operating environment can significantly simplify the battery selection and development process.
