If you have ever opened a smoke alarm or a handheld multimeter, you have almost certainly seen a square 9V block battery marked 6LR61. This compact battery is so widely used that it has become the default power supply for many test instruments and home safety devices. Let’s break down its internal structure, performance characteristics and the reasons behind its popularity.
What is a 6LR61 battery?

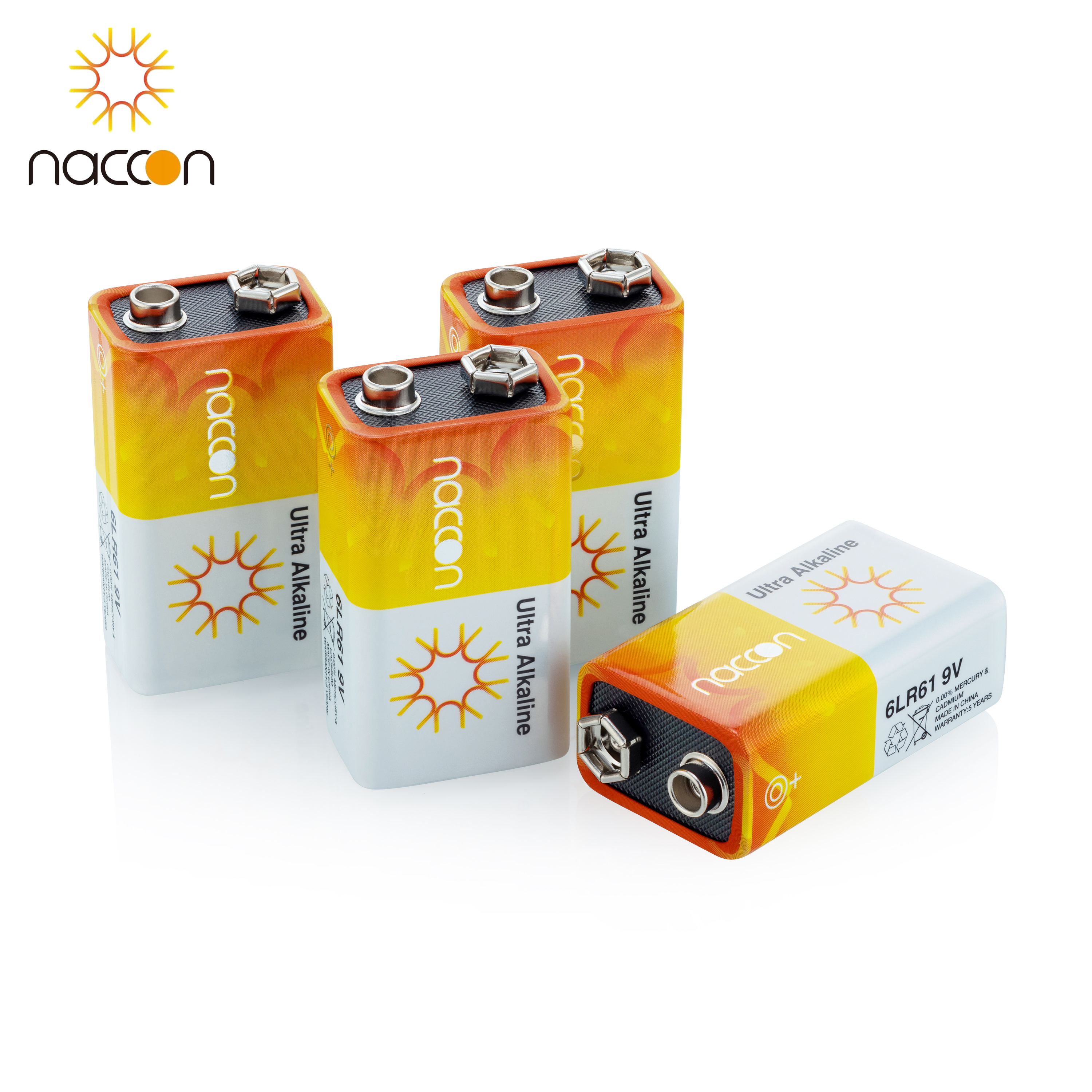

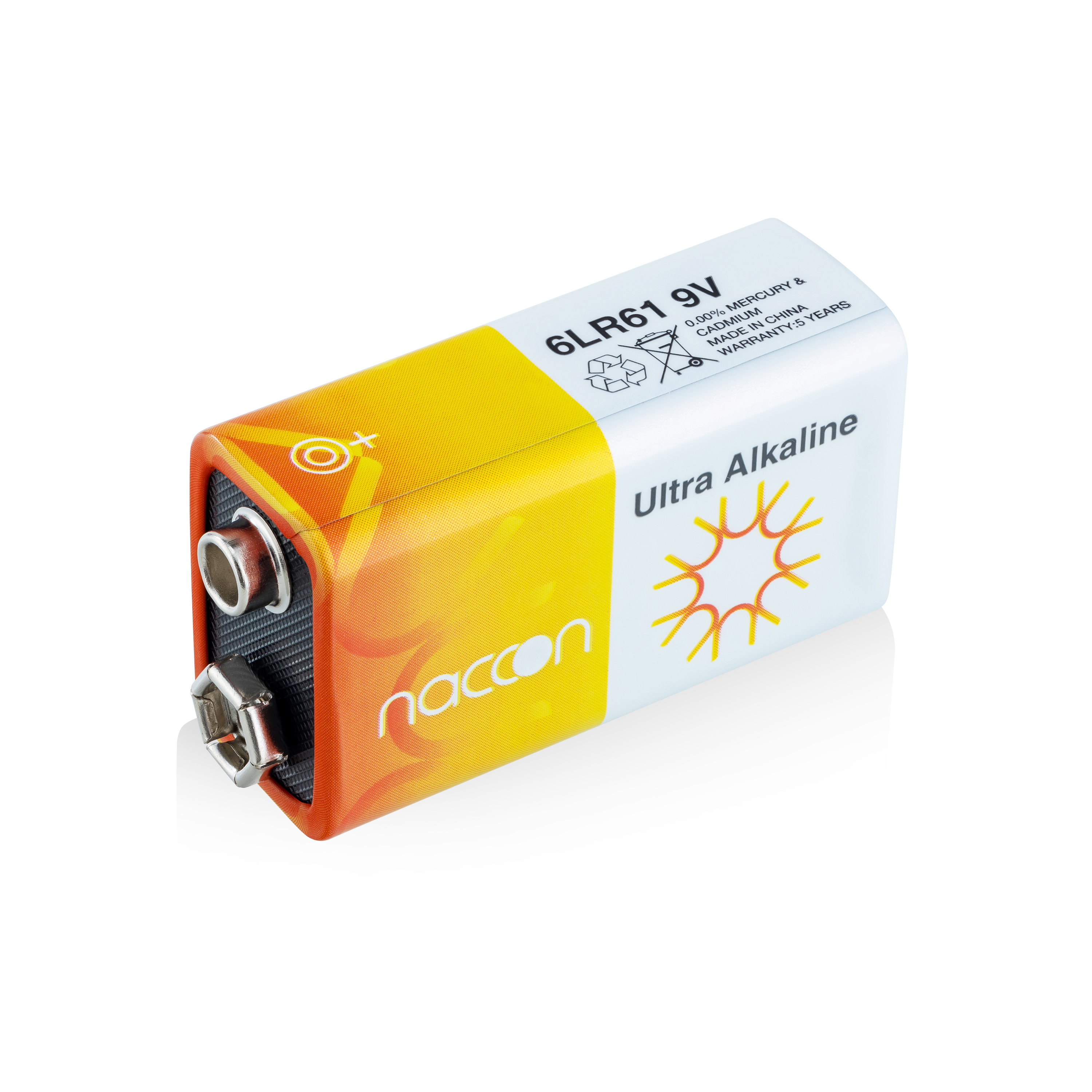

6LR61 is the IEC designation for a 9V alkaline primary block battery, also commonly known as PP3 or MN1604.
The naming rule is straightforward:
6: Six cells connected in series
L: Alkaline chemistry
R: Round cylindrical cell
61: Size code for this block assembly
Inside the plastic housing, there are six small LR61 cylindrical alkaline cells stacked and connected in series. Each single cell delivers roughly 1.5V, so the total nominal voltage reaches 9V. It is a non-rechargeable primary battery, different from rechargeable 9V lithium or NiMH blocks.
Inside the 6LR61: What you will see after disassembly
When you carefully peel off the outer metal wrapper and open the plastic case, you can see the core assembly:
Six individual 1.5V alkaline cells, welded together in series by metal tabs.
Spot-welded connection strips to ensure stable conductivity and low contact resistance.
Two flat spring terminals (positive and negative) on the top, designed for the standard 9V battery snap connector.
Insulating paper and plastic frames to fix cells and prevent short circuits.
This integrated stacked design is the key advantage. Manufacturers pack six voltage cells into one small square package, rather than requiring users to wire six separate batteries manually. The unified terminal layout makes plug-and-play installation possible.
Why smoke detectors prefer 6LR61
Smoke alarms are safety devices that demand long standby life, low self-discharge and stable voltage output.
Ultra-low standby current: Smoke sensors only wake up briefly to check the air. The 6LR61 alkaline battery supports months or even years of standby operation.
Slow voltage drop curve: Unlike carbon-zinc 6F22, alkaline chemistry maintains steady voltage for most of its service life. It avoids sudden power failure which would disable the alarm.
Clear low-voltage warning: When capacity runs low, the voltage gradually declines, triggering the familiar chirp alert on smoke detectors.
Compact form factor: The square PP3 shape fits perfectly inside the limited housing of most residential smoke alarms.
Why multimeters and test meters choose 6LR61
Handheld multimeters, voltage testers and guitar effect pedals also rely heavily on 6LR61.
9V matches the chip reference circuit: Many multimeter ICs and operational amplifiers are designed for a 9V supply. It provides enough headroom to measure DC and AC signals accurately.
Suitable pulse load: Multimeters draw short bursts of current when taking readings. Alkaline chemistry handles intermittent current draws well.
Universal socket standard: Almost all portable multimeters reserve the PP3 battery clip, which is a mature industry standard.

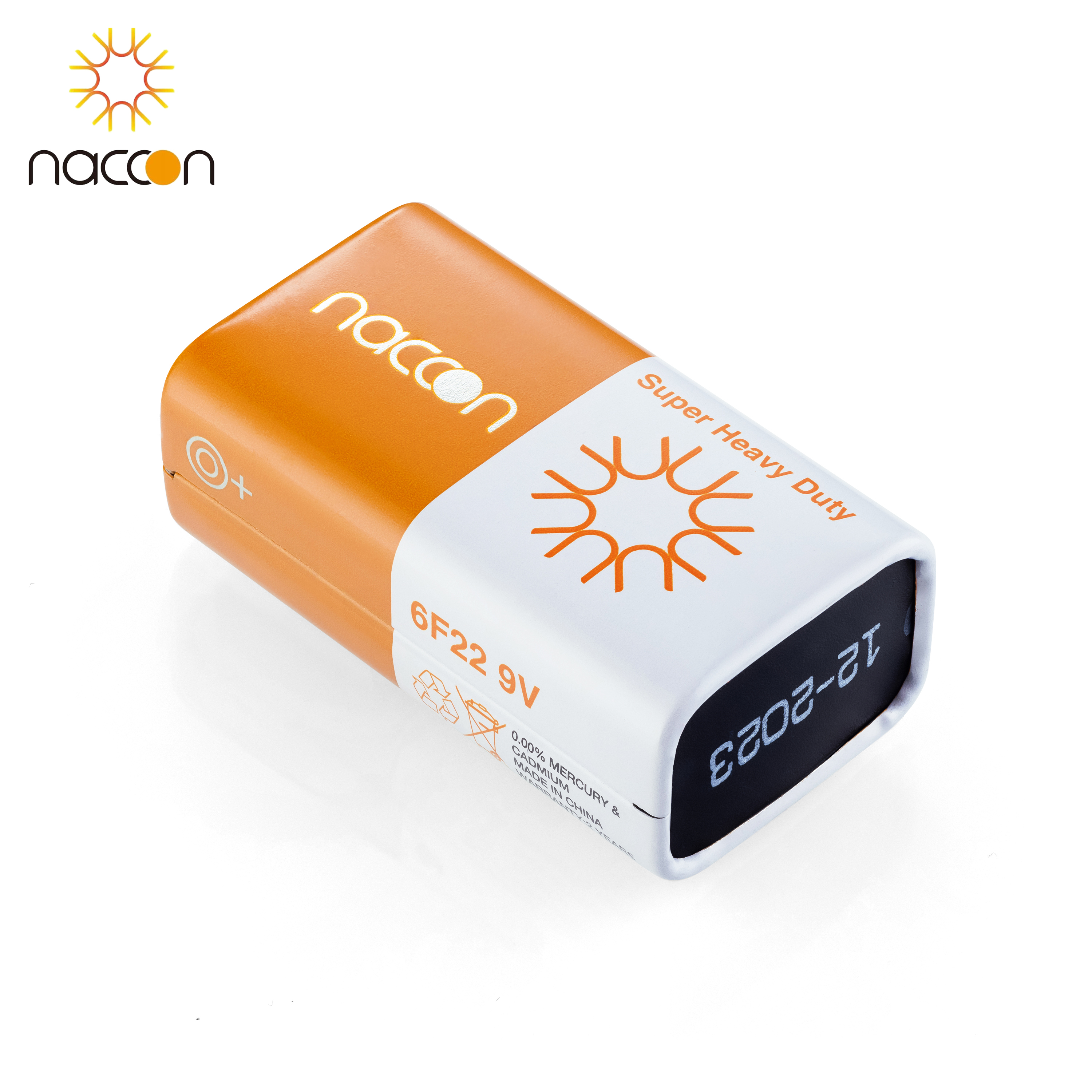

6LR61 vs 6F22: Do not mix them up
A lot of people confuse 6LR61 with 6F22. Both look identical and output 9V, but they are not the same:
6LR61: Alkaline, higher capacity, longer shelf life, stable discharge, for smoke detectors, multimeters.
6F22: Carbon-zinc, low cost, fast voltage drop, shorter runtime, only suitable for low-cost, infrequent-use devices.
Important usage notes
6LR61 is primary alkaline, do not attempt to recharge it. Recharging may cause leakage, swelling or rupture.
Store in a cool, dry place. Its typical shelf life is 5–7 years.
Remove the battery if the device will not be used for a long time to prevent electrolyte leakage.
Do not short-circuit the two terminals.
Dispose of exhausted batteries following local waste battery regulations.
Final summary
The 6LR61 9V alkaline block battery succeeds not by accident. Its built-in 6-cell series structure, stable alkaline discharge curve, standardized PP3 footprint and low self-discharge perfectly match the needs of safety alarms and portable measuring instruments. That is why it remains the standard power source for smoke detectors and multimeters around the world.
