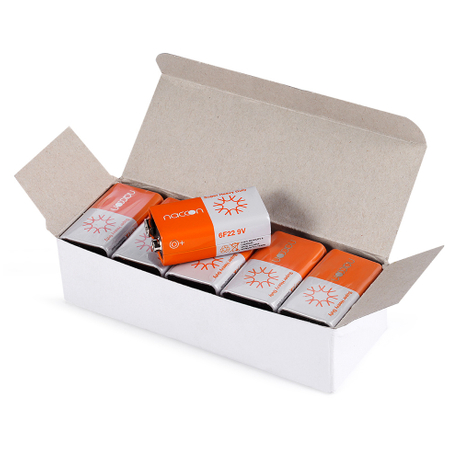

The 6F22 battery is one of the most common 9V carbon‑zinc primary batteries defined under the IEC 60086 international standard for portable power sources. This article systematically interprets the model naming rules, dimensional specifications, electrical parameters, and performance requirements of the 6F22 battery under the IEC standard system, to provide a clear reference for production, procurement, and application.
The International Electrotechnical Commission (IEC) establishes unified model coding for primary batteries in IEC 60086‑2, which specifies the chemical system, shape, structure, and size of each battery type. The code 6F22 has strict logical meaning:
6: represents the battery consists of six 1.5V unit cells connected in series, resulting in a nominal voltage of 9V.
F: indicates the internal structure is flat (laminated / stacked), distinguishing it from cylindrical or button batteries.
22: is a sequential code assigned by IEC to identify the specific outline dimension and electrical specification of this 9V stacked battery.
Under the IEC system, 6F22 belongs to the carbon‑zinc (zinc‑manganese dioxide) category and corresponds to the widely recognized 9V PP3 battery form factor.
The IEC standard specifies strict physical dimensions to ensure interchangeability among different manufacturers.
Length: 48.5 mm
Width: 26.5 mm
Height (thickness): 17.5 mm
Tolerance: ±0.5 mm for general applications
The terminal structure also follows IEC specifications:
Snap‑on terminal (PP3 clip type)
Positive and negative poles clearly marked
Compatible with standard 9V battery clips in electronic devices
These uniform dimensions allow 6F22 batteries to be universally used in smoke alarms, multimeters, microphones, and security equipment worldwide.
IEC 60086 defines the basic electrical performance that 6F22 carbon‑zinc batteries must meet.
Nominal voltage: 9.0 V
Typical open‑circuit voltage (new battery): 9.5 – 10.5 V
Standard end‑point (cutoff) voltage: 4.5 V – 6.0 V
Under standard low‑current discharge conditions, the 6F22 battery typically provides:
Typical capacity: 200 – 300 mAh
Discharge current for rating: 10 mA – 20 mA
The IEC standard notes that capacity decreases significantly under high‑load discharge, which is an inherent characteristic of carbon‑zinc systems.
Typical internal resistance: 15 – 40 Ω
Higher internal resistance than alkaline 9V batteries
Not suitable for high‑current continuous discharge
IEC standards also regulate safety, storage, and environmental adaptability.
Under normal temperature (20±5°C) and dry storage:
Minimum shelf life: 1 year
General commercial level: 1 – 2 years
Self‑discharge rate: ≤ 10% per year
The standard recommended operating range for 6F22 is:
-5°C to +55°C
Optimal performance at 15°C to 25°C
Capacity decreases noticeably at temperatures below 0°C
According to modern IEC and RoHS requirements:
Free of mercury, cadmium, and lead
No leakage under normal use
No explosion or fire under rated discharge
Non‑rechargeable (clearly marked on packaging)
To avoid confusion, the IEC system differentiates chemical systems clearly:
6F22: carbon‑zinc 9V stacked battery
6LR61: alkaline 9V battery (same dimensions, higher capacity)
Both share the same outline and terminal structure under IEC standards, but differ significantly in capacity, discharge performance, and cost.
According to IEC recommended usage conditions:
6F22 is designed for low‑drain, standby, or intermittent devices
Suitable for smoke detectors, remote controls, multimeters, alarms
Not recommended for high‑power equipment or continuous heavy loads
Do not mix with different types or different brands of batteries
Under the IEC 60086 standard system, 6F22 represents a specific 9V stacked carbon‑zinc primary battery with unified dimensions, voltage, and performance. Understanding its standard definition and specifications helps ensure correct selection, quality control, and safe use in industrial and consumer electronics.
