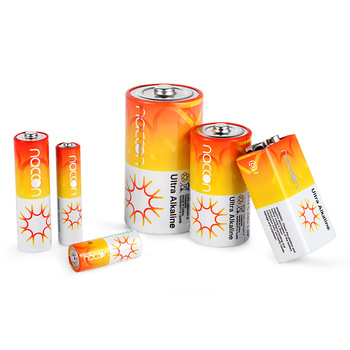

Alkaline batteries may look simple from the outside, but inside every AA, AAA, C, D, or 9V alkaline cell is a carefully engineered electrochemical system. Behind their long shelf life, stable voltage output, and dependable performance are advances in electrode materials, electrolyte formulation, cell structure, sealing technology, and automated manufacturing.
Today, alkaline battery technology continues to evolve as manufacturers look for better energy density, improved leakage resistance, longer storage life, stronger high-drain performance, and more environmentally responsible production.
The conventional alkaline battery is based on a zinc–manganese dioxide (Zn–MnO₂) electrochemical system. The main active components are zinc as the negative electrode, manganese dioxide as the positive electrode, and an alkaline electrolyte, commonly potassium hydroxide (KOH).
Unlike traditional zinc-carbon batteries, alkaline cells use a different internal arrangement. The zinc anode is generally located toward the center of the cell, while the manganese dioxide cathode surrounds it. This construction allows a large active-material interface and contributes to the battery's ability to deliver relatively high current.
Component | Typical Material | Main Function |
|---|---|---|
Anode | Zinc powder/gel | Provides electrons during discharge |
Cathode | Manganese dioxide + conductive material | Accepts electrons during discharge |
Electrolyte | Potassium hydroxide (KOH) | Enables ionic conduction |
Separator | Porous insulating material | Prevents direct contact between electrodes |
Current Collector | Metallic collector | Conducts current from the anode |
Steel Can | Steel | Provides mechanical structure and cathode collection |
Seal | Polymer/rubber sealing components | Helps prevent electrolyte leakage |
A modern alkaline battery therefore represents a combination of electrochemistry, materials engineering, mechanical design, and manufacturing precision.
Zinc is one of the most important materials in an alkaline battery. In modern cells, zinc is generally processed into a fine powder rather than used as a solid plate.
The use of zinc powder significantly increases the available reaction surface area. A larger effective surface area can support more efficient electrochemical reactions and help the battery respond to higher current demands.
However, simply increasing the amount of zinc does not automatically improve performance. Engineers must carefully control:
Zinc particle size
Zinc purity
Anode porosity
Electrolyte distribution
Gelling characteristics
Additive concentration
Gas generation behavior
The anode is commonly formulated as a gelled mixture containing zinc powder, alkaline electrolyte, and selected additives. The formulation must provide a balance between conductivity, mechanical stability, zinc utilization, and storage performance.
Fine zinc particles can provide a large reaction area, but excessive surface area can also create unwanted side reactions. Therefore, modern battery manufacturing focuses on controlled particle morphology and optimized anode formulation, rather than simply using more zinc.
This is one example of how seemingly small material improvements can contribute to industry-wide battery performance improvements.
Manganese dioxide is the primary active cathode material in conventional alkaline batteries.
The cathode is usually combined with a conductive carbon material and electrolyte. High-quality electrolytic manganese dioxide (EMD) is widely used because its electrochemical properties are well suited to alkaline systems.
During discharge, manganese dioxide participates in the reduction reaction while zinc undergoes oxidation. The resulting electrochemical process generates the electrical energy that powers the device.
Cathode engineering focuses on several important characteristics:
High electrochemical activity
Good electrical conductivity
Appropriate particle structure
Stable mechanical properties
Efficient utilization of active material
The balance between these factors directly affects capacity, discharge characteristics, and high-drain performance.
Another key technology is the alkaline electrolyte.
Potassium hydroxide, commonly known as KOH, provides the ionic pathway necessary for electrochemical reactions inside the cell. Its high ionic conductivity is one reason alkaline batteries can provide strong performance compared with conventional zinc-carbon cells.
The electrolyte formulation has to satisfy several competing requirements:
Requirement | Why It Matters |
|---|---|
High ionic conductivity | Supports efficient electrochemical reactions |
Chemical stability | Helps maintain performance during storage |
Proper viscosity | Ensures good distribution within the cell |
Compatibility with zinc | Reduces undesirable side reactions |
Compatibility with separator | Supports reliable cell operation |
Low leakage tendency | Improves product reliability |
Electrolyte optimization is therefore not simply a matter of selecting a strong alkaline solution. Manufacturers must consider the interaction between KOH, zinc, manganese dioxide, separator materials, seals, and the steel casing.
The separator is a thin but critical component positioned between the anode and cathode.
Its primary function is to prevent direct physical contact between the electrodes while allowing ions to move through the electrolyte. Modern separators must therefore combine electrical insulation, chemical resistance, mechanical strength, and controlled porosity.
A well-designed separator helps maintain the required distance between active materials while reducing the possibility of internal short circuits.
This is particularly important because battery performance is not determined only by the chemical materials. The physical arrangement of those materials can be equally important.
The external steel can serves several purposes. It provides mechanical protection, helps contain the active materials, and can function as the cathode current collector in conventional cylindrical alkaline cells. (Energizer Data)
At the same time, the battery must remain tightly sealed throughout transportation, storage, and use.
Sealing technology therefore plays an important role in:
Leakage prevention
Gas management
Long-term storage
Mechanical durability
Temperature resistance
Overall product reliability
A high-quality alkaline battery is essentially a sealed electrochemical system, so even a small manufacturing defect in a gasket, seal, weld, or casing can potentially affect long-term reliability.
Battery innovation does not stop with material selection. Advanced manufacturing technology is equally important.
Modern alkaline battery production can involve automated processes for:
Steel can forming
Cathode ring production
Electrode insertion
Zinc anode filling
Separator placement
Current collector installation
Sealing
Labeling
Electrical testing
Dimensional inspection
Packaging
Automation allows manufacturers to maintain consistent dimensions and material quantities across large production volumes.
For battery manufacturers, process consistency is a major part of product quality. Even when the same raw materials are used, differences in filling density, compression, sealing pressure, or assembly accuracy can influence battery performance.
Advanced alkaline battery production normally requires quality control at multiple stages.
Manufacturers can inspect the physical and chemical characteristics of zinc, manganese dioxide, conductive additives, electrolyte, separators, and other materials.
During production, parameters such as filling quantity, component position, sealing quality, dimensions, and electrical characteristics can be monitored.
Finished cells may undergo tests covering:
Open-circuit voltage
Internal resistance
Discharge capacity
Leakage resistance
High-drain performance
Storage characteristics
Temperature performance
Physical dimensions
These tests help ensure that each production batch meets the required technical specifications.
The development of alkaline battery technology can be viewed as an optimization process involving several interconnected variables.
Technology Area | Traditional Focus | Modern Development Direction |
|---|---|---|
Zinc anode | Basic zinc powder | Optimized particle size and formulation |
Cathode | Standard MnO₂ | Higher-performance EMD and improved formulation |
Electrolyte | Conventional KOH | Better concentration and additive control |
Separator | Basic insulation | Improved chemical and mechanical properties |
Sealing | Conventional sealing | Better leakage and long-term reliability |
Manufacturing | Manual/semi-automatic | Highly automated precision production |
Quality Control | Sampling inspection | Multi-stage automated testing |
Product Design | Standard performance | Application-specific optimization |
The result is not necessarily a completely new battery chemistry. Instead, performance improvements often come from continuous optimization of every part of the cell.
Because of their combination of affordability, availability, shelf life, and stable performance, alkaline batteries remain widely used in everyday products.
Common applications include:
Remote controls
Wireless keyboards and mice
Toys
Flashlights
Clocks
Radios
Game controllers
Household sensors
Portable electronic equipment
Emergency equipment
For low- and medium-power applications, alkaline technology remains an attractive option because users can obtain reliable energy without the charging infrastructure required by rechargeable batteries.
The future development of alkaline batteries is likely to focus on incremental but meaningful improvements rather than a complete replacement of the established Zn–MnO₂ chemistry.
Potential development areas include:
Higher energy utilization
Better electrode formulations can help extract more usable energy from existing active materials.
Improved leakage resistance
Better seals, additives, and internal structures can increase long-term reliability.
Better high-drain performance
Optimized electrode conductivity and internal resistance can support modern devices with higher instantaneous power requirements.
Longer shelf life
Reducing parasitic reactions and improving sealing technology can help maintain performance during extended storage.
More sustainable manufacturing
Manufacturers are increasingly interested in efficient material utilization, reduced waste, improved production efficiency, and responsible battery recycling.
Research into zinc–manganese dioxide systems also continues beyond conventional disposable alkaline cells, including rechargeable and advanced aqueous battery concepts.
Innovation-led industry advancement is not always about creating an entirely new battery chemistry. In alkaline battery technology, innovation often comes from improving the details: better zinc particles, optimized manganese dioxide, carefully controlled KOH electrolyte, advanced separators, stronger seals, precise manufacturing, and increasingly sophisticated quality control.
The basic Zn–MnO₂ chemistry has been commercially successful for decades, but continuous engineering improvements have allowed alkaline batteries to remain competitive in a rapidly changing energy-storage market.
From the raw materials inside the cell to the automated production line outside it, every stage contributes to the final product. That combination of mature chemistry and continuous engineering innovation is the real core technology behid modern alkaline batteries.
