In the era of miniaturized electronic devices, tiny disposable batteries have become indispensable power sources for countless compact gadgets. Among them, the LR1 alkaline battery, a classic micro-sized power unit, stands out for its stable performance, compact dimensions, and wide compatibility. Often overlooked due to its small size, this miniature battery delivers reliable power support for various precision small devices. This article provides a detailed and comprehensive analysis of the core parameters, structural characteristics, performance advantages, application scenarios, and usage precautions of the LR1 alkaline battery, helping users fully understand this practical micro power supply.

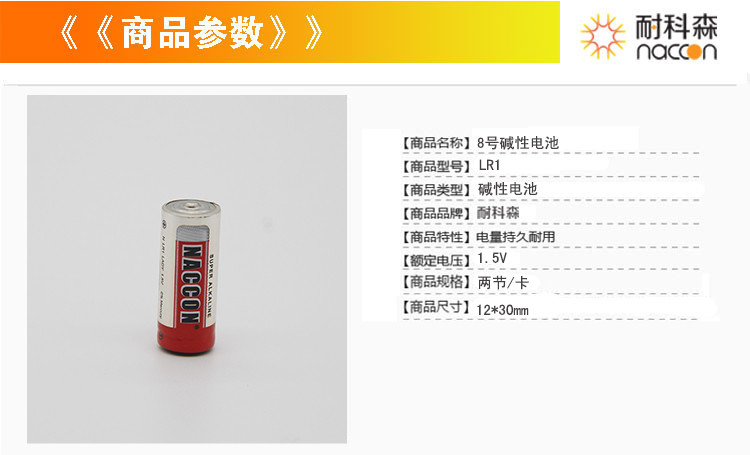

The LR1 battery, also commonly known as the N-size alkaline battery, follows the international IEC standard battery specification and belongs to the family of cylindrical disposable alkaline batteries. Its most prominent feature is its ultra-compact cylindrical structure, which is tailored for small-volume electronic equipment with limited installation space.
In terms of dimensional parameters, the LR1 battery has a standard diameter of 12.0 millimeters and a height of 30.2 millimeters. Compared with common AA and AAA batteries, it is significantly smaller and more lightweight, making it highly adaptable to miniaturized device design requirements. The standard weight of a single LR1 alkaline battery is approximately 11 grams, achieving a perfect balance between lightweight design and basic power storage capacity.
It is worth distinguishing that LR1 refers specifically to the alkaline version of the N-size battery. Its corresponding carbon battery model is R1. Alkaline materials endow the LR1 battery with far better performance than traditional carbon batteries, which is also the core reason why LR1 has gradually replaced R1 in most high-precision and long-duration power supply scenarios.
Electrical parameters are the core indicators that determine the power supply capability of the LR1 alkaline battery. All commercially available qualified LR1 batteries follow unified industry standard electrical specifications, ensuring good interchangeability and compatibility.
First, the nominal voltage of the LR1 alkaline battery is 1.5V, which is consistent with the mainstream voltage specification of most disposable civilian batteries. This universal voltage design enables it to match the working voltage requirements of most small low-power electronic devices. In actual use, its open-circuit voltage remains stable between 1.50V and 1.58V in the new state, with extremely low voltage deviation.
Second, in terms of capacity parameters, the standard rated capacity of the LR1 alkaline battery is about 350mAh (tested at a standard discharge current of 10mA). Different brands of high-quality products can reach 380–400mAh. Although the capacity is not comparable to large-size batteries, it fully meets the low-current and long-term standby power consumption characteristics of micro devices.
In terms of discharge performance, the LR1 battery supports a continuous discharge current of 5mA–20mA and a short-term peak discharge current of up to 30mA. It features stable low-current discharge, no sudden voltage drop, and excellent discharge flatness. This performance ensures that precision devices will not malfunction or data error due to unstable power supply during long-term operation.
The LR1 alkaline battery adopts the classic alkaline manganese dioxide battery structure. Its positive electrode material is high-purity electrolytic manganese dioxide, the negative electrode is zinc powder, and the electrolyte is potassium hydroxide solution. Compared with traditional carbon-zinc batteries, it abandons the acidic electrolyte and uses alkaline electrolyte, which greatly optimizes the internal chemical reaction efficiency.
Structurally, it adopts an internal cylindrical fully sealed design, with a thickened steel shell for anti-pressure and anti-leakage protection. The internal active materials are evenly filled, which improves the energy density of the tiny battery body. The sealed structure also effectively isolates air and moisture, avoiding electrolyte volatilization and internal oxidation failure, and greatly extending the shelf life.
In terms of working principle, the battery converts chemical energy into electrical energy through a stable redox reaction. During discharge, the zinc negative electrode undergoes oxidation reaction to release electrons, and the manganese dioxide positive electrode undergoes reduction reaction to obtain electrons. The whole reaction process is stable and controllable, with low self-discharge rate, which is the key to its long standby life.
Thanks to optimized material ratio and structural design, the LR1 alkaline battery has multiple obvious advantages in micro power supply scenarios, compared with traditional R1 carbon batteries:
First, ultra-low self-discharge and long shelf life. The self-discharge rate of qualified LR1 alkaline batteries is less than 2% per year, and the shelf life can reach 5–7 years under normal storage conditions. It can be stored for a long time without frequent replacement, which is very suitable for standby power supply of occasional-use devices.
Second, high energy density and durable discharge. Its capacity is 2–3 times that of the same-size R1 carbon battery. Under the same working conditions, the battery life is significantly longer, avoiding frequent battery replacement.
Third, excellent low-temperature resistance. It can work stably in the temperature range of -10℃ to 50℃. Unlike carbon batteries that are prone to power failure in low-temperature environments, LR1 can maintain normal discharge performance in indoor and mild outdoor environments.
Fourth, safe and leak-proof. The fully sealed anti-corrosion shell and stable chemical system effectively prevent electrolyte leakage, avoiding damage to precision small electronic devices.
Restricted by its small size and low-power discharge characteristics, the LR1 alkaline battery is mainly used for various miniaturized low-power precision electronic devices, covering civilian, commercial and industrial micro-equipment fields:
Common application equipment includes precision electronic thermometers, miniature calculators, small remote controls (such as doorbell remote controls, toy remote controls), electronic watches and clocks, miniature laser pointers, small medical auxiliary equipment, sensor standby power supplies, and various ultra-small electronic toys. For these devices with low power consumption and long standby time, the LR1 battery’s stable low-current discharge performance can maximize the service life of the equipment.
To give full play to the performance of LR1 alkaline batteries and extend their service life, standardized use and storage are essential. First, it is necessary to match the correct battery model. Do not mix LR1 alkaline batteries with R1 carbon batteries or batteries of different specifications to avoid voltage mismatch and circuit failure.
Second, avoid over-discharge. When the device prompts low power or the working state is abnormal, replace the battery in time. Long-term over-discharge will cause internal chemical failure and even electrolyte leakage.
For storage, place the batteries in a dry, cool and ventilated environment, avoiding high temperature, humidity and direct sunlight. Do not store batteries in a closed high-temperature environment such as a car interior for a long time, so as not to accelerate self-discharge and damage the battery structure.
In addition, LR1 alkaline batteries are disposable non-rechargeable batteries. Recharging is strictly prohibited, otherwise it will cause internal gas expansion, shell deformation, and even safety hazards such as leakage and explosion.
As a mature and stable micro power supply, the LR1 alkaline battery has precise and standardized dimensional and electrical parameters, stable chemical performance, long shelf life and excellent low-current discharge capability. Although it is small in size, it undertakes the core power supply work of countless miniature precision electronic devices. A comprehensive understanding of its parameter characteristics and usage rules can help users select and use batteries scientifically, give full play to its power supply advantages, and ensure the long-term stable operation of small electronic equipment.
