The Complete Guide to R20P Carbon-Zinc Batteries: Principles, Specifications, and Selection for D-Cell Applications

Introduction: The Familiar Giant

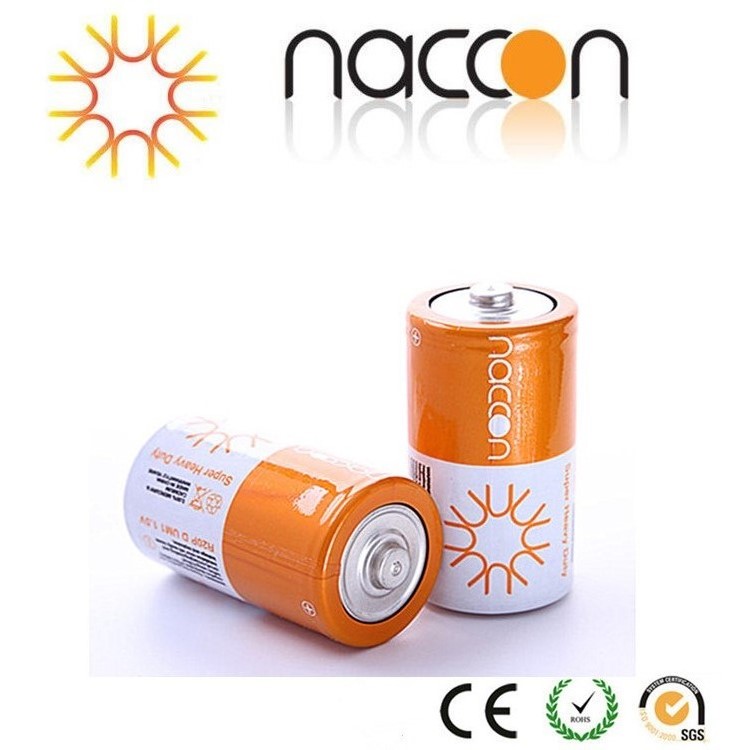

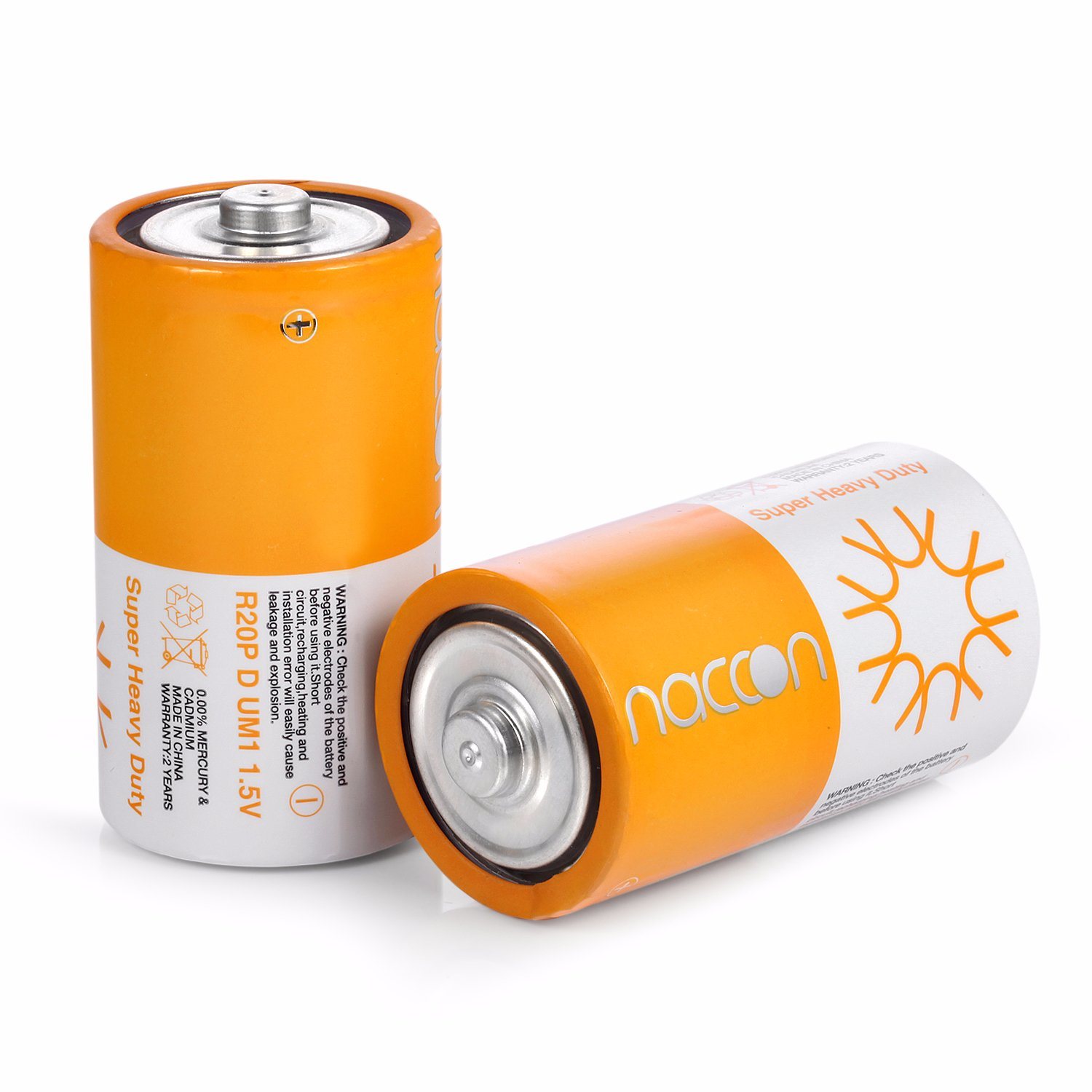

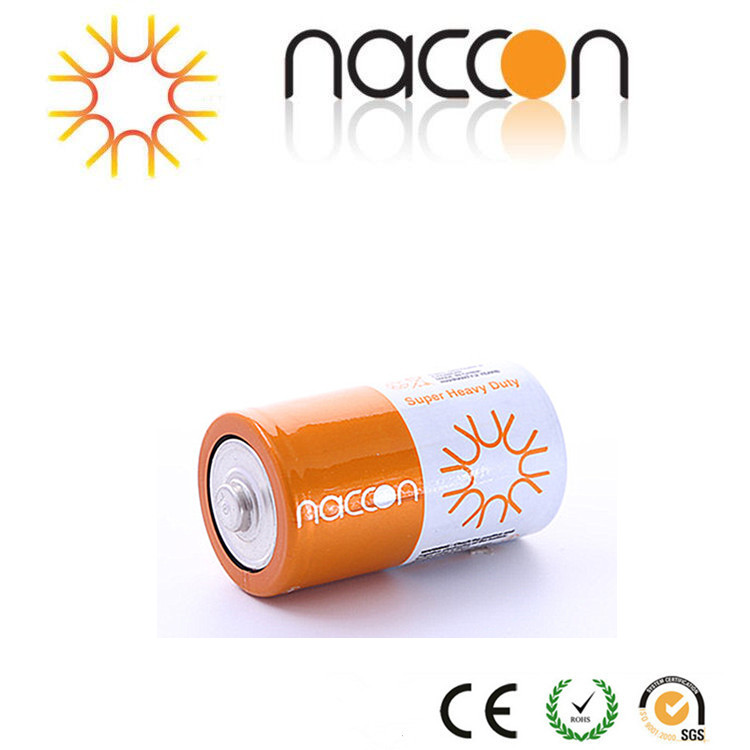

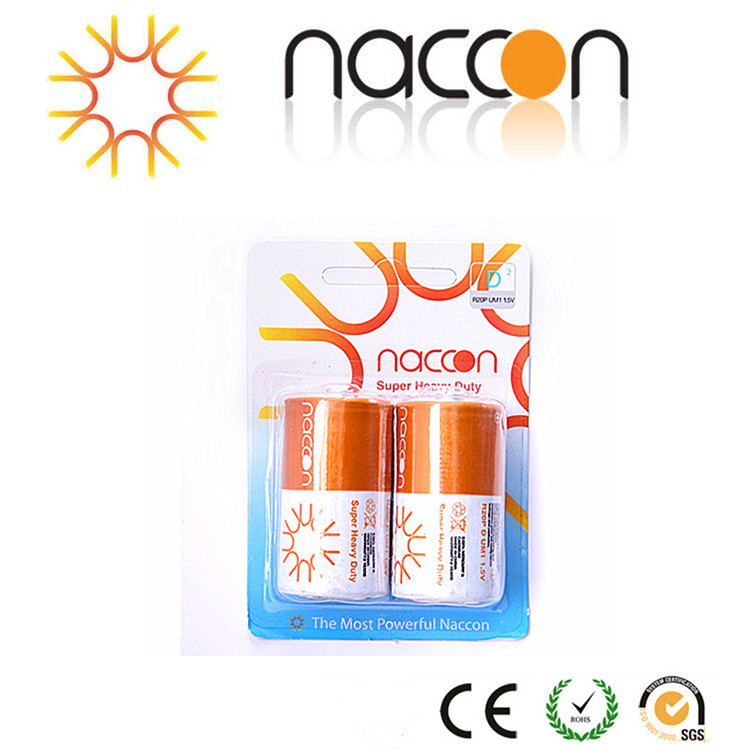

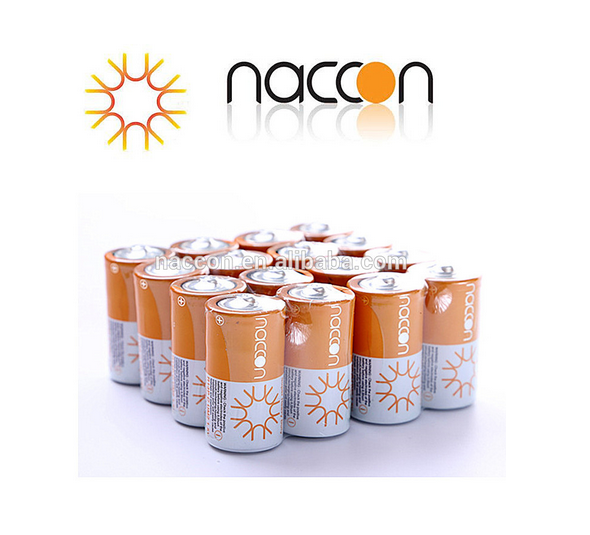

If you've ever replaced the battery in a gas stove igniter, a vintage transistor radio, or a heavy-duty industrial flashlight, you've almost certainly handled an R20P. Known globally as the D-cell or 1号电池 (in Chinese markets), this cylindrical battery is one of the largest consumer primary cells still in widespread use.

But despite its familiar appearance, there's more to the R20P than meets the eye. What do the letters and numbers actually mean? How does it compare to alkaline or rechargeable alternatives? And most importantly — how do you choose the right D-cell battery for your specific device?

This guide answers all of those questions, from the electrochemistry inside the can to the practical specs you'll find on the datasheet.

Part 1: Decoding the Label — What Does "R20P" Actually Mean?

Battery nomenclature follows the IEC 60086 international standard, and every character carries meaning:

• R: Round (cylindrical cell shape)

• 20: Size designation — corresponds to the D-cell form factor: approximately 34.2 mm in diameter and 61.5 mm in height (including terminals)

• P: Performance classification — indicates a general-purpose power type with a carbon-zinc system (as opposed to "S" for standard-duty or "C" for high-capacity designs)

Alternative designations you may encounter:

• UM-1 — the older Japanese/JIS designation for the same size

• D — the ANSI (American National Standards Institute) size code

• MN1300 / PC1300 — common retailer catalog numbers for alkaline and carbon-zinc versions, respectively

So when you pick up an R20P, you're holding an IEC-standardized, round carbon-zinc battery in the D-size format, designed for moderate-drain applications.

Part 2: Inside the R20P — The Leclanché Chemistry at Work

The R20P belongs to the Leclanché-type carbon-zinc family — a battery design that has been in continuous commercial production since the 1860s. Its enduring appeal lies in its simplicity, low cost, and reliable performance under the right conditions.

Anode (Negative Terminal): The outer metal casing is made of zinc (Zn) , which serves a dual role as both the container and the active material. During discharge, zinc atoms oxidize, releasing electrons:

• Zn → Zn⊃2;⁺ + 2e⁻

Cathode (Positive Terminal): A central carbon (graphite) rod acts as an inert collector. It doesn't participate chemically but provides a conductive pathway for electrons returning from the external circuit.

Electrolyte & Depolarizer (The Black Paste): The space between the zinc can and the carbon rod is filled with a moist paste containing:

• Ammonium chloride (NH₄Cl) — the primary electrolyte

• Zinc chloride (ZnCl₂) — improves conductivity and reduces corrosion

• Manganese dioxide (MnO₂) — the critical depolarizer

The Depolarization Mechanism — Key to Stable Voltage

When the battery discharges, hydrogen gas (H₂) forms at the carbon cathode. If allowed to accumulate, this gas acts as an insulator, increasing internal resistance and causing the voltage to drop — a phenomenon called polarization.

The MnO₂ depolarizer prevents this by chemically consuming the hydrogen:

• 2MnO₂ + H₂ → Mn₂O₃ + H₂O

This reaction keeps the electrode surface clear, maintaining a consistent flow of ions and electrons, and preserving that stable 1.5V output throughout most of the discharge cycle.

Overall Net Reaction (Simplified):

• Zn + 2MnO₂ + 2NH₄Cl → ZnCl₂ + Mn₂O₃ + 2NH₃↑ + H₂O

Part 3: Selection Decision Tree:

• Choose R20P if: Your device draws < 200mA continuously, is used intermittently, and you prioritize low upfront cost. Examples: gas igniters, wall clocks, remote controls, basic flashlights used occasionally.

• Choose LR20 (Alkaline) if: You need longer runtime, higher current capability (up to 1A), or longer shelf life. Examples: motorized toys, portable radios, emergency flashlights.

• Choose NiMH if: You have a high-drain device used frequently (power tools, photography lighting) and you're willing to invest in a charger for long-term savings.

Part 4: Practical Selection Guide — Matching the R20P to Your Device

Not every D-cell device is a good fit for the R20P. Here's a practical checklist to help you decide:

✅ Good Applications for R20P:

Gas stove/water heater igniters (pulse current, very low duty cycle)

Analog wall clocks and timers

Old transistor radios (low volume, intermittent use)

Emergency backup lights (rarely used)

Low-power sensor nodes or monitoring equipment

Children's toys with small motors (if run intermittently)

❌ Poor Applications for R20P:

High-brightness LED flashlights (continuous high current)

Motorized power tools or drills

Digital cameras with flash

Medical devices requiring stable voltage under load

Any device with a "battery test" button that applies a heavy load

Critical Tip: The voltage drop under load is significant. A fresh R20P may read 1.6V open-circuit, but under a 500mA load, it can sag to 1.2V or lower. Always check your device's minimum operating voltage.

Part 5: Installation, Storage, and Safety — Getting the Most Out of Your R20P

Installation Best Practices:

Check the polarity markings (+ and -) on both the battery and the device.

Ensure spring contacts are clean and not corroded (use a pencil eraser to clean if needed).

When replacing multiple cells (e.g., in series for higher voltage), always use fresh batteries from the same batch — mixing old and new can cause reverse-charging and leakage.

Storage Guidelines:

Store in a cool, dry place (ideal: 10–20°C, <60% humidity).

Avoid extreme heat (>50°C) — accelerates self-discharge and leakage risk.

Do not store in the device for prolonged periods (over 6 months) if not in use — remove to prevent corrosion.

Safety Warnings:

Do not recharge — R20P is a primary (non-rechargeable) battery. Attempting to recharge can cause gas buildup, leakage, or rupture.

Do not short-circuit — high current can heat the battery rapidly.

Do not disassemble — the zinc can is thin; puncturing releases corrosive electrolyte.

Dispose properly — while modern R20P cells are mercury-free, they should be recycled at designated collection points, not incinerated.

Conclusion: The Right Battery for the Right Job

The R20P carbon-zinc D-cell is not obsolete — it's specialized. Its simple Leclanché chemistry delivers a stable 1.5V output for low-current, intermittent applications at the lowest possible cost. It remains the go-to choice for gas igniters, basic flashlights, and countless legacy devices around the world.

But it's not a one-size-fits-all solution. By understanding the internal reactions, reading the specifications, and honestly assessing your device's current draw and usage pattern, you can decide whether the R20P is your best choice — or whether you'd be better served by an alkaline LR20 or a rechargeable NiMH.

As with many things in engineering: the most expensive battery isn't always the best — the right battery is.
