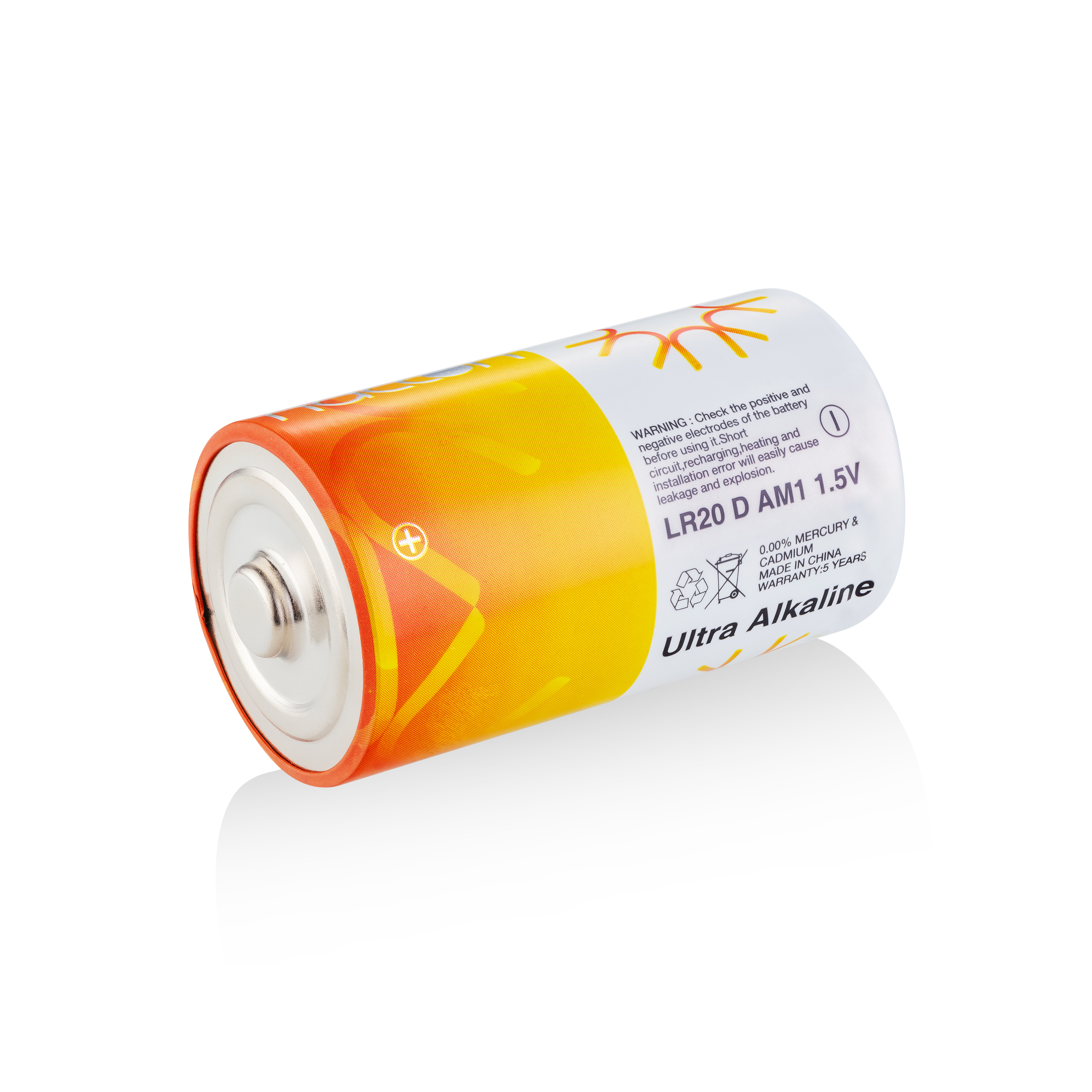

LR20 alkaline batteries (also known as Size D or No.1 batteries) are widely recognized as the preferred power source for high-power civilian and industrial devices, thanks to their large volume, high capacity and stable discharge performance. However, under high-power load conditions (usually defined as discharge current ≥500mA), the performance of LR20 alkaline batteries from different brands and specifications varies significantly, which directly affects the operation stability and service life of the powered equipment. This article designs a scientific performance test plan for LR20 alkaline batteries under high-power load, analyzes the test results in detail, and puts forward targeted selection recommendations, providing a reliable reference for users to choose LR20 alkaline batteries for high-power devices.
The core purpose of this test is to evaluate the key performance indicators of LR20 alkaline batteries under high-power load, including discharge capacity, voltage stability, discharge efficiency and temperature rise, so as to distinguish the performance differences between different products and provide a basis for rational selection. The test strictly follows the relevant standards (GB/T 8897.2-2008) and refers to the actual working conditions of high-power devices, ensuring the authenticity and applicability of the test results.
Three groups of LR20 alkaline batteries with the same nominal parameters (1.5V nominal voltage, ≥10000mAh nominal capacity) from different brands (marked as Brand A, Brand B and Brand C) are selected for comparative testing. All test samples are new batteries produced within 3 months, and the storage conditions before test are consistent (25±2℃, relative humidity 45%-65%) to eliminate the impact of production date and storage environment on test results.
The test simulates the common high-power load scenarios of LR20 alkaline batteries, and the specific conditions are set as follows:
Load Setting: Two typical high-power load conditions are selected: 600mA continuous discharge (simulating high-brightness flashlights, portable measuring instruments) and 10A pulse discharge (simulating gas stove, gas water heater ignition systems), with a termination voltage of 0.9V (the minimum voltage required for normal operation of most high-power devices).
Environmental Conditions: The test is carried out at a constant temperature of 20±2℃ and relative humidity of 60±15%, which is consistent with the standard test environment of LR20 alkaline batteries and avoids the impact of temperature and humidity on discharge performance.
Test Indicators: Key indicators include discharge time, actual capacity, voltage drop rate, short-circuit current, temperature rise and leak-proof performance during discharge. Each group of samples is tested 3 times, and the average value is taken as the final test result to ensure data accuracy.
Through systematic testing, the performance differences of the three groups of LR20 alkaline batteries under high-power load are clearly reflected. The test results and detailed analysis are as follows:
Discharge capacity and discharge time are the core indicators to measure the endurance of LR20 alkaline batteries under high-power load. The specific test results are shown in the following table:
Battery Brand | 600mA Continuous Discharge (2h/d) | 10A Pulse Discharge (10 times/min) | Initial Short-Circuit Current |
|---|---|---|---|
Brand A | 17.2h, 10320mAh | 1280 times, 42.7h | 10.5A |
Brand B | 15.8h, 9480mAh | 1050 times, 35.0h | 9.2A |
Brand C | 12.3h, 7380mAh | 720 times, 24.0h | 7.8A |
Analysis: Under 600mA continuous discharge, Brand A has the longest discharge time (17.2h) and the highest actual capacity (10320mAh), which is slightly higher than the nominal capacity (≥10000mAh) and meets the high-power endurance requirements; Brand B’s performance is medium, and its actual capacity is close to the nominal standard; Brand C’s discharge time is only 12.3h, and its actual capacity is far lower than the nominal value, which cannot meet the long-term high-power use needs. In terms of 10A pulse discharge, Brand A can complete 1280 ignition cycles, which is enough to support the normal use of gas stoves for 6-8 months, while Brand C can only complete 720 cycles, which needs frequent replacement. The initial short-circuit current of Brand A is ≥10A, which is better than the standard requirement (≥10A), ensuring stable ignition performance[3].
Voltage stability under high-power load is crucial for the stable operation of devices. A sharp voltage drop will lead to equipment malfunction (such as weak ignition, dim lighting). The test records the voltage change of each group of batteries during discharge, and the key results are as follows:
Brand A: The initial on-load voltage is 1.54V, and the voltage drops to 1.2V after 80% of the discharge time, with a voltage drop rate of 22%, showing a flat discharge curve, which can ensure the stable operation of the device throughout the discharge process.
Brand B: The initial on-load voltage is 1.52V, and the voltage drops to 1.2V after 70% of the discharge time, with a voltage drop rate of 21%, and the voltage stability is slightly worse than that of Brand A.
Brand C: The initial on-load voltage is 1.48V, and the voltage drops sharply to 1.0V after 50% of the discharge time, with a voltage drop rate of 32%, which will lead to obvious performance attenuation of the device in the middle and late discharge period.
Analysis: High-quality LR20 alkaline batteries (such as Brand A) have a flat discharge curve under high-power load, and the voltage drop rate is controlled within 25%, which is due to their optimized electrolyte formula and reasonable electrode structure. In contrast, inferior products have poor voltage stability, which will affect the normal use of high-power devices[8].
Under high-power discharge, the internal chemical reaction of the battery accelerates, which will cause temperature rise. Excessive temperature rise will increase the risk of electrolyte leakage and even affect the safety of the device. The test records the maximum temperature rise of the battery surface during discharge and checks the leak-proof performance after discharge:
Brand A: The maximum surface temperature rise during discharge is 8℃ (from 20℃ to 28℃), and there is no leakage after 48 hours of continuous discharge and 20 days of storage at 60℃ and 90% relative humidity, which meets the leak-proof standard.
Brand B: The maximum surface temperature rise is 10℃ (from 20℃ to 30℃), and there is no obvious leakage after discharge, but slight corrosion marks appear on the battery terminal after 25 days of high-temperature storage (70℃).
Brand C: The maximum surface temperature rise is 15℃ (from 20℃ to 35℃), and slight electrolyte leakage is found at the battery seal after 36 hours of continuous discharge, which poses a risk of corroding the device circuit.
Analysis: High-quality LR20 alkaline batteries adopt reinforced sealing technology and heat-dissipating electrode design, which can effectively control the temperature rise during high-power discharge and ensure good leak-proof performance. Inferior batteries have poor sealing and heat dissipation, which are prone to leakage and safety hazards under high-power load[6].
Discharge efficiency refers to the ratio of the actual discharge capacity of the battery to the nominal capacity, which reflects the utilization rate of the battery’s electrical energy under high-power load. The discharge efficiency of Brand A is 103.2% (actual capacity 10320mAh/nominal capacity 10000mAh), Brand B is 94.8%, and Brand C is only 73.8%. The high discharge efficiency of Brand A is due to its high-purity electrode materials and advanced electrolyte formula, which can fully release electrical energy under high-power load[9].
Based on the above test results and combined with the actual application scenarios of high-power devices, the following targeted selection recommendations are put forward to help users choose high-performance LR20 alkaline batteries and avoid performance problems such as insufficient endurance, unstable voltage and leakage under high-power load:
Choose LR20 alkaline batteries from regular brands with complete certifications (such as EU ROHS, GB/T 8897.2-2008). These products have stricter quality control on electrode materials, electrolyte formula and sealing technology, ensuring stable performance under high-power load. When purchasing, check the product parameters to ensure that the nominal capacity is ≥10000mAh, the initial short-circuit current is ≥10A, and the storage life is ≥5 years. High-end industrial-grade products (such as Uniross Industrial Pro LR20) even have a 10-year shelf life and can retain 90% of their capacity after 12 months of storage, which is more suitable for high-demand high-power scenarios.
When selecting, focus on three core indicators: discharge capacity, voltage stability and leak-proof performance. For continuous high-power devices (such as high-brightness flashlights), select batteries with actual discharge capacity ≥10000mAh under 600mA load and voltage drop rate ≤25%; for pulse high-power devices (such as gas stoves), select batteries with initial short-circuit current ≥10A and pulse discharge times ≥1000 times. At the same time, pay attention to the leak-proof performance, and choose products that pass the high-temperature and high-humidity leak-proof test (60℃, 90% RH storage for 20 days without leakage)[4].
Different high-power devices have different load requirements, and the battery should be selected according to the actual load of the device: For devices with continuous high-power load (discharge current 500mA-1A), such as high-brightness searchlights and portable radios, choose low-self-discharge LR20 alkaline batteries with high capacity (≥12000mAh) and good heat dissipation performance, which can ensure long-term stable operation.For devices with pulse high-power load (discharge current ≥5A), such as gas stoves and gas water heaters, choose batteries with strong pulse discharge capacity and stable voltage, which can ensure reliable ignition every time.For devices used in extreme environments (such as outdoor low-temperature scenarios), choose LR20 alkaline batteries with good low-temperature performance, which can maintain 70% of the room temperature capacity at -10℃ and work stably in the temperature range of -20℃ to 50℃[9].3.4 Avoid Inferior Products with Low PricesInferior LR20 alkaline batteries are cheap, but their actual capacity is far lower than the nominal value, and they have poor voltage stability and leak-proof performance. Under high-power load, they are prone to rapid power loss, leakage and other problems, which may corrode the device circuit and cause equipment failure, resulting in greater losses. Therefore, do not pursue low prices and ignore product quality. The comprehensive cost-effectiveness of high-quality batteries is higher in the long run.
Choose LR20 alkaline batteries produced within 6 months, because the capacity and performance of the battery will gradually decline with the extension of storage time. Even low-self-discharge products will have a small amount of capacity loss after long-term storage. At the same time, check the storage conditions of the battery when purchasing, and avoid buying batteries stored in high-temperature and high-humidity environments, which may have hidden dangers such as leakage and performance attenuation. Qualified LR20 alkaline batteries can maintain 90% of their initial discharge performance after 12 months of storage under standard conditions[3].
Even high-quality LR20 alkaline batteries need to be used correctly to give full play to their performance under high-power load: Replace batteries in pairs to ensure balanced discharge and avoid uneven voltage and excessive temperature rise caused by mixed use of new and old batteries.Do not mix LR20 alkaline batteries with carbon-zinc batteries or rechargeable batteries, which will cause unstable discharge and increase the risk of leakage.When the device shows signs of insufficient power (such as weak ignition, dim lighting), replace the batteries in time to avoid over-discharge, which may cause battery leakage and damage the device.4. ConclusionUnder high-power load, the performance of LR20 alkaline batteries varies significantly between different brands and specifications. High-quality LR20 alkaline batteries have the advantages of high discharge capacity, stable voltage, low temperature rise and good leak-proof performance, which can ensure the stable operation of high-power devices and reduce the frequency of battery replacement. In contrast, inferior products have obvious defects in performance and safety, which are not suitable for high-power load scenarios.
When selecting LR20 alkaline batteries for high-power devices, users should focus on core performance indicators, prioritize high-quality brands, match the battery with the device load, and avoid inferior products. At the same time, correct use and replacement methods can further extend the service life of the battery and ensure the safety and reliability of the device. By following these selection and use suggestions, users can maximize the performance of LR20 alkaline batteries under high-power load and achieve cost-saving and efficient use.
