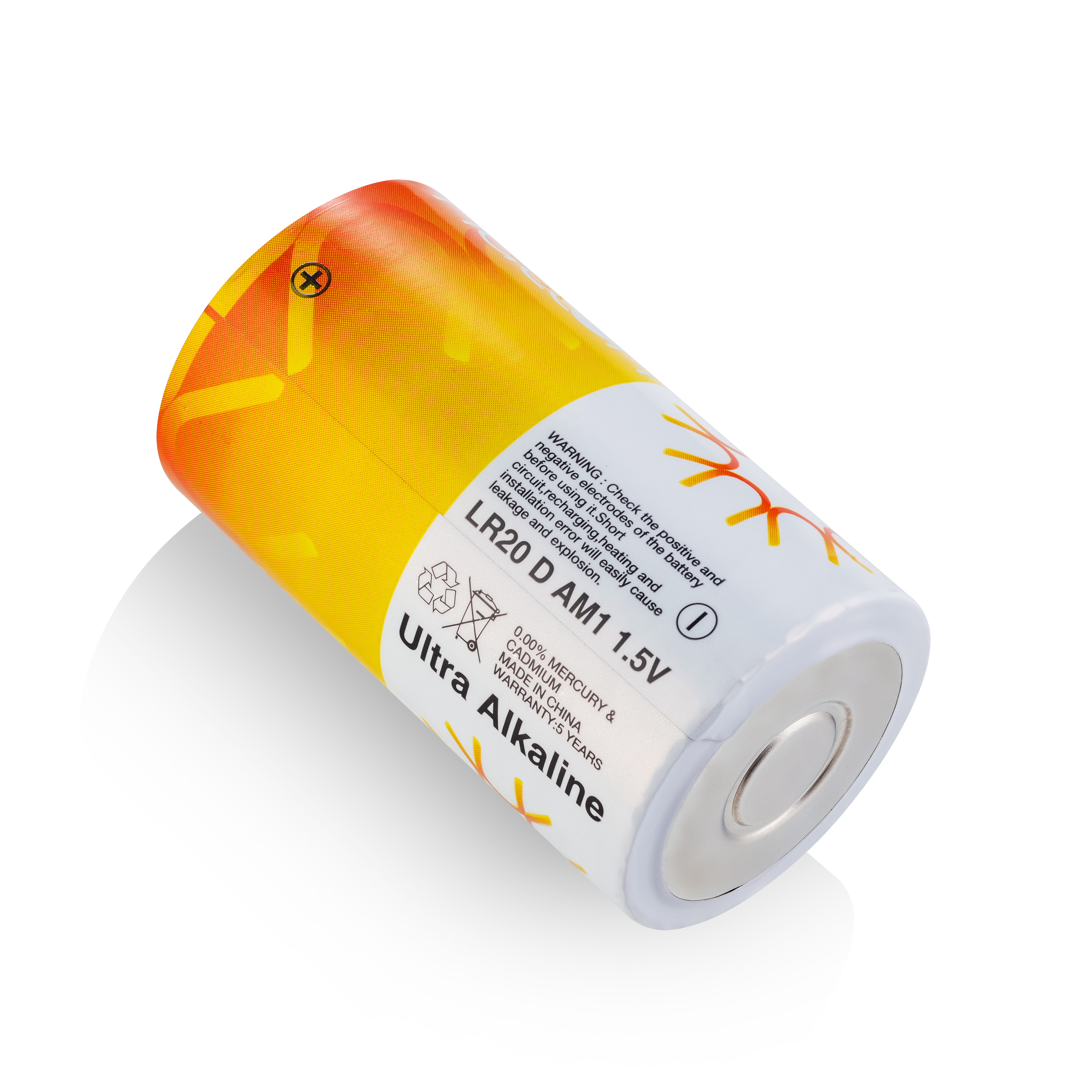

LR20 (also known as Size 1 or D-size) alkaline battery is a primary battery widely used in household, industrial and emergency scenarios, favored for its high capacity, stable discharge and reliable performance. Its discharge characteristics—including discharge curve, capacity performance, current adaptability and environmental adaptability—directly determine its applicable working conditions. This article comprehensively analyzes the discharge characteristics of LR20 alkaline batteries, combines practical application scenarios, and clarifies the matching relationship between the battery and working conditions, providing a scientific basis for rational selection and efficient use of LR20 alkaline batteries.
The discharge characteristics of LR20 alkaline battery refer to the law of changes in voltage, current, capacity and other parameters during the process of converting chemical energy into electrical energy. These characteristics are determined by its internal chemical structure (zinc as negative electrode, manganese dioxide as positive electrode, potassium hydroxide as electrolyte) and manufacturing process, and are the key to distinguishing it from other dry batteries such as carbon-zinc batteries.
The discharge curve of LR20 alkaline battery is the core reflection of its discharge performance, describing the relationship between terminal voltage and discharge time (or capacity) under specified conditions. Its most prominent feature is a stable and flat curve, which can be divided into three stages:
Initial Discharge Stage: The terminal voltage of a new LR20 alkaline battery is slightly higher than the nominal voltage (1.5V), usually between 1.55V and 1.61V. During this stage, the voltage drops slightly and stabilizes quickly, providing stable power for the device. For example, under the condition of 20±2℃ and 3.9Ω load, the on-load voltage of a new battery can reach 1.54V, and it remains stable in the initial stage of discharge.
Stable Discharge Stage: This stage accounts for 80% of the total discharge time, and the terminal voltage remains stable between 1.2V and 1.4V, with no obvious voltage drop. This ensures that the powered device works stably without performance attenuation. For instance, when discharged at 10Ω load for 4 hours per day (termination voltage 0.9V), the stable discharge stage can last for nearly 100 hours, maintaining consistent power output.
Final Discharge Stage: When the active materials (zinc and manganese dioxide) are nearly exhausted, the terminal voltage drops rapidly from 1.2V to the termination voltage (usually 0.8V-0.9V), and the battery is basically exhausted. This stage is short, avoiding the situation where the device works abnormally due to insufficient voltage.
Compared with carbon-zinc batteries, which have a sharp voltage drop in the middle and late discharge stages, the flat discharge curve of LR20 alkaline batteries is more suitable for devices that require stable power supply, such as gas stoves and medical equipment.
The capacity of LR20 alkaline battery refers to the total electrical energy it can release under specified discharge conditions, usually expressed in milliampere-hours (mAh) or ampere-hours (Ah). Its capacity performance has two obvious advantages:
High Nominal Capacity: Under standard test conditions (20±2℃, constant resistance discharge), the nominal capacity of LR20 alkaline battery can reach 10000-15000mAh. For example, under the condition of 10Ω load, 4 hours per day and termination voltage 0.9V, the discharge time can reach more than 100 hours, and the capacity is about 14000mAh. This is 2-3 times that of carbon-zinc D-size batteries, which greatly extends the service life of the battery.
Strong Load Adaptability: The capacity of LR20 alkaline battery varies with the discharge current (load), but it still maintains excellent performance under different load conditions. Under low-current discharge (≤100mA), the capacity can reach 10000-12000mAh, suitable for low-power devices such as remote controls; under medium-current discharge (100-500mA), the capacity is about 8000-10000mAh, suitable for flashlights and doorbells; under high-current discharge (≥500mA), the capacity is still 5000-7000mAh, which can meet the power demand of high-power devices such as gas water heaters. Even under continuous high-current discharge (600mA, 2 hours per day), the discharge time can reach more than 14 hours.
LR20 alkaline battery has excellent high-current discharge performance, which is one of its core advantages. It can stably output high pulse current or continuous high current, and the short-circuit current of a new battery can reach 8-17A, which is far higher than that of carbon-zinc batteries. This feature makes it particularly suitable for devices that require instant high-current ignition or continuous high-power operation, such as pulse ignition systems of gas stoves and high-brightness searchlights. Even under frequent high-current ignition, it will not have insufficient current or weak performance.
The discharge performance of LR20 alkaline battery is less affected by the external environment, and it can work stably in a wide temperature and humidity range, which is better than that of carbon-zinc batteries:
Temperature Adaptability: The optimal operating temperature range is -10℃ to 45℃. At -10℃, the discharge capacity can still reach 70% of the room temperature capacity; at 45℃, the internal resistance increases slowly, and the high-current discharge performance is better. Some high-quality products can even work stably in the range of -20℃ to 54℃, suitable for outdoor and low-temperature environments. In contrast, the discharge capacity of carbon-zinc batteries drops sharply at low temperatures, which cannot meet the normal use needs.
Humidity Adaptability: It can work stably in a humidity range of 35% to 90% without obvious performance attenuation. Even in humid environments such as kitchens and bathrooms, it will not cause leakage or discharge failure. Qualified products can be stored for 20 days at 60℃ and 90% humidity without leakage, ensuring safe use in humid working conditions.
The self-discharge rate of LR20 alkaline battery is very low, usually ≤3% per year under room temperature (25℃, dry environment). This means that the battery can be stored for 3-10 years while maintaining more than 80% of its capacity. After 12 months of storage, the on-load voltage and discharge capacity can still reach 90% of the initial value, which is very suitable for standby power supply of devices that are not used frequently, such as emergency lighting and remote monitoring systems.
Based on the above discharge characteristics, LR20 alkaline battery is suitable for various working conditions, especially high-power, long-term use and complex environmental scenarios. It can be divided into the following categories according to the working conditions, and the matching principles are clarified:
Typical Scenarios: Gas stoves, gas water heaters, pulse igniters, etc. These devices require instantaneous high-current pulses to generate sparks for ignition, and the discharge current is large (≥500mA), but the discharge time is short (milliseconds per ignition), belonging to intermittent high-current discharge工况.
Matching Advantage: The high-current discharge performance of LR20 alkaline battery ensures that each ignition can generate sufficient spark energy, avoiding weak ignition or failure. Its stable voltage output ensures consistent ignition effect, and the long service life reduces the frequency of battery replacement. Under normal use, a pair of LR20 alkaline batteries can support the ignition of gas stoves for 6-12 months.
Typical Scenarios: High-brightness flashlights, searchlights, portable radios, heavy-duty toys, etc. These devices require continuous medium-current discharge (100-500mA), and the working time is long, requiring the battery to have high capacity and stable discharge performance.
Matching Advantage: The high capacity of LR20 alkaline battery ensures long continuous working time. For example, a high-brightness flashlight using LR20 batteries can work continuously for 20-30 hours; a portable radio can work for several days. The flat discharge curve ensures that the brightness of the flashlight and the sound quality of the radio remain stable without attenuation during use.
Typical Scenarios: Emergency lighting, wireless security alarms, remote monitoring sensors, doorbells, etc. These devices have low power consumption (≤100mA), long working cycle, and need to be in standby state for a long time, requiring the battery to have low self-discharge rate and long shelf life.
Matching Advantage: The low self-discharge rate of LR20 alkaline battery ensures that it can maintain sufficient capacity during long-term standby. For example, emergency lighting powered by LR20 batteries can be in standby for 3-5 years, and can be activated immediately to provide stable power when there is a power outage. Remote monitoring sensors in agriculture or environmental studies can work continuously for a long time with LR20 batteries, reducing the cost of manual battery replacement.
Typical Scenarios: Outdoor equipment (outdoor flashlights, portable measuring instruments), kitchen and bathroom equipment (gas water heaters, bathroom lights), low-temperature environments (outdoor operations in winter), etc. These working conditions have large temperature and humidity changes, requiring the battery to have strong environmental adaptability.
Matching Advantage: LR20 alkaline battery can work stably in the temperature range of -20℃ to 54℃ and humidity range of 35% to 90%, without leakage or performance attenuation. For example, in outdoor low-temperature environments (-10℃), it can still provide sufficient power for flashlights; in humid kitchens, it can avoid leakage and corrosion of gas stove circuits, ensuring safe use. Some lithium LR20 batteries can even work in extreme temperatures of -40℃ to 60℃, suitable for more harsh outdoor scenarios.
Typical Scenarios: Medical equipment (portable blood pressure monitors), industrial tools,数控机床, paper towel dispensers, soap dispensers, etc. These devices require high reliability, stable discharge and long service life, and have strict requirements on battery safety and environmental protection.
Matching Advantage: High-quality LR20 alkaline batteries do not contain mercury and cadmium, meeting EU battery directives and environmental protection standards. They have stable discharge performance and low leakage rate (≤0.1%), which can avoid equipment damage caused by battery leakage. The high capacity and long service life reduce the frequency of battery replacement, improving the work efficiency of industrial and professional equipment. For example, portable medical equipment powered by LR20 batteries can work continuously for a long time, ensuring the smooth progress of medical work.
Do not use LR20 alkaline batteries in high-current continuous discharge scenarios exceeding their bearing capacity (such as long-term high-power motors), so as to avoid excessive temperature rise, shortened service life or even leakage of the battery.
In low-temperature environments (-20℃ to -10℃), the discharge capacity of the battery will decrease slightly, so it is recommended to choose high-quality LR20 alkaline batteries with better low-temperature performance, and replace them in time when the device performance is attenuated.
Do not mix LR20 alkaline batteries with carbon-zinc batteries or rechargeable batteries, which will cause unstable discharge, reduce the service life of the battery, and even increase the risk of leakage.
For devices that are not used for a long time, remove the LR20 alkaline batteries to avoid leakage damage caused by long-term standby. Store the batteries in a cool, dry place, away from high temperature, humidity and direct sunlight, to maintain their discharge performance.
The LR20 alkaline battery has outstanding discharge characteristics such as stable flat discharge curve, high capacity, excellent high-current output, strong environmental adaptability and low self-discharge rate, which determine its wide applicability in household, industrial, emergency and professional scenarios. By understanding its discharge characteristics and matching principles with working conditions, users can select LR20 alkaline batteries reasonably, maximize the service life of the battery, ensure the stable operation of the powered devices, and avoid unnecessary losses caused by improper selection.
In summary, LR20 alkaline battery is the preferred power source for high-power, long-term use and complex environmental working conditions, and its performance advantages make it an indispensable part of modern production and life.
