In the fields of home/industrial security and measuring instruments, a reliable power source is the key to ensuring stable operation. Among numerous battery options, the 6F22 carbon-zinc battery has become a常备 (must-have) choice for security devices and measuring instruments, thanks to its stable performance, cost-effectiveness, and perfect compatibility. This small encyclopedia will comprehensively cover all key knowledge of 6F22 carbon-zinc batteries, focusing on its application in security and instrument scenarios, helping you better understand, choose and use this practical battery.

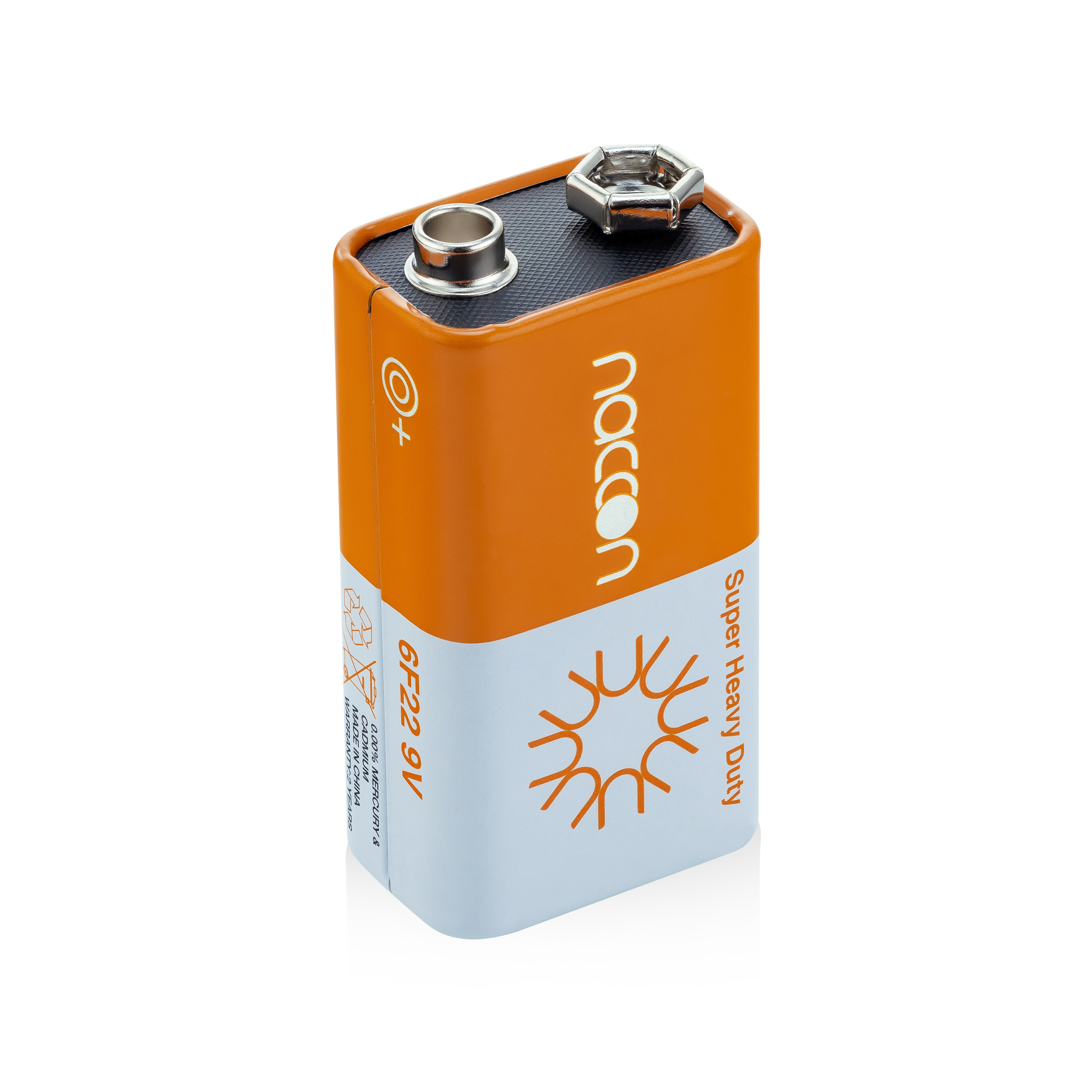

The 6F22 is a standard square 9V primary (non-rechargeable) carbon-zinc battery, designed for low-power, long-standby, and intermittent-use devices—exactly the core needs of security equipment and measuring instruments. Its basic information is easy to remember:
Naming Meaning: Following the IEC international standard, "6" means 6 internal 1.5V flat cells (connected in series to form 9V), "F" stands for flat cell shape, and "22" is the standard size code, ensuring universal compatibility across brands.
Physical Specifications: Compact square shape (48.5mm×26.5mm×17mm) with snap-on terminals, which can be easily installed in the small battery compartments of security devices and instruments.
Core Nature: Non-rechargeable carbon-zinc battery, with mature production technology, low cost, and stable low-current discharge performance—core advantages for security and instrument use.
Security devices (home or industrial) require 24-hour standby, stable power supply, and low maintenance cost—all of which the 6F22 carbon-zinc battery can perfectly meet. It is widely used in the following common security devices:
Smoke Detectors: The most common user of 6F22. It works 24 hours a day in standby mode, and the 6F22’s low self-discharge rate (3-5% per year) and stable low-current discharge can support it to work continuously for 6-12 months, ensuring timely fire alarm.
Gas Detectors: For monitoring natural gas or liquefied gas concentration, the 6F22’s reliability prevents unexpected power failure, and its low cost is suitable for long-term use in kitchens or basements.
Wireless Doorbells & Door/Window Sensors: These devices only consume power intermittently (when the doorbell is pressed or the door/window is opened), and the 6F22 can last for 1-2 years under normal use, reducing the trouble of frequent battery replacement.
Small Infrared Detectors: Used in small workshops, convenience stores, or office buildings, these detectors have low power consumption and intermittent working mode, which matches the 6F22’s performance.
Temporary Security Alarms: For construction sites or temporary monitoring scenarios, the 6F22’s low cost and easy availability make it a cost-effective power choice, without increasing the overall security budget.
The 6F22’s gentle voltage decay curve is particularly suitable for security devices. Unlike alkaline batteries that have a steep voltage drop in the later stage (easily triggering false low-power alarms), the 6F22’s voltage drops linearly, ensuring the device’s stable operation and reducing false alarms.
Measuring instruments (especially household and light industrial ones) require stable voltage output to ensure measurement accuracy, and the 6F22’s performance is perfectly matched. It is widely used in the following instruments:
Ordinary Digital/Analog Multimeters: The most common instrument using 6F22. Multimeters are used intermittently (for home circuit maintenance, electronic debugging), and the 6F22’s stable low-current discharge ensures accurate measurement results. A single 6F22 can last for 3-6 months for occasional use.
Portable Voltage Testers & Continuity Testers: These small tools are used to check circuit connectivity or voltage, and the 6F22’s compact size and stable power supply make it easy to carry and use.
Portable Thermometers/Hygrometers: Used in workshops or warehouses to monitor temperature and humidity, these instruments have low power consumption, and the 6F22 can support long-term stable operation.
Simple Pressure Gauges (Battery-Powered): For low-precision pressure measurement scenarios, the 6F22’s cost-effectiveness and stable performance meet the basic power needs.
The 6F22’s stable voltage output (maintaining above 7.5V during normal use) ensures the accuracy of measuring instruments. Unlike inferior batteries that cause unstable voltage and inaccurate measurements, the 6F22’s reliable performance guarantees the reliability of test results.
To better understand why 6F22 is the first choice for security and instruments, we compare it with other common 9V batteries:
Battery Type | Advantages | Disadvantages | Applicability to Security/Instruments |
|---|---|---|---|
6F22 Carbon-Zinc | Low cost, stable low-current discharge, low self-discharge, compact size | Lower capacity, not suitable for high-power use | Highly suitable: ordinary security devices and low-power instruments |
6LR61 Alkaline | Higher capacity, longer service life | Higher price (3x of 6F22), steep voltage drop | Less suitable: over-performance, high cost, easy to trigger false alarms |
Lithium 9V | Longest service life, extreme temperature resistance | High price (6x of 6F22), overkill for ordinary scenarios | Only suitable for special scenarios (outdoor extreme environments, high-end professional equipment) |
To extend the service life of 6F22 and ensure the stable operation of security devices and instruments, follow these tips:
Choose Regular Brands: Regular brand 6F22 batteries (e.g., Duracell, Energizer, domestic reliable brands) have stable performance and low leakage risk, avoiding damage to expensive instruments or security devices.
Replace Timely: For security devices, replace the 6F22 every 6-12 months even if no low-power alarm is triggered; for instruments, replace the battery when the display is dim or measurement is inaccurate.
Proper Storage: Store spare 6F22 in a dry, cool environment (15℃-25℃), away from direct sunlight and high temperature. Keep in the original packaging to avoid dampness and short circuits.
Avoid Mixing Batteries: Do not mix old and new 6F22 batteries, nor mix with alkaline/lithium 9V batteries—this causes uneven discharge, leakage, or device failure.
Remove When Not in Use: If security devices or instruments are not used for more than 1 month, remove the 6F22 battery to prevent electrolyte leakage from corroding internal circuits.
A1: No. It is suitable for low-power, long-standby or intermittent-use devices. High-power security devices (e.g., professional surveillance cameras) or high-precision instruments (e.g., professional multimeters) are not suitable; choose alkaline or lithium 9V batteries instead.
A2: For security devices (standby mode): 6-12 months; for instruments (intermittent use): 3-6 months. The service life depends on usage frequency and device power consumption.
A3: Yes. It complies with RoHS and IEC environmental standards, free of mercury, cadmium, and other heavy metals. Dispose of it in special dry battery recycling bins after use.
For security devices and measuring instruments that require stable, low-cost, and long-standby power supply, the 6F22 carbon-zinc battery is undoubtedly the most practical must-have choice. Its stable low-current discharge, low self-discharge rate, cost-effectiveness, and compact size perfectly match the core needs of these two scenarios, ensuring the reliable operation of devices while controlling use costs.
Whether it is a home smoke detector, a household multimeter, or a light industrial security alarm, the 6F22 silently provides power support, becoming an indispensable "power partner" in the fields of security and instruments. By mastering the knowledge in this encyclopedia, you can choose and use 6F22 more reasonably, making your security devices and instruments work more stably and durably.
