AG0 Alkaline Button Battery: A Small Battery with a Big Role in Everyday Electronics

1. Introduction: What Is an AG0 Alkaline Button Battery?

In today's world, many electronic devices are becoming smaller, lighter, and more portable. From wristwatches and calculators to miniature electronic toys and precision instruments, these devices require compact and reliable power sources.

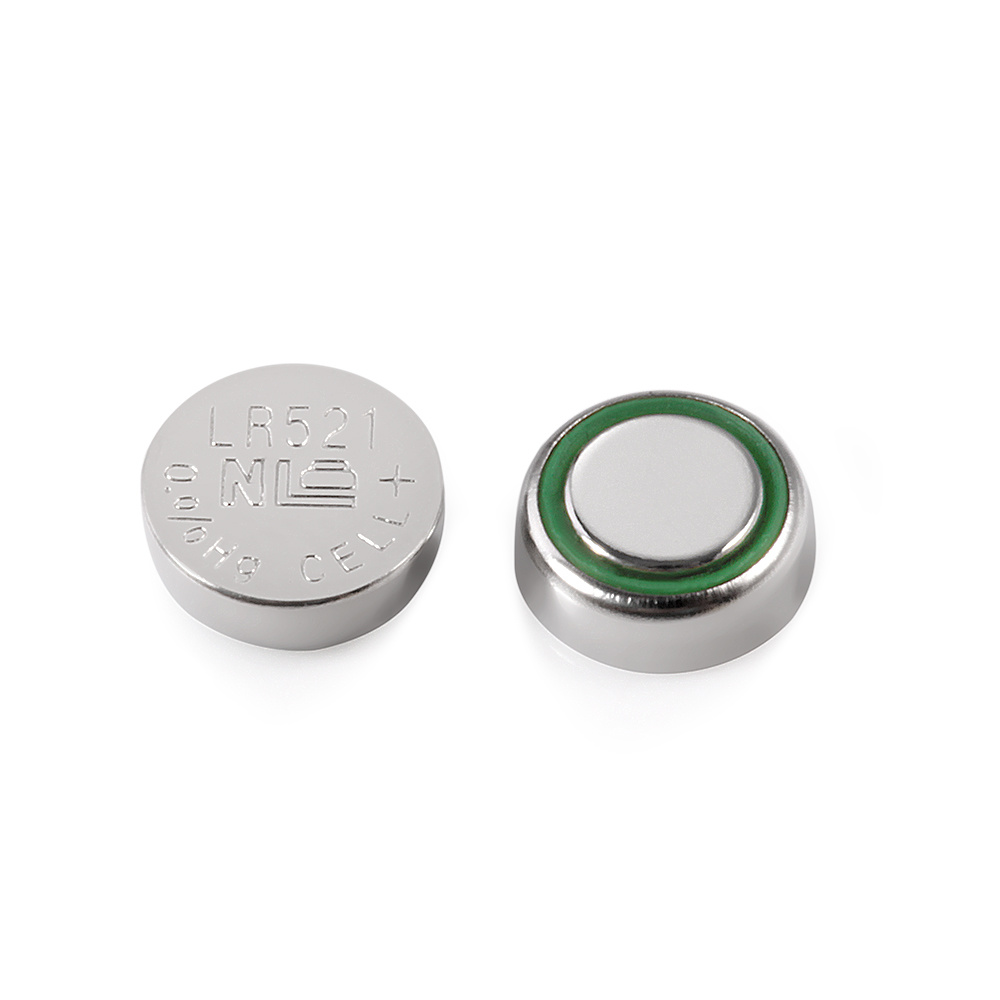

The AG0 alkaline button battery is a miniature primary battery designed to provide electrical energy in a small, lightweight package. Its compact size and stable voltage make it suitable for a variety of low-power electronic applications.

The AG0 battery is commonly associated with the LR521 designation and typically provides a nominal voltage of 1.5 volts. It belongs to the alkaline-manganese dioxide battery family, which is widely used in consumer electronics.

Despite its tiny size, the AG0 battery plays an important role in powering devices that require dependable energy in limited space.

2. What Are the Main Specifications of an AG0 Battery?

The AG0 alkaline button battery is characterized by its compact dimensions and cylindrical, coin-like appearance.

Here are some typical specifications:

3. How Does an AG0 Alkaline Button Battery Work?

The AG0 alkaline button battery converts chemical energy into electrical energy through an electrochemical reaction.

Its operation relies primarily on three components:

- Anode (negative electrode): Zinc, which releases electrons during the chemical reaction.

- Cathode (positive electrode): Manganese dioxide, which accepts electrons during the reaction.

- Electrolyte: A potassium hydroxide solution that allows ions to move inside the battery.

When the battery is connected to an electronic device, a chemical reaction begins.

Zinc undergoes oxidation, releasing electrons. These electrons travel through the external circuit, providing electrical energy to the device. At the same time, manganese dioxide undergoes reduction at the positive electrode.

The electrolyte facilitates ionic movement inside the battery, allowing the electrochemical process to continue.

This process can be simplified as:

Chemical energy → Electrical energy → Device operation

The alkaline chemistry enables the battery to deliver a relatively stable voltage during its operating life.

4. What Are the Applications of AG0 Batteries?

Because of its small size and lightweight design, the AG0 alkaline button battery is used in various miniature electronic devices.

Watches and Timekeeping Devices

Small electronic watches may use miniature button batteries to power their timekeeping circuits and displays.

Calculators

Compact calculators require a small and reliable power source. Button batteries can provide the energy needed for their electronic circuits.

Electronic Toys

Some miniature toys and novelty products use AG0 batteries because their small dimensions allow manufacturers to design compact products.

Electronic Instruments

Certain small measuring instruments, sensors, and electronic accessories may use AG0 batteries when their voltage and capacity requirements are compatible.

The specific applications depend on the device's power consumption, operating voltage, and battery compartment design.

5. What Are the Advantages of AG0 Alkaline Button Batteries?

AG0 batteries offer several advantages that make them suitable for miniature electronic devices.

1. Compact Size

The small dimensions allow the battery to fit into devices with limited internal space.

2. Lightweight Design

Its low weight makes it suitable for portable products where minimizing overall weight is important.

3. Convenient Power Supply

As a primary battery, the AG0 can be used directly without charging equipment.

4. Wide Availability

Alkaline button batteries are widely used in consumer electronics and are available from numerous battery manufacturers.

5. Suitable for Low-Power Applications

The AG0 battery is particularly useful in devices that consume relatively small amounts of electrical energy.

However, its capacity is limited by its miniature size. Devices with high current requirements may need a different battery type.

6. AG0 vs. Other Button Battery Types

Button batteries may look similar, but their chemical compositions and electrical characteristics can differ significantly.

Although these batteries may have similar appearances or overlapping applications, they are not necessarily interchangeable.

For example, the AG0 alkaline battery and SR521SW silver oxide battery have similar dimensions, but their discharge characteristics and capacities may differ.

The CR2032 is substantially larger and operates at a higher voltage.

Selecting the correct battery requires checking the device manufacturer's specifications.

7. How Should AG0 Batteries Be Stored and Handled?

Although AG0 batteries are small, proper handling is important for safety and performance.

The following precautions are recommended:

•  Store batteries in a cool, dry environment.

•  Keep batteries away from direct sunlight and excessive heat.

• Do not attempt to recharge non-rechargeable alkaline batteries.

• Avoid short-circuiting the positive and negative terminals.

• Do not disassemble, crush, or puncture the battery.

• Keep batteries out of reach of children and pets.

Important safety note: Button batteries can cause severe internal injuries if swallowed. Keep them securely stored and seek immediate medical assistance if ingestion is suspected.

Used batteries should be disposed of or recycled according to local regulations.

8. Conclusion: Small Battery, Reliable Power

The AG0 alkaline button battery is a compact and practical energy source for miniature electronic devices.

Its 1.5 V nominal voltage, small dimensions, and alkaline chemistry make it suitable for a range of low-power applications. Although its energy capacity is limited, it provides a convenient solution for products where space and weight are important design considerations.

Understanding the battery's specifications, working principle, and proper handling procedures helps users select the right power source and use it safely.

As electronic products continue to become smaller and more sophisticated, miniature batteries such as the AG0 will remain an important part of everyday electronic technology.
