Safety Guide for Transportation of 18650 Lithium Batteries: Ensure Regulatory Compliance to Avoid Transport Risks

18650 lithium-ion batteries are widely used in flashlights, power tools, portable electronics, energy storage systems, battery packs, and many other applications. However, because lithium-ion cells contain stored electrical energy and flammable electrolyte, their transportation is subject to specific safety and dangerous-goods requirements.

For manufacturers, exporters, distributors, and logistics providers, proper classification, packaging, labeling, documentation, and handling are essential to reduce transportation risks and avoid shipment delays or non-compliance.

1. Why 18650 Lithium Batteries Require Special Transportation Procedures

An 18650 cell is generally a cylindrical lithium-ion cell measuring approximately 18 mm in diameter and 65 mm in length. Naccon's published 18650 specifications include a nominal voltage of 3.7 V and multiple capacity options.

The energy of a lithium-ion cell can be calculated as:

Watt-hours (Wh) = Voltage (V) × Capacity (Ah)

For example:

These values are below the 100 Wh threshold commonly relevant to the transport classification of individual small lithium-ion batteries, but the exact regulatory treatment still depends on how the batteries are shipped and the applicable transport rules.

2. Identify the Correct UN Classification

When 18650 lithium-ion cells are shipped by themselves rather than installed in equipment, they are generally classified as:

UN 3480 – Lithium Ion Batteries

If lithium-ion cells or batteries are shipped contained in or packed with equipment, the applicable classification can instead be UN 3481, depending on the specific configuration.

The distinction is important because different packing instructions and transportation restrictions can apply.

IATA identifies UN 3480 as the classification for lithium-ion cells and batteries shipped by themselves.

3. Confirm UN 38.3 Testing Before Shipment

One of the most important compliance requirements is confirming that the applicable lithium-ion cell or battery design has successfully passed the required UN Manual of Tests and Criteria, Part III, Sub-section 38.3 tests.

The testing framework is intended to verify that batteries can withstand conditions encountered during transportation.

Before arranging a shipment, exporters should maintain appropriate technical documentation and confirm that the battery model being shipped corresponds to the tested design.

A practical compliance checklist includes:

PHMSA states that lithium batteries transported under its regulations must meet applicable testing requirements and be packaged to prevent short circuits and damage.

4. Protect the Battery Terminals

One of the simplest but most important transportation precautions is preventing accidental short circuits.

During transportation, loose 18650 cells should not be packed in a way that allows their positive and negative terminals to contact each other or conductive materials.

Recommended measures include:

• Use individual protective sleeves or separators.

• Use appropriate inner packaging to immobilize cells.

• Prevent batteries from moving freely inside the package.

• Keep batteries away from conductive metal objects.

• Protect exposed terminals from accidental contact.

• Inspect cells before packing.

• Do not ship damaged or defective cells through normal air-freight channels.

IATA specifically identifies protection against short circuits, appropriate inner and outer packaging, packaging limits, and required marks and labels as key elements of lithium-battery air transportation.

5. Control the State of Charge for Air Transportation

State of charge, or SoC, is particularly important when shipping standalone lithium-ion batteries by air.

Under the 2026 IATA guidance, lithium-ion cells and batteries shipped by themselves under Packing Instruction 965 must generally be offered for transport at a state of charge not exceeding 30% of their rated capacity. Batteries above 30% may require approval under the applicable special provision.

For example:

Do not assume that every lithium battery shipment has the same SoC requirement. The correct requirement must be determined from the applicable packing instruction and transport mode.

6. Passenger Aircraft vs. Cargo Aircraft

Standalone lithium-ion batteries classified as UN 3480 have important restrictions for air transportation.

The 2026 IATA guidance states that lithium-ion cells and batteries shipped by themselves are forbidden as cargo on passenger aircraft. Certain shipments prepared under Packing Instruction 965 must therefore be transported using cargo aircraft arrangements and meet the applicable requirements.

This is an important consideration when exporters arrange international transportation for Naccon 18650 cells or similar products.

Air-Shipment Planning

Before shipment:

1. Confirm the UN classification.

2. Confirm the applicable packing instruction.

3. Calculate the battery's Wh rating.

4. Confirm UN 38.3 compliance.

5. Verify the required SoC.

6. Select compliant packaging.

7. Protect terminals against short circuit.

8. Apply required marks and labels.

9. Prepare required dangerous-goods documentation.

10. Confirm the carrier accepts the shipment configuration.

7. Packaging Requirements for 18650 Batteries

Packaging should provide both electrical protection and mechanical protection.

A good package should prevent:

• Short circuits

• Cell-to-cell contact

• Movement inside the carton

• Crushing

• Puncture

• Terminal damage

• Accidental activation or electrical connection

A typical commercial packing structure can include:

18650 Cells → Individual/Inner Protection → Separator or Tray → Strong Inner Box → Outer Carton → Required Marks/Labels

For air transportation, the exact packaging specification depends on the applicable IATA packing instruction and shipment category. IATA notes that lithium-battery packaging requirements can vary according to the battery's watt-hour rating and shipment configuration. 8. Damaged or Defective Batteries Need Special Attention

Never treat a damaged 18650 cell in the same way as a normal production cell.

Warning signs include:

• Swelling

• Leakage

• Severe dents

• Torn insulation

• Damaged terminals

• Unusual heating

• Signs of internal damage

• Abnormal odor

• Evidence of overheating or fire

For air transportation, damaged lithium batteries are subject to particularly strict restrictions. PHMSA guidance states that damaged lithium batteries are forbidden from air transport under the applicable provisions.

Therefore, cells should be inspected before packing rather than discovering a damaged cell after the shipment has entered the logistics chain.

9. Correct Marking, Labeling, and Documentation

A compliant shipment is not only about the physical packaging. The package must also communicate the appropriate dangerous-goods information.

Depending on the shipment category and applicable regulations, requirements may involve:

• UN number

• Proper shipping name

• Lithium battery mark

• Class 9 hazard label where applicable

• Cargo Aircraft Only label where applicable

• Air waybill information

• Shipper's Declaration for Dangerous Goods where required

• Other carrier-specific documentation

The exact combination depends on the applicable transport regulation and packing instruction.

IATA's Battery Shipping Regulations cover classification, packing, marking, labeling, documentation, acceptance procedures, and emergency response.

10. Sea and Road Transportation

Air transportation generally has the most restrictive lithium-battery requirements, but sea and road transportation still require careful compliance.

For international shipments, exporters may need to consider regulations such as:

• IMDG Code for sea transportation

• ADR for applicable European road transportation

• National dangerous-goods regulations

• Carrier-specific requirements

• Import-country requirements

Therefore, the same 18650 shipment may require different documentation or packaging procedures depending on whether it is transported by air, sea, road, or a multimodal combination.

11. Common Transportation Mistakes to Avoid

The following mistakes can create unnecessary transportation risks:

12. Naccon 18650 Lithium-Ion Battery Solutions

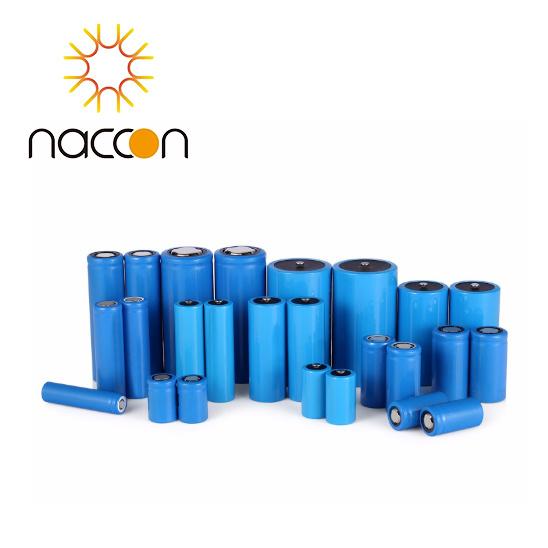

Naccon offers 18650 lithium-ion battery products in a range of capacities. Its published product information includes 3.7 V 18650 cells ranging from approximately 1400mAh to 3500mAh, depending on the product configuration.

Naccon also publishes specifications for individual 18650 models, including 1800mAh, 2600mAh, 3000mAh and other versions.

For exporters and OEM customers, selecting the correct battery specification is only one part of the shipping process. The shipment must also be prepared according to the applicable dangerous-goods requirements.

13. Recommended Pre-Shipment Checklist

Before handing an 18650 lithium-battery shipment to a freight forwarder, use the following checklist:

Battery

☐ Correct model confirmed
☐ Capacity and voltage confirmed
☐ Wh rating calculated
☐ UN 38.3 documentation available where applicable
☐ Batteries inspected for damage
☐ Battery terminals protected
☐ State of charge verified for the selected transport mode

Packaging

☐ Inner packaging is suitable
☐ Cells cannot move excessively
☐ Terminals cannot contact conductive materials
☐ Outer packaging is strong and appropriate
☐ Quantity limits have been checked

Shipping Documents

☐ Correct UN classification
☐ Proper shipping name confirmed
☐ Required lithium-battery marks/labels applied
☐ Required dangerous-goods documentation prepared
☐ Air waybill/shipping information completed
☐ Carrier requirements confirmed

Conclusion

The safe transportation of 18650 lithium batteries requires more than simply placing cells into a carton. Correct classification, UN 38.3 compliance, terminal protection, appropriate packaging, state-of-charge control, labeling, documentation, and carrier coordination all play important roles in reducing transport risks.

For air shipments, particular attention should be paid to the rules for standalone UN 3480 lithium-ion batteries, including the 30% state-of-charge requirement and passenger-aircraft restrictions under the current IATA framework.

Naccon's 18650 lithium-ion battery range provides multiple capacity options for different applications, while professional shipment preparation helps ensure that batteries can move through the supply chain safely and efficiently.

For every shipment, the latest requirements from the relevant authority, carrier, freight forwarder, and destination country should be checked before dispatch. IATA has already announced updates to its 2027 cargo and ground-operation manuals, demonstrating why lithium-battery shipping requirements should be reviewed regularly rather than relying on outdated procedures.
