In low-power electronic design, battery selection directly determines equipment standby life, operational stability, maintenance cycle and overall product cost. Unlike high-current devices that prioritize instantaneous output capability, low-power sensors, motherboard backup systems, RFID tags, slim remote controls and miniature IoT modules require batteries with ultra-low self-discharge, stable long-term voltage and outstanding storage performance. Among all 3V coin cell options, the CR1130 lithium manganese battery has gradually become the first-choice standard power source for low-power equipment. This article analyzes from professional design perspectives why CR1130 outperforms other coin batteries and why it is strongly recommended for all low-power miniature electronic projects.
Most low-power devices operate in a typical working mode: long-term microampere standby + occasional short pulse activation. The CR1130’s internal chemical formula and structural design are precisely optimized for this scenario.
As a professional lithium manganese dioxide primary battery, CR1130 features a flat and stable discharge curve under micro loads (0.1mA–1mA). It maintains a steady 2.9V–3.0V working voltage throughout more than 85% of its service cycle. Compared with alkaline batteries that suffer from continuous voltage drop, CR1130 avoids common low-power device failures such as timing deviation, signal instability and automatic sleep shutdown caused by voltage attenuation.
For static standby circuits that keep running 24/7 with almost zero load, CR1130’s stable chemical state ensures no invalid power consumption, perfectly fitting the long-term unattended working characteristics of low-power equipment.
The biggest pain point of low-power devices is short standby life caused by high battery self-discharge. Many ordinary coin batteries lose power rapidly during idle storage, leading to dead-on-arrival products and frequent after-sales replacements.
CR1130 achieves an ultra-low annual self-discharge rate of ≤1%, far lower than alkaline batteries (5%–8%) and silver oxide batteries (2%–3%). With a maximum shelf life of 10 years at room temperature, it can retain over 80% capacity after decade-long sealed storage.
This advantage brings two core values for low-power equipment: First, finished products can be stored for years without power failure, greatly reducing inventory risk. Second, the actual service life of end devices is extended to 3–8 years, minimizing maintenance and replacement costs, which is irreplaceable for industrial low-power sensors and backup power systems.
Low-power devices are widely deployed in smart homes, vehicle systems, outdoor monitoring and industrial environments, facing uncertain temperature changes. Ordinary batteries are prone to capacity sharp drop or failure in high and low temperatures, while CR1130 provides reliable environmental tolerance.
It works stably in a wide temperature range from -20℃ to 60℃. Whether it is low-temperature outdoor monitoring equipment or high-temperature closed vehicle interior standby devices, CR1130 can maintain consistent capacity output and stable power supply. For low-power devices that require long-term outdoor and vehicle-mounted deployment, this environmental adaptability is a key factor for priority selection.
Although low-power devices are dominated by static standby, most equipment such as remote controls, RFID tags and wireless sensors needs intermittent pulse signal transmission. Many low-grade batteries cannot support instantaneous pulse current, resulting in short transmission distance and insensitive signal response.
CR1130 supports stable millisecond-level pulse output. Its moderate internal resistance ensures no severe voltage sag during instantaneous current release, and the voltage can quickly recover after pulse transmission. It fully meets the low-frequency pulse working demands of low-power wireless devices, balancing long standby performance and signal stability.

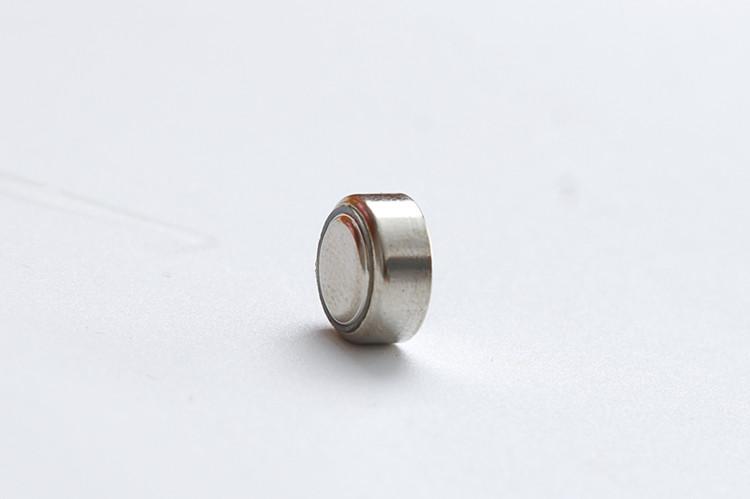

Modern low-power electronic products are developing toward ultra-thin, miniaturized and integrated design. With compact dimensions of 11.0mm × 3.0mm, CR1130 is suitable for narrow internal installation space of slim devices.
In addition to standard bare batteries, CR1130 supports customized welded tab solutions including straight tabs, staggered tabs and L-shaped bent tabs. It can be directly soldered on PCBs to replace traditional battery holders, saving structural space, improving anti-vibration ability and enhancing product consistency. This flexible customization capability makes it the best match for mass-produced low-power IoT modules and consumer electronics.
In low-power device batch selection, comprehensive cost includes battery cost, after-sales maintenance cost and product failure cost. Compared with expensive silver oxide batteries and unstable BR-series batteries, CR1130 achieves a perfect balance of performance and price.
It delivers long life, high stability and low failure rate at a moderate cost, effectively reducing product after-sales problems caused by battery quality. For low-power equipment manufacturers, CR1130 is undoubtedly the most cost-effective and risk-avoiding preferred solution.
Combined with all performance advantages, CR1130 is strongly recommended for the following low-power scenarios:
Industrial control motherboard CMOS backup power and instrument memory standby power
Low-power temperature, humidity and pressure monitoring sensors
Passive and semi-passive RFID tags, wireless tracking modules
Slim car key fobs and low-power wireless remote control devices
Long-standby electronic clocks, timing equipment and smart home micro-modules
The reason why CR1130 is prioritized for low-power devices lies in its scenario-oriented performance optimization. Its ultra-low self-discharge rate, flat long-cycle voltage, wide temperature adaptability, stable pulse response and flexible structural customization perfectly solve the core pain points of short standby life, unstable power supply and high maintenance cost of low-power electronic equipment. For engineers and purchasers engaged in low-power product development, CR1130 is a mature, reliable and cost-effective standard battery selection solution worthy of priority adoption.
