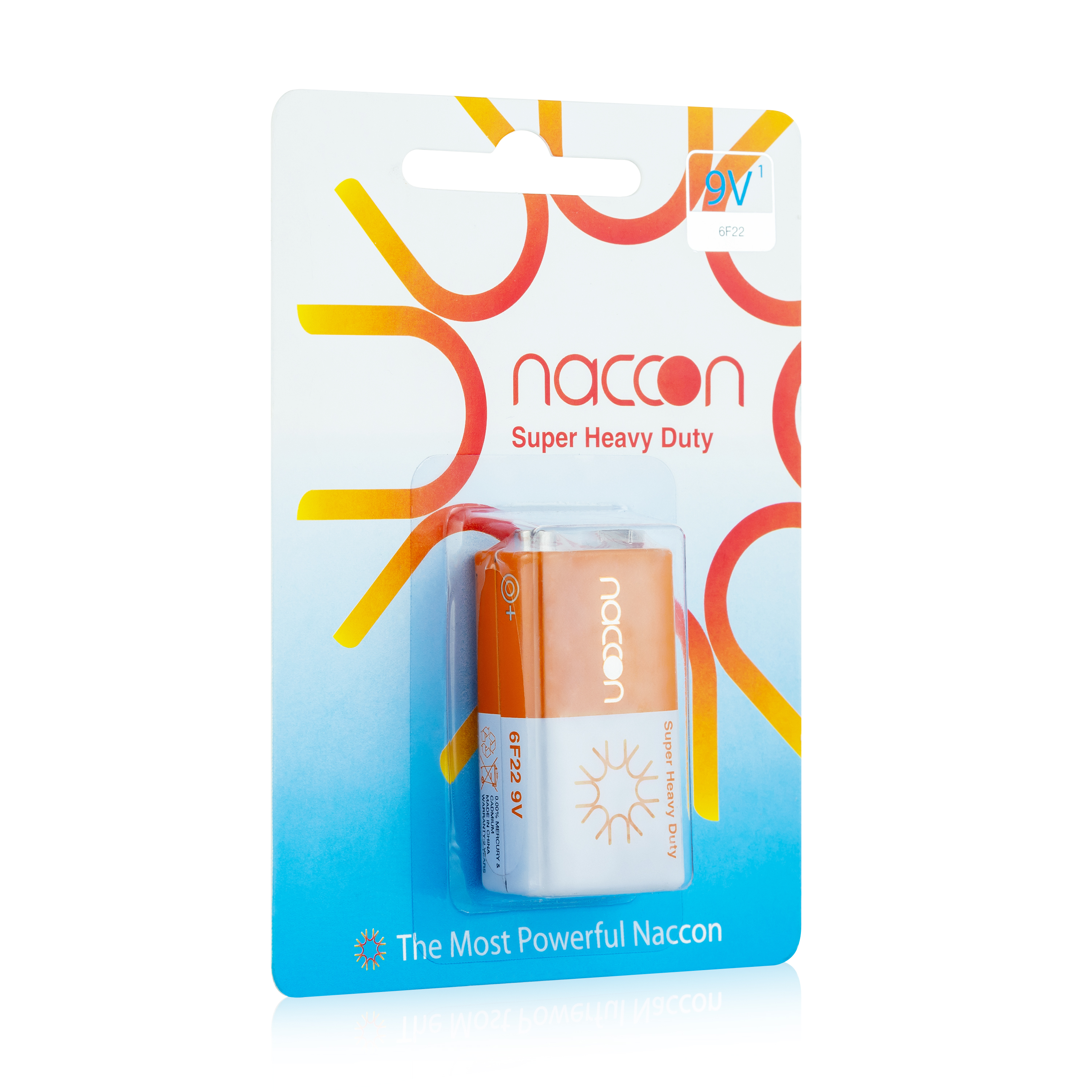

When it comes to square 9V batteries, most people only know they are used in smoke detectors, multimeters, or wireless microphones, but few have a deep understanding of the 6F22 carbon-zinc battery—the most common type of square 9V battery in daily life. As a cost-effective and widely used primary battery, the 6F22 has many interesting and practical little-known facts behind it. From its naming origin and internal structure to the misunderstandings in use and the secrets of long-term storage, this article will reveal these interesting knowledge points for you, letting you know more about this "small but powerful" square 9V battery.
Many people see the code "6F22" on the battery and think it is a random product model, but in fact, every letter and number in it has a specific meaning, which is formulated according to the IEC (International Electrotechnical Commission) battery naming standard. Understanding its meaning can help you quickly identify the battery’s specifications:
"6": Represents the number of internal battery cells. The 6F22 is composed of 6 small cells connected in series, and each cell provides a nominal voltage of 1.5V. 6×1.5V = 9V, which is exactly the nominal voltage of the square 9V battery.
"F": Stands for the shape of the internal cells. The "F" here refers to the flat (flat-type) cell, which is different from the cylindrical cells used in alkaline 9V batteries (such as 6LR61). The 6 flat cells are stacked together, forming the compact square shape of the 6F22.
"22": Indicates the size specification of the internal flat cells. It is a standard size code formulated by the IEC, which ensures that the 6F22 batteries produced by different manufacturers have the same internal structure and overall size, ensuring compatibility with devices.
In addition, the 6F22 also has other equivalent designations in different standards, such as NEDA 1604 in the American standard and S006P in the Japanese JIS standard, but "6F22" is the most widely used international designation.
Unlike the cylindrical 1.5V batteries (such as AA, AAA) that are integrated, the 6F22 carbon-zinc battery is a "combination battery" composed of 6 independent flat cells. This stacked structure is one of its core characteristics, and it also determines its compact square shape.
Each internal flat cell of the 6F22 is a small 1.5V carbon-zinc battery, which is wrapped in a moisture-resistant wrapper to prevent electrolyte drying and leakage. These 6 cells are connected in series through metal conductors, and the voltage is superimposed to form the 9V nominal voltage required by the device. This stacked design not only saves space but also ensures stable current output—even if one cell fails, it will not cause an immediate power failure of the entire battery, reducing the risk of sudden device shutdown.
It is worth noting that the internal structure of the 6F22 is different from that of the alkaline 9V battery (6LR61): the 6LR61 uses 6 small cylindrical cells, while the 6F22 uses flat cells, which is why the 6F22 is lighter (about 37 grams) and more compact in thickness.
A common misunderstanding among many users is that "all square 9V batteries are 6F22", but this is not the case. The 6F22 is only a type of square 9V battery, belonging to the carbon-zinc battery category. There are other types of square 9V batteries on the market, and their performance and uses are quite different from the 6F22:
6LR61 Alkaline Battery: It is also a square 9V battery, but it uses alkaline electrolyte, with a higher capacity (500-600 mAh) than the 6F22 (200-400 mAh) and a longer service life. However, its price is about 3 times that of the 6F22, and it is more suitable for high-power devices.
Lithium 9V Battery: Usually marked as CRV9, it uses lithium electrolyte, with the longest service life and strong resistance to extreme temperatures (-20℃ to 60℃). Its price is 6-8 times that of the 6F22, and it is mainly used in professional equipment and outdoor extreme environments.
Rechargeable 9V Battery: Including nickel-cadmium (Ni-Cd) and nickel-metal hydride (Ni-MH) types, which can be recharged and reused, but their nominal voltage is usually 8.4V, which is slightly lower than the 6F22’s 9V, and they are not suitable for devices with strict voltage requirements.
In addition, some users confuse the 6F22 with the PP3 battery. In fact, the PP3 is a size designation for square 9V batteries, and the 6F22 is the IEC designation for the carbon-zinc type of PP3 batteries. In other words, the 6F22 is a type of PP3 battery, but not all PP3 batteries are 6F22.
Many people think that the 6F22 has a short service life because of its low capacity, but this is only true in high-power devices. In low-power devices that work in standby mode for a long time (such as smoke detectors), the 6F22’s service life is even comparable to that of alkaline batteries, thanks to its low self-discharge rate.
The self-discharge rate of the 6F22 carbon-zinc battery is only 3-5% per year, which means that even if it is stored in a dry and cool environment for one year, it can still retain 95-97% of its capacity. In contrast, the self-discharge rate of alkaline 9V batteries is 8-12% per year, and lithium 9V batteries are lower (about 1-2% per year), but the 6F22’s cost advantage is far ahead.
For example, a smoke detector using a 6F22 battery can work stably for 6-12 months in standby mode, which is completely sufficient for home use. This is also one of the important reasons why many security device manufacturers recommend the 6F22 as the matching battery.
Compared with the old-fashioned mercury-containing batteries, the 6F22 carbon-zinc battery has obvious environmental protection advantages. It complies with RoHS and IEC environmental standards, does not contain mercury, cadmium, lead, or other heavy metals, and will not cause pollution to the environment when disposed of properly.
In terms of safety, the 6F22 has a mature production process. Regular brand 6F22 batteries are equipped with explosion-proof and leak-proof designs. The shell is made of nickel-plated steel, which has good sealing performance, effectively preventing electrolyte leakage and corrosion of device circuits. Even if it is over-discharged, it will not bulge or explode easily, which is safer than some inferior alkaline batteries.
It should be noted that the 6F22 is a non-rechargeable primary battery. Recharging it will cause electrolyte leakage, battery bulging, or even explosion, which is a common safety mistake many users make.
Many users do not know how to store and use the 6F22 correctly, which leads to shortened service life or device damage. Here are two practical little tips to help you make better use of the 6F22:
Storage: The 6F22 should be stored in a dry, cool environment (15℃-25℃), away from direct sunlight and high temperature. Unused batteries should be kept in their original packaging to avoid dampness and short circuits caused by contact with metal objects. Spare batteries should be used in the order of production date to avoid expiration.
Use: Do not mix old and new 6F22 batteries, nor mix them with alkaline or lithium 9V batteries. Uneven discharge will cause over-discharge and leakage. When the device is not used for more than 1 month, remove the battery to prevent electrolyte leakage from corroding the internal circuit of the device. In addition, the 6F22 is suitable for low-power devices; using it in high-power devices (such as professional flashlights) will cause rapid voltage drop and shorten service life significantly.
The 6F22 belongs to the PP (Power Pack) battery family. The PP3 size (the standard size of the 6F22) was first introduced by Eveready in 1956, originally designed for early transistor radios. At that time, transistor radios were popular, and the compact and stable 6F22 became the preferred power source for them.
Over the past decades, with the development of electronic devices, the 6F22 has not been eliminated, but has become more widely used. From early transistor radios to modern smoke detectors, multimeters, and small toys, the 6F22 has been silently providing power support. It is estimated that 6F22 batteries account for about 40% of the square 9V battery market, becoming the most widely used square 9V battery type in daily life.
The 6F22 carbon-zinc battery, as a common square 9V battery, has many little-known secrets behind its simple appearance. Its naming has a standard origin, its internal structure is a "combination" of 6 small cells, it has obvious advantages in low-power standby, and it is safe and environmentally friendly. These little-known facts not only let us understand the 6F22 more comprehensively but also help us use it more correctly and efficiently.
Next time you replace the battery for your smoke detector or multimeter, take a look at the "6F22" mark on it—this small code carries the accumulation of technology and the convenience of life. By mastering these little knowledge points, you can make the 6F22 play a better role, save use costs, and avoid unnecessary troubles caused by improper use.
