The Standard Power for Multimeters & Smoke Alarms: A Complete Guide to 6F22 Carbon Batteries vs 9V Alkaline Batteries

When you open the battery compartment of a handheld multimeter, a home smoke detector, a doorbell sensor, or a portable testing device, you will almost always find a square, block-shaped 9V battery inside. In most budget and conventional low-power devices, this is the 6F22 carbon-zinc battery, one of the most classic and widely used disposable batteries in the electronic industry. Despite its widespread application, many users cannot tell the difference between a 6F22 carbon battery and a common 9V alkaline battery (6LR61). Choosing the wrong battery may lead to poor device performance, shortened service life, or even unnecessary cost waste. This article will give a detailed popular science introduction to the 6F22 carbon battery, covering its working principle, core advantages, applicable scenarios, and the key differences from 9V alkaline batteries

What Is a 6F22 Carbon Battery?

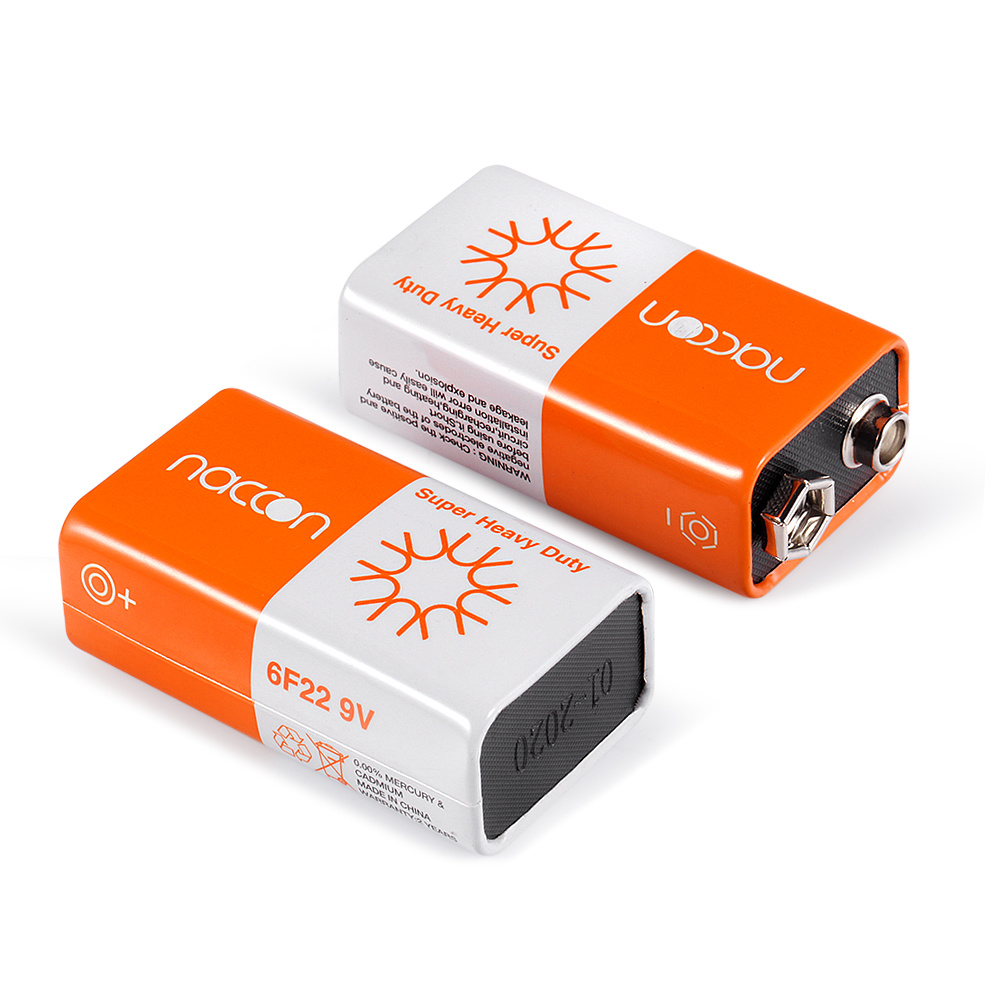

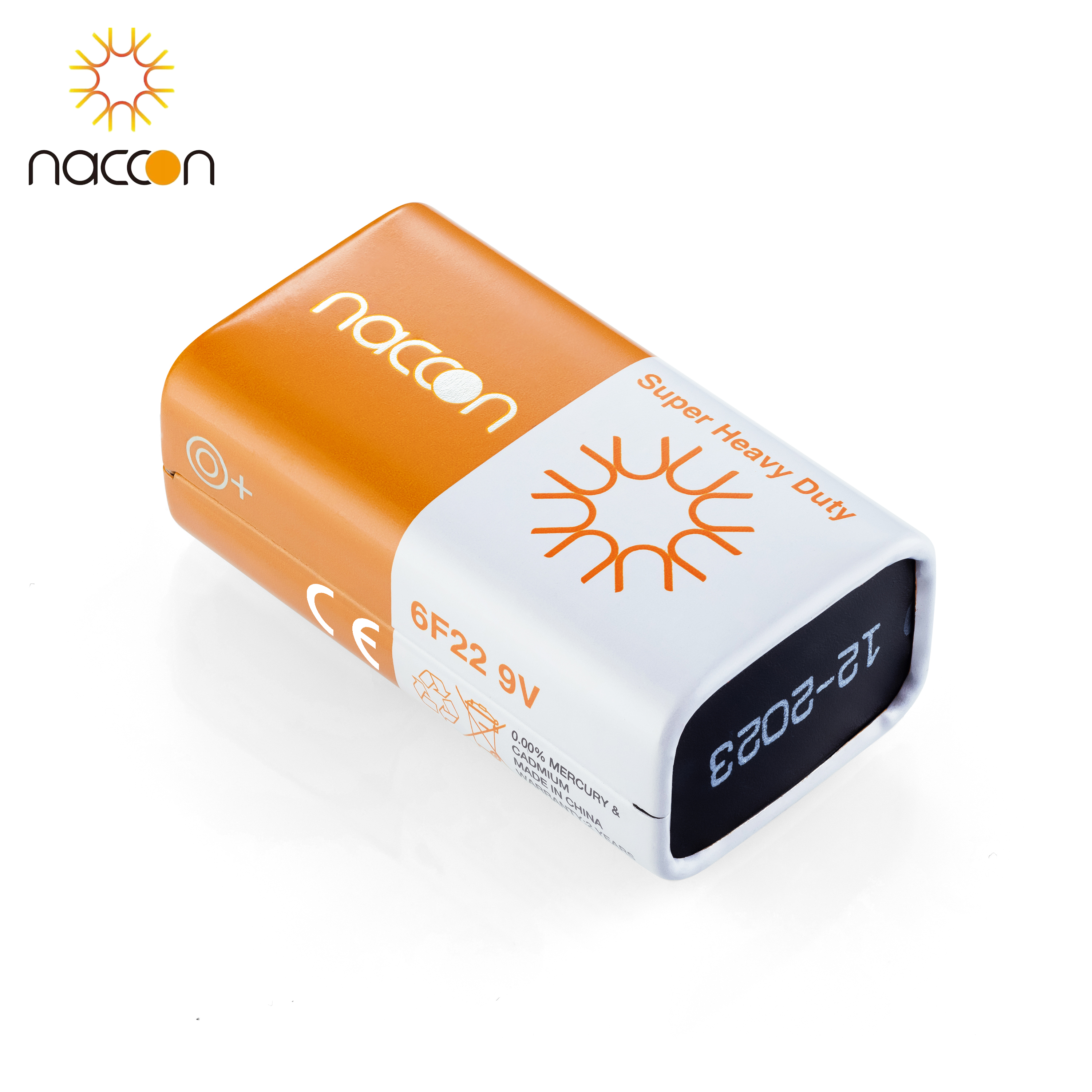

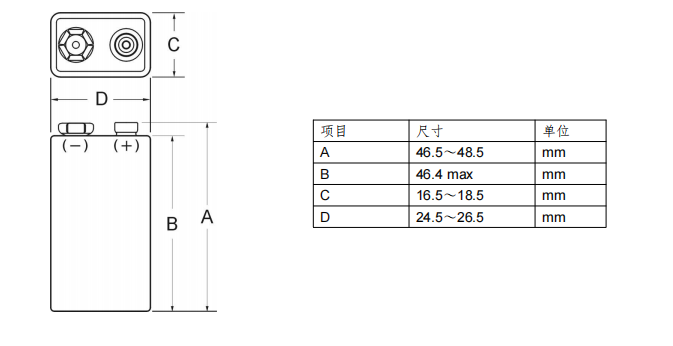

The 6F22 is a stacked 9V carbon-zinc disposable battery, which belongs to the traditional heavy-duty battery series. Its naming rule is easy to understand: “6” represents six independent single battery units stacked inside, “F” stands for flat stacked structure, and “22” refers to its standard size specification. This unique stacked design enables the battery to maintain a compact square shape while outputting a stable 9V voltage, perfectly adapting to the reserved battery slots of various portable electronic devices.

As a carbon-zinc battery, it adopts manganese dioxide as the positive electrode, zinc as the negative electrode, and neutral electrolyte as the conductive medium. Its core feature is stable low-current discharge and excellent cost performance. Different from cylindrical batteries, the stacked structure of 6F22 makes its internal structure more compact, with good pressure resistance and strong adaptability to daily portable use scenarios.

Core Application Scenarios: Why It Is the Standard for Multimeters and Smoke Alarms

The 6F22 carbon battery has become the factory-standard power supply for multimeters, smoke detectors, gas alarms and other household and industrial auxiliary devices, which is not accidental, but matches the operating characteristics of these devices perfectly.

First of all, devices such as digital multimeters do not require continuous high-power output. They only need stable low-current power supply during detection, measurement and standby. The 6F22 battery can maintain a stable voltage output under low-load conditions, which fully meets the accurate measurement requirements of multimeters and will not cause data deviation due to voltage fluctuation.

Secondly,home smoke alarms and gas detectors are in long-term standby state all year round, with extremely low daily power consumption. The outstanding static discharge stability and long shelf life of 6F22 carbon batteries can ensure that the alarm device is always in normal working condition. Moreover, for safety devices with low power consumption and long standby time, the cost advantage of 6F22 is far more prominent than that of alkaline batteries, making it the best choice for household and commercial safety equipment.

In addition, it is also widely used in portable intercoms, infrared thermometers, remote control toys, electronic instruments and other low-power devices, becoming a universal 9V power supply for daily electronic auxiliary equipment.

6F22 Carbon Battery vs 9V Alkaline Battery (6LR61): Key Differences

Most users confuse 6F22 carbon batteries with 6LR61 alkaline batteries, because they have the same 9V voltage and identical appearance and size, which are completely universal in device interfaces. However, there are essential differences in internal materials, performance, service life and applicable scenarios between the two, as detailed below.

1. Internal Materials & Energy Density

The 6F22 carbon battery uses carbon-zinc formula with low energy density. Its total stored power is relatively small, and it is not suitable for high-current instantaneous discharge. In contrast, the 6LR61 alkaline battery adopts alkaline electrolyte and high-efficiency electrode materials, with more than 3 times higher energy density than carbon batteries, and can store more electric energy in the same volume.

2. Discharge Performance & Service Life

Carbon batteries are good at low-current and intermittent discharge. For devices that are standby for a long time and used occasionally, its voltage attenuation is gentle and stable. But it is easy to have rapid voltage drop and power exhaustion when facing high-load and continuous discharge. Alkaline batteries support high-current continuous discharge, with more durable power supply and slower power consumption, and are suitable for frequent and long-time use of equipment.

3. Shelf Life & Stability

The shelf life of standard 6F22 carbon batteries is about 2-3 years, which can meet the daily replacement cycle of household conventional equipment. The shelf life of 9V alkaline batteries can reach 5-10 years, with lower self-discharge rate and better long-term storage performance, suitable for emergency standby equipment that is not replaced for a long time.

4. Cost Performance

The biggest advantage of 6F22 carbon batteries is theirultra-high cost performance. The unit price is far lower than that of alkaline batteries, which is very suitable for low-power devices with low power consumption and frequent replacement. For high-frequency used equipment that requires long-term power supply, alkaline batteries are more cost-effective in the long run due to their longer service life.

How to Choose Correctly? Carbon Battery or Alkaline Battery?

Choose 6F22 carbon batteries if your device meets the following conditions: low daily power consumption, long standby time, intermittent use, such as household smoke alarms, gas detectors, ordinary digital multimeters, doorbell sensors, and low-power remote controls. It can fully meet the use demand and effectively save equipment power supply costs.

Choose 9V alkaline batteries (6LR61) for devices with high frequency of use, long continuous working time and certain high-current demand, such as professional precision multimeters, high-power intercoms, portable detection instruments that work for a long time, and outdoor emergency equipment. It can avoid frequent battery replacement and ensure stable and continuous operation of the equipment.

Daily Use Notes for 6F22 Carbon Batteries

1. Avoid high-load continuous use: Do not use 6F22 carbon batteries for high-power equipment to prevent rapid power loss, battery heating or liquid leakage.

2. Store in a dry and cool environment: High temperature and humid environment will accelerate battery self-discharge and shorten the shelf life.

3. Replace exhausted batteries in time: After the battery power is exhausted, take it out of the equipment in time to avoid long-term placement leading to electrolyte leakage and corrosion of equipment circuits.

4. Do not mix use: Do not mix new and old batteries or carbon and alkaline batteries to avoid voltage mismatch affecting equipment use.

Final Summary

The 6F22 9V carbon battery is a mature, reliable and cost-effective disposable battery, which has become the standard power supply for multimeters, smoke alarms and other low-power standby devices by virtue of its stable low-current performance and high cost performance. Although its energy density and durability are inferior to alkaline batteries, it is irreplaceable in household and commercial low-power auxiliary equipment.

Understanding the difference between 6F22 carbon batteries and 9V alkaline batteries can help us match batteries accurately according to equipment needs, not only ensuring the normal operation of electronic equipment, but also avoiding unnecessary cost waste, achieving scientific and reasonable power supply matching.
