Small in size but mighty in performance, the 6LR61 alkaline battery is a compact square power source that quietly powers countless household, commercial, and industrial devices. This miniature 9V block battery is ubiquitous in daily life, yet most users only see its simple outer shape without fully understanding its internal structure, electrochemical advantages, performance logic, and diverse application value. This in-depth guide unveils the core secrets behind the tiny 6LR61 battery, covering its design principle, performance strengths, technical parameters, and professional usage scenarios.

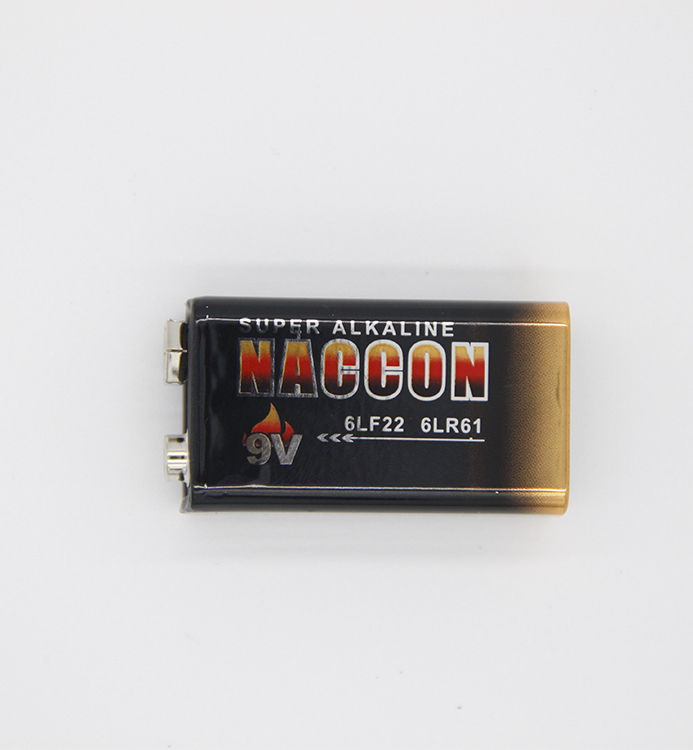

The 6LR61 is a standard IEC-certified non-rechargeable 9V alkaline block battery. Its ingenious structural design integrates six independent 1.5V cylindrical alkaline cells into a unified square plastic shell. Through internal series connection, these compact cells superpose voltage to reach a stable 9V output, achieving a perfect balance of miniaturized size and standard high voltage.
Breaking down its model definition reveals its precise industrial design logic: The number 6 represents six built-in cells; the letter L stands for high-performance alkaline chemistry; R refers to round internal cell structure; and 61 is the universal size specification for standard 9V square batteries. This mature and standardized design makes the 6LR61 a universal power solution worldwide.
The excellent performance of the 6LR61 originates from its reliable alkaline electrochemical system. Different from low-cost carbon-zinc batteries, it adopts high-purity zinc as the negative electrode, high-density manganese dioxide as the positive electrode, and potassium hydroxide as the alkaline electrolyte.
During discharge, a continuous and stable redox reaction occurs inside each cell. The zinc anode releases electrons through oxidation, while the manganese dioxide cathode absorbs electrons to complete reduction. This irreversible chemical loop delivers steady direct current to external equipment. Thanks to the alkaline electrolyte’s high conductivity and low internal resistance, the 6LR61 maintains a flat discharge curve throughout its working cycle, avoiding the rapid voltage drop that plagues ordinary batteries.
The fully sealed anti-leakage structure further stabilizes the internal chemical environment, preventing electrolyte volatilization, external moisture intrusion, and internal pressure imbalance, ensuring long-term stable operation.
As an upgraded high-performance 9V battery, the 6LR61 boasts comprehensive advantages far beyond traditional carbon-zinc alternatives:
Ultra-Stable Voltage Output: It maintains consistent voltage from the start to the end of discharge, ensuring precise operation of precision instruments and zero distortion for audio devices.
High Energy Density & Long Endurance: It features higher capacity utilization rate, delivering 2–4 times longer service life than ordinary 6F22 carbon-zinc batteries under the same working conditions.
Extremely Low Self-Discharge: With an annual self-discharge rate below 3%, it supports 3–5 years of long-term shelf storage, making it ideal for standby devices that require years of uninterrupted readiness.
Strong Environmental Adaptability: It works stably in a wide temperature range of -20℃ to 60℃, adapting to indoor home environments, outdoor open-air scenarios, and complex industrial sites.
High Safety & Anti-Leakage Performance: Optimized sealing technology and corrosion-resistant materials effectively prevent liquid leakage, bulging, and overheating, protecting delicate electronic equipment from damage.
The reliable and consistent performance of the 6LR61 is supported by strict industrial standard parameters:
Nominal Voltage: 9V DC
Typical Capacity: 500–600mAh (standard discharge condition)
Overall Dimension: 48.5mm × 26.5mm × 17.5mm
Shelf Life: 3–5 years (10–25℃ dry storage)
Operating Temperature Range: -20℃ ~ 60℃
Chemical System: Alkaline Manganese Dioxide (Non-rechargeable)
Thanks to its compact size and superior comprehensive performance, the 6LR61 covers household, commercial and industrial fields, becoming a versatile square energy source:
Household Safety Systems: Smoke detectors, carbon monoxide alarms, gas leakage sensors, and home security alarm devices.
Precision Measuring Instruments: Digital multimeters, portable environmental detectors, industrial temperature and humidity sensors.
Audio & Communication Devices: Professional wireless microphones, portable radios, walkie-talkies, and audio accessories.
Smart & Portable Electronics: Electronic musical instruments, intelligent remote controls, security sensors, and high-end portable toys.
To fully retain the performance of this compact energy source, standardized usage is essential:
The 6LR61 is a primary disposable battery; recharging is strictly prohibited to avoid chemical imbalance, leakage or safety accidents.
Avoid short-circuiting positive and negative terminals, and prevent contact with metal conductors.
Do not mix new and old batteries or different battery types to prevent unbalanced discharge and leakage risks.
Store spare batteries in cool, dry and ventilated environments, avoiding high temperature, humidity and direct sunlight.
Remove batteries from long-idle equipment to prevent aging corrosion.
The 6LR61 alkaline battery is far more than a simple 9V block battery. It is a highly integrated, high-stability, long-life compact energy solution. With exquisite internal series structure, mature alkaline chemical technology, and excellent environmental adaptability, this tiny square power source supports the stable operation of countless precision and safety devices. A full understanding of its working mechanism and performance advantages allows users to make scientific selection, standardize usage, and maximize the service value of every 6LR61 battery in daily life and industrial scenarios.
