Understanding LR14 (C-Size / No. 2 Battery): A Reliable Power Source for Medium-Power Devices

In the world of disposable primary batteries, size and performance determine device compatibility and user experience. Among the common battery specifications ranging from tiny button cells to large industrial batteries, the LR14 battery — also widely known as the C-size or No. 2 battery — occupies a unique niche. It perfectly bridges the gap between compact AA (LR6) batteries and high-capacity D (LR20) batteries, serving as a stable, cost-effective, and long-lasting power solution for countless medium-power household, commercial, and industrial devices. This article comprehensively unpacks the core knowledge, performance characteristics, application scenarios, and usage tips of the LR14 alkaline battery.

Basic Definition & Core Specifications of LR14 Battery

The LR14 is a standard 1.5V alkaline primary battery defined by the International Electrotechnical Commission (IEC). The naming rule of “LR14” follows the universal battery coding system: the letter “L” stands for alkaline chemistry, while “R” indicates a round cylindrical shape, and the number “14” represents the exclusive size specification of C-type batteries.

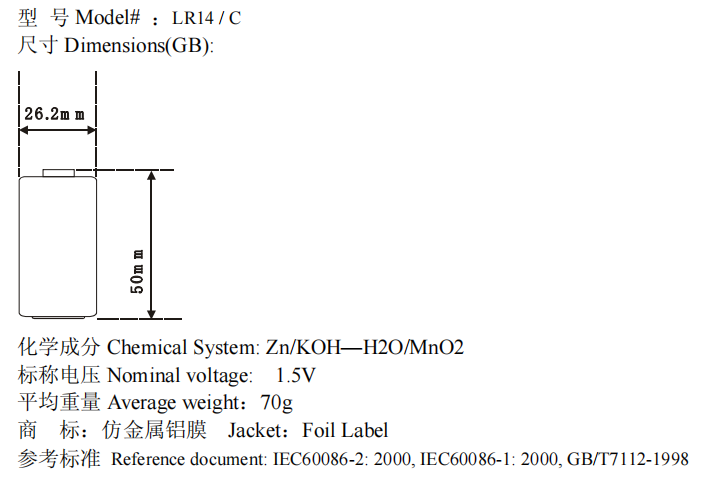

In physical dimensions, a standard LR14 battery measures 25.5 mm in diameter and 50.0 mm in height. Its size is noticeably larger than the AA battery (14.5 mm × 50.5 mm) and smaller than the D battery (34.2 mm × 61.5 mm). This moderate size endows it with a larger internal capacity and more stable discharge performance than AA batteries, without the bulky volume and high cost of D batteries, making it highly adaptable for medium-energy-consumption equipment.

In terms of electrical parameters, the LR14 battery maintains a nominal voltage of 1.5V. Its typical capacity ranges from 4000mAh to 6000mAh, varying by brand and production process. Compared with carbon-zinc R14 batteries of the same size, alkaline LR14 batteries feature higher energy density, lower internal resistance, and more durable continuous discharge capability.

LR14 vs R14: Key Differences Between Alkaline and Carbon-Zinc Batteries

Many users confuse LR14 with R14 due to their identical C-size appearance, but their internal materials, performance, and service life differ drastically, leading to distinct application scenarios.

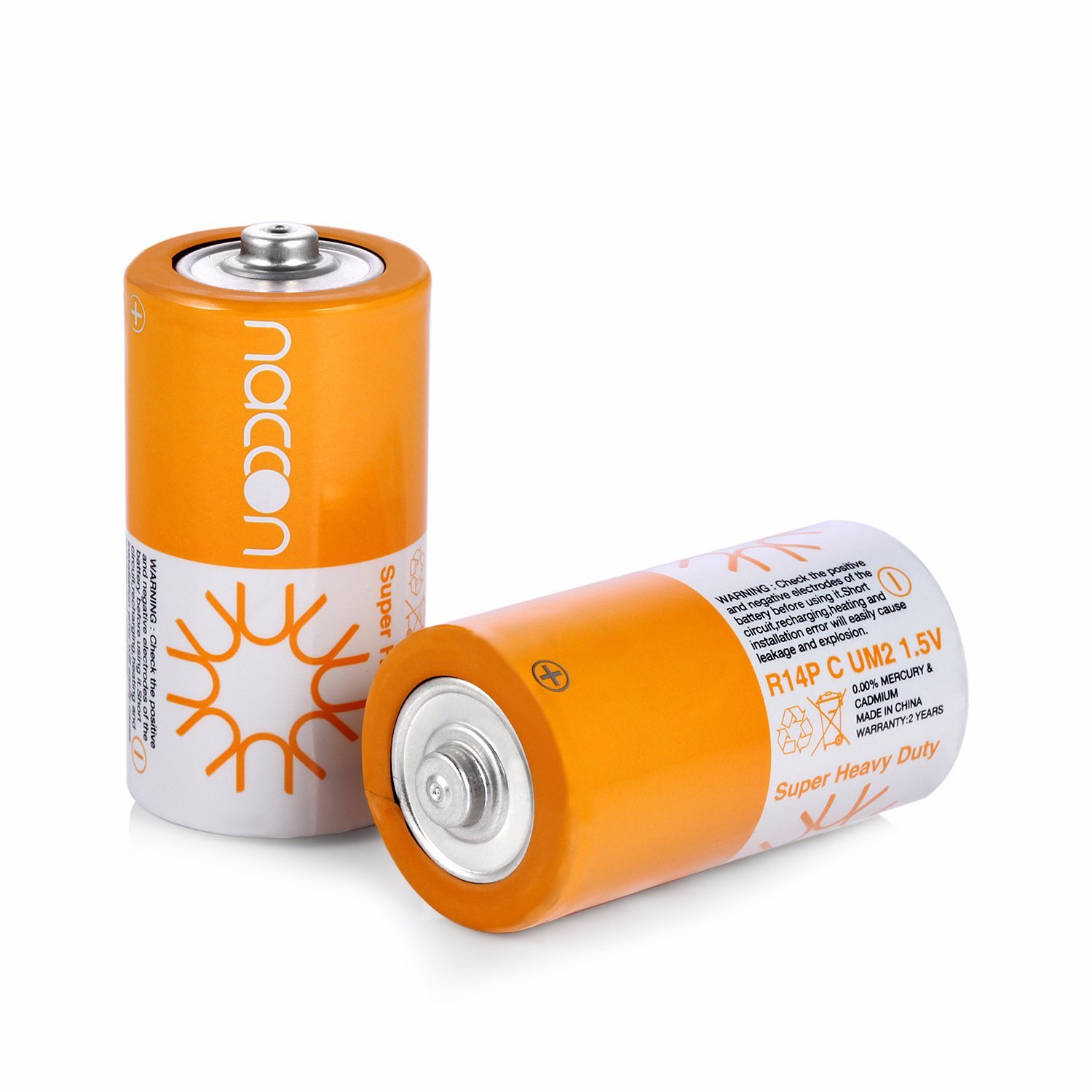

The R14 battery is a traditional carbon-zinc battery with low energy density, unstable discharge voltage, and poor durability under continuous load. It is only suitable for low-power, intermittent-use devices such as simple remote controls and low-current alarm clocks, and it is prone to voltage drop after short-term use.

In contrast, the LR14 alkaline battery adopts manganese dioxide and zinc alkaline electrolyte materials. It delivers 3 to 5 times longer service life than ordinary R14 carbon batteries, maintains a steady 1.5V output during the entire discharge cycle, and performs excellently under medium and continuous current loads. Additionally, LR14 batteries have a much lower self-discharge rate, retaining most of their power after long-term storage, which greatly outperforms R14 batteries in practicability and reliability.

Core Application Scenarios: Ideal for Medium-Power Devices

The biggest advantage of the LR14 battery is its targeted adaptation to medium-power devices — equipment that cannot be sufficiently powered by small AA batteries but do not require the ultra-high capacity of D batteries. Its typical application scenarios cover daily household, outdoor, and commercial equipment:

Household Electronic Devices: Classic applications include portable flashlights, desktop radios, CD players, electric toy cars, and electronic musical instruments. These devices require stable medium current output for continuous operation, and LR14 batteries can maintain long-term stable power supply without frequent replacement.

Smart & Safety Equipment: Many household gas detectors, smoke alarms, emergency exit lights, and intelligent door locks adopt LR14 batteries. Thanks to their low self-discharge and high stability, they can support long-term standby and emergency startup of safety equipment, ensuring reliable operation in critical moments.

Commercial & Portable Industrial Tools: Small portable testing instruments, handheld communication devices, and medical portable auxiliary equipment also widely use LR14 batteries. Their moderate size and stable discharge performance meet the power demand of medium-load commercial equipment, balancing portability and battery life perfectly.

Outstanding Advantages of LR14 C-Size Batteries

1. Balanced Power and Portability

LR14 batteries fill the performance gap between AA and D batteries. They provide higher capacity and more stable power output than AA batteries to support medium-power operation, while being more lightweight and space-saving than bulky D batteries, making them easy to carry and install in various portable devices.

2. Ultra-Low Self-Discharge & Long Shelf Life

High-quality LR14 alkaline batteries feature advanced anti-leakage and self-discharge control technology, with a shelf life of up to 5–10 years. They can be stored for a long time in a dry environment without frequent power loss, making them ideal for emergency backup power and long-standby equipment.

3. High Stability & Anti-Leakage Performance

With optimized internal structural design and pure electrolyte materials, LR14 batteries effectively avoid voltage jitter and power attenuation during high-load operation. The sealed anti-leakage shell prevents liquid leakage even after long-term use, protecting electronic equipment from corrosion and damage.

4. High Cost-Performance

Compared with rechargeable lithium batteries, LR14 disposable alkaline batteries require no charging equipment or maintenance costs. They are ready to use after installation, with low unit cost and wide compatibility, making them the most cost-effective power choice for medium-power non-fixed equipment.

Scientific Usage & Maintenance Tips

To extend the service life of LR14 batteries and ensure equipment safety, users need to follow standardized usage specifications. First, do not mix new and old batteries or batteries of different chemistries (alkaline and carbon-zinc) in the same device, as inconsistent discharge efficiency will cause power waste and even equipment damage. Second, remove the batteries if the device is not in use for a long time to avoid leakage caused by long-term static discharge.

In addition, LR14 batteries should be stored in a dry, cool, and ventilated environment, avoiding high temperature, humidity, and direct sunlight, which will accelerate self-discharge and aging. It is also forbidden to disassemble, squeeze, or burn waste batteries to prevent safety hazards such as explosion and electrolyte overflow. For waste batteries, please classify and recycle them in accordance with local environmental protection regulations.

Final Summary

As a classic C-size (No. 2) alkaline battery, the LR14 battery is irreplaceable in the field of medium-power portable equipment by virtue of its moderate size, stable voltage output, long service life, and high cost-performance. It makes up for the insufficient power of small batteries and the redundant volume of large batteries, covering the power demand of most household, safety, and commercial medium-load devices. For users who pursue stable power supply and low maintenance costs, LR14 is undoubtedly a reliable and practical universal power solution.
