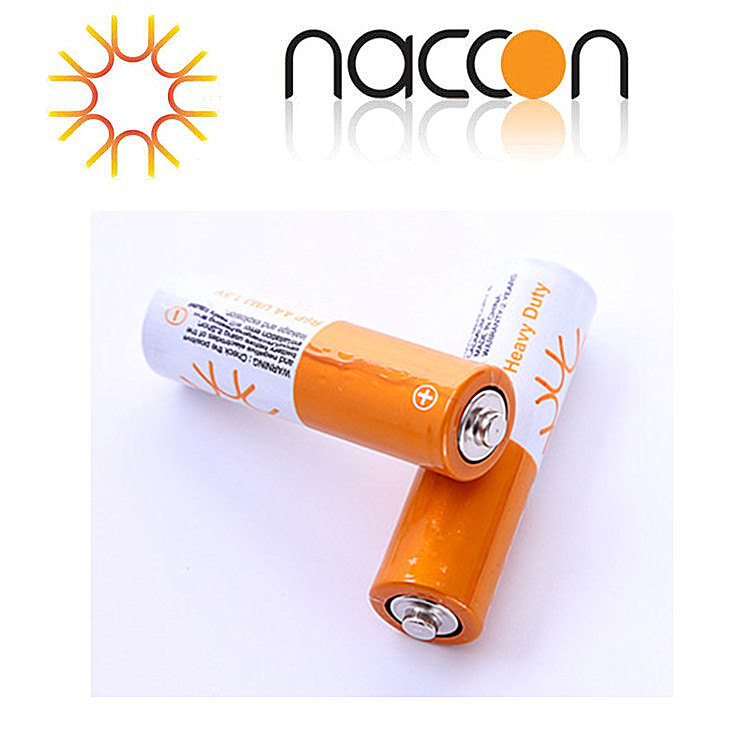

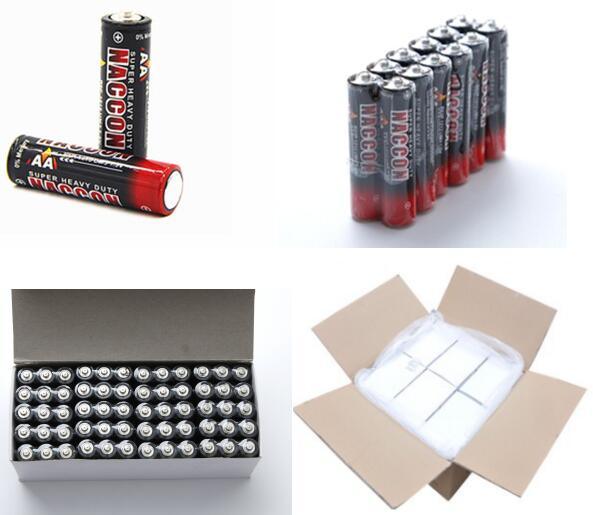

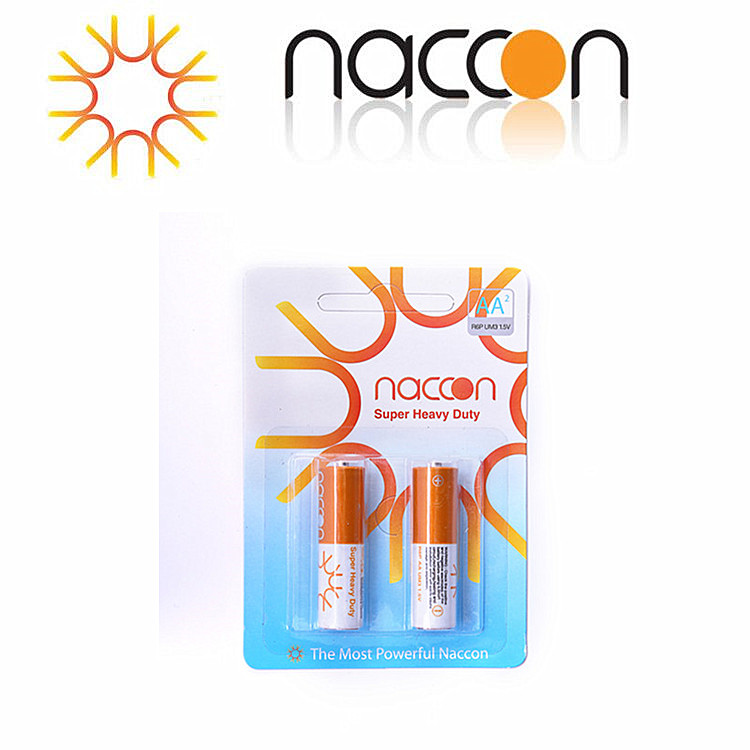

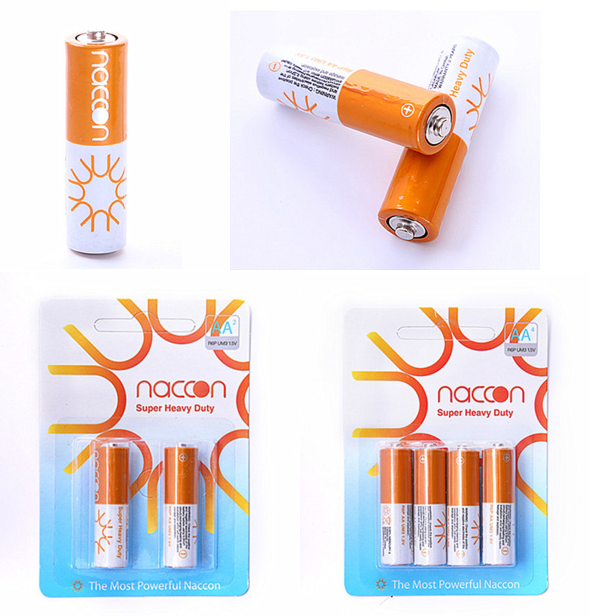

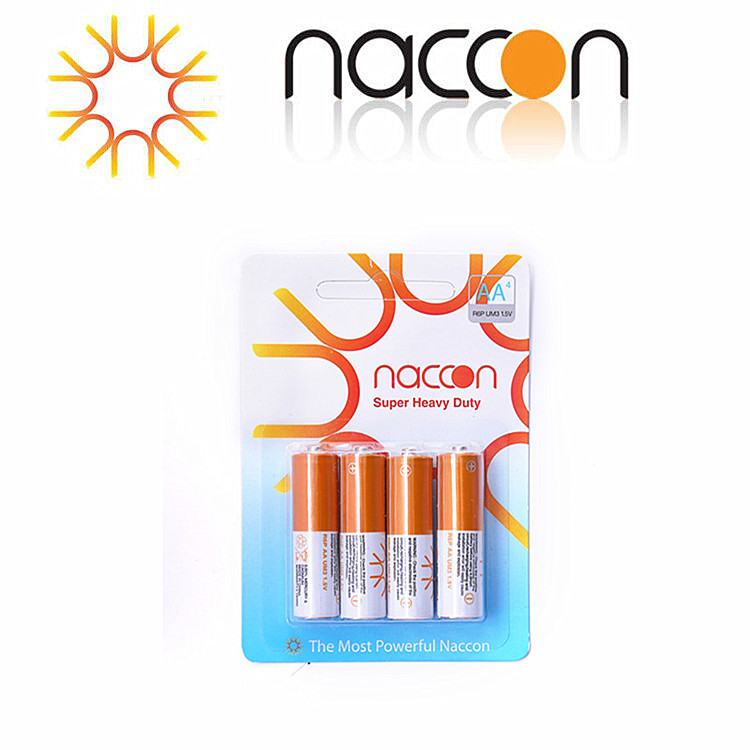

Understanding R6P Battery: The Popular AA Zinc-Carbon Primary Cell

If you have ever replaced batteries for TV remote controls, wall clocks or simple flashlights, you have most likely used an R6P battery. Widely known as AA size zinc-carbon dry cell (also marked UM-3), the R6P is one of the oldest and most cost-effective primary batteries applied globally in daily electronics. This article breaks down its definition, internal principle, core specifications, pros and cons, suitable scenarios and key usage tips.

What Is an R6P Battery?

R6P follows the IEC international primary battery coding standard.

R6: Stands for cylindrical AA physical size (diameter ~14 mm, height ~50 mm).

P: Represents heavy-duty zinc-carbon chemistry.

It is a non-rechargeable primary battery with a nominal voltage of 1.5 V. Many users confuse R6P with LR6 alkaline AA batteries. They share identical outer dimensions and can physically fit the same device slots, yet they adopt completely different electrochemical formulas and performance characteristics.

R6P is also named UM-3 under Japanese standards and commonly called “carbon battery” on consumer packaging. Its core reaction relies on zinc (negative electrode) and manganese dioxide (positive electrode), with ammonium chloride paste as the electrolyte.

Basic Structure & Working Principle

An R6P cylindrical cell consists of four main components:

Zinc can (negative electrode): The outer metal cylinder that consumes electrons during discharge and serves as the battery container.

Manganese dioxide positive mix: Centered inside the cell, mixed with graphite powder to boost conductivity. A carbon rod acts as the positive current collector.

Pasty ammonium chloride electrolyte: Conducts ions between electrodes without free liquid flow.

Insulating separator & sealed outer jacket: Prevent short circuits and slow electrolyte leakage.

During operation, chemical energy converts directly into electrical energy. Once active materials are fully consumed, the battery cannot be recharged; attempting to charge an R6P may cause swelling, leakage or safety hazards.

Key Technical Specifications

Model: R6P (AA / UM-3)

Chemistry: Zinc-carbon (carbon-zinc)

Nominal voltage: 1.5 V

Dimension: Φ14.0 mm × 50.0 mm

Typical weight: 18–22 g

Usable capacity: 800–1200 mAh (varies under different discharge loads)

Usable temperature range: -10 ℃ ~ +40 ℃

Typical shelf life: 2–3 years under normal room-temperature storage

Modern formulation: Mercury-free & cadmium-free, compliant with mainstream global environmental regulations

Advantages of R6P Batteries

Ultra-low cost: Simple raw materials and mature production processes make R6P the most economical AA power source. It is ideal for bulk usage and promotional electronic gifts.

Stable low-current performance: Delivers steady voltage for devices requiring intermittent, light power draw.

Universal compatibility: Same form factor and nominal voltage as LR6 alkaline AA batteries.

Mild chemical reaction: Low risk of thermal runaway or explosion under normal operating conditions.

Limitations to Notice

Poor high-drain capability: When used on high-current devices such as motorized toys, electric shavers and digital cameras, voltage drops quickly, and runtime is much shorter than alkaline LR6 batteries.

Lower total capacity: Its capacity is roughly one-third to half of standard alkaline AA cells.

Risk of long-term leakage: After deep discharge or years of storage, the zinc casing gradually corrodes, which may lead to electrolyte leakage and damage electronic contacts.

Typical Application Scenarios

R6P is designed for low-drain, intermittent-use equipment:

TV, air conditioner & fan remote controllers

Analog wall clocks and alarm clocks

Simple calculators, transistor radios

Low-power LED torches

Small decorative toys, gift electronics

Wireless computer mice with low power consumption

Not recommended: High-load continuous working devices including digital cameras, powerful motor toys and portable audio players. For these products, LR6 alkaline batteries are a better match.

R6P vs LR6 Quick Comparison

Safe Usage Guidance

Never recharge: R6P is strictly disposable. Recharging will trigger internal pressure build-up.

Do not mix old and new batteries, or mix R6P with alkaline batteries inside one device. Uneven discharge may accelerate leakage.

Remove batteries if equipment will stay unused for more than several months.

Store batteries in cool, dry places; avoid direct sunlight and high-temperature environments.

Dispose of exhausted cells following local waste battery recycling rules.

Closing Words

For decades, the R6P AA zinc-carbon battery has maintained irreplaceable market status thanks to its affordable price and reliable basic performance. Choosing the right battery type depends on your device’s power demand: pick R6P for low-power household gadgets to save cost, and switch to alkaline LR6 when longer runtime and stronger high-current output are required. Understanding the difference helps users avoid unexpected power shortage and extend the service life of small electronic devices.
