AA batteries are among the most widely used battery formats in everyday electronic devices. Among rechargeable AA batteries, Ni-MH (Nickel-Metal Hydride) batteries are especially popular because they offer a good balance of capacity, rechargeability, safety, and cost.
But what exactly is an AA Ni-MH battery? What are its typical specifications and capacities? How does it differ from an alkaline AA battery? And when should several AA Ni-MH cells be assembled into a battery pack?
This article provides a comprehensive introduction to AA Ni-MH batteries, including their structure, voltage, capacity, charging characteristics, battery packs, and common applications.
An AA Ni-MH battery is a rechargeable nickel-metal hydride battery manufactured in the standard AA cylindrical format.
The term "AA" mainly describes the battery's physical size and form factor, while "Ni-MH" describes its rechargeable electrochemical chemistry.
A typical AA Ni-MH battery has a nominal voltage of approximately 1.2V, which is lower than the approximately 1.5V nominal voltage of a conventional alkaline AA battery.
However, the lower nominal voltage does not mean that an AA Ni-MH battery is unsuitable for everyday electronics. Many devices are specifically designed to operate with either rechargeable Ni-MH batteries or conventional alkaline batteries.
A typical AA Ni-MH battery consists of:
Positive electrode
Negative electrode
Separator
Electrolyte
Metal can
Positive and negative terminals
Safety and sealing components
The negative electrode uses a hydrogen-absorbing metal alloy, while the positive electrode is based on nickel chemistry. During charging and discharging, electrochemical reactions allow the battery to store and release electrical energy.
One of the most common questions about Ni-MH batteries is why their voltage is 1.2V instead of 1.5V.
The nominal voltage of a Ni-MH cell is approximately 1.2V. When fully charged, its open-circuit voltage can initially be higher than the nominal value and then gradually decrease during discharge.
For comparison:
Battery Type | Typical Nominal Voltage | Rechargeable |
|---|---|---|
AA Alkaline | 1.5V | No |
AA Carbon-Zinc | 1.5V | No |
AA Ni-MH | 1.2V | Yes |
AA Lithium-ion | Usually not a direct 1.5V equivalent | Yes |
The important point is that nominal voltage is not the same as the battery's voltage at every moment of operation.
For many devices, an AA Ni-MH battery can be used as a rechargeable replacement for disposable AA batteries.
The exact specifications of an AA Ni-MH battery vary depending on the manufacturer, cell design, materials, and intended application.
Typical specifications may include:
Specification | Typical Range |
Battery chemistry | Ni-MH |
Standard size | AA |
Nominal voltage | 1.2V |
Capacity | Approximately 1,800–2,800mAh |
Rechargeable | Yes |
Cell shape | Cylindrical |
Diameter | Around 14 mm |
Length | Around 50 mm |
Operating temperature | Depends on cell design |
Cycle life | Depends strongly on charging/discharging conditions |

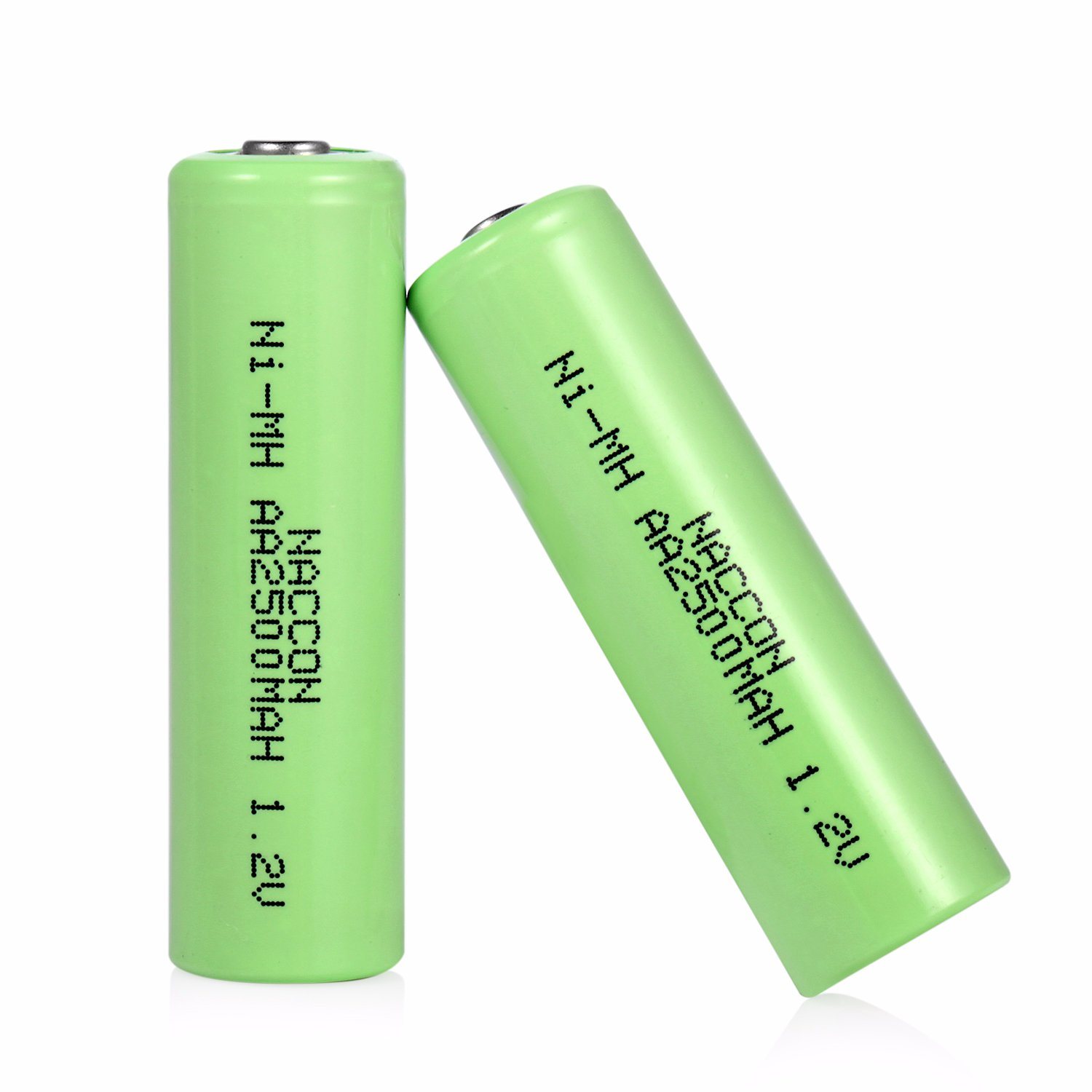

Some high-capacity AA Ni-MH batteries can offer capacities around 2,500mAh or higher, while cells designed for long cycle life may use a lower capacity to improve durability.
Therefore, the highest capacity is not always the best choice.
Battery capacity is normally expressed in mAh, or milliampere-hours.
For example, an AA Ni-MH battery rated at 2,000mAh theoretically has the ability to deliver a certain amount of electrical charge over time under specified testing conditions.
A simplified example is:
2,000mAh at 100mA ≈ 20 hours under idealized conditions
2,000mAh at 500mA ≈ 4 hours under idealized conditions
However, actual operating time will usually be different.
Real-world battery performance is affected by:
Discharge current
Device power consumption
Cut-off voltage
Temperature
Battery age
Charging method
Internal resistance
Battery condition
Discharge rate
Therefore, a 2,500mAh battery should not automatically be expected to operate 25% longer than a 2,000mAh battery in every application.
AA Ni-MH batteries are available in different capacity grades.
Common capacity ranges include:
These batteries may be suitable for applications where moderate capacity and relatively long cycle life are important.
Typical applications include:
Remote controls
Wireless accessories
Electronic toys
Low-power equipment
Household devices
This is a common capacity range for general-purpose rechargeable AA batteries.
They provide a good balance between capacity, size, cost, and cycle life.
High-capacity AA Ni-MH batteries can be used when longer operating time is more important.
Typical applications include:
Digital cameras
Flash units
High-power portable equipment
Professional electronic devices
High-drain consumer electronics
However, high-capacity cells may require more careful charging and thermal management depending on the specific cell design.
The biggest difference is that an AA Ni-MH battery is rechargeable, while a conventional alkaline AA battery is generally designed for single use.
Feature | AA Ni-MH | AA Alkaline |
Rechargeable | Yes | No |
Nominal voltage | About 1.2V | About 1.5V |
Typical capacity | About 1,800–2,800mAh | Depends on discharge conditions |
Repeated use | Yes | No |
Initial purchase cost | Higher | Lower |
Long-term use | Can be economical | Requires replacement |
High-drain applications | Generally suitable | Performance varies |
Charging required | Yes | No |
For users who frequently consume AA batteries, rechargeable Ni-MH batteries can significantly reduce the number of disposable batteries used over time.
AA Ni-MH batteries remain popular because of several advantages.
The most obvious advantage is that they can be recharged and reused multiple times.
Depending on the battery design and operating conditions, a Ni-MH battery can provide many charge-discharge cycles.
Ni-MH batteries offer a useful combination of capacity and compact size, making them suitable for portable electronics.
Ni-MH batteries can perform well in applications that require relatively high current, such as cameras, flashlights, toys, and certain power tools.
Because AA is a widely standardized size, Ni-MH cells can be used in a broad range of products.
Individual AA Ni-MH cells can be connected in series or parallel to create customized battery packs with higher voltage or capacity.
An AA Ni-MH battery pack is an assembly consisting of multiple AA Ni-MH cells connected together to achieve the required voltage, capacity, shape, or electrical performance.
A battery pack may contain:
Multiple Ni-MH cells
Connecting wires
Nickel strips or other interconnections
Connector
Insulation materials
Protective housing or shrink wrap
Thermistor or temperature sensor when required
Custom terminals
The cells can be connected in different configurations depending on the application's requirements.
Two basic concepts are important: series connection and parallel connection.
When cells are connected in series, their voltages add together while the nominal capacity remains approximately the same.
For example:
2 × 1.2V AA Ni-MH cells = approximately 2.4V
3 × 1.2V AA Ni-MH cells = approximately 3.6V
4 × 1.2V AA Ni-MH cells = approximately 4.8V
Therefore, a 4-cell AA Ni-MH battery pack is commonly described as a 4.8V Ni-MH battery pack.
When cells are connected in parallel, the voltage remains approximately the same while the capacity increases.
For example:
2 × 1.2V 2,000mAh cells in parallel ≈ 1.2V 4,000mAh
A practical battery pack can also combine series and parallel configurations.
For example, a 2S2P configuration uses four cells:
Two cells connected in parallel form one group
Two such groups are connected in series
Nominal voltage ≈ 2.4V
Capacity ≈ 4,000mAh when using 2,000mAh cells
The actual pack specification should always be confirmed based on the exact cell model and connection method.
A single AA cell may not provide enough voltage or capacity for certain devices.
A battery pack allows manufacturers to customize the power source according to the equipment's requirements.
For example:
A 2-cell pack can provide approximately 2.4V
A 3-cell pack can provide approximately 3.6V
A 4-cell pack can provide approximately 4.8V
A 6-cell pack can provide approximately 7.2V
Battery packs can also be customized with different connectors, wire lengths, shapes, dimensions, and insulation methods.
This makes AA Ni-MH battery packs useful for equipment with limited internal space or special electrical requirements.
AA Ni-MH batteries are used in a wide range of consumer, commercial, and industrial products.
Digital cameras can require relatively high current, particularly when using a flash.
Ni-MH AA batteries can therefore be a practical rechargeable power source for compatible camera equipment.
Rechargeable AA batteries are widely used in toys such as:
Remote-controlled toys
Electronic games
Educational toys
Motorized toys
Interactive devices
Many portable flashlights are compatible with AA-size batteries.
Ni-MH cells can provide a rechargeable alternative for users who frequently operate flashlights.
Some wireless keyboards, mice, controllers, and other accessories use AA batteries.
Rechargeable Ni-MH cells can help reduce the frequency of disposable battery replacement.
Certain professional devices may use Ni-MH battery packs because of their reliability, rechargeable characteristics, and flexible pack configurations.
The exact battery specification must always match the equipment manufacturer's requirements.
Ni-MH battery packs can also be used in certain backup systems, portable equipment, and emergency devices.
Charging is an important factor in Ni-MH battery performance and service life.
Ni-MH batteries should be charged using a charger designed for Ni-MH chemistry.
Charging methods can include:
Standard charging
Fast charging
Smart charging
Temperature-controlled charging
Individual-cell charging
A proper charger monitors charging conditions and helps prevent excessive charging stress.
Fast charging can reduce charging time, but it may also generate more heat. Therefore, the charger, battery cell, charging current, temperature, and charging control method all need to be properly matched.
The cycle life of a Ni-MH battery is influenced by many factors.
Overcharging, excessive charging current, or improper charging control can negatively affect battery life.
Repeatedly discharging a battery under demanding conditions can increase stress on the cell.
Very high or very low temperatures can affect battery performance and charging behavior.
Long-term storage under inappropriate conditions can reduce available capacity or increase internal resistance.
The materials, manufacturing process, separator design, electrode structure, and quality control of the cell can significantly affect its performance.
A battery used at a high discharge current may have different performance characteristics from one used in a low-current application.
If AA Ni-MH batteries are not going to be used for an extended period, they should be stored under suitable conditions.
General recommendations include:
Keep batteries in a dry environment.
Avoid excessive heat.
Avoid direct sunlight.
Prevent short circuits.
Keep batteries away from conductive metal objects.
Follow the manufacturer's recommended storage state of charge.
Recharge according to the manufacturer's instructions before use if necessary.
For battery packs, additional attention should be paid to connectors, insulation, wiring, and physical protection.
For commercial applications, standard AA cells may not always meet the complete requirements of a product.
An OEM battery supplier can customize a battery pack based on:
Required voltage
Required capacity
Maximum dimensions
Discharge current
Connector type
Cable length
Pack shape
Operating temperature
Charging method
Installation method
For example, a product may require a 4.8V 2,000mAh Ni-MH battery pack consisting of four 1.2V AA cells connected in series.
Another application may require a compact 2.4V pack with a custom connector and specific cable length.
The battery pack can then be designed around the available space and electrical requirements of the final product.
When designing an AA Ni-MH battery pack, simply selecting the correct voltage is not enough.
Several parameters should be evaluated.
The number of cells connected in series determines the nominal pack voltage.
The capacity needs to match the expected operating time.
The battery must be capable of supplying the required continuous and peak current.
The complete pack must fit inside the customer's device.
The connector must match the equipment's interface.
Wire gauge, length, flexibility, and insulation should be selected according to the application.
For some applications, a temperature sensor may be integrated into the pack to monitor charging or operating conditions.
The cells should be properly secured and insulated to reduce the risk of damage caused by vibration, impact, or short circuits.
AA Ni-MH and lithium-based batteries are not interchangeable in every application.
Ni-MH has a nominal voltage of approximately 1.2V per cell, while common lithium-ion cells such as 18650 cells have a nominal voltage around 3.6–3.7V.
Therefore, the two chemistries have very different electrical characteristics.
Ni-MH can be particularly attractive when:
The equipment is designed for AA batteries.
A rechargeable AA format is required.
The application needs relatively high discharge capability.
The user wants a reusable alternative to disposable AA batteries.
Lithium batteries may be preferable when:
Higher energy density is required.
Weight reduction is important.
The product is designed specifically around lithium chemistry.
A higher operating voltage is required.
The battery chemistry should always be selected based on the actual electrical and mechanical requirements of the device.
When selecting an AA Ni-MH battery, consider the following questions:
1. What voltage does the device require?
Check the equipment specifications before selecting the battery.
2. What capacity is required?
A higher capacity generally provides longer operating time, but may not always be the best choice.
3. What discharge current is required?
High-drain applications may require a cell specifically designed for higher current output.
4. How often will the battery be recharged?
Frequent cycling may make cycle life particularly important.
5. What are the physical dimensions?
Although AA is standardized, the complete battery pack may require additional space for wires, connectors, insulation, and housing.
6. Is a custom battery pack required?
If the device needs a specific voltage, capacity, connector, or shape, a customized Ni-MH battery pack may be a better solution than individual cells.
Yes. Ni-MH AA batteries are rechargeable and are designed to be used repeatedly with a suitable Ni-MH charger.
The nominal voltage of a standard Ni-MH AA cell is approximately 1.2V. This differs from the approximately 1.5V nominal voltage of an alkaline AA battery.
Typical capacities are approximately 1,800mAh to 2,800mAh, although the exact range depends on the cell design and manufacturer.
Yes. Multiple Ni-MH cells can be connected in series to increase the pack voltage.
Yes. AA Ni-MH cells are commonly assembled into customized battery packs with different voltage, capacity, connectors, wire lengths, and physical configurations.
Not necessarily. Capacity is only one performance parameter. Cycle life, internal resistance, discharge capability, charging characteristics, operating temperature, and application requirements should also be considered.

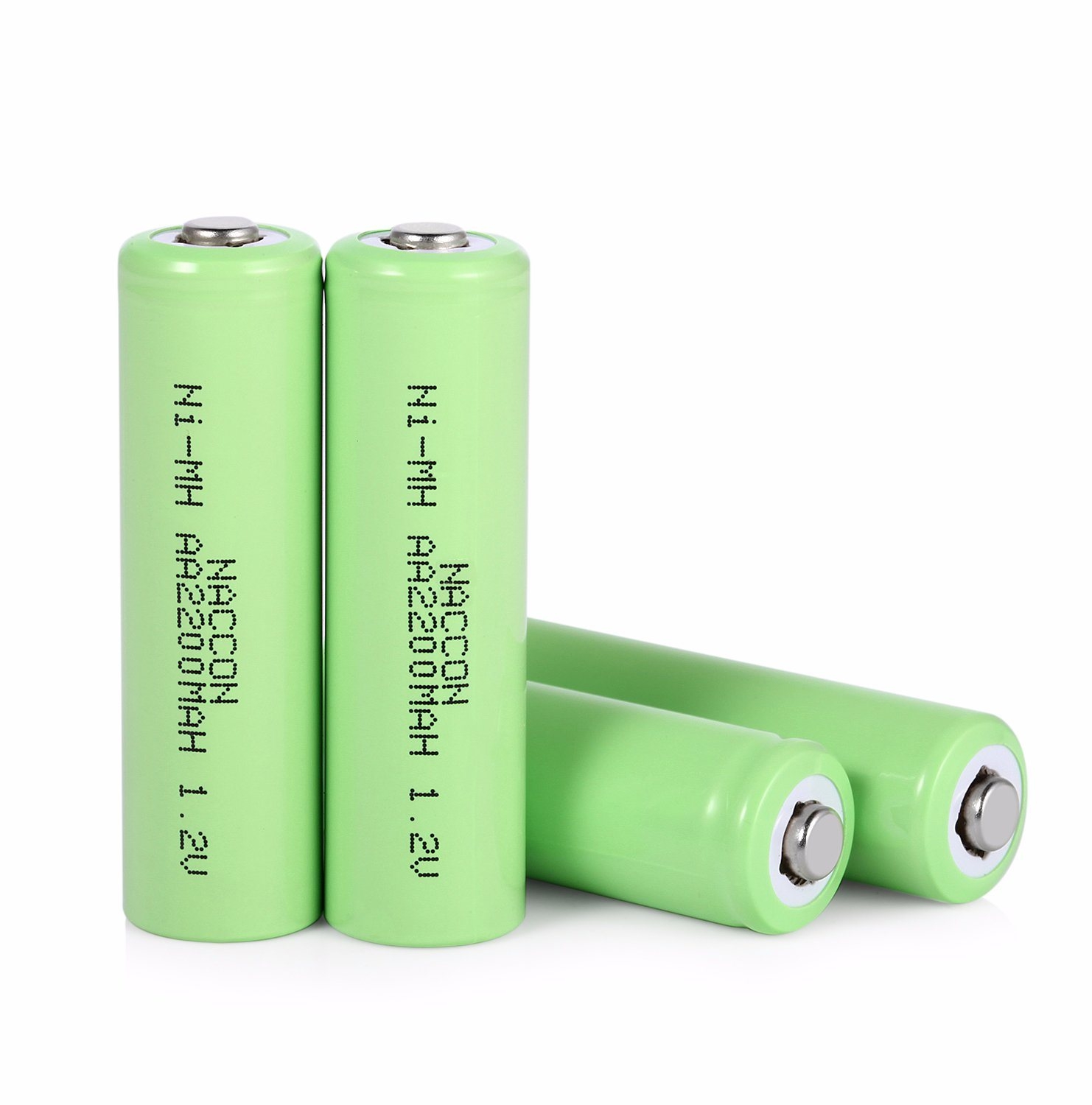

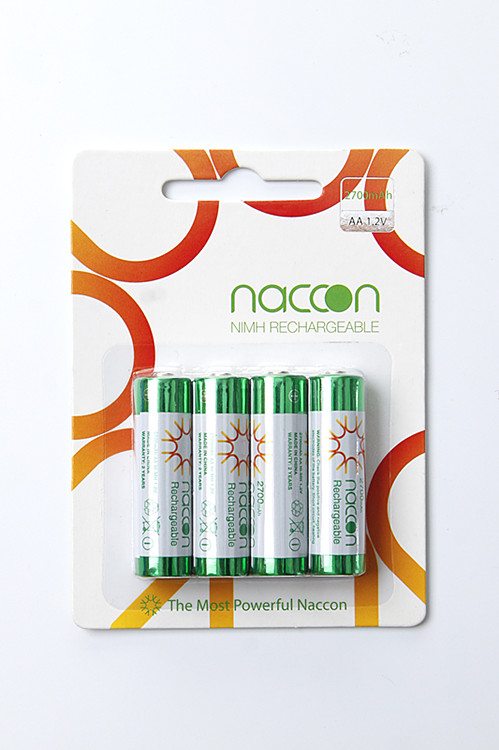

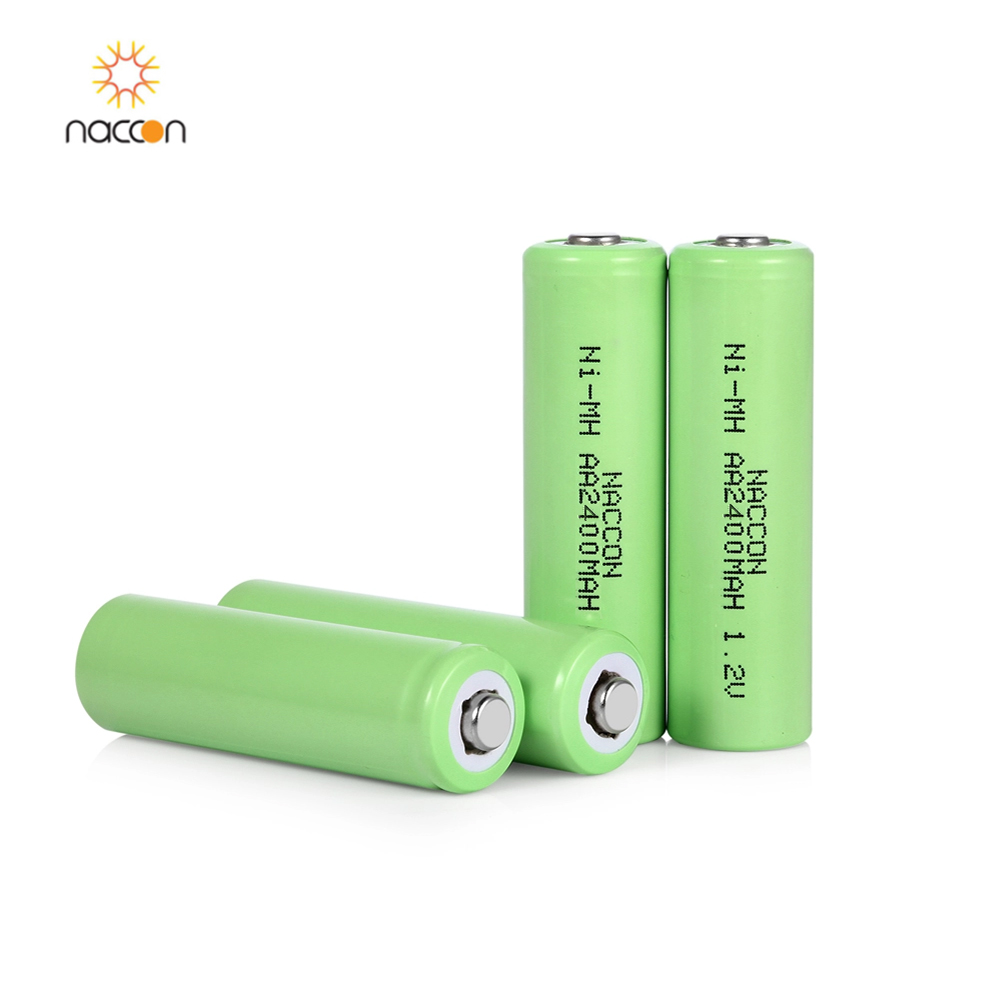

AA Ni-MH batteries are a mature and versatile rechargeable battery solution. With a standard AA form factor, approximately 1.2V nominal voltage, and typical capacities ranging from around 1,800mAh to 2,800mAh, they can be used in many consumer, commercial, and professional applications.
Their ability to be recharged repeatedly makes them particularly useful for products that consume AA batteries frequently.
For applications requiring higher voltage, greater capacity, or a customized physical configuration, multiple AA Ni-MH cells can be assembled into a Ni-MH battery pack. By combining cells in series and/or parallel, manufacturers can create battery packs with different voltage and capacity specifications while adding customized connectors, wires, temperature sensors, and protective structures.
When selecting an AA Ni-MH battery or designing a Ni-MH battery pack, it is important to look beyond capacity alone. Voltage, capacity, discharge current, cycle life, charging conditions, dimensions, operating temperature, and the specific requirements of the end device should all be evaluated together.
For OEM and custom applications, selecting the right cell and designing the battery pack according to the equipment's actual requirements can help achieve a better balance between performance, reliability, service life, and cost.
