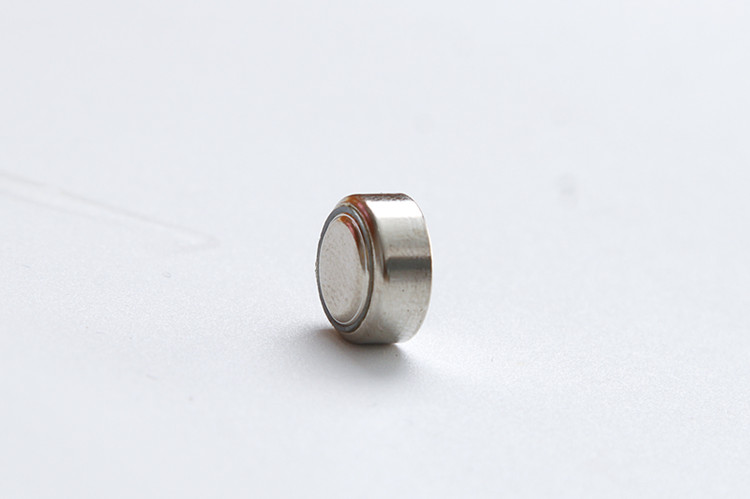

10-Year Long Shelf Life CR1130: Full Guide to Low-Power Device Dedicated Coin Battery

For low-power electronic devices that require long-term standby, infrequent replacement and long inventory storage, battery shelf life and static stability are far more important than instantaneous high-current performance. Among all miniature coin batteries, the CR1130 3V lithium manganese cell stands out with its industry-leading 10-year long storage life and ultra-low self-discharge characteristics. Specially designed for low-consumption miniature equipment, it has become the standard power solution for long-standby sensors, backup circuits, wireless tags and portable consumer gadgets. This article deeply explains the storage principle, core parameters, low-power working performance and applicable scenarios of the CR1130 battery.

1. Basic Specifications of CR1130 Low-Power Dedicated Battery

The CR1130 is a non-rechargeable primary lithium manganese dioxide coin battery with ultra-stable chemical properties, optimized specifically for micro-current and long-cycle operation. Its standardized parameters ensure high consistency for industrial matching and civilian replacement.

• Nominal Voltage: 3.0V

• Rated Capacity: 40mAh

• Dimension: 11.0mm (Diameter) × 3.0mm (Thickness)

• Operating Current: 0.1mA–1mA (optimal low-power micro-discharge range)

• Operating Temperature: -20℃ ~ 60℃

• Self-Discharge Rate: ≤1% per year

• Max Shelf Life: 10 years (under sealed room-temperature storage)

Different from general-purpose coin batteries that pursue high instantaneous current, the CR1130 focuses on long-term stability and storage retention, making it a professional low-power dedicated battery.

2. Why CR1130 Achieves 10-Year Ultra-Long Storage Life

The 10-year shelf life is not a superficial parameter, but supported by mature lithium manganese material system and high-standard sealing technology.

2.1 Ultra-Stable Lithium-Manganese Chemical System

CR1130 adopts high-purity lithium metal negative electrode and high-stability manganese dioxide positive electrode. The internal chemical reaction is highly reversible and stable under static standby state, effectively suppressing invalid spontaneous reactions. Compared with alkaline batteries with a 2–3 year valid storage period, CR1130 greatly extends the effective storage cycle.

2.2 Low-Activity Organic Electrolyte Formula

The customized low-volatility electrolyte features strong chemical inertia. It will not decompose or produce gas during long-term static storage, ensuring no capacity attenuation caused by internal chemical failure.

2.3 Fully Sealed Laser Welding Structure

The integrated laser welding shell completely isolates external air and moisture, avoiding corrosion, leakage and capacity loss caused by environmental erosion. This airtight structure guarantees stable battery performance for up to 10 years.

3. Core Advantages for Low-Power Equipment

3.1 Zero-Fluctuation Micro-Current Discharge

Most low-power devices work in long-term microampere standby mode. CR1130 maintains a flat discharge curve under low-load conditions, with stable 3.0V output throughout the working cycle. It effectively prevents equipment sleep failure, data loss and timing deviation caused by voltage drop.

3.2 Extremely Low Static Power Consumption

With an annual self-discharge rate lower than 1%, CR1130 still retains more than 80% of its original capacity after 10 years of storage. It perfectly matches the usage characteristics of low-power equipment that “standby for years and work occasionally”.

3.2 Wide Temperature Stability for Complex Environments

Low-power sensing and monitoring equipment often faces variable ambient temperatures. CR1130 maintains stable capacity output in both low-temperature cold environments and high-temperature closed spaces, avoiding standby failure caused by temperature changes.

4. Main Application Scenarios for Low-Power Devices

CR1130 is widely used in low-power, long-standby and long-storage electronic products, covering civilian, industrial and IoT fields:

• Motherboard Backup Power: Industrial control boards, computer motherboard CMOS power supply, ensuring long-term data and clock retention

• Low-Power Sensing Equipment: Miniature temperature and humidity sensors, pressure monitoring modules, unattended detection devices

• RFID & Wireless Tags: Passive and semi-passive RFID identification labels, long-term standby wireless tracking tags

• Household Low-Power Gadgets: Electronic alarm clocks, ultra-thin remote controls, mini timers, long-standby car key fobs

• Disposable Medical & Portable Devices: Long-shelf-life portable monitoring equipment requiring long-term storage before activation

5. Compatible Models & Usage Tips

5.1 Fully Compatible Equivalent Batteries

DL1130, ECR1130 and KCR1130 are 100% interchangeable with CR1130, with identical size, voltage and ultra-long storage performance, suitable for unified replacement and batch procurement.

5.2 Usage Precautions

• CR1130 is a disposable primary battery, not rechargeable;

• Do not mix new and old batteries to avoid accelerated capacity loss;

• For long-term inventory storage, keep batteries dry and sealed to maintain original performance;

• Avoid replacing with CR1116/CR1125, as different thickness will cause poor contact.

Conclusion

The CR1130 coin battery is a professional low-power dedicated power source defined by its 10-year ultra-long shelf life and ultra-low self-discharge performance. Different from ordinary general-purpose batteries, it is designed for long-standby, low-consumption and long-storage equipment scenarios. With stable voltage output, excellent environmental adaptability and ultra-high storage reliability, CR1130 has become the preferred battery solution for modern low-power miniature electronic devices, effectively reducing equipment maintenance costs and battery replacement frequency.
