9.5×2.7mm Micro Power Source | In-depth CR927 Battery Guide

In the era of ultra-thin electronics and miniaturized smart hardware, internal device space has become extremely limited. Traditional coin cells often fail to meet the assembly requirements of slim portable gadgets. Measuring only 9.5 mm in diameter and 2.7 mm in thickness, the CR927 lithium manganese dioxide coin cell serves as a professional micro power solution for low-power precision devices. This article delivers an in-depth scientific overview of the CR927 battery, covering its dimensional characteristics, electrochemical properties, core performance parameters, application boundaries, model differentiation and standardized operation specifications.

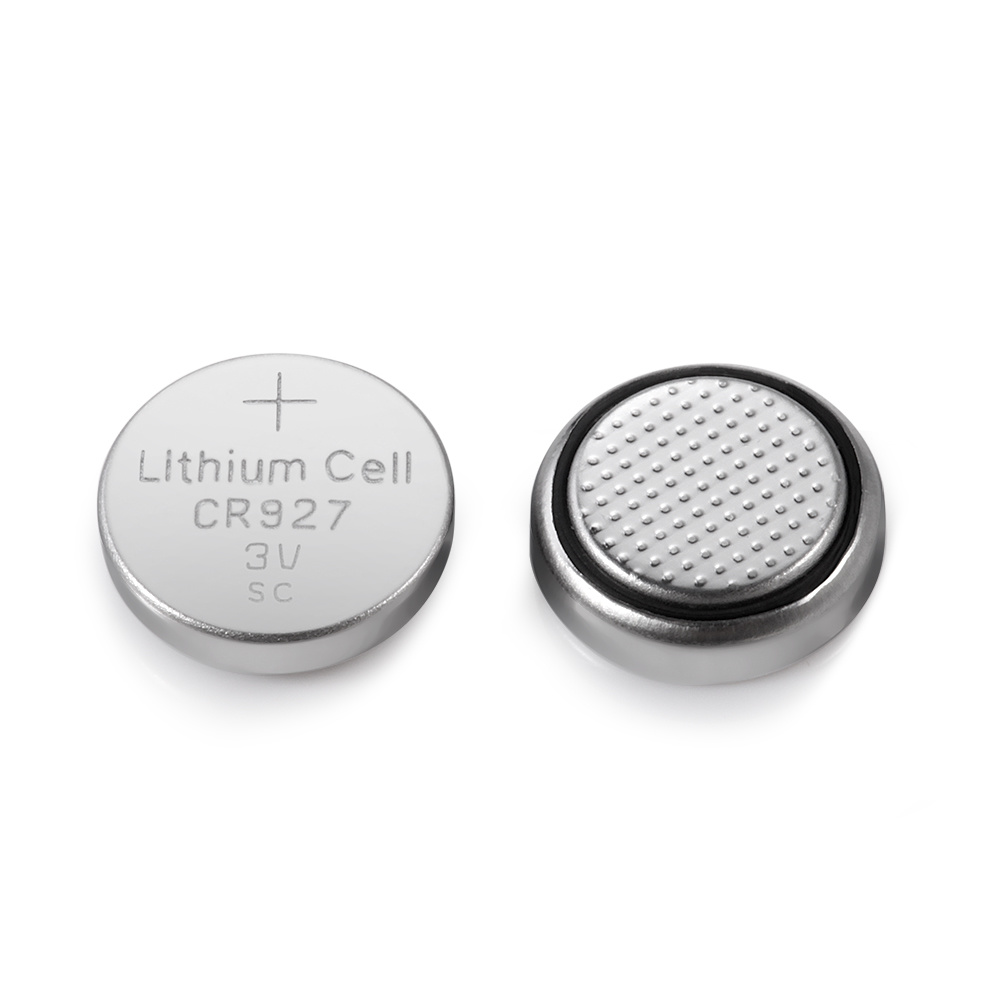

1. Understanding CR927: The 9.5×2.7mm Ultra-Compact Cell

The model name of the CR927 fully reflects its physical attributes. As standardized by IEC international battery specifications, “927” corresponds to a diameter of 9.5 mm and a thickness of 2.7 mm, making it one of the slimmest commercial 3V lithium coin cells available on the market. Different from commonly seen CR2032, CR2025 and CR1220 batteries with larger diameters and thicker profiles, the CR927 is specially developed for equipment with ultra-narrow battery compartments and strict thickness limitations.

Chemically, the CR927 adopts lithium manganese dioxide (Li/MnO₂) as its core material. It is a non-rechargeable primary battery with a fixed nominal voltage of 3.0V. Its standard typical capacity is approximately 30mAh, which is precisely calibrated for micro-current discharge and long-term standby scenarios rather than high-power output.

2. Standard Technical Parameters

To ensure consistent compatibility and stable performance across different devices and brands, mainstream CR927 batteries follow unified industrial parameters:

• Nominal Voltage: 3.0V (stable flat discharge voltage)

• Typical Capacity: 30mAh

• Cell Chemistry: Lithium Manganese Dioxide (Li/MnO₂)

• Cell Type: Primary, non-rechargeable coin battery

• Dimensions: 9.5mm (Diameter) × 2.7mm (Thickness)

• Operating Temperature Range: -20°C to +60°C

• Annual Self-Discharge Rate: ≤2%

• Max Shelf Life: Up to 10 years under dry and room-temperature storage

Thanks to its ultra-low self-discharge rate, the CR927 can maintain most of its original capacity after years of storage, delivering reliable standby performance for intermittently used miniature devices.

3. Core Performance Advantages of the CR927 Micro Power Source

3.1 Exclusive Ultra-Thin Dimensional Advantage

The 2.7mm ultrathin thickness is the most competitive feature of the CR927 battery. It breaks through the space limitation of traditional coin batteries and perfectly matches the ultra-thin structural design of modern wearable devices, precision sensors and mini portable gadgets. For equipment that pursues lightweight and slim integration, CR927 is almost the only available standard power solution.

3.2 Consistent 3.0V Flat Discharge Performance

Lithium manganese dioxide chemistry enables the CR927 to maintain a highly stable voltage throughout its discharge cycle. Unlike alkaline batteries that suffer continuous voltage attenuation, the CR927 provides steady 3.0V output from the beginning to the end of its service life. This flat discharge characteristic ensures precise and reliable operation of sensitive circuits, avoiding data drift, signal instability and system standby failure caused by voltage drops.

3.4 Wide Temperature Adaptability

The CR927 maintains stable electrochemical performance in a temperature range from -20°C to +60°C. It works reliably in cold indoor environments, normal room-temperature scenarios, and mild outdoor high-temperature conditions, providing consistent power support for multi-scene portable electronic equipment.

3.5 Long-Term Storage and Low Maintenance

With an annual self-discharge rate lower than 2%, the CR927 features an ultra-long shelf life of up to 10 years. Users can stock up spare batteries without frequent replacement, greatly reducing daily maintenance costs for low-power micro devices.

4. Main Application Scenarios

Restricted by its 30mAh small capacity, the CR927 is positioned as a professional micro power source for low-current, long-standby devices, and is widely used in precision and ultra-thin electronics:

• Ultra-Thin Wearable Devices: Slim smart glasses, mini motion sensors, lightweight pedometers and micro wearable monitoring modules

• Precision Measuring Instruments: Ultra-thin watch movements, digital thermometers, mini hygrometers and micro pressure sensors

• Micro Wireless Equipment: Laser pointers, miniature remote controllers and low-power wireless signal transmitters

• Industrial & Vehicular Micro Modules: On-board electronic tags, circuit memory backup power, miniature indicator lights and environmental micro sensors

• Outdoor Portable Gadgets: Bicycle speedometers, mini warning lights and compact camping safety devices

5. Model Differentiation & Compatibility Guide

The 9.5×2.7mm size of CR927 is unique in the coin cell industry, with no cross-model interchangeability. Many device failures are caused by incorrect battery replacement. It is critical to distinguish the following differences:

First, CR927 cannot be replaced with CR2032, CR2025, CR1220 or CR1632. These models have larger diameters or different thicknesses and cannot fit the dedicated CR927 battery slot.

Second, 3V CR-series lithium batteries are completely different from 1.5V LR-series alkaline batteries. Voltage mismatch will directly lead to circuit damage and device burnout.

Only standard CR927 batteries or officially recognized equivalent models with identical dimensions, voltage and chemical composition can be used for replacement.

6. Standard Usage & Safety Specifications

As a precision micro power component, CR927 requires standardized operation to ensure performance and safety:

• Do not recharge the battery. CR927 is a primary cell; forced charging will cause chemical reaction disorder, bulging, leakage or safety risks.

• Avoid short circuits. Keep the battery away from metal conductors such as keys and coins to prevent high temperature and circuit damage.

• Install strictly according to positive and negative polarity marks to avoid reverse power supply.

• Store batteries in cool, dry and ventilated environments, avoiding high temperature, humidity and direct sunlight.

• Keep away from children to prevent accidental swallowing hazards.

• Recycle waste batteries through professional environmental channels instead of random disposal.

7. Conclusion

With its exclusive 9.5×2.7mm ultra-compact size, stable 3.0V flat discharge, wide temperature tolerance and ultra-long shelf life, the CR927 battery has become a dedicated micro power source for modern ultra-thin miniature electronic devices. Although small in capacity, it is irreplaceable in low-current precision standby scenarios. A full understanding of its parameters, performance boundaries and usage specifications helps users achieve accurate model selection, safe replacement and stable long-term operation of miniature electronic equipment.
