A Comprehensive Guide to 18650 Lithium-ion Cells & Custom Battery Packs

Introduction

Lithium-ion batteries have become the backbone of portable electronics, energy storage systems, power tools, and outdoor devices. Among all cylindrical lithium cell formats, the 18650 lithium-ion cell stands out as the most widely adopted, cost-effective, and versatile option. Individual 18650 cells can be assembled into tailored battery packs to meet specific voltage, capacity and power demands for countless industrial and consumer applications.

1. What Is a Standard 18650 Lithium-ion Cell?

The name "18650" directly refers to its physical dimensions: a diameter of 18mm and a length of 65mm, which is the core standard defining this cell model.

Core Basic Specifications

Nominal Voltage: 3.7V per single cell; full charge voltage reaches 4.2V

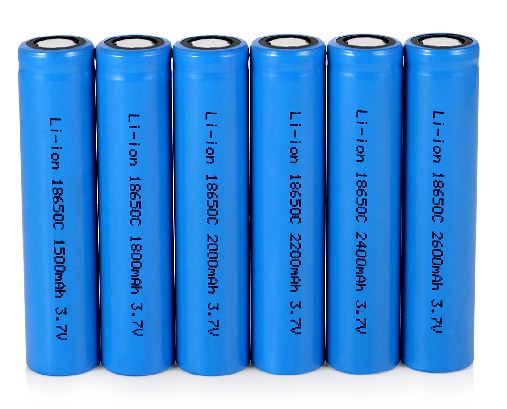

Typical Capacity Range: Factory 18650 cells are available in graded capacities from 1500mAh up to 2600mAh and higher, matching different runtime and budget needs.

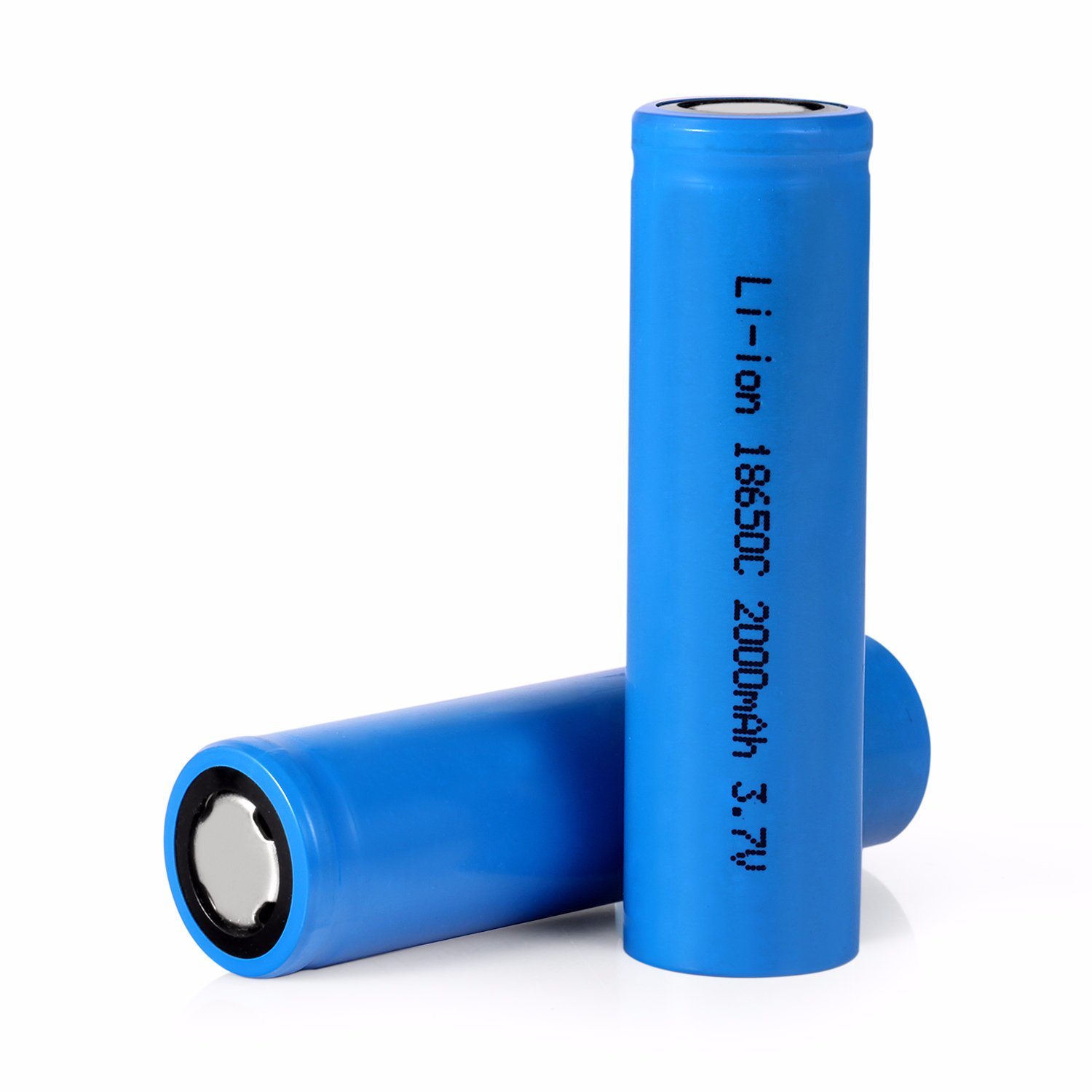

Each bare 18650 unit is a standalone energy storage unit with positive and negative terminals on opposite ends. While a single cell works for small 3.7V gadgets like small flashlights and mini fans, most electrical equipment requires higher voltage or larger total energy, which cannot be satisfied by one cell alone. This is where customized battery packs come into play.

2. From Single Cells to Integrated Battery Packs

A battery pack is constructed by connecting multiple 18650 cells via series and parallel wiring, equipped with a built-in protection circuit module (PCM) to prevent overcharging, over-discharging, overcurrent and short circuits. The whole assembly is then sealed with insulating heat-shrink tubing into a compact packaged unit.

Two Fundamental Connection Modes

Series Connection (S configuration): Raises the total output voltage. Two cells in series produce 7.4V, three in series deliver 11.1V, and so on.

Parallel Connection (P configuration): Expands total capacity and discharge current without changing voltage. Two 2000mAh cells in parallel create a 4000mAh 3.7V battery.

By combining series and parallel layouts (e.g., 2S2P, 3S4P), manufacturers design packs precisely matched to device requirements.

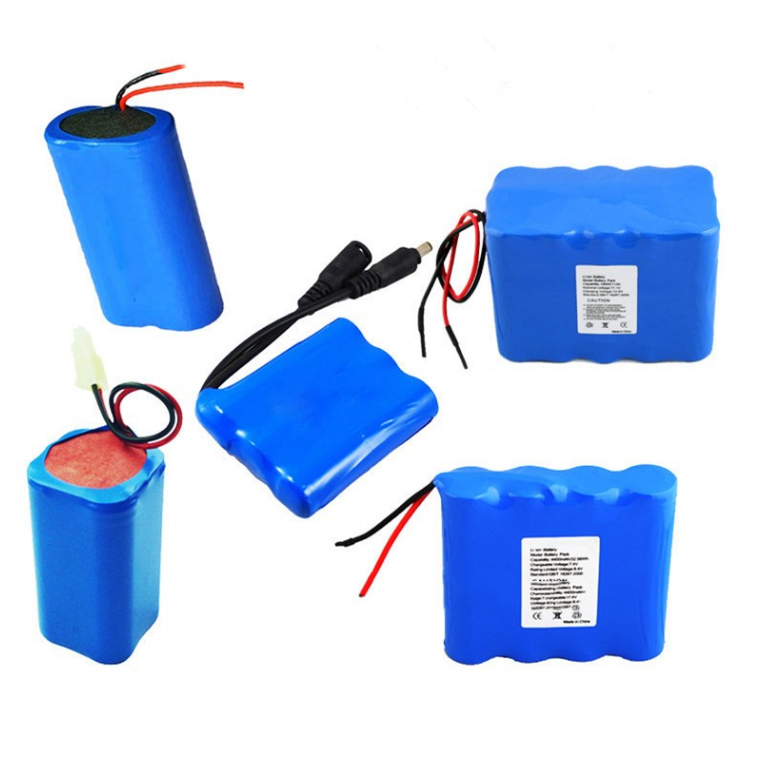

As shown above, finished 18650 battery packs feature customized outgoing leads and connectors: bare red/black wires for direct soldering, DC barrel jacks for plug-and-play power supply, and dedicated terminal plugs for quick plug-in installation on devices. All packs are wrapped in blue flame-retardant heat shrink film for insulation, mechanical protection and dustproofing, with printed specification labels marking voltage, capacity, charging parameters and safety certifications.

3. Main Application Scenarios

Single 18650 Cells

LED flashlights, Bluetooth speakers, small portable humidifiers, power bank core cells, electric toothbrushes.

Assembled 18650 Battery Packs

Small home appliances: Mini air pumps, portable water dispensers, handheld vacuum cleaners

Outdoor equipment: Camping lights, portable solar energy storage boxes, fishing gear power supplies

Mobility devices: E-bikes, balance scooters, low-speed electric vehicles

Industrial use: Monitoring sensors, backup UPS power, medical portable instruments

4. Key Advantages of 18650 Lithium-ion Systems

High Compatibility & Customization: Modular assembly allows flexible adjustment of voltage, capacity and size to fit nearly any equipment cavity design.

Stable Cycle Life: Qualified 18650 cells support 300–1000 charge-discharge cycles with low capacity attenuation.

Excellent Energy Density: Far lighter and more compact than lead-acid batteries with equivalent stored energy.

Complete Safety Protection: Standard battery packs include protection boards to eliminate risks of swelling, leakage or thermal runaway under abnormal use.

Cost Maturity: Mass production over decades keeps unit costs low, making it the most economical lithium solution for mass production products.

5. Essential Usage & Maintenance Tips

Always use a charger designated for lithium-ion batteries; never apply lead-acid chargers which cause overcharging damage.

Avoid fully draining the battery pack frequently, as deep discharge will drastically shorten service life.

Store unused packs in a cool dry environment, and top up charge every 3–6 months for long-term storage.

Do not disassemble the sealed heat-shrink pack or puncture individual cells, which may cause fire or electrolyte leakage.

Conclusion

The 18650 lithium-ion cell remains an irreplaceable foundational cell in the lithium battery industry thanks to its standardized size, stable performance and flexible packability. Single cells serve tiny portable electronics, while purpose-built series-parallel battery packs expand its capability to power larger equipment across consumer, commercial and industrial fields. With proper assembly, protection and daily maintenance, 18650 battery packs deliver reliable, long-lasting portable power for almost every cordless electronic device we rely on.
