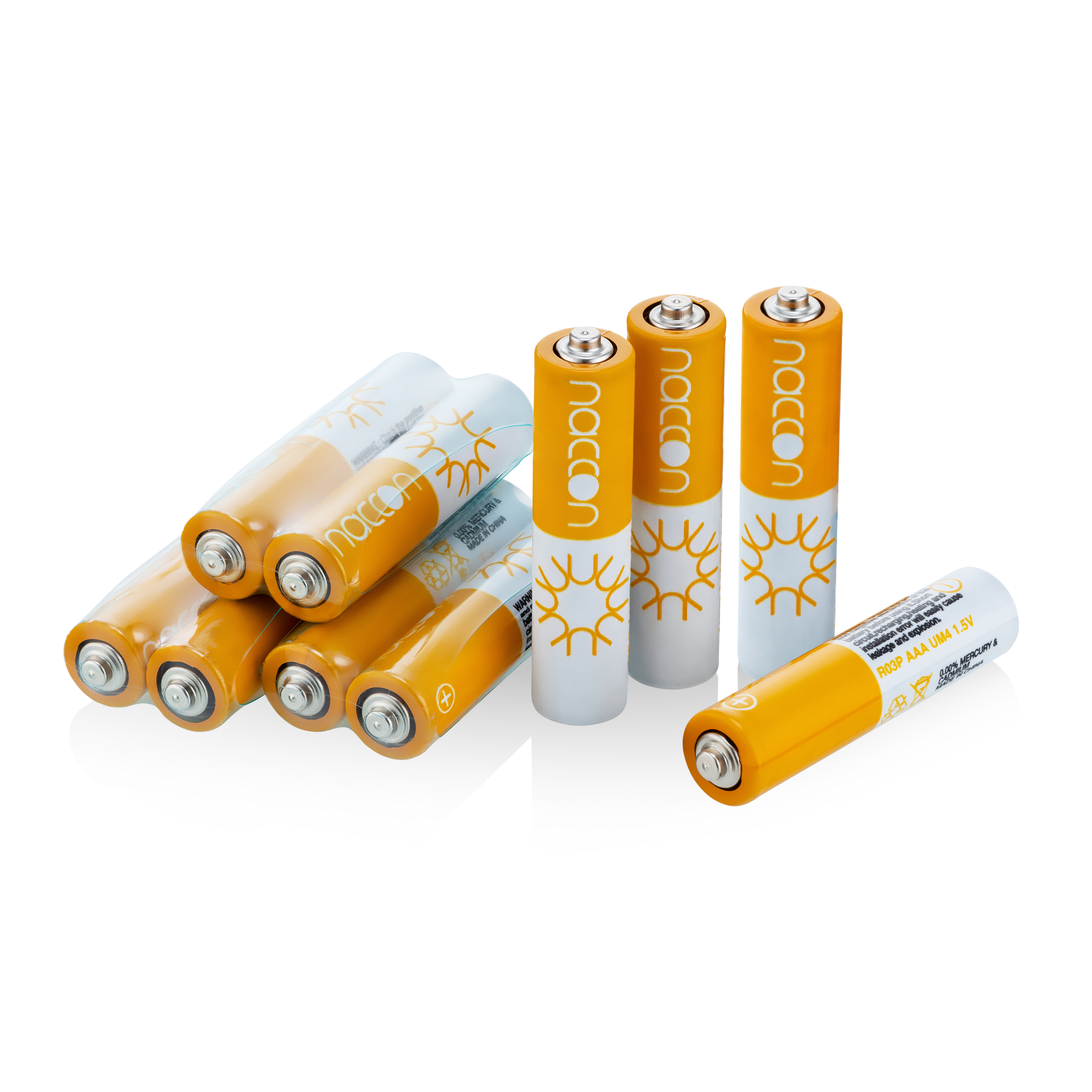

1. What is R03 Carbon-Zinc Battery?
R03 battery, universally known as AAA battery (triple-A battery) in daily life, is one of the most common cylindrical dry cell batteries in the consumer electronics market, belonging to the carbon-zinc battery category—the most basic and traditional primary battery type. Unlike rechargeable batteries, carbon-zinc R03 batteries are single-use disposable power sources, designed for low-power small electronic devices, and are widely favored for their low cost, easy availability, and simple usage. The label "R03" follows the international standard battery size coding, where "R" stands for round (cylindrical) shape, and "03" represents its specific dimensional specification, with a standard diameter of 10.5 mm and a height of 44.5 mm, making it compact and suitable for narrow device compartments.
2. Internal Structure and Working Principle of R03 Carbon-Zinc Batteries
2.1 Core Internal Structure
The R03 carbon-zinc battery adopts a classic cylindrical layered structure, with all components tightly sealed inside a metal outer shell to prevent electrolyte leakage and ensure stable performance. Its main internal components include four core parts:
Negative Electrode (Anode): Made of high-purity zinc metal, which forms the outer cylindrical casing of the battery core. The zinc shell acts as both the negative electrode material and the structural support of the battery, providing the main electron source for the electrochemical reaction.
Positive Electrode (Cathode): Located at the center of the battery, it is a cylindrical carbon rod (usually made of graphite and manganese dioxide mixture). Manganese dioxide is the key active material for the positive electrode, responsible for accepting electrons during the reaction, while graphite enhances conductivity to ensure smooth current output.
Electrolyte: A paste-like mixture mainly composed of ammonium chloride, zinc chloride, and water, filled between the positive and negative electrodes. This paste electrolyte acts as a medium for ion transmission, enabling the flow of charged particles between the two electrodes to form a complete current loop.
Separator & Sealing Components: A porous insulating separator is placed between the positive and negative electrodes to prevent direct short-circuiting, while the top and bottom sealing rings and metal caps lock the internal components, isolate air and moisture, and extend the storage life of the battery.
2.2 Basic Working Principle
R03 carbon-zinc batteries generate electricity through a spontaneous electrochemical redox reaction. When the battery is connected to an external device, zinc atoms at the negative electrode lose electrons and are oxidized to zinc ions, releasing free electrons; these electrons flow through the external circuit to the positive electrode, powering the device. At the positive electrode, manganese dioxide accepts the electrons and undergoes a reduction reaction with the ions in the electrolyte. This continuous reaction maintains a stable voltage output until the active materials (zinc and manganese dioxide) are gradually consumed, at which point the battery stops working.
3. Key Performance Parameters and Characteristics
3.1 Core Performance Indicators
The R03 carbon-zinc battery has fixed standard performance parameters, which distinguish it from alkaline AAA batteries and other battery types:
Nominal Voltage: 1.5V, the standard output voltage for most small low-power devices, matching the voltage requirements of daily household electronics.
Capacity: Approximately 300-500 mAh (milliampere-hour), lower than alkaline AAA batteries (800-1200 mAh), meaning it has a shorter continuous working time under the same load.
Discharge Performance: Suitable for low-current, intermittent discharge; it cannot support high-power continuous discharge, as high current will cause rapid voltage drop and shorten effective usage time.
Operating Temperature Range: Generally 0°C to 40°C, with poor low-temperature resistance; performance drops significantly in cold environments below 0°C, making it less ideal for outdoor use in winter.
3.2 Advantages and Limitations
Main Advantages: Ultra-low production and sales cost, the most budget-friendly option among disposable batteries; lightweight and compact, easy to carry and replace; no memory effect, no need for pre-discharge before use, ready to use out of the box; stable performance in normal temperature environments for low-power devices; wide compatibility, suitable for almost all devices that use AAA batteries.
Main Limitations: Low capacity, short service life for high-frequency use devices; poor high-current discharge capability, not applicable to high-power equipment; easy to leak electrolyte after long-term use or expiration, which may corrode device compartments; low-temperature performance is weak, and service life is greatly shortened in cold conditions; as a primary battery, it cannot be recharged, and forced charging will cause leakage, expansion or even rupture.
4. Suitable Application Scenarios
Due to its low-power, low-cost characteristics, R03 carbon-zinc batteries are specially designed for devices with small power consumption, intermittent working status, and low cost sensitivity. Common application scenarios include:
Household Small Appliances: TV remote controls, air conditioner remote controls, electric fan remote controls, and other remote control devices (low intermittent current demand, can be used for several months to a year with one battery);
Office & Educational Supplies: Wall clocks, desk clocks, small calculators, digital thermometers, laser pointers, and portable pencil sharpeners;
Children’s Low-Power Toys: Simple plastic toys, small flashlights, music greeting cards, and battery-powered decorative lights (low power consumption, suitable for short-term intermittent use);
Portable Measuring Tools: Household moisture meters, small voltage testers, battery testers, and other low-frequency use measuring equipment.
It should be noted that R03 carbon-zinc batteries are not suitable for high-power devices such as digital cameras, portable speakers, electric toothbrushes, and game controllers, as these devices require high current output and will quickly drain the battery and cause performance failure.
5. Usage, Storage and Safety Precautions
To ensure safe use and extend the service life of R03 carbon-zinc batteries, the following precautions must be followed:
Do not mix and use new and old batteries, or mix carbon-zinc batteries with alkaline batteries, rechargeable batteries of the same model; mismatched batteries will cause reverse discharge, leakage and equipment damage.
Never attempt to recharge, disassemble, heat or burn R03 carbon-zinc batteries, which may cause electrolyte leakage, expansion, rupture or even safety hazards.
Store unused batteries in a cool, dry, ventilated environment, away from direct sunlight, high temperature and humid places; avoid storing batteries in metal boxes to prevent short-circuiting.
Remove the batteries from the device if it will not be used for a long time, to prevent electrolyte leakage caused by battery expiration, which will corrode the device's internal structure.
After use, dispose of waste batteries through regular recycling channels, do not discard them randomly with household garbage, to reduce environmental pollution caused by heavy metal components.
6. Conclusion
R03 (AAA) carbon-zinc battery is a classic and practical disposable primary battery, which occupies an important position in the daily consumer battery market with its ultra-high cost performance and wide applicability. Although it cannot compete with alkaline batteries and rechargeable batteries in terms of capacity and high-power performance, it is an irreplaceable power solution for low-power, intermittent-use small devices. Understanding its structure, performance characteristics and applicable scenarios can help consumers choose batteries rationally, use them safely, and maximize their practical value while avoiding improper use risks.
