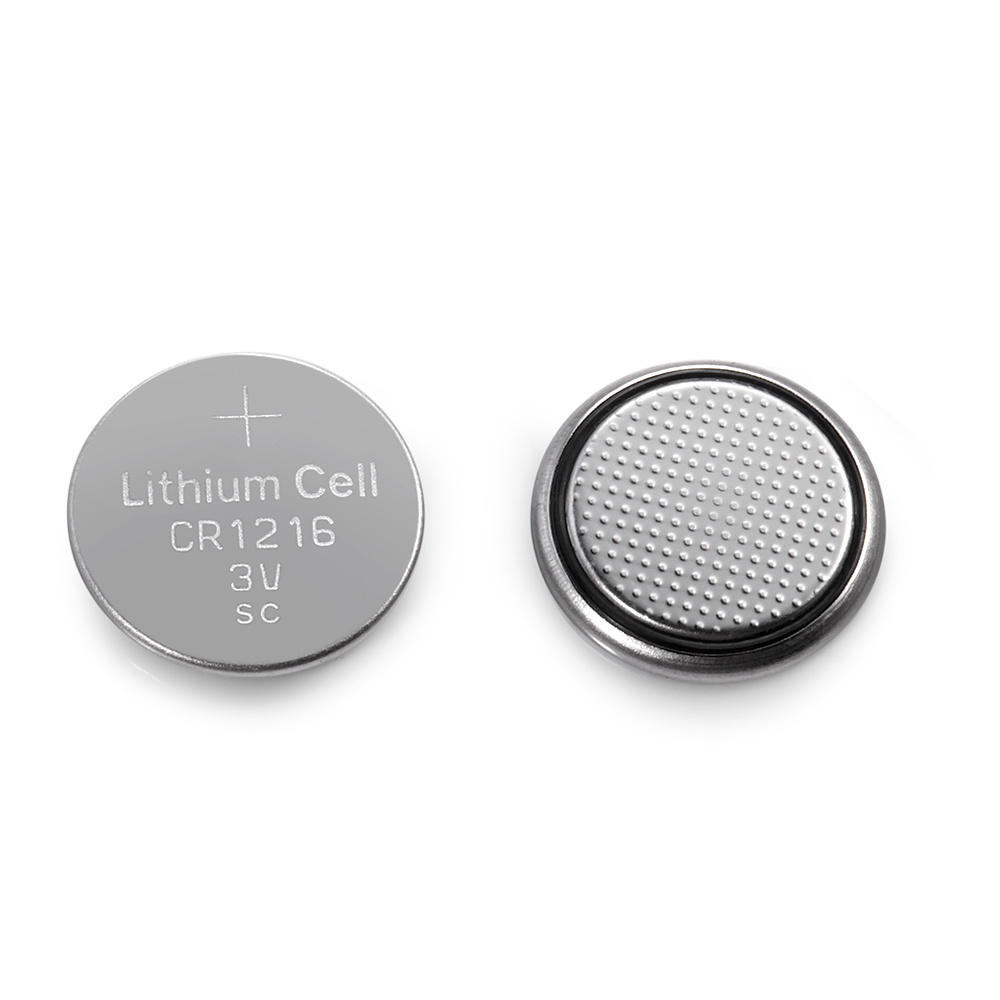

Basic Knowledge Guide to Ultra-Thin 3V Lithium Manganese Dioxide Coin Battery CR1216

Coin-type lithium batteries have become the preferred power source for countless compact and slim electronic products due to their stable voltage, low self-discharge and compact structure. Among various common coin cell specifications, the CR1216 stands out as a typical ultra-thin 3V lithium manganese dioxide primary battery. Many consumers and electronics practitioners often feel confused about its size parameters, applicable scenarios, interchangeable models and safe operating norms. This guide systematically sorts out all essential basic knowledge of the CR1216 battery, helping you quickly finish product identification, model selection and replacement judgment.

1. Basic Electrical & Physical Specifications of CR1216

CR series naming rules are straightforward: the first two digits represent the battery diameter, while the last two digits refer to the overall thickness in millimeters. As a non-rechargeable lithium manganese dioxide coin cell, CR1216 features fixed core parameters as listed below:

• Nominal Voltage: 3.0V

• Dimension: 12 mm (diameter) × 1.6 mm (thickness)

• Typical Nominal Capacity: around 25 mAh

• Chemical System: Lithium manganese dioxide (Li/MnO₂) primary battery

• Operating Temperature Range: -20 ℃ ~ +60 ℃

• Storage Shelf Life: 5 to 8 years under normal dry and room-temperature storage

• Core Advantages: Ultra-thin profile, stable open-circuit voltage, extremely low self-discharge rate, no memory effect

Thanks to its only 1.6 mm thickness, CR1216 is specifically engineered for devices with limited internal installation height, which is its most prominent differentiation feature against thicker 12 mm-diameter coin cells.

2. Main Application Fields for CR1216 Battery

Restricted by relatively small capacity, CR1216 is designed for low-current, long-standby equipment rather than high-drain appliances. Its mainstream application scenarios are sorted as follows:

Automotive Remote Control Products

It is widely equipped in automobile key fobs, motorcycle remote keys, small tire pressure monitoring backup sensors, providing continuous standby power for wireless signal transmission and wake-up sensing.

Slim Wearable & Timing Devices

Ultra-thin analog watches, children’s glow-in-the-dark watches, mini pedometers, backup power for simple smart wristbands and small timing modules all frequently adopt CR1216 for their slim structural design requirements.

Small Household Consumer Electronics

Mini electronic thermometers, tiny calculators, luminous keychain ornaments, compact wireless doorbell transmitters, mini indicator lights and other low-power daily gadgets commonly use this battery model.

Industrial & Circuit Board Backup Power

Motherboard CMOS / BIOS backup batteries for miniature circuit boards, small infrared induction sensors, compact alarm trigger modules and precision low-power test instruments rely on CR1216 to maintain data storage and standby operation during power outages.

3. Equivalent Interchangeable Models & Easily Confused Similar Models

Direct Replacement Compatible Models

These variants share identical size, voltage and chemical properties with CR1216 and can be directly swapped without mechanical modification:

1. DL1216: Commercial equivalent version released by mainstream battery brands, fully interchangeable with CR1216

2. BR1216: Wide-temperature type coin cell, more stable performance under extreme high and low temperatures; same dimension and voltage, suitable for rigorous environmental working conditions

Non-Interchangeable Lookalike Batteries (Same Diameter, Different Thickness)

Though they have the same 12 mm diameter, thickness discrepancy leads to assembly failure or poor contact inside battery holders, so they cannot replace CR1216:

• CR1220: 12 mm diameter, 2.0 mm thickness, thicker housing cannot fit ultra-thin battery compartments made for CR1216

• CR1225: 12 mm diameter, 2.5 mm thickness, larger capacity but mismatched overall dimension, completely incompatible with CR1216 dedicated equipment

4. Operation, Storage & Safety Guidelines

1. Polarity Installation Check: Always align the positive (+) and negative (-) poles strictly according to marks inside the battery compartment. Reverse installation causes device malfunction and may damage internal electronic components.

2. No Recharging Allowed: CR1216 is a disposable primary battery. Forcible charging triggers abnormal internal chemical reactions, resulting in bulging, electrolyte leakage or even safety hazards like rupture.

3. Prevent Short Circuit: Do not store loose batteries together with coins, keys or other metal conductors. Short-circuit will cause rapid heating, capacity degradation and potential safety risks.

4. Standard Storage Requirements: Store unused batteries in cool, dry, ventilated areas, away from direct sunlight, high humidity and high-temperature environments to slow self-discharge and preserve long shelf life.

5. Choking Hazard Warning: Keep coin cells out of reach of infants and pets. Accidental ingestion requires immediate emergency medical treatment.

6. Classified Waste Disposal: Do not discard exhausted batteries randomly. Place spent batteries into dedicated battery recycling bins to avoid soil and water pollution from chemical leakage.

Conclusion

As a representative ultra-thin 3V lithium manganese dioxide coin cell, CR1216 fills the market demand for ultra-slim low-power power supplies with its exclusive 12 mm × 1.6 mm dimension and stable electrical performance. When purchasing or replacing batteries, users must distinguish it from CR1220 and CR1225 by thickness specification, and select qualified equivalent alternatives such as DL1216 or BR1216 as needed. Following standardized usage and storage rules can extend service life effectively while guaranteeing safe and reliable operation of matching electronic devices.
