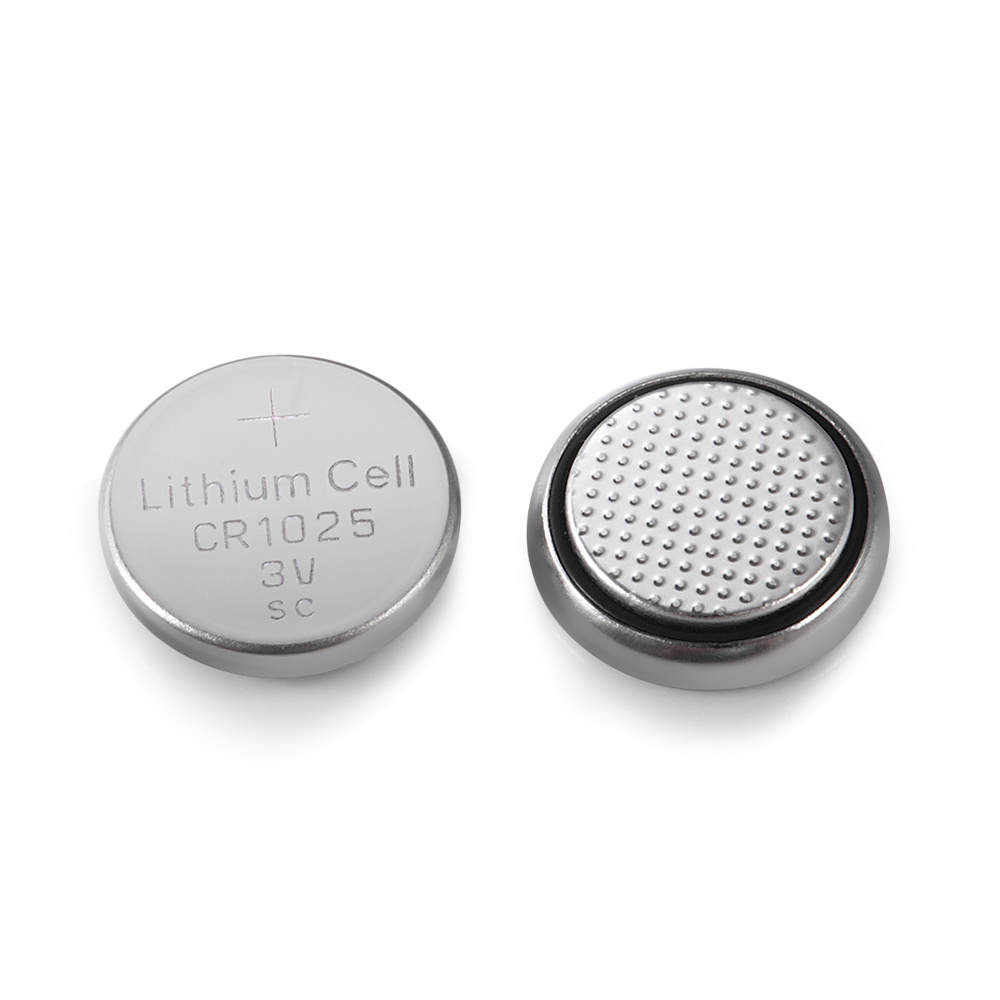

In the era of miniaturized electronic devices, tiny coin cell batteries have become an indispensable power source for countless portable and precision electronic products. The CR1025 3V lithium manganese coin battery is a classic ultra-thin miniature battery, widely favored for its compact size, stable voltage, low self-discharge rate and long service life. This comprehensive guide will elaborate on the core specifications, applicable scenarios, compatible devices, equivalent replacement models and key usage notes of the CR1025 battery, helping users and industry practitioners complete accurate selection and replacement.
The key technical parameters of the CR1025 battery are standardized and unified across the industry, with stable and reliable performance:
Rated Voltage: 3.0V (stable operating voltage range: 2.0V–3.0V)
Nominal Capacity: Approximately 30mAh (standard discharge condition: 0.1mA continuous discharge)
Dimensions: 10mm (diameter) × 2.5mm (thickness)
Battery Type: Primary non-rechargeable lithium manganese dioxide battery
Self-discharge Rate: Extremely low, less than 1% per year under normal storage conditions
Operating Temperature Range: -20℃ to +60℃, suitable for most indoor and mild outdoor environments
Storage Life: Up to 5 years of shelf life at room temperature, with long-term storage performance
Different from high-capacity thick coin batteries, the CR1025 is designed for low-current and intermittent discharge scenarios. It cannot support high-power instantaneous discharge, but it excels in long-term low-power stable power supply, which is its core application advantage.
Benefiting from its ultra-thin body, stable 3V voltage and long standby life, the CR1025 battery is mainly used in small precision electronic devices that require low power consumption and long standby time. It is widely applied in consumer electronics, smart wearable devices, industrial precision instruments and automotive small accessories. The mainstream compatible devices are as follows:
It is the standard power supply for many mini portable devices, including miniature electronic compasses, portable digital thermometers, small electronic calculators, mini keychain lights, and portable laser pointers. These devices have low power demand and long standby requirements, which perfectly match the discharge characteristics of CR1025 batteries.
Many ultra-thin smart bracelets, simple pedometers, sports calorie counters, and mini waterproof watch accessories adopt CR1025 batteries. Its ultra-thin size effectively reduces the overall thickness and weight of wearable devices, improving the wearing experience.
In the industrial and automotive fields, CR1025 batteries are used for small automotive remote control accessories, tire pressure monitoring auxiliary sensors, industrial miniature signal transmitters, and precision instrument backup power supplies. The low self-discharge rate ensures that the equipment can maintain long-term standby without frequent battery replacement.
Mini household blood glucose meters, portable pulse detectors, electronic door lock auxiliary induction modules, and ultra-thin electronic alarm sensors also commonly use CR1025 batteries, relying on its stable voltage output to ensure the accurate operation of precision sensing components.
In daily use and equipment maintenance, multiple battery models can replace the CR1025 battery. These equivalent products have consistent dimensions, voltage and electrical properties, and can be universally installed and used. It is necessary to distinguish between non-rechargeable and rechargeable models to avoid equipment damage.
These models are all 3V lithium manganese primary batteries with the same 10×2.5mm size, which are 100% interchangeable with CR1025:
BR1025: The most common alternative model. Compared with CR1025, BR1025 has better high-temperature resistance and more stable performance in high-temperature environments, suitable for automotive and industrial high-temperature scenario applications, with consistent basic parameters.
DL1025: A universal model launched by mainstream battery brands, fully consistent with CR1025 in size, voltage and capacity, suitable for daily consumer electronic equipment replacement.
ECR1025: Industrial-grade enhanced version of CR1025, with slightly optimized discharge stability, suitable for precision instrument equipment with higher power supply requirements.
LIR1025: It is a 3.7V rechargeable lithium-ion battery with the same 10×2.5mm appearance size.Note that it cannot be used as a direct replacement for CR1025 in most devices. Its rated voltage is 3.7V, which is higher than the 3.0V of CR1025. Long-term use will cause burnout of low-voltage precision equipment. It is only applicable to special equipment that supports wide voltage input and rechargeable batteries.
Do not replace CR1025 with 1.5V silver oxide batteries (such as SR1130) or other low-voltage batteries. The voltage mismatch will cause the equipment to fail to start or work abnormally. For precision medical and industrial equipment, priority is recommended to use original CR1025 or BR1025 industrial-grade models to ensure operational accuracy.
To extend the service life of CR1025 batteries and ensure equipment safety, the following specifications need to be followed in daily use and storage:
Non-rechargeable: CR1025 is a primary battery, and charging is strictly prohibited, which will cause battery bulging, leakage or even safety hazards.
Isolate storage: Store unused batteries in a dry and cool environment, avoid stacking with metal conductors to prevent short circuits, and keep away from high temperature and humid environments.
Timely replacement: When the equipment has insufficient power, slow response or unstable operation, replace the battery in time to avoid battery leakage and corrosion of equipment internal components caused by long-term power loss.
Positive and negative installation: Install strictly according to the positive and negative marks of the equipment battery compartment, reverse installation will lead to equipment failure to work.
As a classic ultra-thin 3V miniature coin battery, the CR1025 has irreplaceable advantages in low-power miniature electronic devices with its ultra-small size, stable voltage, ultra-low self-discharge and long shelf life. It is widely used in consumer electronics, wearable devices, industrial precision instruments and automotive accessories. In actual selection and replacement, users can choose CR1025 or fully compatible BR1025, DL1025 models according to the usage scenario, and avoid misusing rechargeable LIR1025 and low-voltage batteries. Standardized use and storage can maximize the battery performance and service life, providing stable and reliable long-term power support for miniature precision equipment.
