Small but powerful, coin batteries are indispensable power sources for countless compact electronic devices in daily life. Among numerous 3V lithium coin cell models, the CR1216 battery stands out for its ultra-thin design, stable voltage output and long shelf life. It is widely adopted in miniature electronic products that require low power consumption and slim size. This article provides a comprehensive and easy-to-understand analysis of the CR1216 coin battery, covering its core specifications, typical applications, compatible replacement models and key usage precautions, helping users quickly master all essential knowledge for selection and use.

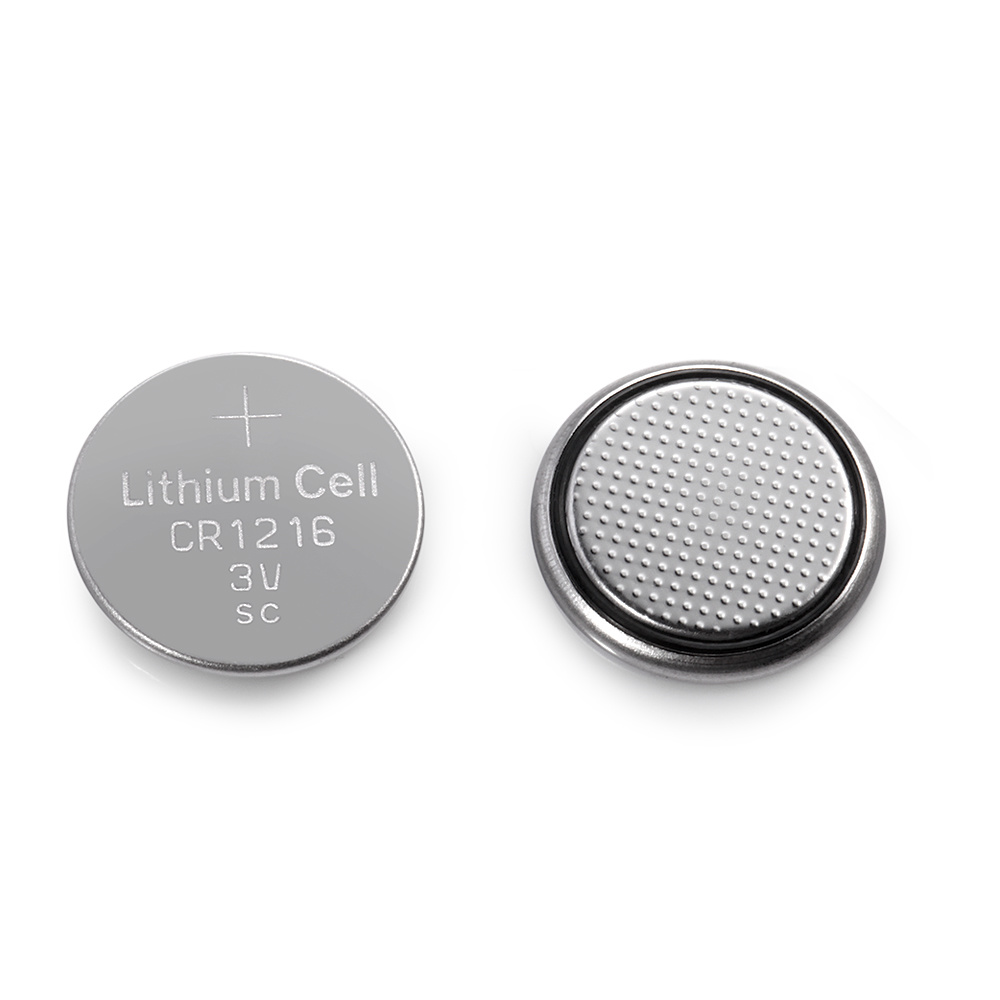

The CR1216 is a standard non-rechargeable lithium manganese dioxide coin battery. Its model number fully reflects its physical dimensions, which is the core basis for distinguishing it from other similar coin batteries. The naming rule of CR series batteries is simple and intuitive: the first two digits represent the diameter, and the last two digits represent the thickness.
Specific key parameters of CR1216 are as follows:
Rated Voltage: 3.0V. This stable nominal voltage ensures consistent power supply for low-power electronic components, avoiding frequent voltage drops that affect device performance.
Physical Size: 12mm in diameter, 1.6mm in thickness. Its ultra-thin body is the biggest feature that differentiates CR1216 from CR1220 (2.0mm thickness) and CR1225 (2.5mm thickness), making it suitable for ultra-slim device cavities.
Typical Capacity: Approximately 25mAh. Limited by its tiny size, its capacity is lower than thicker models, which matches its positioning for low-current and long-standby working scenarios.
Shelf Life: Up to 5–8 years under normal storage conditions. The lithium manganese dioxide chemical system features low self-discharge rate, enabling long-term standby without frequent replacement.
Working Temperature: -20℃ to +60℃. It adapts to most indoor and daily outdoor usage environments, with excellent environmental adaptability for civilian electronic devices.
Characteristics: Non-rechargeable, high stability, no memory effect, low self-discharge and safe operation.
Restricted by its small capacity and ultra-thin size, the CR1216 battery is not applicable for high-power devices. It is mainly used in miniature electronic products that require long standby time, tiny installation space and low operating current. Its mainstream application scenarios are concentrated in daily civilian micro-electronic equipment:
Vehicle Electronic Accessories: It is the common built-in battery for most car remote keys, motorcycle remote control keys and vehicle tire pressure monitoring sensors, providing long-term stable power for remote signal emission and standby sensing.
Wearable Mini Devices: Suitable for ultra-thin electronic watches, children’s luminous watches, smart bracelet standby power supplies and miniature step counters, perfectly matching the slim design of wearable devices.
Household Small Electronics: Widely used in electronic thermometers, miniature calculators, remote control doorbells, luminous keychains, small night lights and other low-power household devices.
Industrial & Commercial Mini Equipment: Applied in BIOS backup power supplies of miniature circuit boards, infrared sensing devices, miniature alarm sensors and other precision low-power industrial equipment to ensure stable standby operation.
In daily use, many users confuse CR1216 with other 12mm-diameter coin batteries. It is crucial to note that battery thickness determines whether it can be installed and used normally. Models with different thicknesses cannot be通用 due to cavity size limitations. Below are the standard replacement models of CR1216 and distinguishable similar models:
These models have completely consistent size, voltage and performance parameters with CR1216, and can be interchanged without modifying the device:
DL1216: A fully compatible alternative model launched by mainstream battery brands, with identical 3V voltage and dimensional parameters.
BR1216: A wide-temperature version of CR1216, featuring more stable performance in high and low temperature environments, suitable for devices with strict environmental requirements, and fully interchangeable with CR1216 in size and voltage.
Although these batteries share the same 12mm diameter as CR1216, their different thicknesses lead to installation failure or poor contact, so they are not replaceable:
CR1220: 12mm diameter, 2.0mm thickness, thicker than CR1216, unable to fit ultra-thin battery cavities.
CR1225: 12mm diameter, 2.5mm thickness, larger capacity but significantly different in size, completely incompatible with CR1216 equipment.
Although the CR1216 battery is small in size, standardized usage and storage can effectively extend its service life and avoid safety risks. The key precautions are summarized as follows:
Proper Positive and Negative Installation: Install the battery strictly according to the positive and negative marks of the device battery compartment. Reverse installation will cause the device to fail to work and may damage electronic components.
Strictly Prohibit Recharging: CR1216 is a primary non-rechargeable battery. Forced recharging will cause internal chemical reaction disorder, leading to bulging, leakage or even explosion.
Avoid Short Circuit: Do not mix the battery with metal objects such as coins and keys to prevent positive and negative short circuit, which will cause battery overheating and performance attenuation.
Standard Storage Conditions: Store unused batteries in a dry, cool and ventilated environment, avoiding long-term exposure to high temperature, humidity and direct sunlight, so as to reduce self-discharge and prolong shelf life.
Keep Away from Children and Pets: The tiny coin battery is easy to swallow by mistake. Once accidental ingestion occurs, seek medical treatment immediately to avoid safety accidents.
Recyclable Disposal: Waste batteries cannot be discarded randomly. Please put them into special battery recycling bins to avoid environmental pollution caused by chemical leakage.
As a classic ultra-thin 3V lithium coin battery, CR1216 occupies an irreplaceable position in the field of miniature low-power electronic equipment by virtue of its ultra-thin body, stable voltage, long shelf life and high safety. Its unique 12mm×1.6mm size determines its exclusive application in slim cavity devices such as car keys and ultra-thin watches. When selecting and replacing batteries, users must distinguish it from CR1220 and CR1225 models by thickness, and give priority to compatible models such as DL1216 and BR1216. Standard use and storage can maximize its service life and ensure the stable operation of electronic equipment.
