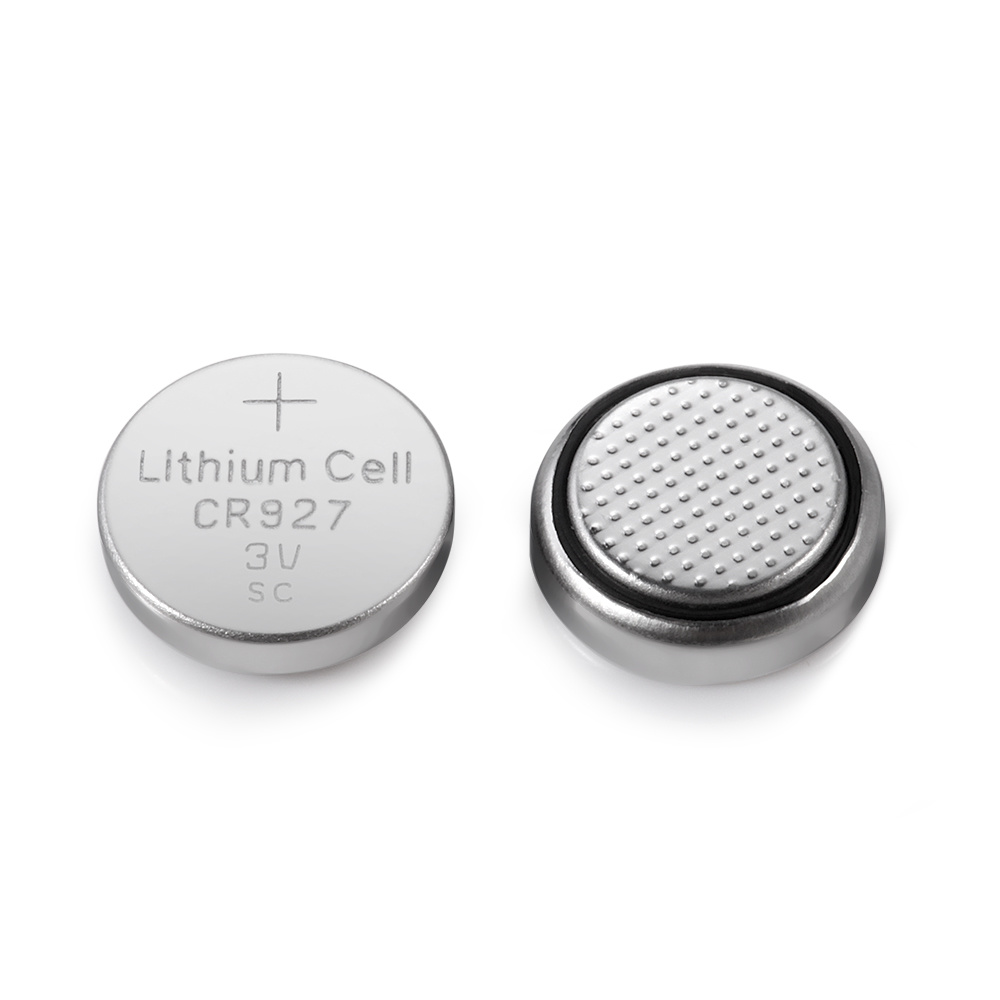

CR927 Common Usage Knowledge: Specifications, Compatible Models and Safety Tips

The CR927 lithium manganese coin cell is a widely adopted 3V miniature power source for ultra-thin and low-power electronic devices. It is commonly found in smart wearables, precision measuring tools, mini remote controls, outdoor gadgets and industrial micro sensors. To ensure stable device operation, avoid incorrect replacement, and eliminate potential safety risks, users need to master basic CR927 usage knowledge, including standard technical parameters, correct compatibility judgment, and standardized safety operation rules. This article summarizes the most practical and essential CR927 usage guidelines for daily maintenance and battery replacement.

1. Standard Technical Specifications of CR927

All regular CR927 batteries follow unified IEC international industrial standards, with fixed parameters that determine their application range and working characteristics. Understanding these core specs is the basis for correct use and model matching.

• Rated Voltage: 3.0V steady voltage output

• Typical Capacity: Approximately 30mAh, designed for micro-current long standby operation

• Battery Chemistry: Lithium Manganese Dioxide (Li/MnO₂)

• Battery Type: Non-rechargeable primary coin battery

• Physical Dimensions: 9.5mm (diameter) × 2.7mm (thickness)

• Operating Temperature Range: -20°C to +60°C

• Annual Self-discharge Rate: Below 2%

• Max Shelf Life: Up to 10 years under cool and dry storage conditions

Different from high-capacity batteries, the CR927 is optimized for low-power intermittent operation rather than high-current discharge. Using it beyond its working limits will lead to shortened life or abnormal power supply.

2. Compatible & Incompatible Model Guidelines

Model mismatch is the most common problem during battery replacement. The CR927 has exclusive dimensional standards, and users must strictly distinguish compatible and incompatible battery types to avoid device damage.

2.1 Compatible Equivalent Models

There are no cross-size universal alternatives for CR927. Only batteries with identical specifications can be used as replacements. Standard CR927 equivalent products from different brands share the same 3.0V voltage, 9.5×2.7mm size and lithium manganese composition, which are fully interchangeable with the original CR927 battery.

2.2 Absolutely Incompatible Batteries

The following battery types cannot replace CR927 and are strictly prohibited for use:

• LR-series 1.5V alkaline batteries: Different voltage and chemical system, causing device failure or circuit burnout.

• Other CR-series 3V batteries: Such as CR2032, CR2025, CR1220 and CR1632. These models have larger diameters or different thicknesses and cannot fit the CR927 dedicated battery slot.

• Rechargeable coin batteries: Different discharge curves and internal structures will affect the precision operation of miniature devices and bring safety risks.

3. Daily Usage & Operation Guidelines

Standardized operation can maximize CR927 battery life and ensure stable device performance. The key daily usage rules are summarized as follows:

• Polarity Installation: Install the battery strictly according to the positive (+) and negative (-) marks inside the battery compartment. Reverse installation will block circuit conduction and may damage internal components.

• Timely Replacement: Replace exhausted batteries immediately. Leaving dead batteries inside devices for a long time may cause electrolyte leakage, which corrodes circuit boards and causes permanent equipment damage.

• Clean Contact Points: Before installing a new battery, wipe off dust, oxidation and stains on the metal shrapnel to ensure good electrical conductivity and stable power output.

• Usage Scenario Restriction: Do not use CR927 for high-power equipment. It is only suitable for low-current standby devices such as sensors, timing modules and mini wireless gadgets.

4. Critical Safety Tips

Although the CR927 is a miniature low-power battery, irregular use still leads to potential safety hazards. The following safety rules must be followed strictly:

• Prohibit Charging: CR927 is a primary disposable battery. Forced charging will trigger abnormal chemical reactions, resulting in battery bulging, leakage, overheating or even fire hazards.

• Prevent Short Circuits: Keep batteries away from metal objects such as keys, coins and wires. Short circuits will cause instantaneous high temperature and damage the battery core.

• Scientific Storage: Store spare batteries in a dry, cool and ventilated environment. Avoid long-term exposure to high temperature, humidity and direct sunlight to prevent accelerated aging and self-discharge.

• Anti-swallowing Protection: The tiny size of CR927 poses a choking risk. Keep it out of reach of infants and young children to avoid accidental ingestion.

• Standard Waste Disposal: Do not discard waste batteries randomly. Classify and recycle them through professional channels to avoid environmental pollution.

• No Disassembly or Burning: Do not disassemble, puncture or burn used or unused batteries, as this will release corrosive substances and cause safety accidents.

5. Conclusion

Mastering the basic usage knowledge of CR927 batteries is essential for daily equipment maintenance. With fixed standard parameters, exclusive compatible specifications and clear safety operation norms, the CR927 can deliver long-term stable power for ultra-thin miniature electronic devices. Correct model selection, standardized installation and safe storage can effectively extend battery service life, ensure stable device operation and avoid unnecessary failures and safety risks.
