Coin cell batteries come in dozens of similar-looking models, leaving many users confused during replacement and selection. It is easy to mistakenly purchase incompatible batteries, resulting in installation failure, device malfunction or even circuit damage. The CR927 3V lithium manganese coin battery features a unique ultra-thin size and low-power standby positioning, which is significantly different from mainstream models such as CR2032, CR2025, CR2016 and CR1220. This article conducts a comprehensive horizontal comparison between CR927 and similar coin cells, analyzing their differences in size, performance, application scenarios and compatibility, helping users select batteries accurately and avoid common selection pitfalls.

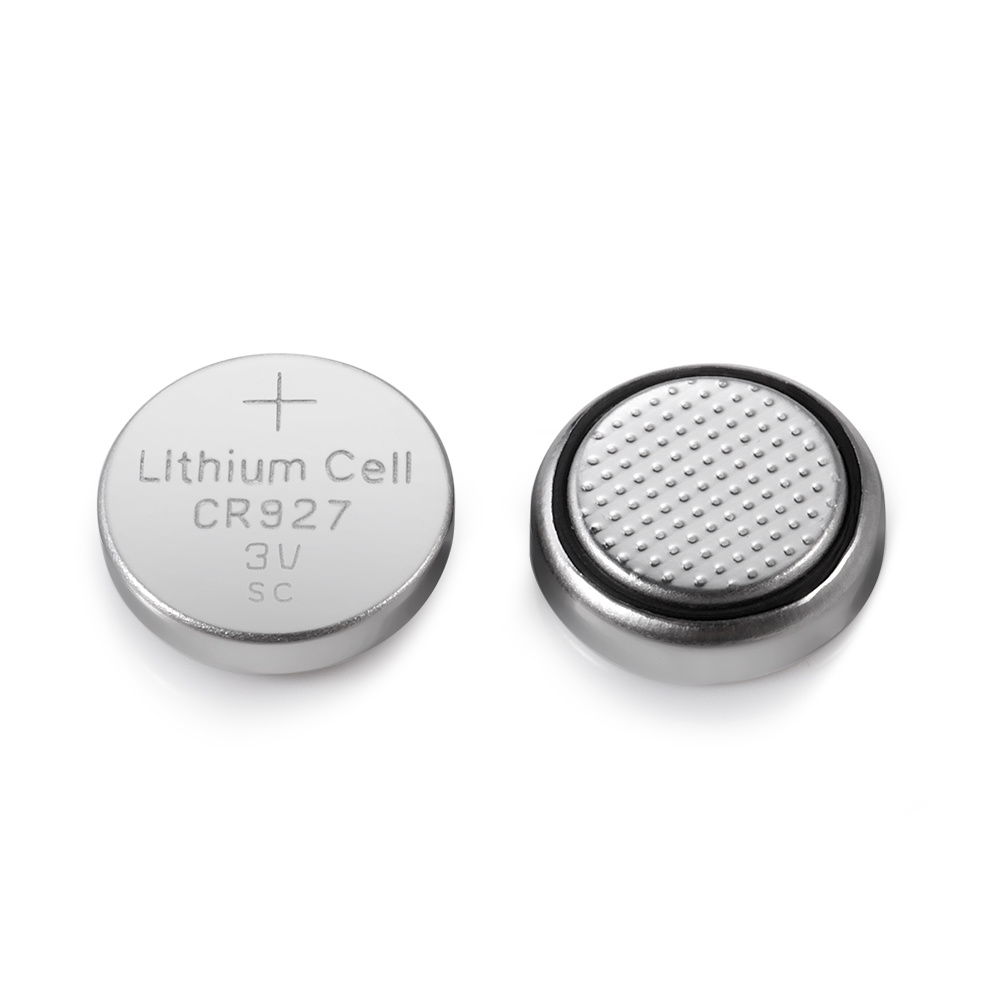

Before comparison, it is necessary to clarify the fixed parameters and product positioning of the CR927 battery. As a standard IEC-compliant 3V primary lithium manganese coin cell, the CR927 features exclusive ultra-compact dimensions of 9.5mm in diameter and 2.7mm in thickness, with a typical capacity of 30mAh. It is specially designed for ultra-thin, low-current and long-standby miniature devices, boasting stable flat discharge voltage, ultra-low self-discharge rate and up to 10 years of shelf life. Its biggest feature is ultra-thin thickness and mini diameter, which determines its unique applicable scenarios that other coin batteries cannot cover.
Most users’ selection errors occur when confusing CR927 with common CR-series 3V coin cells. The following detailed comparison clearly distinguishes the differences in size, capacity, adaptability and applicable equipment to eliminate selection ambiguity.
The model number of CR coin cells directly corresponds to physical dimensions, which is the most intuitive and accurate selection standard:
CR927: 9.5mm diameter × 2.7mm thickness (ultra-small diameter, ultra-thin)
CR1220: 12.0mm diameter × 2.0mm thickness (larger diameter, slightly thinner)
CR2016: 20.0mm diameter × 1.6mm thickness (large diameter, ultra-thin)
CR2025: 20.0mm diameter × 2.5mm thickness (large diameter, medium thickness)
CR2032: 20.0mm diameter × 3.2mm thickness (large diameter, thick, high capacity)
Obviously, the CR927 has a much smaller diameter than all 20-series coin batteries. No 20-series or 12-series batteries can fit the narrow battery slot of CR927 ultra-thin devices due to diameter mismatch. This means zero cross-compatibility in physical installation.
Due to size limitations, different coin cells have obvious differences in capacity and discharge intensity, forming completely different scenario positioning:
CR927 (30mAh): Ultra-low capacity, only suitable for micro-current standby. Focuses on long shelf life and stable voltage, not for continuous high-frequency work.
CR1220 (35mAh): Slightly higher capacity than CR927, suitable for small indicator devices and simple sensors.
CR2016/CR2025: 50–75mAh medium capacity, supporting intermittent medium-current discharge.
CR2032 (210mAh): High capacity, able to support higher power consumption and longer continuous working time, widely used for motherboards, car keys and wearable main power supplies.
If users replace CR927 with high-capacity CR2032 blindly, the oversized size cannot be installed; if replaced by CR1220, the diameter mismatch still leads to installation failure.
Each battery model has its exclusive applicable equipment, and cross-use will cause poor matching:
Exclusive CR927 Scenarios: Ultra-thin smart glasses, slim watch movements, mini laser pointers, ultra-compact micro sensors and portable precision measuring gadgets with strict thickness limits.
CR1220 Scenarios: Small vehicle lights, simple remote control accessories and miniature alarm devices.
CR20 Series Scenarios: Car key fobs, computer motherboard backup power, smart scales, sports bracelets and mainstream household remote controls.
In addition to confusing CR models, mixing up CR and LR batteries is a more serious selection mistake. Many users purchase cheap LR alkaline batteries to replace CR927, causing device damage.
CR927 (Lithium): 3.0V voltage, stable flat discharge, long shelf life, wide temperature resistance, suitable for precision devices.
LR Series (Alkaline): 1.5V voltage, unstable voltage decay, short service life, poor low-temperature performance, only for simple toys and low-precision equipment.
Conclusion: LR batteries cannot replace CR927 in any scenario. Voltage mismatch will directly lead to device failure or circuit burnout.
Based on the above comparison, we summarize the most frequent CR927 selection mistakes to help users avoid losses:
Pitfall 1: Judging battery compatibility by appearance – Similar round shapes do not mean universal use. Always confirm the exact model number and size parameters.
Pitfall 2: Replacing CR927 with CR2032/CR2025 – Excessive diameter makes installation impossible.
Pitfall 3: Using 1.5V LR alkaline batteries instead of 3V CR927 – Voltage mismatch causes equipment damage.
Pitfall 4: Pursuing high capacity blindly – Ultra-thin devices cannot accommodate high-capacity batteries, and forced matching will affect structural assembly.
Pitfall 5: Believing all 3V coin batteries are interchangeable – Only identical size and chemical composition guarantee compatibility.
The CR927 is a highly specialized ultra-thin miniature coin battery with no interchangeable alternative models among mainstream coin cells. Compared with CR1220, CR2016, CR2025 and CR2032, it has unique dimensional specifications and exclusive low-power ultra-thin application scenarios. When selecting and replacing batteries, users must follow the core principle: model priority, size matching, voltage consistency.
For all ultra-thin miniature devices originally equipped with CR927, only standard CR927 lithium manganese batteries can ensure stable power output, long standby life and safe operation. Correct model selection completely avoids equipment failure, poor power supply and safety risks caused by mismatched batteries.
