Confused About Coin Battery Models? CR1025 Complete Guide — Never Buy the Wrong Battery Again

We’ve all been there: your slim watch dies, your outdoor compass stops working, or your mini pedometer goes blank. You rush to buy a replacement coin battery, only to find it either too big to fit the slot, too thick to close the cover, or simply unable to power your device at all. With dozens of look-alike CR-series coin batteries on the market, telling them apart is confusing for most people.

Among all easy-to-mix button batteries, CR1025 is one of the most misunderstood ultra-thin models. This plain and easy-to-follow guide breaks down everything about CR1025, explains universal coin battery naming rules, compares it with other popular CR batteries, and lists all common buying mistakes. After reading this article, you will never pick the wrong coin battery again.

1. Decode Battery Codes Once and For All

All CR lithium coin batteries follow the same global naming rule. Once you master this formula, you can tell the size of any coin battery at a glance without checking parameters:

CR + First Two Digits (Diameter/mm) + Last Two Digits (Thickness/0.1mm)

Take CR1025 as an example:

• 10 = 10 millimeters in diameter

• 25 = 2.5 millimeters in thickness

That’s all! No complicated technical terms. Every CR coin battery follows this rule strictly.

2. Core Specs of CR1025 at a Glance

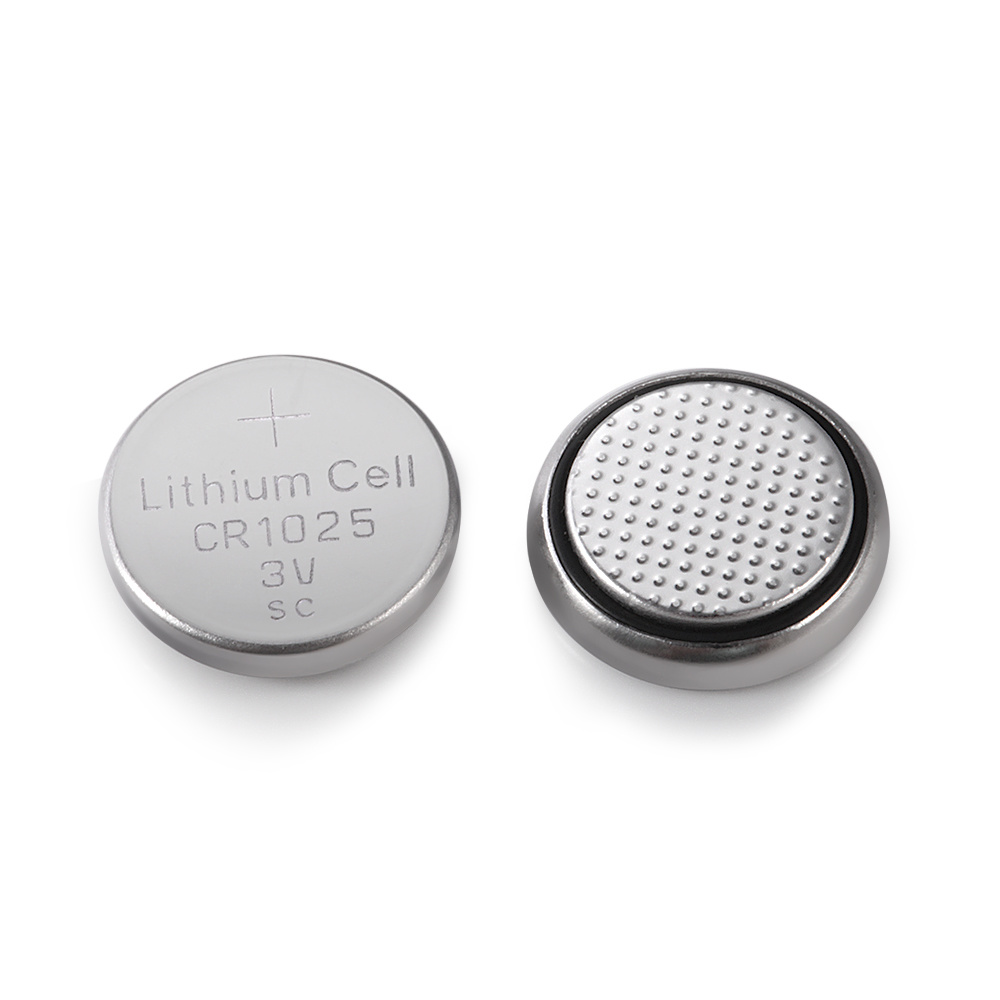

CR1025 is a 3V non-rechargeable lithium manganese ultra-thin coin cell, built exclusively for tiny, slim electronics with limited inner space.

• Voltage: 3.0V (standard voltage for most miniature low-power devices)

• Size: 10mm × 2.5mm (the smallest mainstream slim CR battery)

• Capacity: 30mAh

• Shelf Life: 5 years with nearly no self-discharge

• Feature: Ultra-flat, lightweight, leak-proof, stable long-term standby power

3. CR1025 vs Other Common CR Batteries: Direct Side-by-Side Comparison

Most wrong purchases happen between CR1025, CR2025 and CR2032. Check the clear comparison below to spot differences instantly:

The Most Important Reminder: CR1025 CANNOT replace CR2025/CR2032, and vice versa. Same voltage does NOT mean interchangeable. Size mismatch makes installation impossible directly.

4. Compatible Devices: When Do You Need CR1025?

Choose CR1025 only if you own these ultra-compact slim devices:

• Minimalist ultra-thin wrist watches (too narrow for regular 20mm coin batteries)

• Pocket mini electronic compasses for outdoor activities

• Lightweight slim pedometers and fitness tracking tags

• Keychain laser lights, mini electronic toys and tiny portable thermometers

• Backup power for small sensor chips and ultra-flat smart home modules

5. Compatible & Incompatible Replacement Batteries

✅ Perfect Replacements (Same size & 3V voltage)

• BR1025: Better temperature resistance, ideal for car interior use

• DL1025 / ECR1025: Cross-brand equivalent batteries for daily use

❌ Never Buy These (Common Wrong Choices)

• LIR1025: Same appearance but 3.7V rechargeable battery. Higher voltage will burn your device’s circuit board permanently.

• Any 1.5V button batteries: Lower voltage cannot boot up 3V electronics at all.

• CR2025 / CR2032: Too big to fit small battery slots.

6. Top 3 Most Frequent Battery Buying Mistakes to Avoid

1. Only checking voltage instead of model number Many users think all 3V coin batteries are the same. Voltage is just one parameter; always match the full model number printed on your old battery.

2. Confusing 10-series and 20-series batteries CR1025 and CR2025 share the same thickness, but their diameter differs greatly. They look similar but fit totally different slots.

3. Buying rechargeable LIR1025 as a substitute Never mix up CR1025 (disposable 3V) and LIR1025 (rechargeable 3.7V). They look identical but work differently.

7. Quick Buying Checklist Before You Place an Order

1. Take out the dead battery from your device

2. Check the printed model code: confirm it is marked 1025

3. Pick CR1025, BR1025, DL1025 only

4. Double-check: avoid LIR1025, CR2025 and CR2032

Conclusion

It is easy to distinguish coin batteries once you understand the simple number coding rule. CR1025 is a special ultra-small and ultra-thin 3V coin battery tailored for slim miniature electronics, which cannot be replaced by any larger CR-series batteries.

The simplest and most reliable way to avoid wrong purchases is alwaysmatching the exact model number on your original battery. Keep this guide in mind, and you will never waste money on mismatched coin batteries again!
