Nowadays, more compact, ultra-thin and portable mini electronic devices come into daily life. These slim gadgets cannot accommodate regular large-size coin batteries such as CR2025 and CR2032, requiring a dedicated ultra-thin power solution. As the core power source for miniature electronics, the 3V CR1025 lithium manganese coin battery features 10mm×2.5mm ultra-small dimension, stable voltage output and long standby lifespan, perfectly matching low-power mini equipment.
This article sorts out a full official compatibility checklist covering all mainstream devices supporting CR1025 batteries, and provides a universal, tool-free battery replacement tutorial suitable for most small electronics. It helps users confirm battery matching quickly and complete battery replacement independently without professional maintenance support.

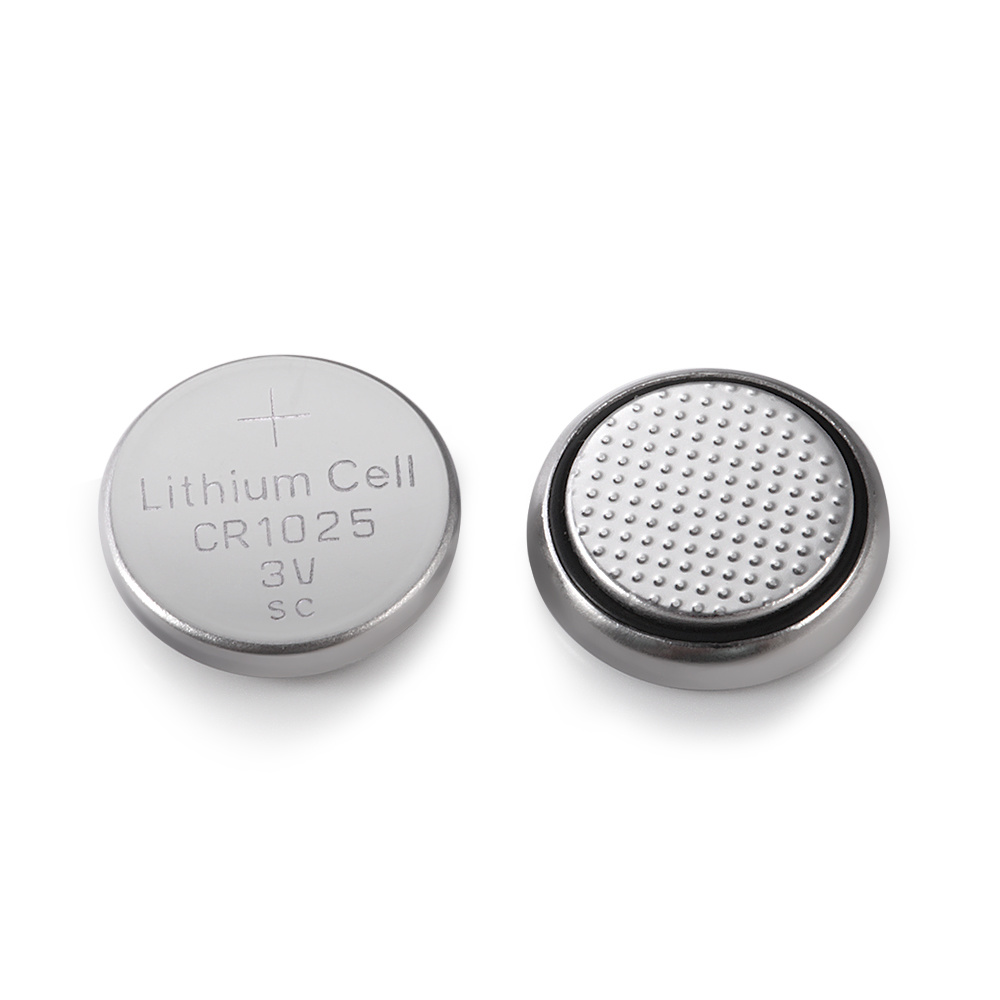

CR1025 is a non-rechargeable 3.0V primary lithium coin cell designed exclusively for space-limited miniature devices. Its slim body is the biggest advantage compared with ordinary button batteries. Below are its key fixed electrical parameters for device matching reference:
Standard Dimension: 10mm (diameter) × 2.5mm (thickness)
Nominal Voltage: 3.0V steady working voltage
Rated Capacity: 30mAh
Shelf Life: 5 years ultra-long storage life with low self-discharge
Working Mode: Adapted to long-term standby and intermittent pulse discharge
Core Feature: Leak-proof sealed structure, stable voltage with no sudden power drop
We classify applicable devices into four categories for quick lookup, covering daily consumer electronics, wearable devices, vehicle accessories and smart home mini modules:
Ultra-thin minimalist quartz watches and slim digital watches
Outdoor mini electronic compasses and navigation auxiliary gadgets
Pocket mini calculators and portable digital thermometers
Keychain laser pointers, mini warning lights and small electronic ornaments
Lightweight slim pedometers and step counting trackers
Mini calorie counters and portable motion sensing tags
Ultra-thin wearable sensor modules for fitness monitoring
Mini motorcycle remote keys and auxiliary car key chip backup power
Small tire pressure monitoring auxiliary sensors
Mini access control induction chips and small remote control transmitters
Ultra-thin door lock induction sensing modules
Mini alarm trigger sensors and wireless micro signal modules
Precision instrument clock and memory backup batteries
Matching Tip: If the original battery printed with 1025 code runs out, only CR1025, BR1025, DL1025 and ECR1025 can be used for replacement. No other size button batteries are compatible.
Only basic household tools are needed: plastic pry bar, plastic tweezers, soft cleaning cloth. Metal tools are forbidden to avoid battery short circuit and circuit board damage.
Shell Opening: Place the device on a soft flat surface to prevent scratches. Gently pry open the back battery cover or whole rear shell along the reserved gap with a plastic pry bar. Do not apply excessive force to avoid cracking the plastic shell.
Original Battery Removal: Use plastic tweezers to take out the exhausted CR1025 battery slowly. Take a photo before removal to record the positive (+) and negative (-) polarity placement for reference.
Contact Cleaning: Wipe dust, oxide and sweat stains on internal metal contact shrapnels with a clean dry cloth. Poor contact caused by dirty contacts is a common reason for device failure even after battery replacement.
New Battery Installation: Put the new CR1025 battery into the battery slot according to the original polarity. Keep the battery flat without extrusion, as excessive squeezing will damage the ultra-thin internal sealing structure.
Reset & Testing: Close the device shell tightly, restart the electronic device and test all functions. If the device cannot work normally, recheck battery polarity and contact tightness.
Polarity Reverse Installation: Wrong positive and negative placement leads to no power output; always follow the polarity mark inside the battery compartment.
Wrong Battery Model: Never install LIR1025 rechargeable battery. Its 3.7V overvoltage will burn internal delicate chips permanently.
Hard Extrusion During Installation: CR1025 is ultra-thin; forced installation will cause battery leakage and internal equipment corrosion.
Mixed Use of New and Old Batteries: Do not combine new batteries with old batteries, which will reduce overall working duration sharply.
Store spare CR1025 batteries in cool and dry environments, staying away from high temperature, humidity and direct sunlight.
CR1025 is a disposable primary battery; charging operation is strictly prohibited to prevent bulging and leakage risks.
Replace batteries timely once devices show slow response or screen dimming, preventing electrolyte leakage from dead batteries.
As the core dedicated power supply for various small and ultra-thin electronic devices, CR1025 solves the power supply pain point of slim gadgets that cannot fit regular coin batteries. With a clear compatibility list, users can quickly confirm whether their devices match this battery model.
Moreover, the simple universal replacement tutorial allows every user to finish battery replacement at home easily, saving extra time and maintenance cost. Choosing a standard CR1025 battery and following standardized installation steps can ensure long-term stable operation of all your miniature electronic equipment.
