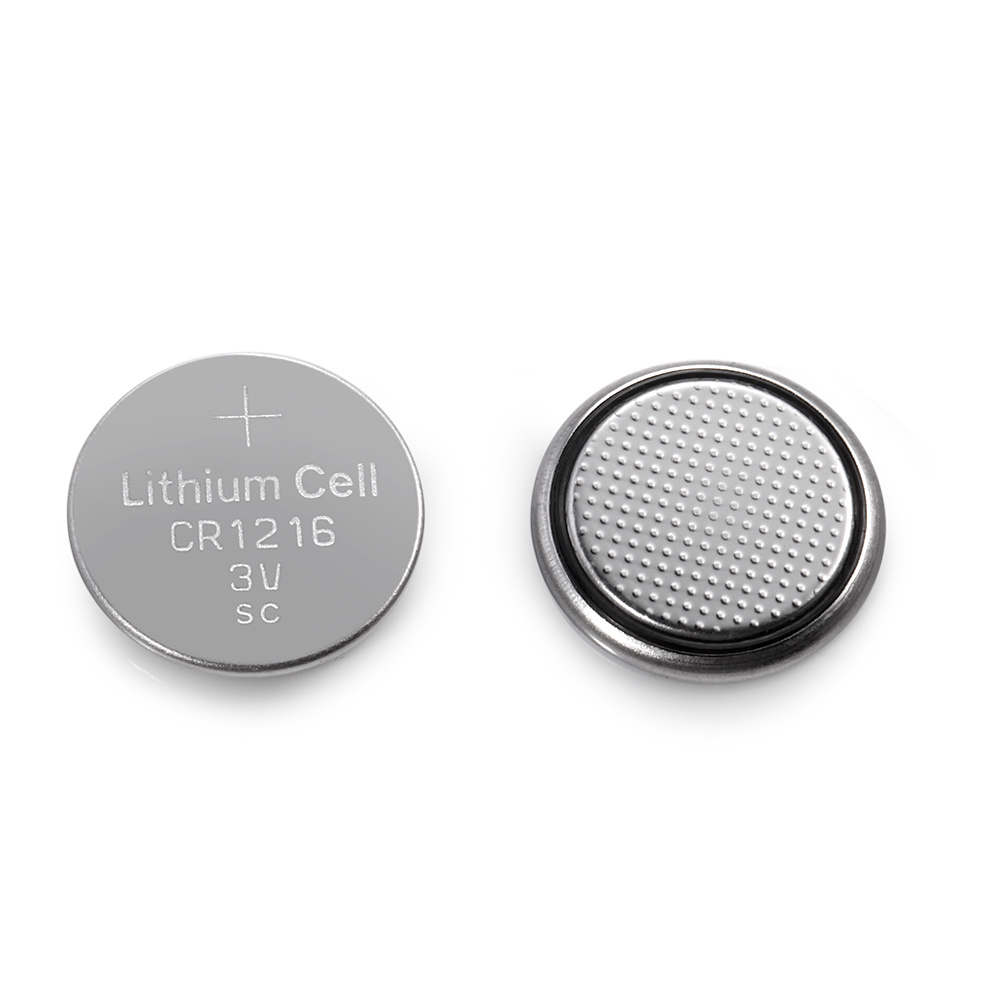

Coin lithium batteries are ubiquitous power sources for small low-power electronics, yet many users only notice them when their car key or slim watch stops working. The CR1216 is one of the most widely used ultra-thin 3V coin cells, frequently mixed up with CR1220 and CR1225 due to similar naming formats. This article thoroughly dissects the CR1216 battery, breaking down its physical dimensions, electrical capacity, typical application scenarios, interchangeable counterparts and practical purchasing guidelines, helping you avoid buying the wrong model and use the battery safely and properly.
The naming rule of CR series lithium manganese dioxide coin batteries is intuitive: the first two numbers stand for diameter in millimeters, and the last two numbers represent thickness. We can clearly define the core specs of CR1216 as follows:
Nominal Voltage: 3.0 V (stable open-circuit voltage for low-current continuous discharge)
Overall Dimension: 12 mm diameter × 1.6 mm thickness
Typical Rated Capacity: Approximately 25 mAh
Chemistry System: Non-rechargeable lithium manganese dioxide primary battery
Operating Temperature Range: -20 °C to +60 °C, adaptable for daily indoor and mild outdoor use
Shelf Life: 5–8 years under cool, dry storage thanks to low self-discharge characteristic
Key Feature: Ultra-thin structure designed exclusively for devices with limited internal height space
Its biggest distinguishing trait from same-diameter coin cells is the slim 1.6 mm thickness. Slightly thicker CR1220 and CR1225 cannot fit into CR1216 dedicated battery holders, even though they share identical 12 mm diameter.
Restricted by its small capacity, the CR1216 is engineered for low-drain, long-standby operation instead of high-power equipment. Its mainstream applicable products are categorized below:
CR1216 is a standard power source for many car key fobs, motorcycle remote locking keys, and mini backup power units for tire pressure monitoring sensors, sustaining intermittent signal transmission and long-term standby consumption.
It fits perfectly inside slim analog wrist watches, luminous kids’ watches, mini pedometers, simple bracelet backup power modules and compact timing chips, matching the ultra-thin structural design of wearable electronics.
Mini digital thermometers, pocket calculators, glowing decorative keychains, compact wireless doorbell transmitters, miniature indicator lights and other low-current daily gadgets commonly adopt CR1216 as their power supply.
It serves as CMOS/BIOS backup battery for small circuit boards to preserve stored data during power outages, as well as power supply for tiny infrared sensors, mini alarm trigger modules and precision low-power testing instruments.
These alternatives match CR1216 in size, voltage and chemical composition, and can be directly replaced without modifying battery compartments:
DL1216: Commercial equivalent model launched by mainstream battery manufacturers, fully interchangeable with original CR1216
BR1216: Wide-temperature resistant variant with more stable discharge performance under extreme hot and cold environments, suitable for equipment with strict ambient working requirements
These batteries have a 12 mm diameter but inconsistent thickness, leading to assembly failure, poor contact or inability to close the battery cover:
CR1220: 12 mm diameter, 2.0 mm thickness, thicker than CR1216, cannot be installed in ultra-thin slots reserved for CR1216
CR1225: 12 mm diameter, 2.5 mm thickness, higher capacity but mismatched dimension, completely incompatible with CR1216 devices
Confirm Exact Model First
Double-check the old battery printed code inside your device before purchase. Never guess based on appearance; a 0.4 mm thickness gap will render installation impossible. Do not substitute CR1220 or CR1225 for CR1216 blindly.
Prioritize Formal Brand Products
Low-cost counterfeit batteries often suffer from insufficient actual capacity, high self-discharge, short service life and leakage risks. Choose well-known branded coin cells to guarantee stable voltage output and consistent shelf life.
Check Production Date and Shelf Life
Lithium coin cells gradually lose capacity during long-term storage. Avoid buying overstocked batteries with expired shelf life; select newly produced stock to maximize usable runtime after installation.
Inspect Outer Packaging Integrity
Reject batteries with dented casing, peeling sealing film, surface rust or electrolyte traces, as damaged packaging may cause premature leakage and safety hazards.
Install strictly following positive (+) and negative (-) polarity marks; reversed installation will disable the device and damage internal circuits.
Never attempt to recharge CR1216, which is a disposable primary cell. Forced charging may cause bulging, leakage or rupture.
Prevent short circuits by avoiding mixing loose batteries with coins, keys and other metal objects.
Keep coin batteries away from toddlers and pets to prevent accidental swallowing choking risks.
Dispose of exhausted batteries via dedicated recycling bins rather than random trash dumping for environmental protection.
After full dissection, the CR1216 is defined by its ultra-slim 12 mm × 1.6 mm dimension and 3V low-power output positioning. It fills a unique market niche for slim compact electronics that cannot accommodate thicker coin cells. When purchasing replacement batteries, always verify dimensions and model compatibility, select qualified branded products, and follow standardized installation and storage rules. This approach ensures stable device operation, longer battery service life and effective avoidance of common selection and safety mistakes.
