Miniature low-power electronic systems require batteries that balance stable voltage output, long standby life and reliable pulse performance. As a high-performance 3V lithium manganese coin cell, the CR1130 is widely recognized as a premium power source for commercial and industrial miniature devices. Tailored for three core application scenarios — wireless remote controls, RFID identification systems, and circuit motherboard backup power — it solves common industry pain points such as unstable signal transmission, frequent battery replacement, and system data loss. This article elaborates on the performance strengths of CR1130 and its targeted application advantages in mainstream low-power devices.

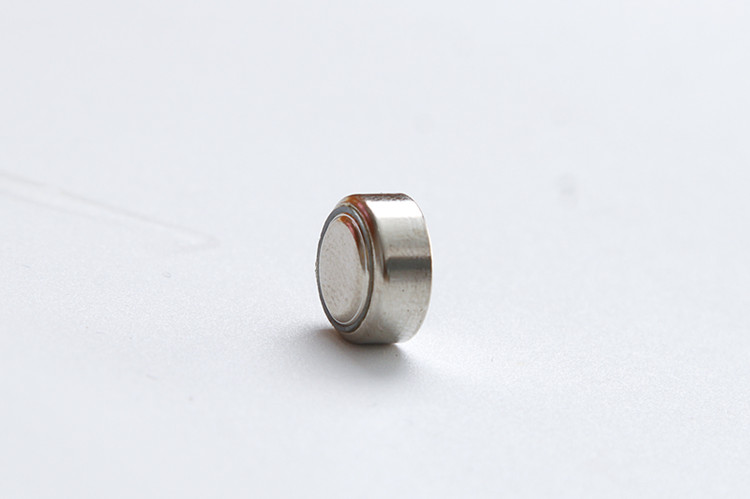

The CR1130 is a non-rechargeable primary lithium manganese dioxide coin cell with standardized dimensions of 11.0mm × 3.0mm and a fixed nominal voltage of 3.0V. Different from ordinary civilian coin batteries, the high-grade CR1130 features optimized internal formula and structural design, delivering three core performance strengths for professional scenarios.
Supporting millisecond-level instantaneous pulse current output, the CR1130 maintains steady voltage without severe sag during signal transmission. It ensures consistent and sensitive signal response for wireless devices, avoiding remote control failure and intermittent signal disconnection caused by insufficient battery load capacity.
With an annual self-discharge rate below 1% and a maximum shelf life of 10 years, the battery retains over 80% residual capacity after long-term storage. It supports multi-year unattended standby operation of equipment, perfectly matching the low-consumption and long-working-cycle characteristics of backup power and passive sensing devices.
The CR1130 maintains a stable 3.0V voltage output throughout most of the discharge cycle, with no sudden voltage attenuation. It works reliably in the temperature range of -20℃ to 60℃, adapting to complex indoor, outdoor and vehicle working environments, effectively preventing equipment failure caused by temperature changes.
Remote controls for household appliances, slim car key fobs, and smart device transmitters rely on intermittent pulse signal transmission, which highly requires battery instantaneous load capacity. The high-performance CR1130 provides stable pulse current output, ensuring long-distance and sensitive signal emission. Compared with ordinary batteries, it extends the service life of remote control devices by 30%–50%, eliminating frequent replacement troubles and ineffective signal issues.
Passive and semi-passive RFID tags, warehouse identification labels, and miniature wireless sensors need long-term standby power and occasional data transmission. The ultra-low self-discharge feature of CR1130 enables these devices to work continuously for 3–6 years without power failure. Its compact size fits ultra-thin tag structures perfectly, making it the preferred supporting power source for industrial low-power IoT sensing equipment.
Industrial control motherboards, computer mainboards and precision instrument circuits require stable backup power to protect clock data and system parameters during power outages. The CR1130 delivers constant voltage standby power for a long time, effectively avoiding data loss, system time deviation and circuit reset failure. Its excellent long-term stability meets the high-reliability power supply requirements of industrial precision circuits.
For industrial procurement and equipment maintenance, CR1130 supports multiple fully interchangeable equivalent models, including DL1130, ECR1130 and KCR1130. These alternatives feature identical size, voltage and discharge performance, enabling direct replacement without circuit modification.
It is worth noting that BR1130 is only suitable for ultra-static backup scenarios and cannot replace CR1130 for pulse signal devices such as remote controls and RFID transmitters. In addition, look-alike batteries including CR1116 and CR1125 have inconsistent thickness, which will cause poor contact and equipment instability, and are not allowed for substitution.
In addition to standard bare batteries, the CR1130 can be customized with nickel-plated tabs for PCB soldering. The tabbed CR1130 cancels the need for battery holders, saving internal space for miniaturized equipment and improving the overall structural stability of finished products. It is widely used in mass production of remote control accessories, RFID modules and industrial control circuit boards, providing standardized and reliable integrated power solutions for OEM and ODM manufacturers.
With stable pulse performance, ultra-long standby life and wide environmental adaptability, the high-performance CR1130 coin battery fully meets the professional power supply needs of remote control equipment, RFID identification systems and motherboard backup circuits. It is a cost-effective and reliable miniature power solution for consumer electronics, industrial IoT and intelligent control equipment, and has become a mainstream preferred battery for low-power miniature electronic systems.
