How to Choose CR Lithium-Manganese Button Batteries: A Complete Guide

CR lithium-manganese button batteries are the most common miniature power sources for car keys, computer motherboards, smart home sensors, medical devices and portable electronics. Although they look similar in appearance, different CR models vary greatly in size, capacity and endurance. Choosing the wrong battery will cause poor contact, short service life, device malfunction or even circuit damage. For most users and electronics practitioners, selecting the right CR battery is a simple but critical skill. This article systematically teaches you how to choose a suitable CR lithium-manganese button battery according to equipment requirements, covering model rules, core differences, scenario matching and common selection mistakes.

1. First Understand CR Battery Naming & Size Rules

All CR series batteries follow unified international standards. Before selection, you need to master the coding logic, which is the most basic reference for matching batteries:

CR stands for lithium-manganese dioxide round primary battery with a fixed nominal voltage of 3.0V.

Four-digit number indicates physical size:

First two digits = battery diameter (mm);

Last two digits = battery thickness (0.1mm).

Among all specifications, CR2032, CR2025 and CR2016 are the only three mainstream universal models. All of them share the same 20mm diameter and 3.0V voltage, and the only difference is thickness and capacity. This also explains why they cannot be universally replaced in most devices.

2. Core Parameters & Application Differences of Mainstream Models

The difference in thickness directly determines battery capacity, endurance and applicable equipment thickness. Here is the clear matching logic for selection:

CR2032 (20mm × 3.2mm / 220mAh)

It is the thickest and highest-capacity model in the 20mm series. Featuring the longest endurance and strongest load stability, CR2032 has the widest compatibility. It is the preferred choice for equipment with standard battery slots and long standby requirements.

Best for: Computer motherboards, car remote keys, electronic scales, blood pressure monitors, smart door locks, and sensors with relatively high power consumption.

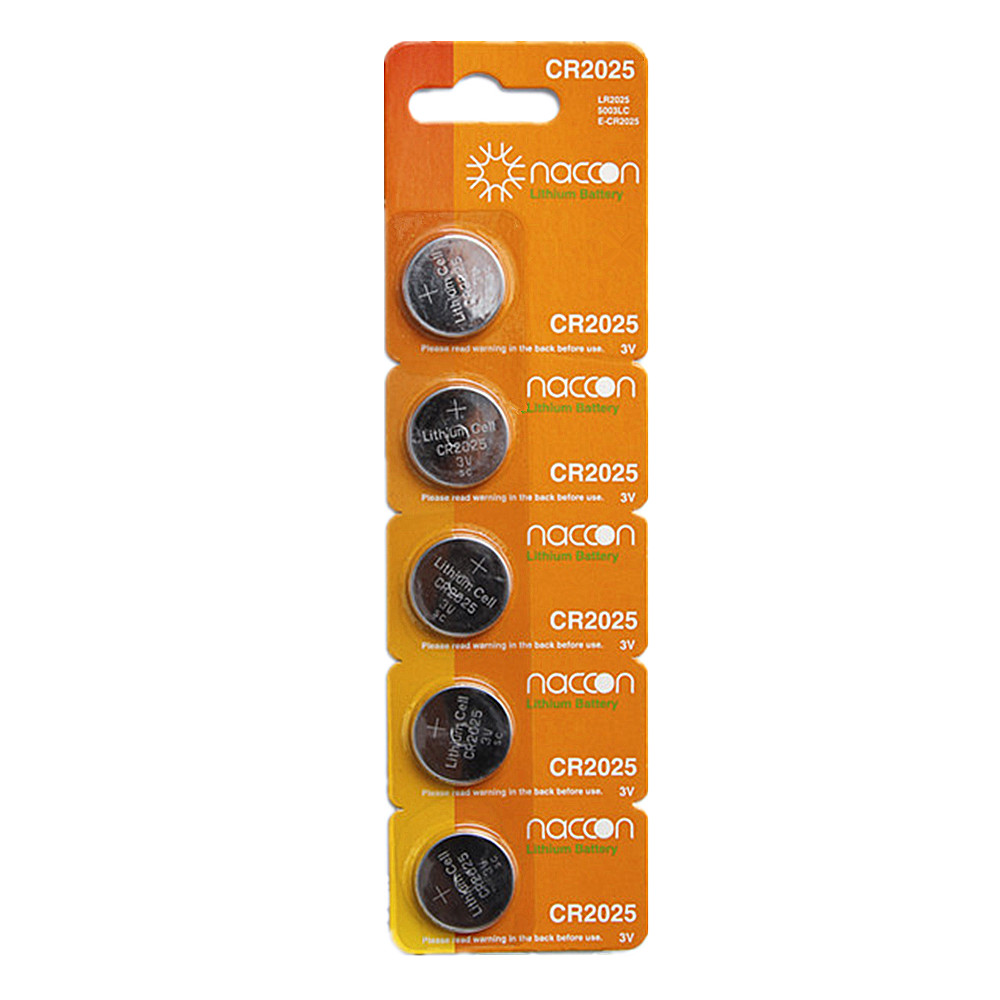

CR2025 (20mm × 2.5mm / 170mAh)

With a medium thickness and balanced capacity, this model is designed for slim electronic products with limited internal space. It offers moderate endurance while meeting lightweight and thin-design needs.

Best for: Thin remote controls, portable medical devices, slim wearable gadgets and lightweight smart home sensors.

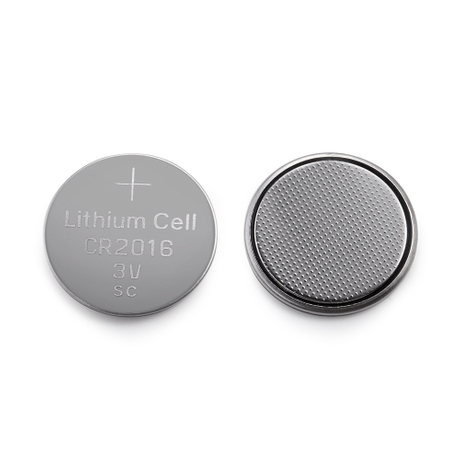

CR2016 (20mm × 1.6mm / 90mAh)

As the thinnest and smallest-capacity model, it is mainly used for ultra-thin mini devices with low power consumption and no high requirement for long standby time.

Best for: Ultra-thin car keys, mini timing devices, micro wireless sensors and compact precision modules.

3. Four Core Principles for CR Battery Selection

3.1 Prioritize Size Matching (Most Important)

CR battery selection follows the core rule:size first, capacity second. Even if the voltage is the same, different thicknesses cannot be interchanged. A thicker battery cannot fit into a thin battery compartment, while a thinner battery will cause loose contact, power intermittence and signal instability. Always select the model consistent with the original battery size or equipment battery compartment specification.

3.2 Match According to Equipment Voltage Requirements

All CR batteries output a stable 3.0V voltage. If your device officially requires a 3.0V lithium button battery, you must choose a CR series battery. Do not replace it with 1.5V alkaline batteries or 1.55V silver oxide batteries, which will cause startup failure and abnormal operation.

3.3 Select Capacity According to Standby Duration

For devices that require multi-year standby and low maintenance frequency, such as motherboard backup power and vehicle sensors, choose the high-capacity CR2032 for longer service life. For frequently replaced portable devices and thin mini equipment, CR2025 and CR2016 are more space-saving and cost-effective.

3.4 Select According to Working Environment

CR batteries feature wide temperature resistance from -20°C to +60°C. For vehicle-mounted, outdoor and high-low temperature alternating scenarios, qualified industrial-grade CR lithium-manganese batteries are preferred, thanks to their stable discharge performance in complex environments.

4. Common Selection Mistakes to Avoid

Many device failures are caused by incorrect battery selection. Avoid these typical mistakes:

• Blind replacement of different models: Using CR2032, CR2025 and CR2016 interchangeably, resulting in poor contact or structural extrusion;

• Mixing different battery types: Replacing CR 3.0V lithium batteries with alkaline batteries, leading to insufficient operating voltage;

• Ignoring batch consistency: Mixing old and new batteries or batteries of different brands, causing unbalanced discharge and accelerated aging;

• Overlooking quality: Choosing low-quality batteries with unqualified sealing, which easily causes liquid leakage and corrodes precision circuits.

5. Bonus: Usage Tips After Correct Selection

After selecting the correct CR battery model, standardized use can maximize performance and service life:

1. CR batteries are non-rechargeable primary cells. Never charge, disassemble or short-circuit them.

2. Replace all batteries in the device at the same time to avoid new-old mixed use.

3. Store spare batteries in a cool and dry environment to maintain their 8–10 year long shelf life.

Conclusion

Choosing a suitable CR lithium-manganese button battery is not complicated. Users only need to confirm the equipment battery compartment size, operating voltage and usage scenarios to quickly lock the correct model. CR2032 is the universal high-endurance option, CR2025 is the balanced slim option, and CR2016 is the ultra-thin mini option. Correct model selection can ensure stable device operation, avoid hidden safety hazards, and extend the service life of both batteries and electronic equipment.
