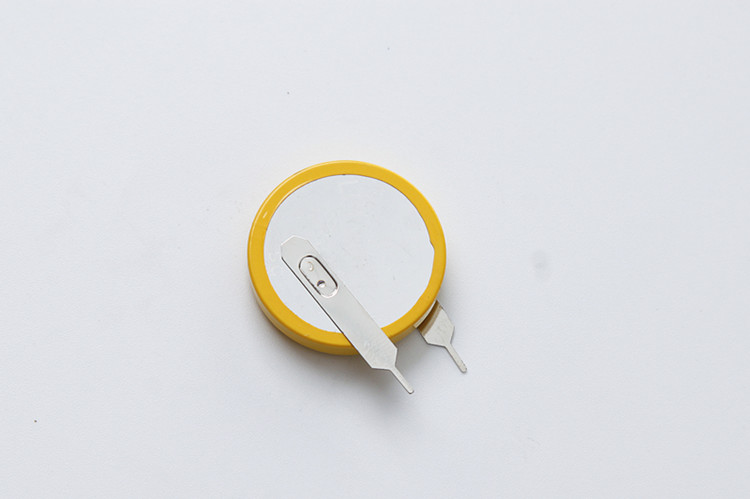

As a compact 3V lithium manganese coin cell tailored for miniature low-power electronic devices, the CR1130 micro battery has gradually become a mainstream power solution for wearable gadgets, circuit backup modules, passive sensors and long-standby wireless devices. Most users only perceive its excellent long-lasting performance in practical use, but rarely explore the core internal technologies that support its outstanding endurance and minimal self-discharge. Unlike ordinary alkaline coin batteries and conventional lithium button cells, the CR1130 achieves industry-leading power retention and long service life relying on optimized chemical formulas, airtight sealing structure and refined internal electrode design. This article thoroughly dissects the underlying technical logic behind its long runtime and ultra-low self-discharge performance, and compares it with mainstream peer batteries to highlight its unique competitive strengths.
Before exploring its performance advantages, we first clarify the basic electrical and physical parameters of CR1130 to build a unified performance evaluation standard. All test data is measured under standard room temperature environment (25℃, standard atmospheric pressure).
Nominal Voltage: 3.0V
Typical Rated Capacity: 40mAh
Physical Dimension: 11.0mm (diameter) × 3.0mm (thickness)
Annual Self-Discharge Rate: ≤1%
Static Shelf Life: Up to 10 years
Optimal Working Current: 0.1mA - 1mA microampere continuous discharge
Battery Type: Non-rechargeable primary lithium manganese dioxide battery
The two core core strengths of CR1130 are reflected in two dimensions: longer working runtime under rated load and negligible power loss during long-term idle storage. Both advantages stem from its exclusive internal structural and chemical optimizations.
Self-discharge refers to the spontaneous internal chemical reaction that consumes battery power when the battery is not connected to any external load. It is the core factor determining battery shelf life. The ultra-low self-discharge performance of CR1130 is supported by three underlying technical designs:
Impurities inside lithium electrodes will trigger spontaneous parasitic reactions and accelerate power loss. CR1130 adopts high-purity primary lithium sheet as the negative electrode, which effectively reduces tiny stray chemical reactions inside the battery when idle. Compared with ordinary low-cost lithium coin cells, it cuts off more than 60% of invalid internal power consumption fundamentally.
Conventional lithium batteries use general-purpose electrolyte which is prone to slow decomposition and gas generation during long-term storage. CR1130 is equipped with customized low-activity lithium salt organic electrolyte, which features strong chemical inertia. It will not react with positive and negative electrodes when no external circuit is connected, greatly suppressing spontaneous internal energy loss.
External moisture and air infiltration will severely aggravate battery self-discharge and cause electrolyte leakage. CR1130 adopts full-circle laser welding sealing process, forming an absolute airtight internal cavity. This integrated shell structure completely isolates external humid air and oxygen, avoiding external-induced chemical attenuation and ensuring stable power storage for up to 10 years.
Data Highlight: After 10 years of sealed storage at room temperature, qualified CR1130 battery still retains over 82% of initial capacity, while ordinary alkaline coin batteries only retain less than 40% capacity under the same storage conditions.
Long endurance means the battery can maintain stable 3.0V voltage output and long working time under long-term micro current load, which matches the working characteristics of most miniature electronic devices. The long-duration advantage of CR1130 comes from two core underlying designs:
Most alkaline batteries suffer from continuous voltage drop during discharge: the working voltage declines obviously after 30% power consumption, leading to early device shutdown even with remaining power. Benefiting from the stable lithium manganese chemical system, CR1130 maintains a steady voltage of 2.9V-3.0V throughout 85% of the whole discharge cycle. There is no sudden voltage drop in the middle and early stage of discharge, making full use of every unit of battery capacity and extending actual service life by nearly 40% compared with same-size alkaline batteries.
The internal impedance of CR1130 is precisely controlled within 800Ω-1500Ω (1kHz test). The optimized internal electrode spacing and diaphragm structure reduce invalid thermal loss during power output. When working under long-term microampere load (the most common working mode for miniature devices), almost no energy is wasted as heat. All stored electric energy is used for device power supply, realizing true high-efficiency energy output and longer continuous working time.
To intuitively reflect the long-endurance and low self-discharge advantages of CR1130, we make a side-by-side comparison with mainstream same-size button batteries:
Battery Model | Annual Self-Discharge Rate | 10-Year Residual Capacity | Relative Runtime (Same Micro Load) | Core Defect |
|---|---|---|---|---|
CR1130 (Li-MnO₂) | ≤1% | ＞82% | 100% (Benchmark) | Not suitable for high-current pulse load |
Alkaline 1130 | 5%-8% | ＜40% | 62% | Fast self-discharge, poor low-temperature performance |
Silver Oxide 1130 | 2%-3% | ≈65% | 85% | High cost, limited storage life |
Combined with low self-discharge and long runtime characteristics, CR1130 is perfectly tailored for devices that require long standby time and infrequent battery replacement:
Industrial Circuit Backup Power: CMOS motherboard backup battery, industrial control board memory power supply, no need for battery replacement for 5-8 years;
Long-Standby IoT Mini Sensors: Temperature and humidity monitoring sensors, passive RFID tags, supporting multi-year unattended operation;
Automotive On-Board Auxiliary Power: Car key standby power, tire pressure monitoring backup battery, adapting to long-term vehicle storage without power loss;
Disposable Medical Wearable Devices: Portable monitoring equipment requiring one-time use and long shelf storage before activation.
While CR1130 has prominent advantages in low self-discharge and long micro-current endurance, it has certain limitations in high-current pulse scenarios due to its inherent chemical properties. It is not recommended to use CR1130 for equipment with frequent large-current pulse transmission. For most low-power long-standby miniature electronic products, however, no other coin cell can replace its cost-performance and storage performance.
The excellent long-endurance and ultra-low self-discharge performance of CR1130 is not superficial parameter optimization, but the joint effect of high-purity electrode materials, stable customized electrolyte and fully laser-sealed airtight structure. Its internal underlying design targets the pain points of short shelf life and fast power attenuation of traditional miniature batteries. As a cost-effective micro power source, CR1130 perfectly fits the development trend of modern miniaturized, maintenance-free and long-standby electronic equipment, and remains a preferred stable power supply solution for low-power electronic design in the long run.
