When designing power solutions for ultra-thin smart wearables and high-precision miniature instruments, battery shelf life and long-term standby stability are always core evaluation indicators, far more important than peak discharge capacity. Among all ultra-thin 3V coin cells, the low self-discharge CR1025 lithium manganese battery has become the mainstream standard power source for such high-end devices.

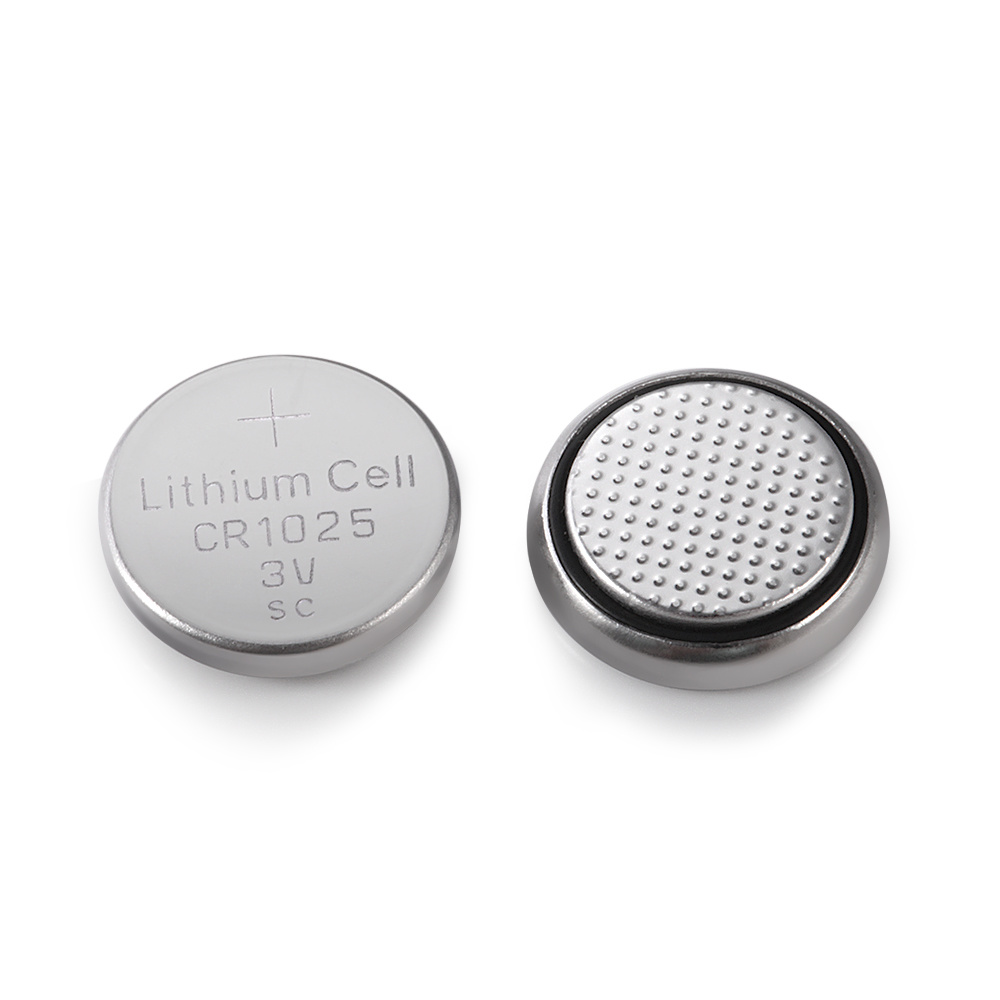

Many engineers and buyers only know CR1025 features an ultra-slim 10mm×2.5mm compact size, but ignore its core competitive advantage — ultra-low self-discharge performance. This article focuses on the low self-discharge technology of upgraded CR1025 batteries, explains its working mechanism, core performance advantages, and analyzes why smart wearables and precision instruments unanimously choose this battery over ordinary alkaline coin cells and standard lithium button cells.
Self-discharge refers to the natural power loss of a battery when it is not connected to any load and stays in idle standby status. All batteries will consume internal active materials spontaneously due to unavoidable internal chemical side reactions, even without powering any electronic devices.
High self-discharge means batteries run out of power quickly during long-term storage or standby, leading to two common industrial pain points: finished products fail after long inventory storage, and precision instruments shut down unexpectedly during long-time static standby. This is why ordinary coin batteries cannot meet the strict requirements of smart wearables and precision testing equipment.
Compared with ordinary generic CR1025 batteries, low self-discharge CR1025 adopts optimized internal material formulas and sealed manufacturing processes to restrain internal spontaneous chemical reactions fundamentally:
Impurities in electrolyte are the main cause of internal side reactions. Low self-discharge CR1025 uses high-purity anhydrous organic electrolyte with zero extra conductive impurities, which greatly reduces invalid ion migration inside the battery during idle state and cuts spontaneous power loss.
Equipped with thickened anti-corrosion stainless steel shell and high-density insulating sealing gasket, this battery achieves full airtight isolation from external air and moisture. External moisture penetration is completely blocked, avoiding extra chemical reactions triggered by humid environment.
Both anode lithium sheet and cathode manganese dioxide pellets adopt smooth surface passivation treatment, which inhibits surface micro-corrosion when the battery is idle, further reducing natural energy consumption without affecting normal discharge efficiency during operation.
Performance Item |
Low Self-Discharge CR1025 |
Standard Ordinary CR1025 |
Alkaline Button Battery (1.5V) |
|---|---|---|---|
Annual Self-Discharge Rate |
≤0.5% per year |
≤1% per year |
8%~15% per year |
Remaining Capacity After 5-year Storage |
≥97% |
≥90% |
≤55% |
Total Shelf Life |
8 years |
5 years |
2 years |
Standby Life for Static Instruments |
6~7 years |
4~5 years |
1~1.5 years |
Core Advantage: The upgraded low self-discharge CR1025 keeps more than 97% original power after 5 years of sealed storage, almost no power attenuation, which is far superior to ordinary button batteries on the market.
Most ultra-thin smart wearables feature long static standby + intermittent pulse data collection, which perfectly matches the working characteristics of low self-discharge CR1025:
Ultra-slim pedometers, lightweight wearable motion sensors and mini fitness tags stay in low-power sleep mode for over 95% of the time, only waking up briefly to collect data. Low self-discharge design ensures the battery will not drain itself during long sleep standby, greatly extending the overall battery replacement cycle of wearable devices.
With only 10mm diameter and 2.5mm thickness, CR1025 fits the ultra-flat inner cavity of wearable products without increasing product thickness or weight, optimizing wearing comfort while ensuring stable power supply.
Besides low power loss, this battery maintains a flat 2.7V-3.0V voltage platform during long-term standby and intermittent discharge, avoiding data deviation caused by voltage fluctuation of wearable sensing chips.
Precision industrial instruments and medical miniature testing devices have extremely strict requirements for battery stability and long-term standby performance, leaving no tolerance for spontaneous power loss:
Most precision instruments adopt CR1025 as backup power for clock modules and data storage chips. Instruments may be idle for months or years during storage and transportation. Low self-discharge performance guarantees no data loss or clock stop caused by battery self-discharge, ensuring instrument data consistency after long-term placement.
Tiny voltage fluctuation will lead to detection error of precision measuring equipment. Thanks to stable internal chemical state and minimal side reactions, low self-discharge CR1025 has nearly zero open-circuit voltage drift during long standby, meeting high-precision power supply standards.
For industrial batch instruments, frequent battery replacement means high maintenance labor costs. The 8-year long shelf life cuts after-sales battery replacement frequency greatly, which is very suitable for industrial equipment that requires long-term unattended operation.
Excellent Wide-Temperature Adaptability: Works stably from -20℃ to +60℃, adapting to indoor use of wearables and variable-temperature working environment of industrial instruments.
Mature Anti-Leakage Process: Long-term sealed storage will not cause electrolyte leakage, protecting delicate circuit boards inside precision devices.
Perfect Pulse Discharge Capability: Fast voltage recovery after short pulse discharge, matching periodic signal wake-up working mode of smart devices.
The core competitiveness of low self-discharge CR1025 is not higher capacity, but ultra-low spontaneous power loss and long-term stable voltage output. Benefiting from optimized electrolyte formula, enhanced sealing structure and electrode passivation technology, it achieves an annual self-discharge rate lower than 0.5% and an 8-year ultra-long shelf life.
For smart wearables dominated by long standby and intermittent work, as well as precision instruments requiring zero-drift backup power, ordinary coin batteries cannot meet long-term stability demands. That is why low self-discharge CR1025 has become the preferred dedicated power supply for these two high-end electronic fields. For product designers and purchasers focusing on long-term standby reliability, upgraded low self-discharge CR1025 is the most cost-effective and reliable power selection solution.
