The CR927 3V lithium manganese dioxide coin battery is a standard ultra-thin power source widely used in miniature low-power electronic devices. For most users, battery replacement is the most frequent daily operation. However, incorrect model selection, improper installation, non-standard use and wrong storage methods often lead to device failure, shortened service life, electrolyte leakage and even potential safety hazards. This complete CR927 user manual systematically organizes official specifications, compatibility rules, step-by-step replacement procedures, daily usage standards and safety guidelines, serving as a one-stop reference for all CR927 battery replacement and maintenance operations.
All commercially available qualified CR927 batteries comply with IEC international industrial standards with unified and fixed core parameters, which are the fundamental criteria for model matching and normal use:

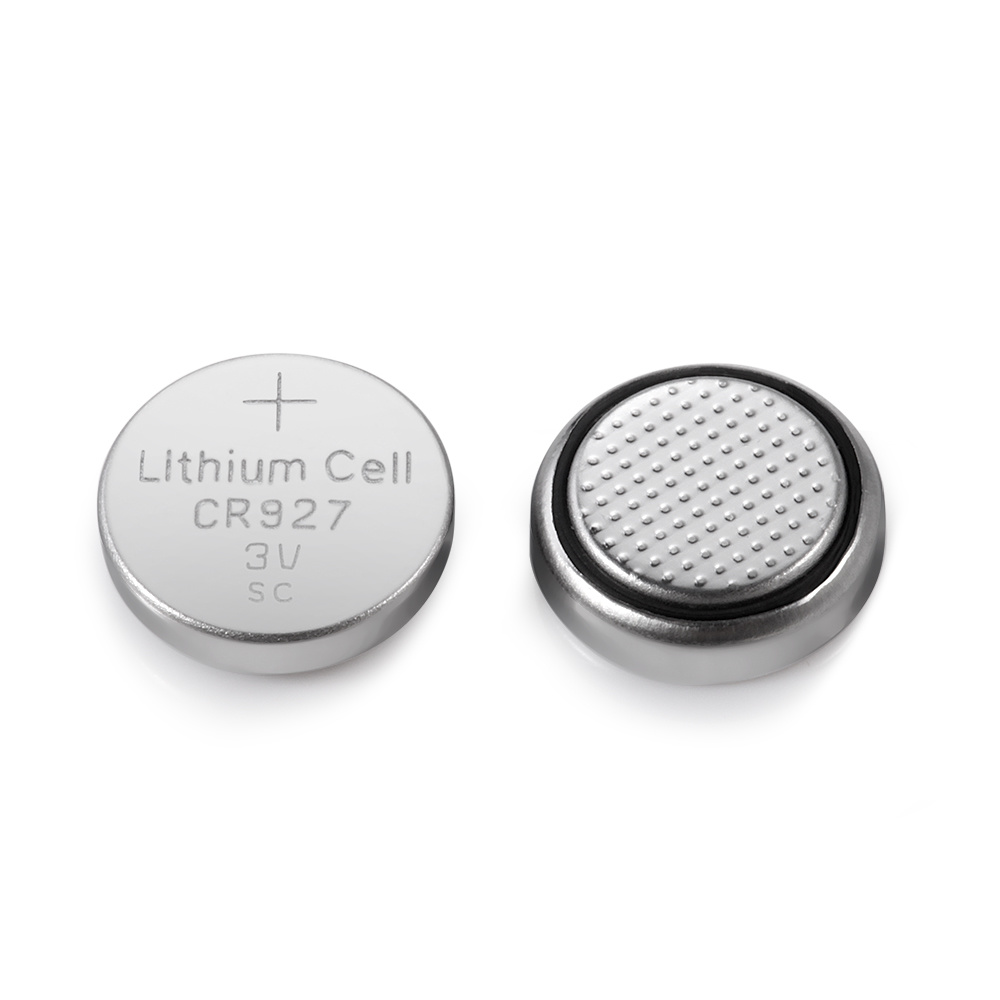

Battery Model: CR927 Lithium Manganese Dioxide Coin Cell
Rated Voltage: 3.0V (stable flat discharge voltage)
Typical Capacity: 30mAh
Physical Size: 9.5mm diameter × 2.7mm thickness
Battery Type: Non-rechargeable primary battery
Operating Temperature: -20°C to +60°C
Annual Self-Discharge Rate: ≤2%
Maximum Shelf Life: Up to 10 years (dry and room-temperature storage)
It is critical to note that the CR927 is a disposable primary battery. Recharging is prohibited by design, and it is exclusively suitable for low-current, long-standby miniature devices instead of high-power discharge equipment.
Model mismatch is the primary cause of replacement failure and device damage. Users must strictly follow the compatibility rules below during battery replacement.
The CR927 has a unique ultra-thin size with no cross-model or cross-size alternatives on the market. Only batteries that fully meet the following three conditions can be used for replacement: 3.0V rated voltage, 9.5×2.7mm standard size, and lithium manganese dioxide primary battery structure. Brand-certified equivalent CR927 batteries are fully interchangeable with original batteries with no performance difference.
1.5V LR-series alkaline batteries: Different voltage and chemical system, unable to drive precision devices and likely to cause circuit damage.
Other 3V CR batteries: Including CR2032, CR2025, CR1220 and CR1632. Different diameters and thicknesses make physical installation impossible.
Rechargeable coin batteries: Mismatched discharge curves and internal structures will affect device accuracy and trigger safety risks.
Standard replacement steps ensure smooth installation, stable power conduction and extended device service life:
Step 1: Power off the device – Turn off the electronic device completely before replacement to avoid short circuits or circuit impact during battery swapping.
Step 2: Open the battery compartment – Gently open the battery cover according to the device instructions, avoiding excessive force that may damage the shell or internal shrapnel.
Step 3: Remove the old battery – Take out the exhausted battery carefully and check for white powder, liquid residue or rust inside the compartment. If dirt or oxidation exists, clean the metal contacts with a dry soft cloth.
Step 4: Install the new battery correctly – Align the positive (+) and negative (-) poles strictly with the compartment marks. The positive side usually faces upward. Never reverse the polarity.
Step 5: Close and test the device – Fasten the battery cover tightly, power on the device, and verify normal startup, signal and functional operation to confirm successful replacement.
Correct daily use and routine maintenance can maximize CR927 battery performance and service life while avoiding equipment failure:
Avoid long-term idle placement of dead batteries: Remove exhausted batteries in a timely manner. Residual electrolyte in expired batteries may leak and corrode circuit boards, causing permanent device damage.
Follow scenario usage limits: The CR927 is designed for low-current standby scenarios such as smart wearables, precision sensors, mini remote controls and measuring instruments. Do not apply it to high-power devices to prevent rapid power depletion and abnormal discharge.
Keep contact points clean: Dust, oxidation and stains on metal shrapnels will increase resistance, cause poor conduction and lead to unstable power supply. Regular cleaning is recommended.
Control storage environment: Store spare batteries in a cool, dry and ventilated place. Avoid high temperature, humidity, direct sunlight and extruded storage.
Even as a low-power miniature battery, non-standard operation of CR927 may lead to safety hazards. All users must comply with the following safety rules:
Forbid charging: CR927 is a disposable primary battery. Forced charging will cause internal chemical disorder, resulting in bulging, leakage, overheating or even combustion risks.
Prevent short circuits: Do not let the battery’s positive and negative poles contact metal items such as keys, coins and wires, which will cause short circuits and instant high temperature.
No disassembly or piercing: Do not disassemble, cut or pierce the battery shell to prevent leakage of corrosive electrolyte and internal chemical overflow.
Children safety protection: The tiny battery size poses a choking hazard. Keep CR927 batteries out of the reach of infants and young children.
Standard waste disposal: Waste batteries must be recycled through professional environmental channels instead of random discarding to avoid soil and water pollution.
Device fails to start after replacement: Check for reversed polarity, dirty contacts or incorrect battery model.
Short battery life: Confirm no high-power misuse, and check whether the battery is expired or stored for too long.
Battery leakage: Caused by long-term placement of dead batteries or high-temperature storage; replace the battery and clean the compartment immediately.
The CR927 battery is a compact, stable and long-life miniature power source for ultra-thin low-power electronic devices. Mastering its standard parameters, compatibility rules, standardized replacement steps, daily maintenance and safety specifications is a necessary skill for all device users. This complete user manual covers all core operation guidelines. Strictly following these rules can ensure stable device operation, extend battery service life, reduce maintenance costs and effectively avoid various equipment failures and potential safety risks caused by irregular replacement and use.
