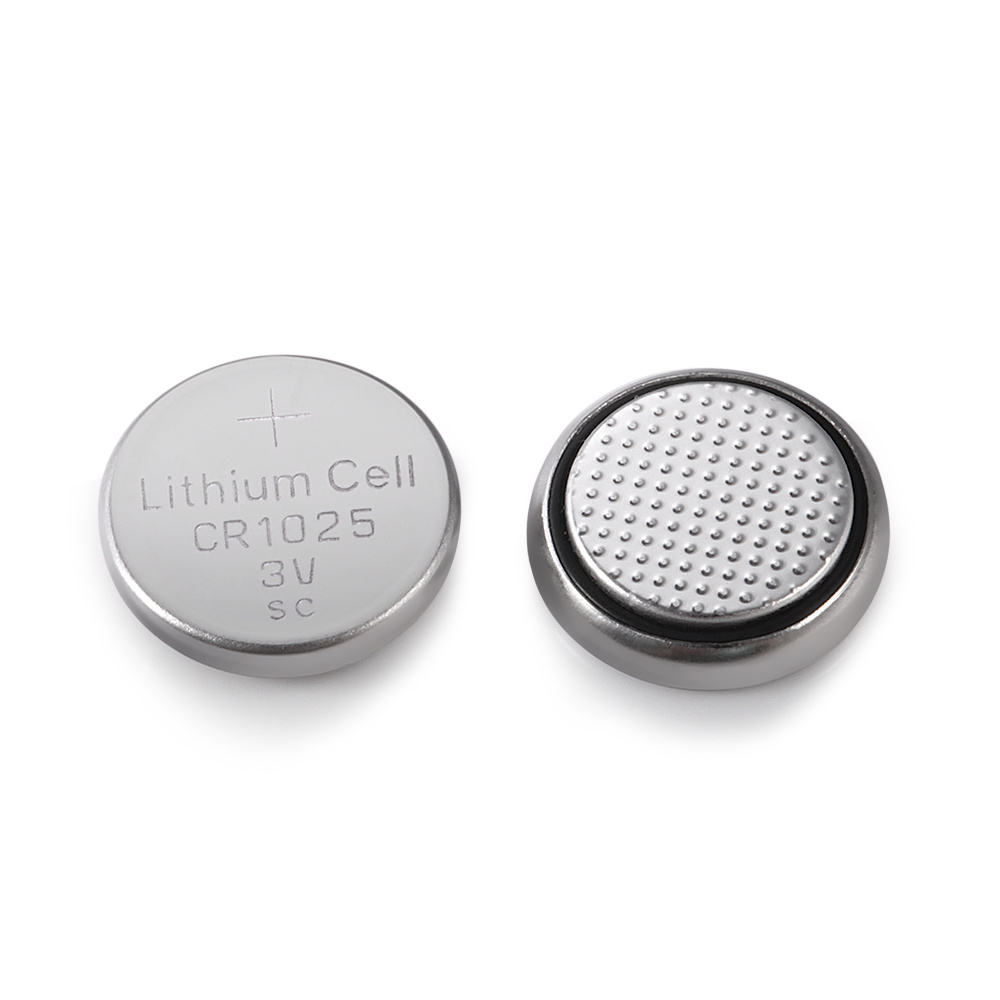

The CR1025 is an ultra-thin 3V lithium manganese dioxide primary coin cell with standard dimensions of 10 mm diameter × 2.5 mm thickness. Widely applied in miniature low-power precision electronics, its core competitiveness lies in ultra-long storage retention, stable discharge across varying ambient temperatures, and mature anti-leakage sealing design. This technical article systematically elaborates on its storage life principle, wide-temperature discharge characteristics, and professional leak-proof manufacturing processes, providing technical reference for electronic engineers, product purchasers and battery matching design.
CR1025 adopts lithium metal as the anode and manganese dioxide (MnO₂) as the cathode, forming a chemically stable Li-MnO₂ electrochemical system. Internal spontaneous side reactions are greatly restrained, delivering an extremely low annual self-discharge rate of less than 1% under room-temperature dry storage (20–25℃). Unlike silver oxide alkaline button cells with obvious power attenuation, CR1025 hardly consumes internal active materials during idle storage.
Standard industrial grade: Up to 5 years of valid shelf life, retaining over 90% original residual capacity after long-term stock storage
High-grade premium model: Optimized electrolyte and internal purification technology support up to 8–10 years shelf life, maintaining more than 85% initial capacity after decade-long sealed storage
High-temperature storage rule: Elevated ambient temperature accelerates self-discharge; 120 days storage at 60℃ equals approximately 6 years of room-temperature capacity loss, so high-temperature warehouse stacking shall be avoided for bulk inventory
Ideal for finished products requiring long circulation before sale, such as mini sensors, backup memory power for precision instruments, wearable accessories and small remote accessories. It eliminates after-sales failures caused by dead batteries from long-term inventory, greatly reducing after-sales maintenance costs for manufacturers.
The conventional working temperature window of CR1025 is -20℃ ~ +60℃, while upgraded wide-temperature versions can expand to -30℃ ~ +85℃ to adapt to harsher working scenarios. Its organic electrolyte features low freezing point and stable ion conductivity, avoiding severe capacity collapse seen in alkaline batteries under extreme temperature fluctuation.
At sub-zero temperatures down to -20℃, CR1025 can still output over 85% of its rated 30mAh capacity, with a smooth voltage plateau between 2.7–3.0V. It outperforms 1.5V silver oxide button cells obviously in cold outdoor equipment, cold-region monitoring sensors and vehicle-mounted auxiliary electronic parts, preventing equipment shutdown triggered by insufficient low-temperature voltage.
Within +50℃ ~ +60℃ continuous working environment, CR1025 sustains stable intermittent micro-current discharge without rapid capacity decline. It can be used for indoor high-temperature control panels and vehicle interior small electronics.
Note: Long-term exposure above 70℃ will speed up electrolyte volatilization and internal side reactions, accelerating capacity decay; for long-term high-temperature scenarios, BR1025 lithium carbon monofluoride cells with wider temperature range are recommended as alternatives.
Whether temperature rises or falls moderately, CR1025 maintains a flat discharge voltage curve without steep voltage drop, ensuring accurate signal acquisition and stable operation for precision sensing chips, timing modules and miniature detection devices.
Electrolyte leakage is the most common failure mode of ultra-thin CR1025 cells due to its thin shell structure. Qualified CR1025 relies on multi-layer structural optimization and precision crimping sealing technology to realize long-term leak prevention.
Insulating PP sealing gasket: High-compression polypropylene gasket is sandwiched between positive can and negative shell, acting as a physical barrier to block electrolyte penetration gaps, isolating internal chemicals from outside air and moisture intrusion
Precision crimping forming process: Automatic crimping equipment applies uniform circumferential pressure to bend the battery shell edge, generating plastic deformation between casing and gasket to form a hermetic airtight seal, eliminating tiny gaps that cause liquid seepage
Purified electrolyte formulation: Low volatile, high-stability electrolyte reduces internal gas generation during long storage, avoiding internal pressure buildup that pushes electrolyte out from sealing gaps
Corrosion-resistant stainless steel casing: Anti-rust shell material prevents shell perforation and leakage induced by long-term electrochemical corrosion
Unstable crimp pressure: Over-compression cracks the gasket; insufficient compression leaves sealing gaps
Impure internal raw materials: Impurities trigger continuous gas evolution, raising internal pressure to break the seal
Over-discharge use: Long-term deep depletion causes internal side reactions and gas expansion, resulting in slow leakage
Qualified leak-proof CR1025 can avoid circuit board corrosion, component damage and equipment malfunction caused by electrolyte outflow, greatly improving service reliability for sealed miniature electronic products with non-replaceable built-in batteries.
For products requiring long inventory turnover: Select low-self-discharge long-shelf-life CR1025 to guarantee power consistency after years of storage
For outdoor, vehicle-mounted and temperature-fluctuating equipment: Adopt wide-temperature customized CR1025 to ensure normal startup in cold and hot conditions
For precision instruments and sealed embedded devices: Prioritize batteries with rigorous leak-proof certification to eliminate hidden risks of liquid corrosion failure
As a classic ultra-thin 3V lithium manganese coin cell, CR1025 gains core market advantages from three prominent technical attributes: ultra-low self-discharge for multi-year storage reliability, wide-temperature adaptive discharge performance for complex environmental use, and mature precision sealing technology for effective leakage prevention. When designing power schemes for slim low-power electronics, fully evaluating its storage life, temperature adaptability and leak-proof grade can realize reasonable battery model selection, stabilize product long-term operation reliability, and cut overall failure and maintenance costs of terminal electronic equipment.
