Coin lithium batteries are essential miniature power supplies supporting countless slim electronic devices we use every day. Among the widely used 3V lithium manganese dioxide coin cell lineup, the CR1216 stands out for its ultra-thin profile, stable voltage output and long storage life. Many users frequently confuse it with CR1220 and CR1225 due to similar naming rules, leading to wrong purchases and installation failures. This article systematically explains the basic specifications, application scenarios, compatible alternatives and practical selection principles of CR1216, helping you quickly master all key points for correct matching and purchase.

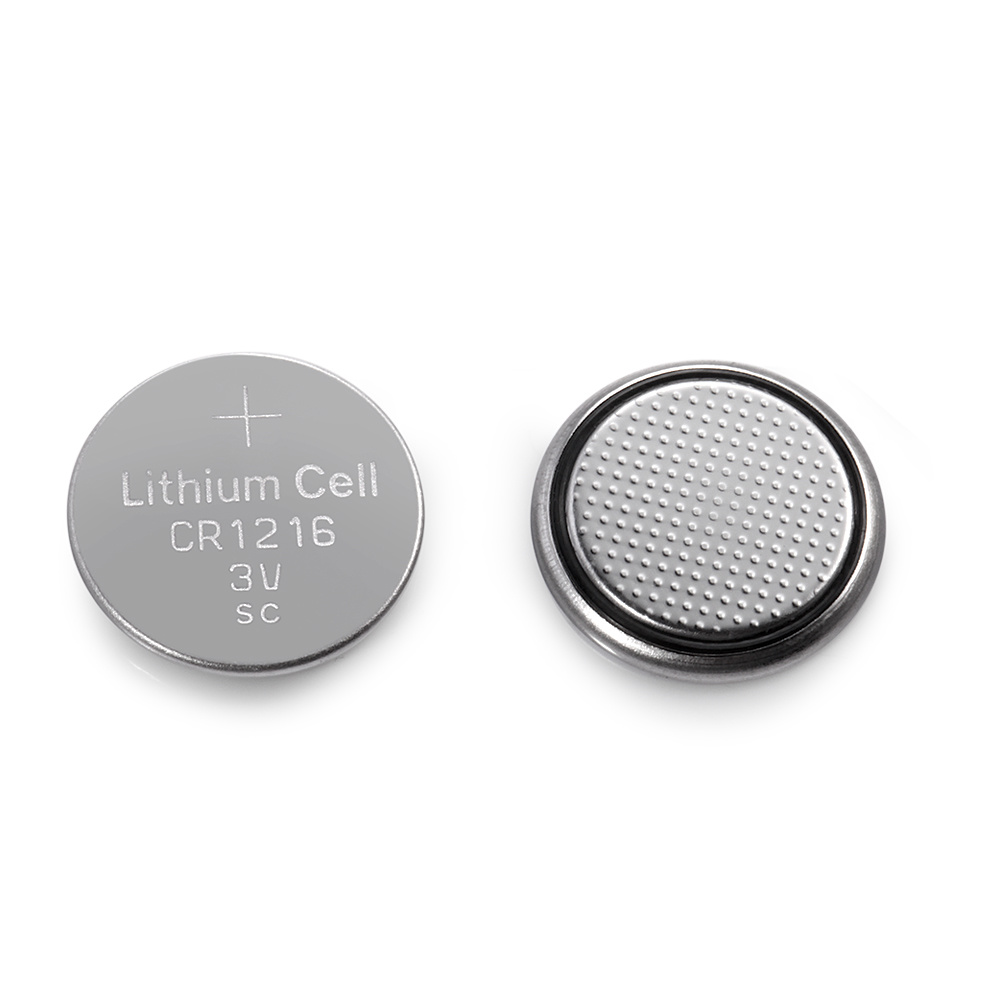

The naming rule for CR series coin batteries is easy to understand: the first two digits indicate the battery diameter in millimeters, while the last two digits represent thickness. As a non-rechargeable primary lithium manganese dioxide battery, CR1216 has fixed core parameters as follows:
Nominal Voltage: 3.0 V
Dimension: 12 mm (diameter) × 1.6 mm (thickness)
Typical Capacity: Approximately 25 mAh
Chemical System: Li/MnO₂ primary battery, non-rechargeable
Operating Temperature: -20 ℃ ~ +60 ℃, suitable for most civilian indoor and outdoor environments
Shelf Life: 5–8 years under cool and dry storage conditions, featuring ultra-low self-discharge rate
Core Advantage: Extra slim thickness, designed specially for devices with limited internal assembly height
Its biggest distinguishing feature from other 12 mm-diameter coin cells is the ultra-thin 1.6 mm thickness. Even with identical diameter, thicker models cannot fit into battery compartments customized for CR1216.
Limited by its small capacity, CR1216 is positioned for low-current, long-standby equipment instead of high-power consumption products. Its mainstream application fields are sorted below:
CR1216 is a common power source for automobile key fobs, motorcycle remote locking keys and mini tire pressure monitoring sensors. It provides stable intermittent power for signal transmission and long-term standby state.
Ultra-thin analog watches, luminous children’s watches, mini pedometers, backup power for simple smart bracelets and miniature timing modules widely adopt CR1216 to match their thin structural design requirements.
Mini electronic thermometers, pocket calculators, luminous decorative keychains, compact wireless doorbell transmitters, small indicator lights and other low-power daily gadgets often use this battery model.
It works as CMOS/BIOS backup battery for small circuit boards to save data during power outages. Besides, it supplies power for miniature infrared sensors, small alarm trigger modules and precision low-power testing instruments.
These batteries share identical size, voltage and chemical performance with CR1216, and can be replaced directly without modifying equipment structures:
DL1216: Standard alternative version launched by mainstream battery manufacturers, fully compatible with CR1216
BR1216: Wide-temperature type coin cell, delivering more stable discharge performance under extreme high and low temperatures, ideal for devices with strict environmental adaptability requirements
These cells have the same 12 mm diameter but different thickness, resulting in poor contact or failed installation, so they cannot replace CR1216:
CR1220: 12 mm diameter, 2.0 mm thickness, thicker than CR1216, unable to be installed in ultra-thin battery slots
CR1225: 12 mm diameter, 2.5 mm thickness, larger capacity but mismatched overall size, completely incompatible with CR1216 dedicated devices
Confirm the original model before buying
Check the marking printed on your old battery inside the compartment. Do not judge the model only by appearance; tiny thickness differences will cause assembly failure. Never replace CR1216 with CR1220 or CR1225 arbitrarily.
Choose regular branded products
Cheap counterfeit batteries usually have insufficient actual capacity, high self-discharge, short service life and leakage risks. Reputable branded batteries guarantee stable voltage consistency and reliable long-term storage performance.
Pay attention to production date
Lithium coin cells will slowly lose effective capacity during long-term storage. Avoid overstocked aged batteries; prefer newly produced batches to obtain longer actual service time after installation.
Inspect battery appearance and packaging
Reject batteries with deformed shells, damaged sealing layers, rust spots or electrolyte traces on the surface, which may lead to early leakage and potential safety hazards.
Install strictly according to positive (+) and negative (-) polarity marks; reversed installation will disable the device and damage internal circuits.
Never recharge CR1216, as it is a disposable primary battery. Forced charging may cause bulging, liquid leakage or even rupture.
Prevent short circuit: do not store loose batteries together with coins, keys or other metal conductors.
Keep coin batteries away from infants and pets to avoid accidental swallowing choking risks.
Dispose of exhausted batteries into special recycling bins instead of random garbage throwing for environmental protection.
As a classic ultra-thin 3V coin power supply, CR1216 fills the market demand for slim low-power electronic equipment relying on its exclusive 12 mm×1.6 mm size and stable electrical performance. When you need replacement batteries, prioritize model verification and dimensional matching, select qualified products, and follow standardized usage rules. Correct selection and application can extend battery lifespan effectively, keep electronic devices running steadily, and avoid common matching errors and safety problems.
