If you have ever encountered a dead car key fob, a stopped slim wristwatch, or a non-responsive portable blood glucose meter, the CR1220 coin cell is very likely the tiny power source you need to replace. As a versatile 3V lithium manganese coin battery, the CR1220 is widely compatible with daily portable electronics, automotive accessories, and home medical devices. It stands out for its ultra-thin body, stable voltage output, long service life, and excellent environmental adaptability. This article delivers a full-scale popular science guide to the CR1220 battery, focusing on its most common applicable devices, core specifications, working performance, replacement skills and practical usage tips for daily users.

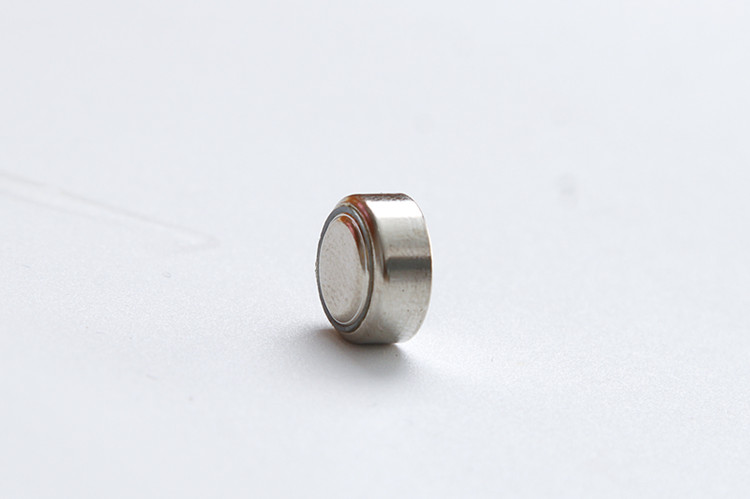

The CR1220 is a non-rechargeable 3V lithium manganese dioxide (Li-MnO₂) primary coin cell, manufactured following international IEC standard sizing rules. The model name clearly indicates its physical size: 12mm in diameter and 2.0mm in thickness. Different from thicker CR2025 and CR2032 batteries, the CR1220 features an ultra-slim profile, which allows it to fit ultra-thin device compartments that larger coin cells cannot occupy.
Despite its miniature size, it delivers a steady 3.0V operating voltage, ultra-low self-discharge rate, and up to 10 years of shelf life, making it a reliable long-term power solution for low-power daily electronic devices.
The CR1220’s most prominent advantage is its wide universality across daily-used precision devices. It serves as the factory-original battery for countless car keys, slim watches, and portable medical meters.
Many compact car remote keys and smart key standby modules adopt CR1220 batteries. Vehicle key systems require ultra-long standby time and stable pulse discharge for wireless signal emission. The CR1220’s low self-discharge performance ensures car keys can work continuously for 3 to 5 years without frequent replacement. In addition, its wide-temperature resistance allows it to adapt to extreme temperature changes inside vehicles, avoiding sudden key failure in hot summers or cold winters.
Ultra-thin fashion watches, minimalist sports watches, and small dial electronic watches rely heavily on CR1220’s slim structure. Traditional large-size coin cells are too thick to fit thin watch cases, while the 2.0mm-thick CR1220 perfectly matches slim watch design standards. It provides stable micro-current power for watch timing modules, ensuring precise timekeeping and long-term daily operation.
Household portable glucose meters and mini medical detection devices require high power stability to guarantee accurate measurement data. The CR1220 maintains a flat voltage platform throughout the discharge cycle, with almost no voltage fluctuation during intermittent startup and standby. This stable power output effectively avoids detection errors caused by unstable power supply, making it a standard battery for many portable home medical devices.
Beyond the three core scenarios, CR1220 is also widely used in electronic calipers, mini calculators, wearable health sensors, small LED indicator lights, electronic shelf labels, and low-power IoT miniature sensors. Its versatile compatibility makes it a must-have spare battery for daily household maintenance.
To help users quickly judge battery matching and service status, here are the most practical core parameters of CR1220:
Rated Voltage: 3.0V
Typical Capacity: 40mAh
Optimal Working Current: 0.01mA–0.5mA (perfect for low-power standby devices)
Max Instant Pulse Current: 10mA (supports device signal startup)
Operating Temperature: -20°C to +60°C
Shelf Life: Up to 10 years (sealed storage)
Battery Type: Non-rechargeable primary lithium battery
When replacing batteries for car keys, watches or glucose meters, multiple mainstream models are fully compatible with CR1220 with identical size and performance. The interchangeable alternatives include DL1220, ECR1220, KCR1220 and L1220. These models can be directly replaced without any device modification.
Note: Do not replace CR1220 with CR2032, CR2025 or CR1216. Different diameters or thicknesses will cause installation failure, poor contact or device damage.
Before replacement, clean the battery compartment to remove dust and oxide residues. Distinguish the positive and negative poles clearly: the bright flat side is positive (+), and the dark textured side is negative (-). Install the battery tightly to avoid loose contact that causes intermittent power failure.
Do not recharge, short-circuit, disassemble or burn the CR1220 battery to avoid safety risks.
Do not mix new and old batteries or different battery models in one device.
Avoid long-term exposure of the battery to high temperature and humid environments.
Store spare CR1220 batteries in a dry, cool and ventilated place. Sealed original packaging can effectively reduce self-discharge and maintain battery activity for years, ensuring availability for future replacement of car keys, watches and medical devices.
The CR1220 ultra-thin 3V coin cell is a highly universal daily battery, covering three mainstream scenarios: automotive key fobs, slim watches, and portable glucose meters. With stable voltage output, ultra-long standby life, wide temperature adaptability and high compatibility, it has become the preferred miniature power supply for household precision electronic devices. Understanding its basic performance, applicable equipment and replacement skills allows users to quickly solve daily power failure problems, avoid wrong purchases, and ensure the long-term stable operation of portable electronic devices.
